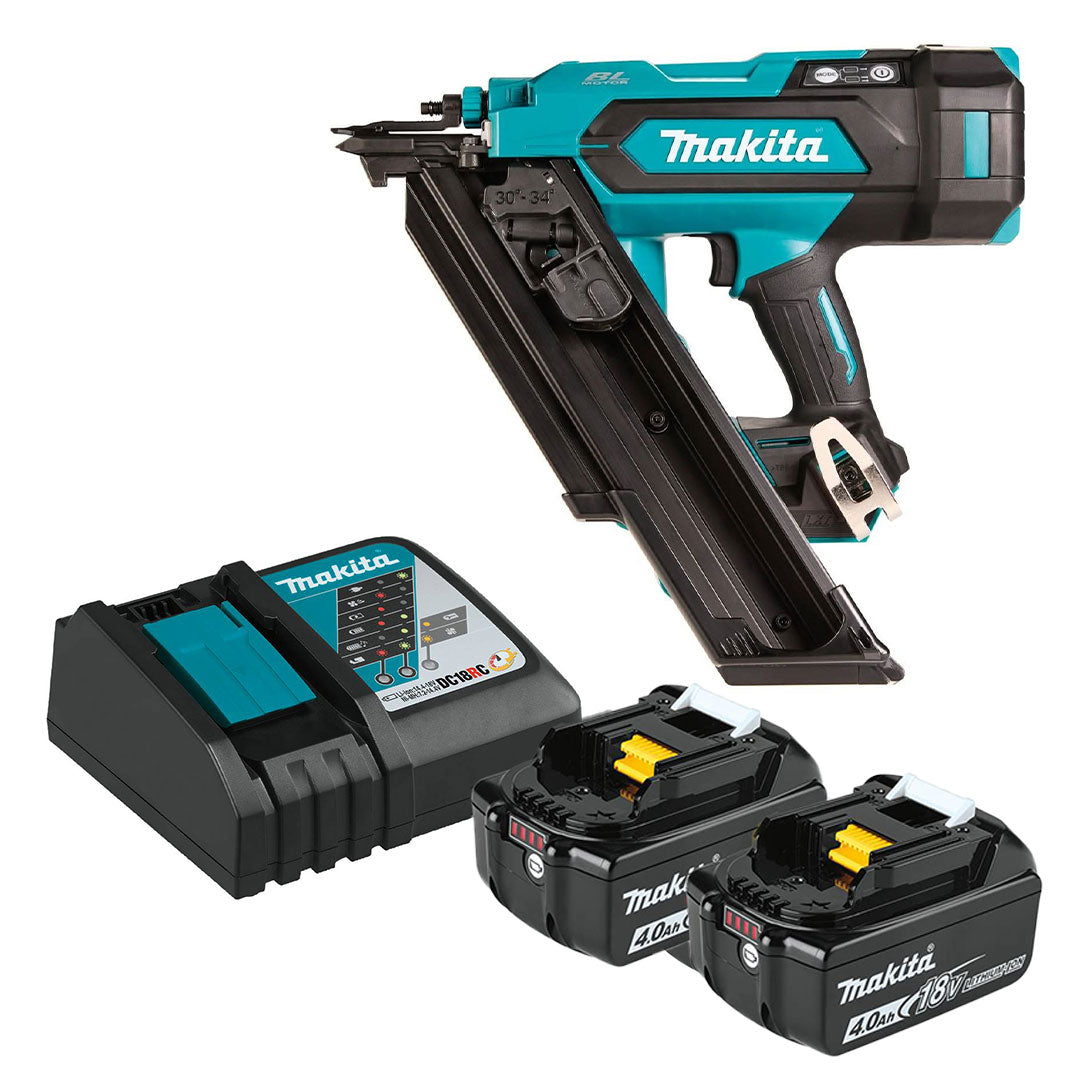

Makita XNB07Z 18V LXT Cordless 30-Degree Clipped Head 3-1/2-in. Framing Nailer w/ (2) 4.0Ah Battery and Charger
Makita XNB07Z 18V LXT Cordless 30-Degree Clipped Head 3-1/2-in. Framing Nailer w/ (2) 4.0Ah Battery and Charger
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview
This bundle pairs the Makita XNB07Z 18V LXT Brushless Cordless 30-Degree Clipped Head 3-1/2 in. Framing Nailer with the Makita BL1840BDC2X 18V LXT 4.0Ah Battery and Rapid Optimum Charger Starter Pack — two BL1840B 4.0Ah batteries and the DC18RC Rapid Optimum Charger — giving you a complete, ready-to-frame cordless nailer kit with no additional purchases required. Model Numbers: XNB07Z (framing nailer), BL1840BDC2X (starter pack).
The XNB07Z is Makita's 18V LXT cordless solution for 30-degree clipped head framing work. It drives nails from 2 in. to 3-1/2 in. and covers the fastener range that standard residential and light commercial framing demands — wall plates, headers, trimmers, cripples, blocking, and general sheathing work. Makita rates it at up to 900 nails per charge with an 18V LXT 5.0Ah battery. The brushless motor drives efficiency and performance on the LXT platform, and the spring-loaded mechanism delivers consistent nail driving force without the variability that comes with gas or pneumatic pressure fluctuations.
The two firing modes give the nailer the range to match the application. Sequential mode places one nail per trigger pull for deliberate fastening in tight or precise locations — toe-nailing, hardware installation, and locations where accidental double-fires create real problems. Contact actuation mode runs at production pace for sheathing, decking, and repetitive framing runs where speed matters more than pinpoint placement. Tool-less depth adjustment lets you tune nail set depth for different materials without stopping for a tool. Tool-less easy-clear nose speeds up jam clearing when a nail hangs up mid-run. A dry-fire lockout stops the nailer from cycling when the magazine is empty, protecting the tool and the material surface. The nail counter display shows remaining nails so you can plan reloads instead of discovering an empty magazine mid-stud.
The BL1840BDC2X starter pack turns this into a complete, ready-to-frame bundle. Two BL1840B 4.0Ah batteries and the DC18RC Rapid Optimum Charger ship together so there is nothing else to source. Each battery reaches a full charge in 40 minutes or less — fast enough that with two packs in rotation, one is typically ready before the other needs replacing. The DC18RC communicates with each battery's built-in chip throughout the charge cycle to actively control current, voltage, and temperature, protecting battery life while optimizing charge speed. The integrated LED charge level indicator on each battery lets you check remaining charge at a glance before heading up the ladder or starting the next wall. Both batteries resist self-discharge so they stay ready even after extended storage between jobs.
Star Protection Computer Controls allow the nailer and battery to exchange data in real time, helping guard against overloading, over-discharging, and overheating. The batteries are compatible only with Star Protection tools identified by the Star Symbol and/or yellow battery receiver on the tool. They also work across the entire Makita 18V LXT platform — 100+ tools — so both packs earn their keep on drills, drivers, and saws when not running the framing nailer.
Who should buy it? Framers, carpenters, remodelers, and serious DIY builders who want cordless framing nailer performance without a compressor, hose, or separate battery and charger purchase — with enough battery capacity to frame through a full day of production work.
Frame Without the Compressor
The biggest advantage of a cordless framing nailer is simple: you move through a house without dragging a hose. Wall to wall, floor to floor, inside to outside — the XNB07Z goes where you go, and the two-battery rotation in this bundle keeps it running without waiting on a charge.
- No compressor, no hose, no gas — pure 18V LXT cordless framing
- Drives 30-degree clipped head nails from 2 in. to 3-1/2 in.
- Up to 900 nails per charge with a 5.0Ah battery
- Two 4.0Ah batteries — one in the nailer, one charging — for continuous framing
- 40-minute charge time with included DC18RC Rapid Optimum Charger
Built for Production Framing and Precise Placement
Two firing modes, tool-less adjustments, and a nail counter display make this nailer practical across both production runs and precise single-nail applications — and the LED charge indicator on each battery means you always know where your power stands before starting the next wall.
- Sequential and contact actuation modes for precise or production-pace nailing
- Tool-less depth adjustment for nail set tuning without stopping for a tool
- Tool-less easy-clear nose for fast jam clearing mid-run
- Dry-fire lockout prevents cycling on an empty magazine
- Nail counter display shows remaining nails for planned reloads
- LED charge indicator on each 4.0Ah battery — check before the next run
What's in the Box
- (1) Makita XNB07Z 18V LXT Brushless Cordless 30-Degree Clipped Head 3-1/2 in. Framing Nailer
- (1) Belt Hook
- (2) Makita BL1840B 18V LXT 4.0Ah Lithium-Ion Batteries
- (1) Makita DC18RC 18V LXT Rapid Optimum Charger
Framing nails are not included. This bundle includes the nailer, two 4.0Ah batteries, and the Rapid Optimum Charger — no additional purchases needed to start framing.
Key Specifications
| Nailer Type | Framing Nailer |
|---|---|
| Nail Angle | 30 degrees |
| Nail Head Type | Clipped head |
| Fastener Size Range | 2 in. to 3-1/2 in. |
| Power Source | Cordless battery powered |
| Voltage | 18V |
| Motor Type | Brushless |
| Firing Modes | Sequential and contact actuation |
| Tool-Less Depth Adjustment | Yes |
| Dry-Fire Lockout | Yes |
| Nail Counter Display | Yes |
| Nails Per Charge (5.0Ah) | Up to 900 |
| Included Battery Capacity | 4.0Ah per pack (×2) |
| Full Charge Time | 40 min. or less (DC18RC) |
| Battery Cold Weather Rating | Down to -4°F / -20°C |
| Charger Included | Yes — DC18RC Rapid Optimum Charger |
Compatibility
Built For
Pro Tip
Put one battery on the DC18RC at the start of the day and run the second in the nailer. With 40-minute charge times and up to 900 nails per charge, the rotation keeps you moving through walls without forced stops. Switch to sequential mode for toe-nails, hardware installs, and anywhere an accidental double-fire would cause a problem — then switch back to contact actuation for open sheathing and repetitive plate nailing where speed matters more than single-nail control.
Warranty & Support
Tool Nut's Take
Makita XNB07Z 18V LXT Framing Nailer + 2×4.0Ah Batteries & Charger — Leave the Compressor Behind
This is the bundle for framers and carpenters who are done dragging hoses through a house. Two batteries, a fast charger, and a capable 30-degree cordless framing nailer in one purchase — nothing else needed to start framing on day one.
- Who it's for: Framers, carpenters, remodelers, and serious DIY builders who want cordless framing performance across residential and light commercial work — with a complete power setup included.
- Why it stands out: 30-degree clipped head capacity from 2 in. to 3-1/2 in., two firing modes, tool-less depth and jam clearing, dry-fire lockout, nail counter display, two 4.0Ah batteries, and a 40-minute charger. That is a complete, production-ready framing kit in one purchase.
- Worth knowing: The 900-nails-per-charge figure is based on a 5.0Ah battery — the included 4.0Ah packs will deliver slightly less per charge but give you two packs in rotation instead of one. Framing nails are sold separately. Both batteries work across the full Makita 18V LXT lineup.
Common Questions
- What's included in this bundle? The Makita XNB07Z 18V LXT Brushless Cordless 30-Degree Clipped Head 3-1/2 in. Framing Nailer (with belt hook), two BL1840B 4.0Ah LXT batteries, and the DC18RC Rapid Optimum Charger. Framing nails are not included.
- Is a charger included? Yes. The DC18RC Rapid Optimum Charger is included in this bundle and charges each 4.0Ah battery in 40 minutes or less.
- What nails does this nailer use? 30-degree clipped head framing nails from 2 in. to 3-1/2 in. Nails are sold separately.
- How many nails does it fire per charge? Makita rates it at up to 900 nails per charge with an 18V LXT 5.0Ah battery. The included 4.0Ah packs deliver slightly less per charge but give you two batteries in rotation for continuous framing.
- Does it have different firing modes? Yes. It has sequential mode for single deliberate nail placement and contact actuation mode for faster production-pace nailing.
- Does it have a dry-fire lockout? Yes. The dry-fire lockout stops the nailer from cycling when the magazine is empty, protecting both the tool and the work surface.
- Can the included batteries be used with other Makita 18V LXT tools? Yes. The BL1840B batteries are compatible with Makita 18V LXT Star Protection tools across the platform — identified by the Star Symbol and/or yellow battery receiver on the tool.
- What is the warranty on this bundle? The framing nailer, batteries, and charger are all covered by Makita's 3-year limited warranty.
