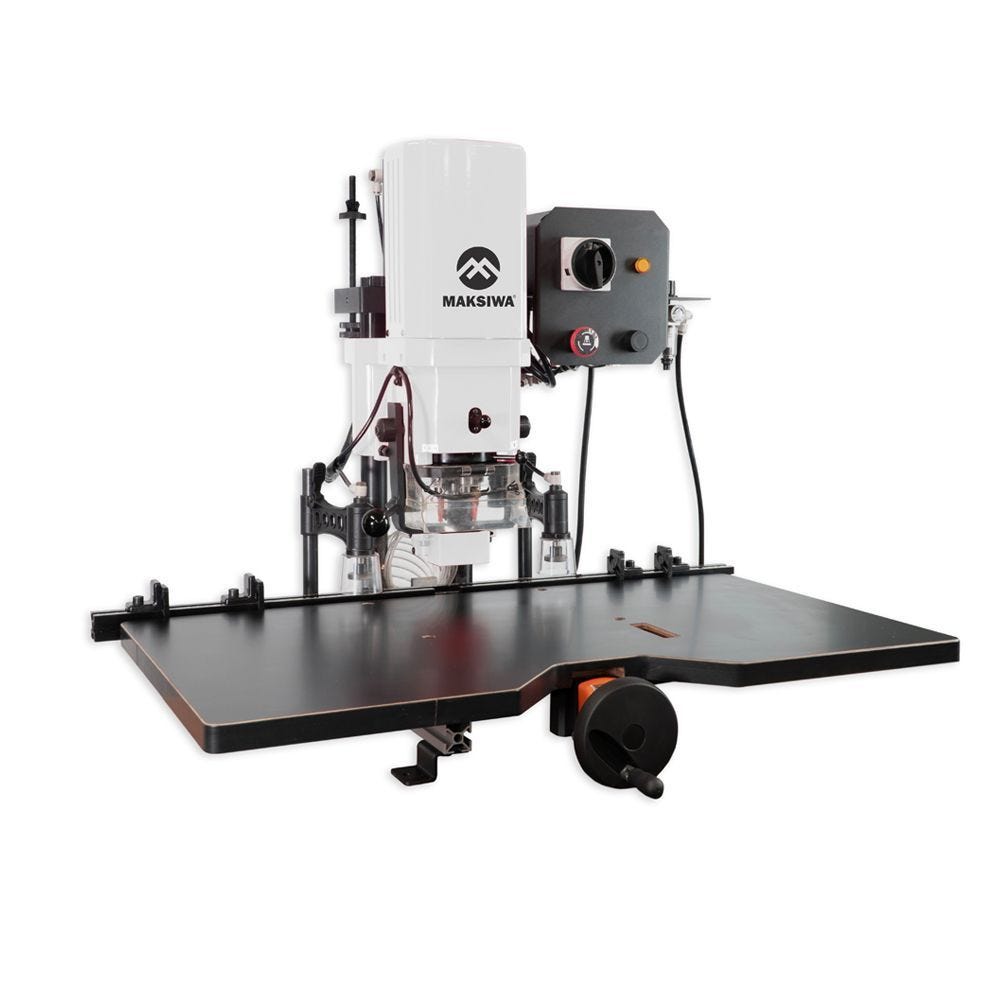

Maksiwa HBM.1000 Hinge Boring Machine 1Ph 110V

Product Details

Make it easy to bore and insert hardware efficiently for system and hinge connections.

Specifications

Technical Information
HBM.1000
Electrical specs
1 Phase - 110V 13.6 AMPS / 220V 6.8 AMP
Motor Specs
1 HP / 1.1 KW 3400 RPM
Table Size
18 x 31 - 1/2 | 460 x 800 MM
Machine table height
5 - 3/8 136MM
Machine table depth
2- 3/4 70MM

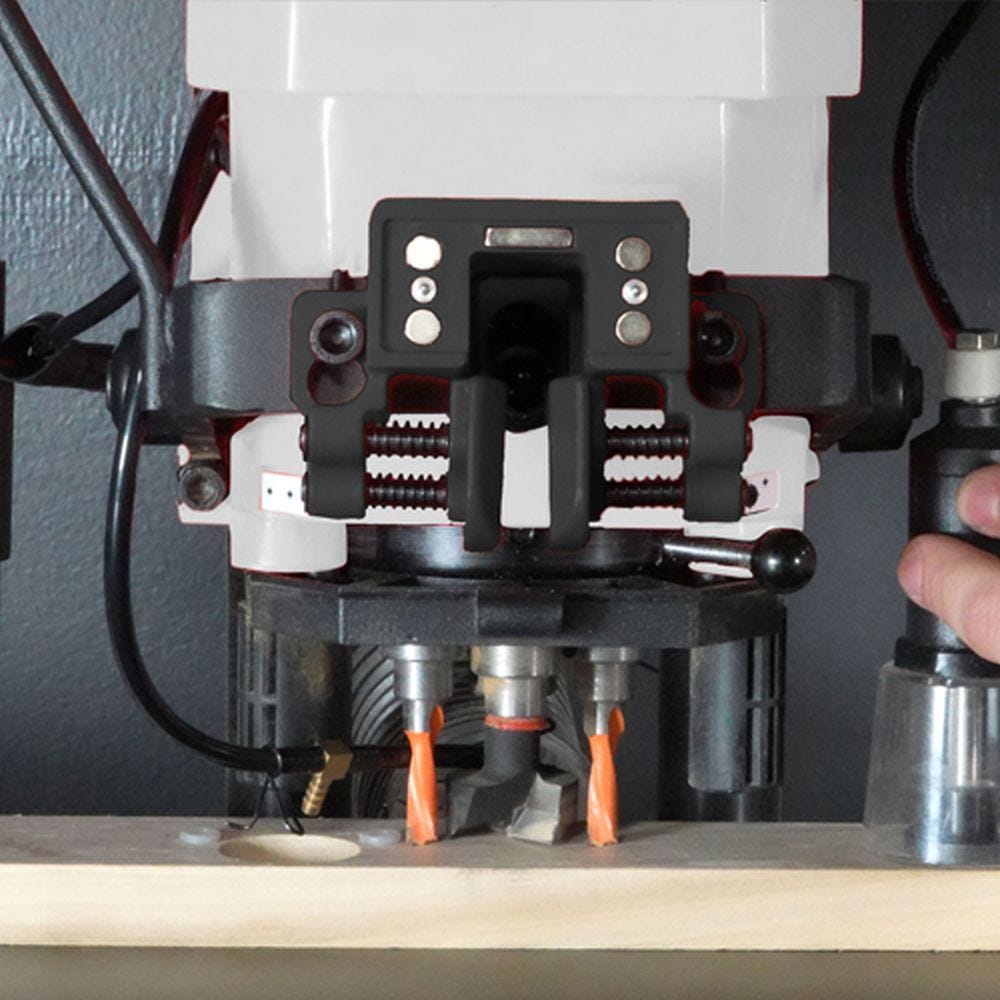

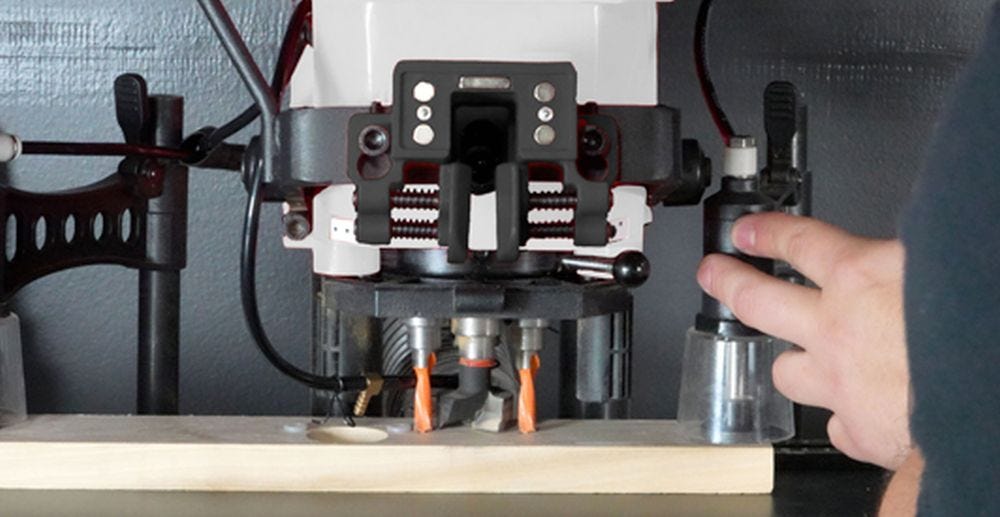

Hinge boring Bit Diameter
Carbide Tipped - 35mm
Hinge boring Bit Rotation
Right
Hinge boring shank
10MM
Hinge boring Length
57MM
Drill bits Diameter
Carbide Tipped - 8MM
Drill boring Bits Rotation
Left
Drill boring shank
10 MM

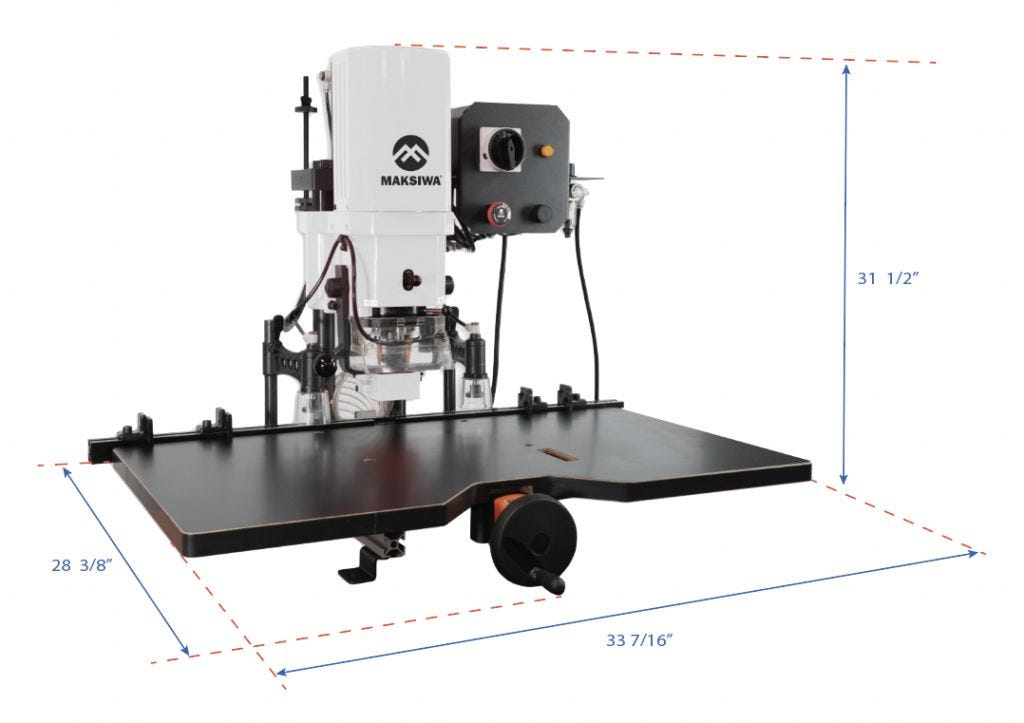

Machine Dimensions (LxWxH)
33 7/16x 28 3/8x31 1/2 | 850mmx720mmx800mm
Number of Stops
2 Left / 2 Right
Maximum Depth of Stroke
4 - 5/16 | 110MM
Boring distance center spindle
0 - 2 3/4 | 0 - 70 MM
Air requirement
90 PSI - 3 SCFM
Machine Weight
50Kg 110LBS
Avg Noise emissions
78dB

Maksiwa HBM.1000 Hinge Boring Machine 1Ph 110V

Name: Maksiwa HBM.1000 Hinge Boring Machine 1Ph 110V
Brand: Maksiwa
SKU: HBM.1000
Price: 3499.00 USD
Availability: InStock

Visit our Maksiwa store

HBM.1000

$3,499.00

+ Free Delivery

Ships from manufacturer

Product Details

Make it easy to bore and insert hardware efficiently for system and hinge connections.

Specifications
