The Swan Merlin Flat Double Square FDS800 is a precision layout square for woodworking and carpentry. This is a carpentry square designed for accurate measuring, marking, edge referencing, and squaring workpieces. Model Number: FDS800. If you build face frames, lay out joinery, check offsets, or need a ruler and square in one tool, this one is built to keep the tool flat on the material and the layout line where you expect it.

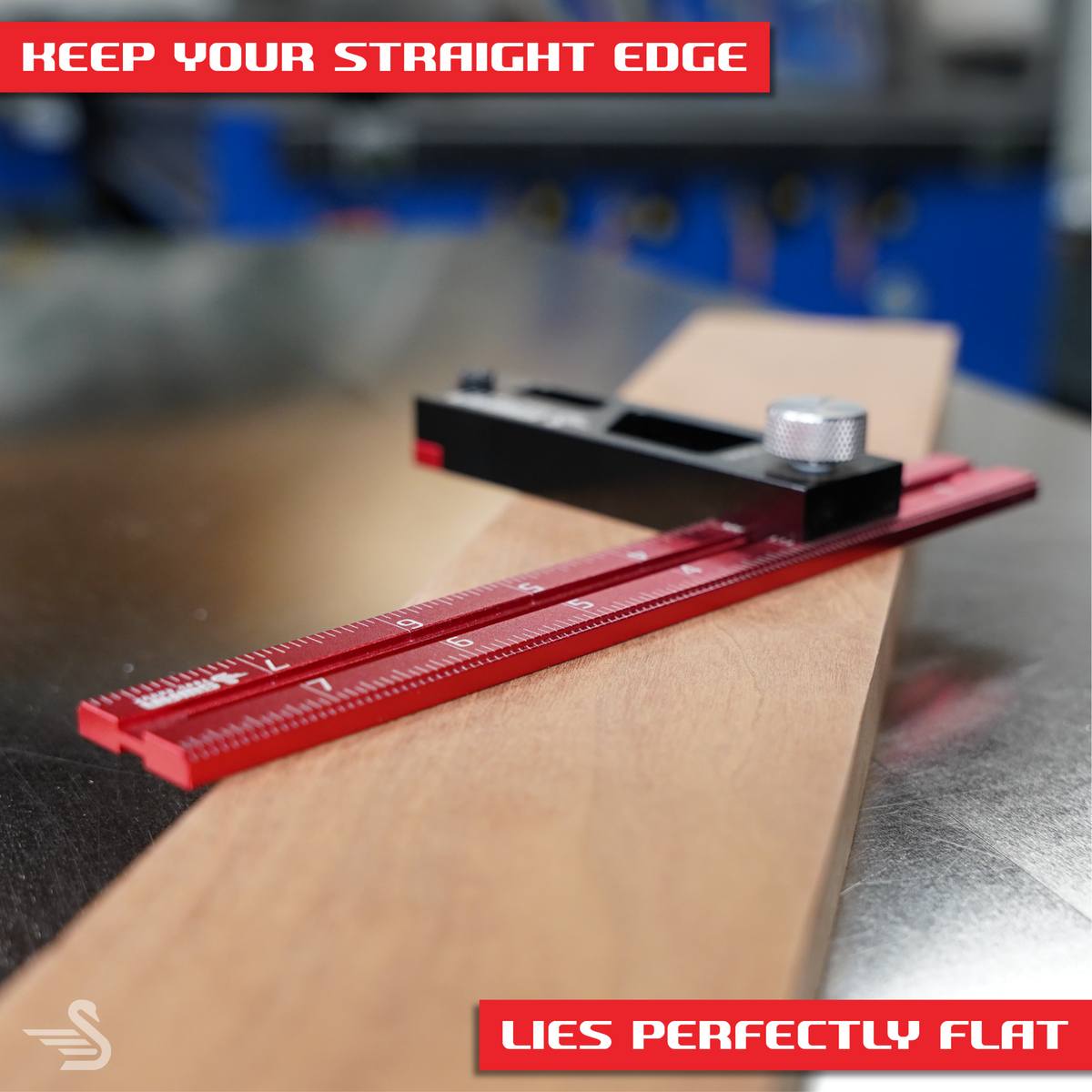

What separates the Merlin from a typical double square is its flat-profile, offset ruler design. The ruler sits flush with the base of the head, so the tool lays completely flat in any orientation instead of tipping or hanging up. That matters when you are working on inside and outside layouts, checking edges, or pulling ruler-style measurements across a board. You get a more stable reference and fewer little layout errors that turn into bigger fit-up problems later.

Swan built this as a multi-function layout tool, combining the roles of a double square, framing square, and ruler. The sliding head moves along the anodized aluminum ruler and locks in place for quick changes between try square work, depth marking, offset layouts, and general measuring. In practical use, that means you can move from squaring a part to marking a repeated setback without reaching for another tool.

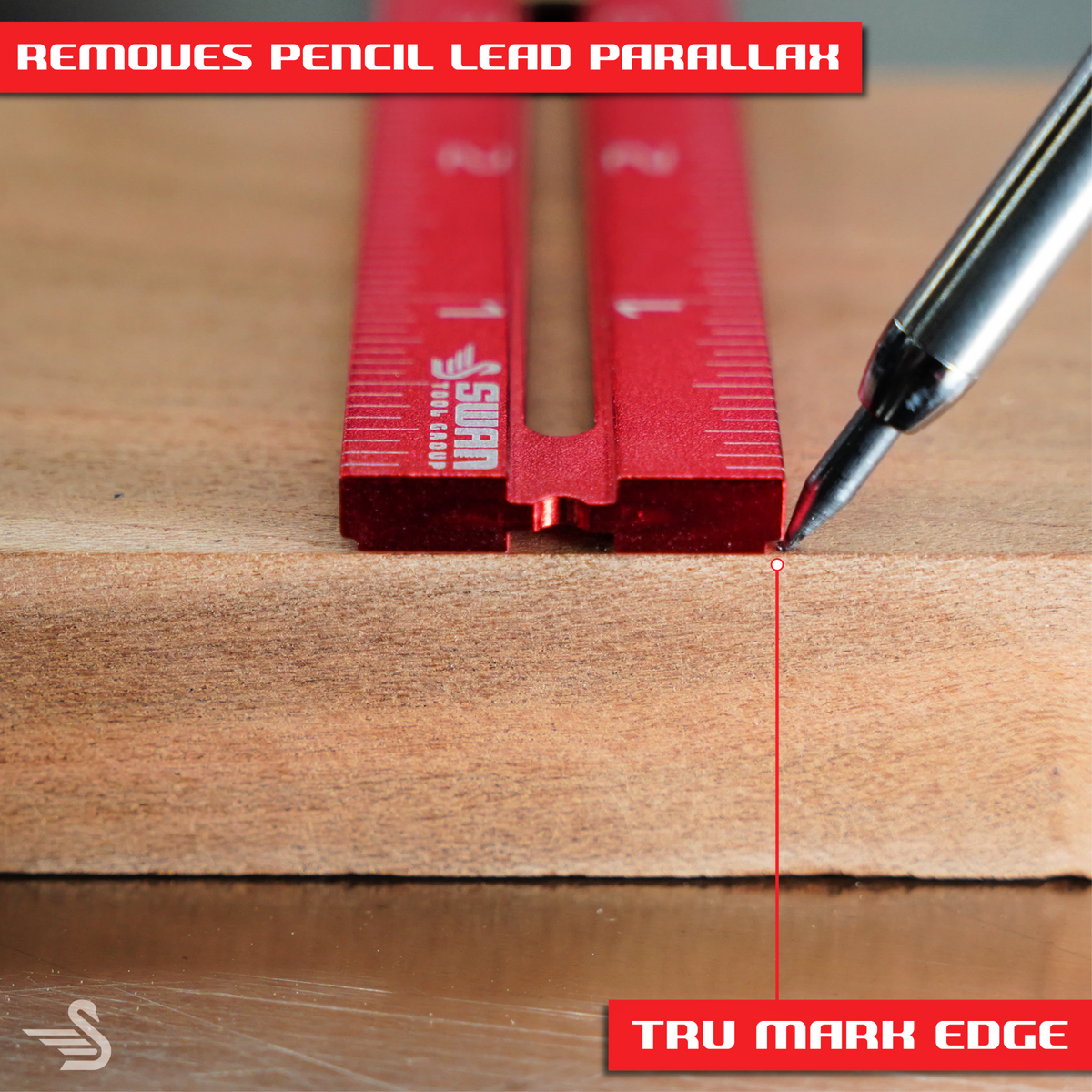

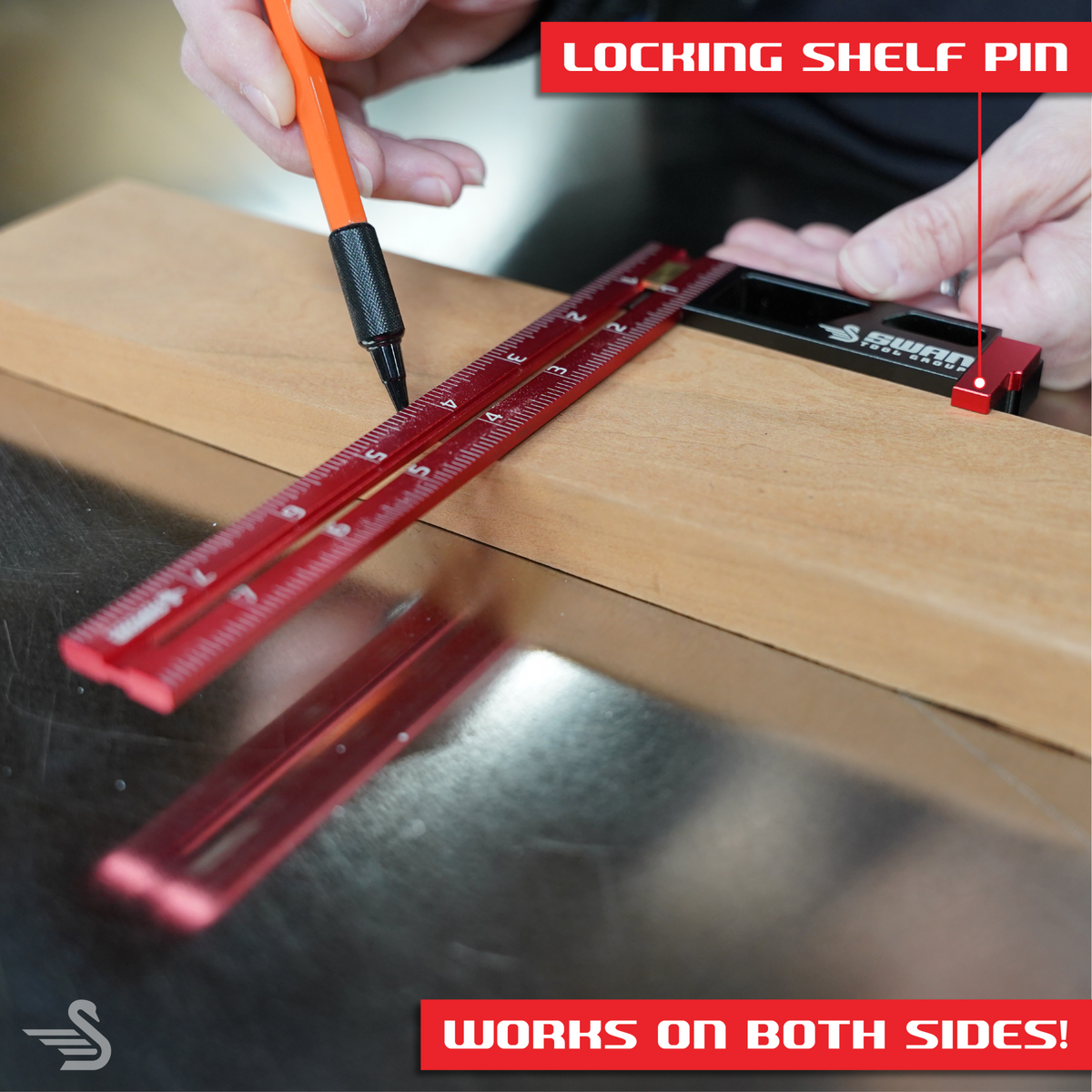

The built-in shelf tab adds another level of control when you need a repeatable reference point on stock. That is useful for edge work and consistent marking passes, especially when you are doing cabinet parts, face frames, drawer components, or other detail work where a small shift in the tool shows up fast in the finished piece. Swan also calls out its Tru-Mark Edge feature, which is intended to improve line placement and reduce the need for workarounds when finding or transferring marks.

Construction is straightforward and job-focused. The body and ruler are made from anodized aluminum for a good balance of durability and low weight, and the markings are laser-etched for long-term readability. For a layout tool, that is not a throwaway spec. Clear graduations and a head that moves smoothly but locks securely are what make the tool worth carrying every day instead of leaving it in a drawer.

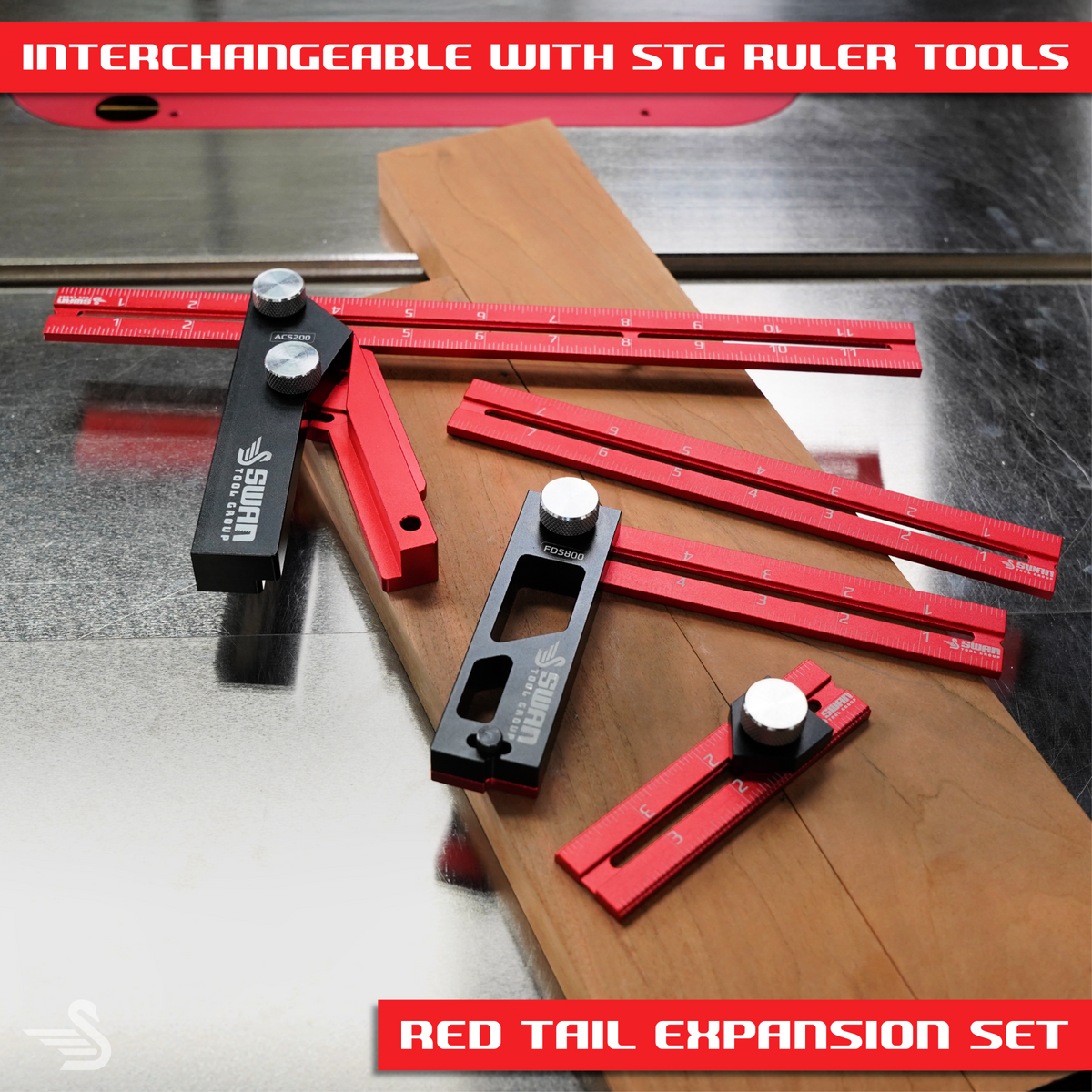

The Swan Merlin Flat Double Square FDS800 also fits into Swan's broader measuring system. The ruler is interchangeable with the RED TAIL Ruler Set, part number R4612AL, which gives you an upgrade path if you want to tailor the tool to different project sizes. That kind of compatibility makes more sense in a real shop than buying separate dedicated tools for every variation of the same task.

This layout square is a smart fit for woodworkers, trim carpenters, cabinet installers, furniture builders, and serious DIY users who care about accurate marking more than gimmicks. If your work depends on transferring lines cleanly, checking square reliably, and working off edges without the tool rocking around, the Merlin earns its place. If you only need a basic square for occasional rough layout, it is more tool than you need. But if layout accuracy is part of how you make money or avoid rework, this one makes a strong case.

Swan Merlin Flat Double Square FDS800 is a smart pick for layout-first work

This is the kind of measuring tool that makes sense the minute you start using it on real stock instead of just looking at specs.

• Who it's for: Woodworkers, trim guys, cabinet builders, and anyone who does careful layout and wants one compact tool instead of a pile of squares and rulers.
• Why it stands out: The flat-laying design is the big deal here. That stable reference, plus the sliding head and interchangeable ruler system, gives it more real usefulness than a basic double square.
• Worth knowing: This is a precision layout tool, not a bargain-bin beater. If you only need rough marks once in a while, it may be more than you need. If clean layout saves you time and rework, it is easy to justify.

• What kind of tool is this? It is a flat double square that also functions as a framing square and ruler for measuring, marking, and setup work.
• Does it really lay flat on the material? Yes. The Merlin is designed with an offset, flush ruler arrangement so it can sit completely flat in any orientation.
• Can the ruler be changed out? Yes. The ruler is interchangeable and is compatible with the Swan RED TAIL Ruler Set, part number R4612AL.
• What is it made from? The tool uses anodized aluminum construction with laser-etched markings for durability and long-term readability.
