Metabo HPT 18V Cordless Pneumatic 3-in. Duplex Forming Nailer, 10.0Ah Kit (NR1875DDAQRY)
Metabo HPT 18V Cordless Pneumatic 3-in. Duplex Forming Nailer, 10.0Ah Kit (NR1875DDAQRY)
Out of Stock - Available to Order - Usually ships in 60-90 days
Product Details
Product Details
Key Features
Overview

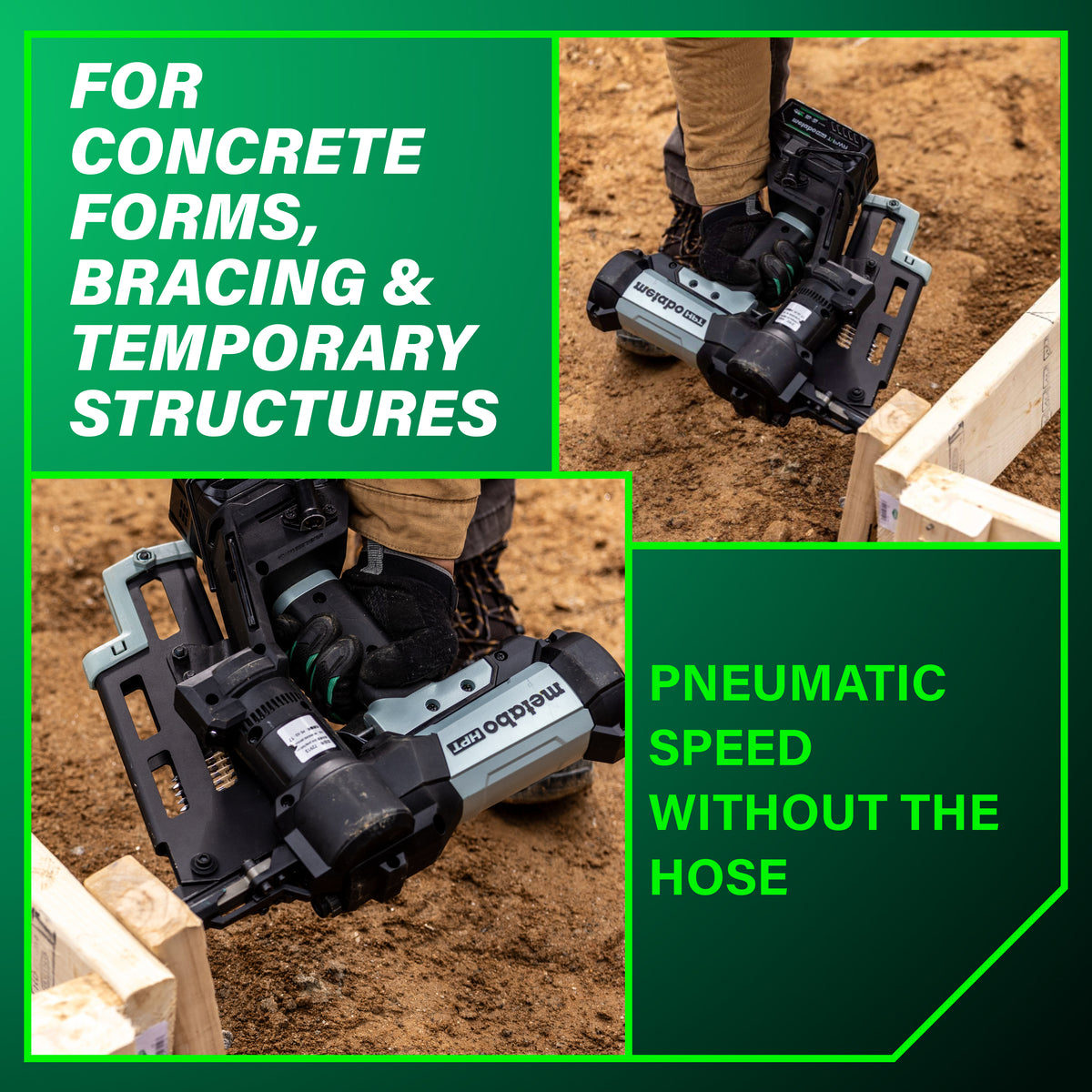

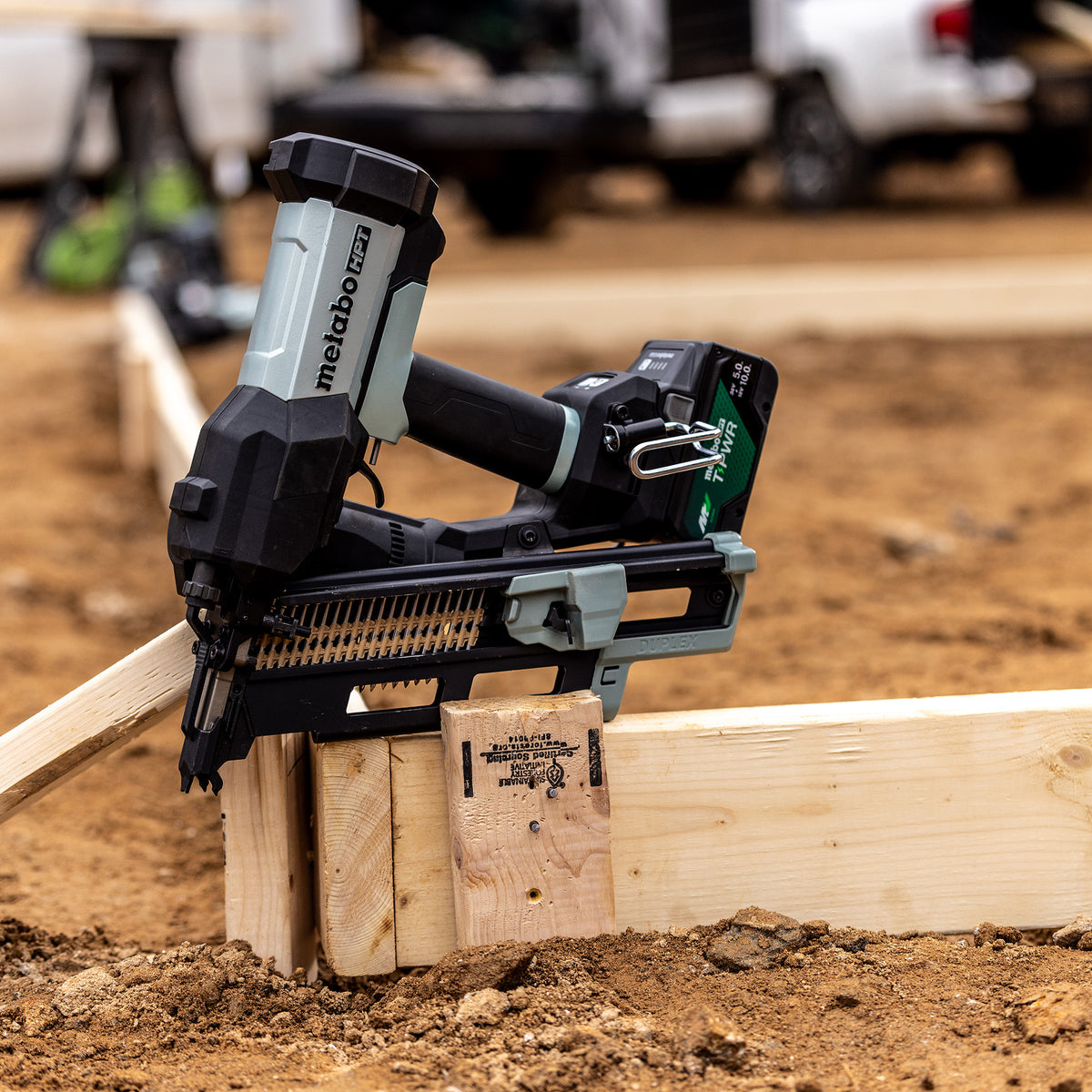

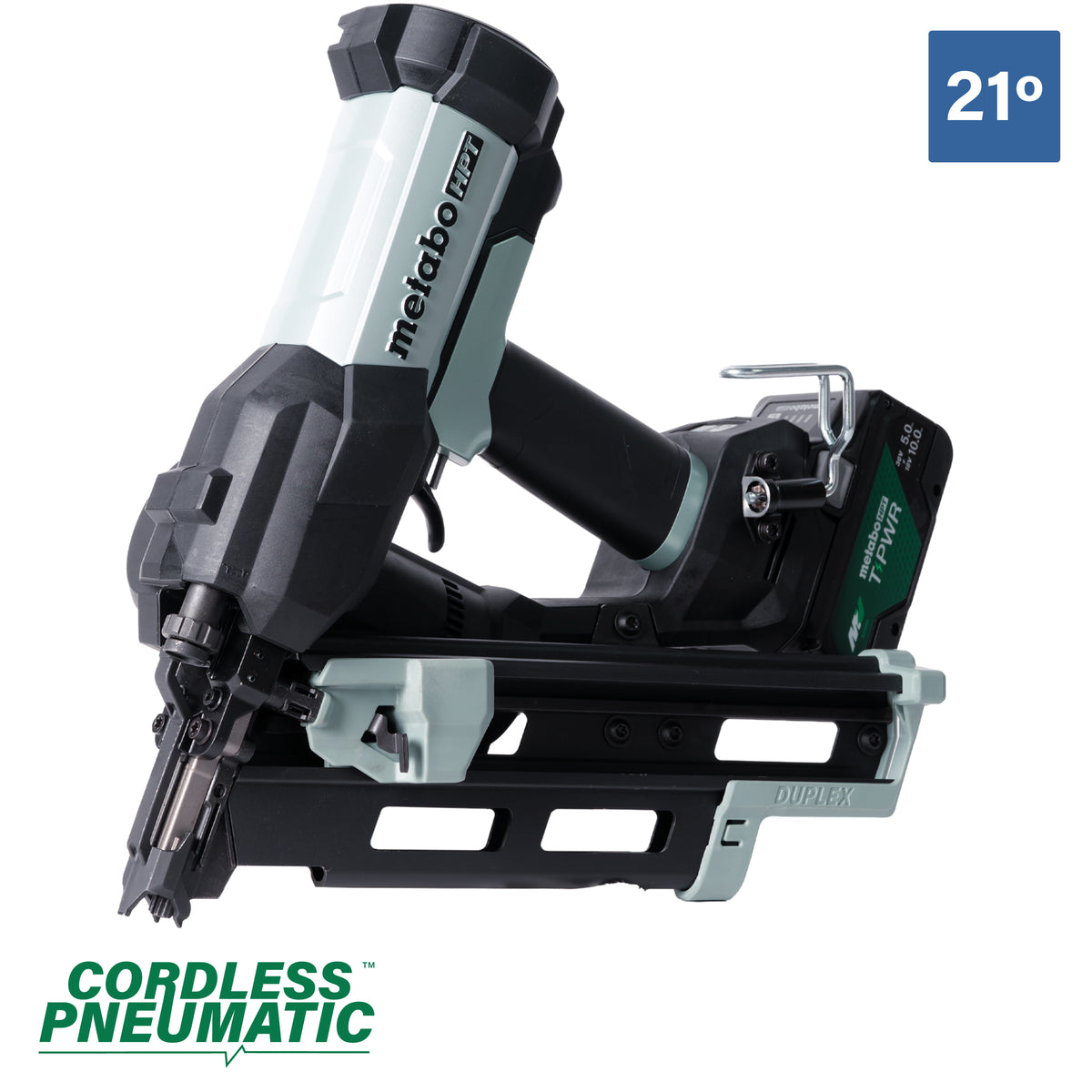

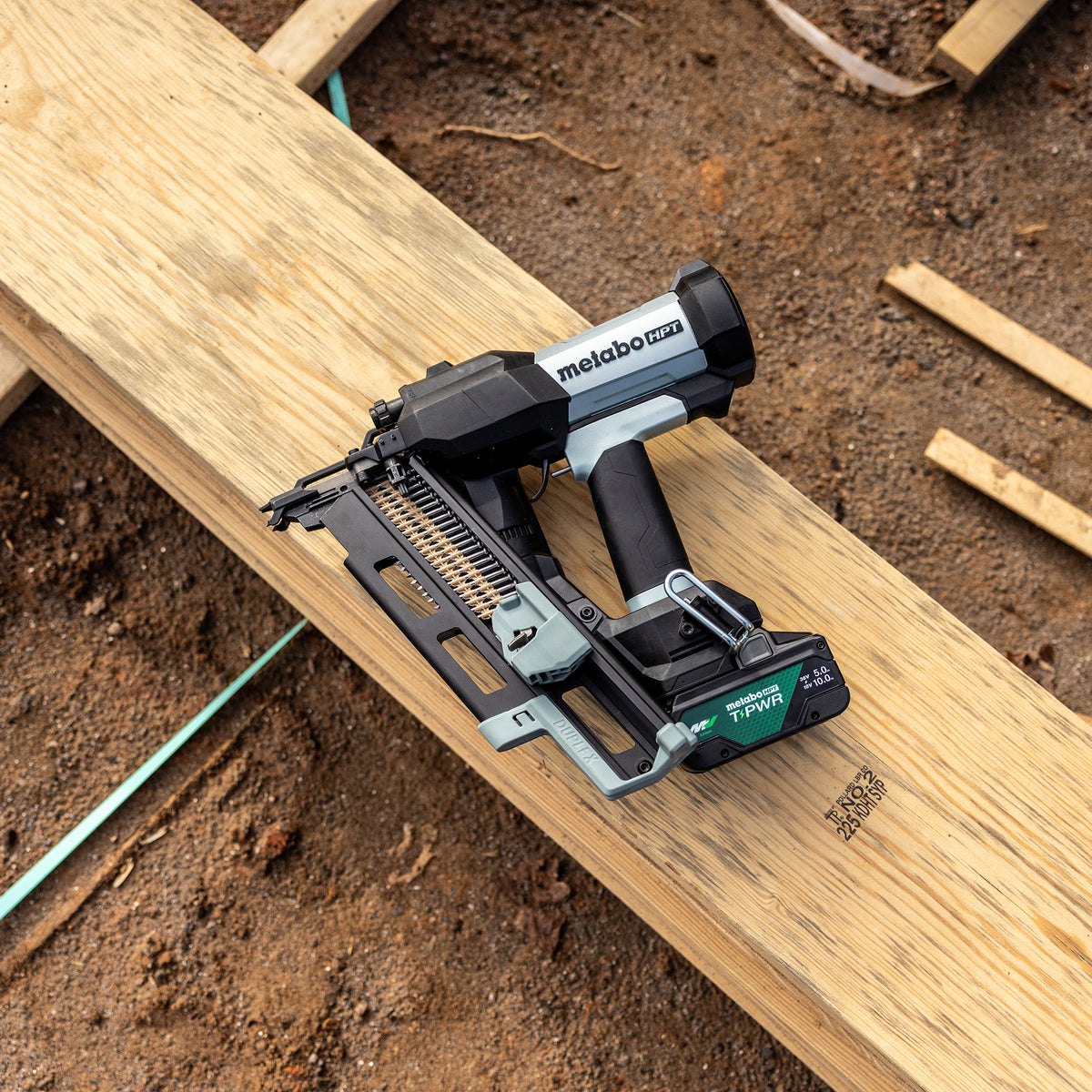

The Metabo HPT NR1875DDAQRY 18V Cordless Pneumatic Duplex Forming Nailer (model NR1875DDAQRY) is a battery-powered duplex nailer that drives double-head 6d, 8d, and 16d duplex nails, 2-1/4 in. to 3 in. long. This is a cordless duplex forming nailer designed for building concrete formwork, temporary bracing, and other assemblies that need to come apart later. It ships as a kit with an 18V/36V MultiVolt T-PWR Tabless battery and a quick charger.

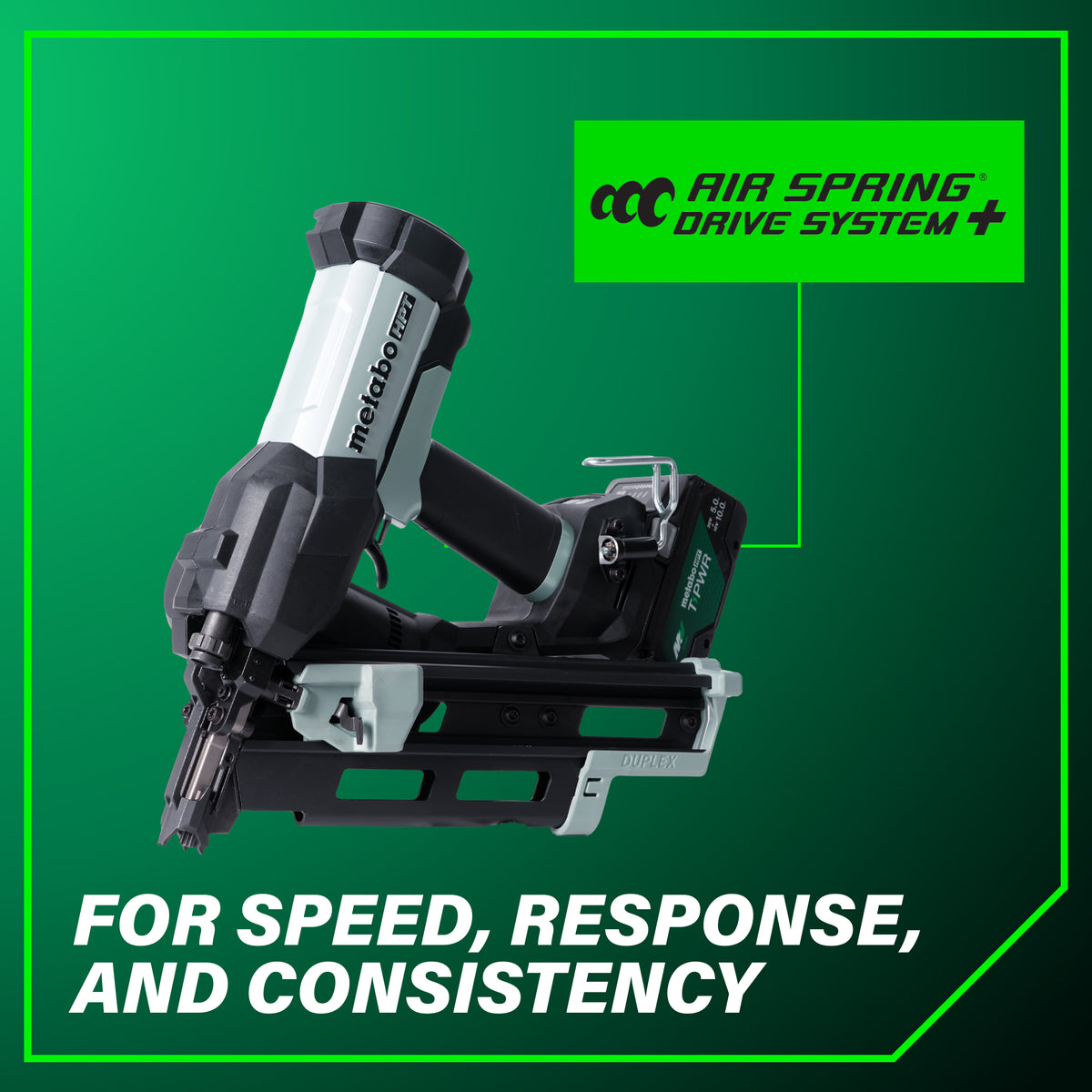

Duplex nails have a second head above the first, which leaves a grip for a claw or bar when it is time to strip forms or remove bracing. Driving them by hand is slow, and running a compressor and hose on a form deck is a hassle. The NR1875DDA puts that job on a battery with Metabo HPT's sealed air spring drive and a brushless motor.
Metabo HPT rates it at up to 6 nails per second and 120 joules of driving energy, with up to 1,170 nails per charge on the included 10.0Ah battery. The included UC18YSL3Q1Y quick charger refills that battery in approximately 75 minutes. A 31-nail magazine, tool-less depth adjustment, and a dry-fire lockout keep it consistent from the first nail to the last.

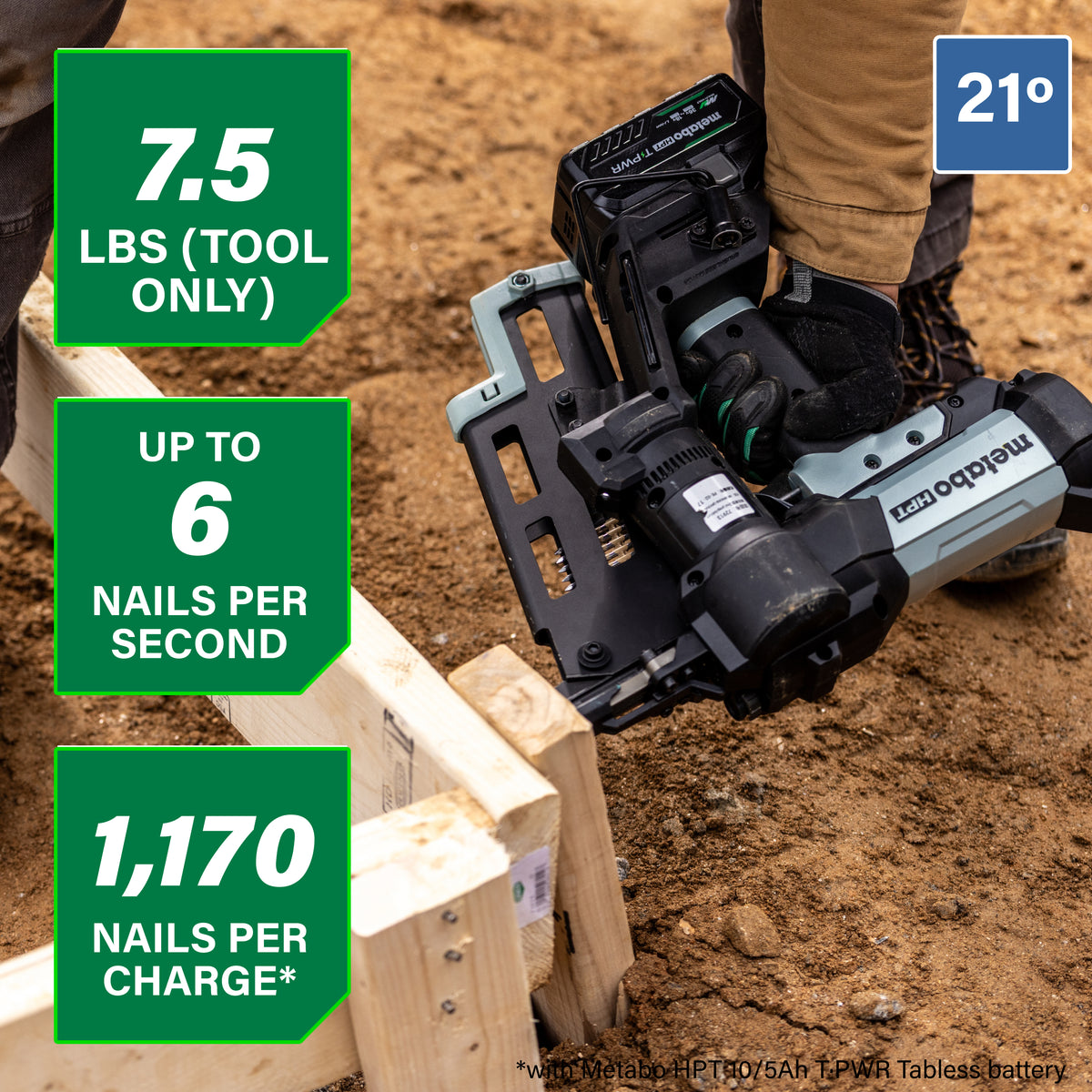

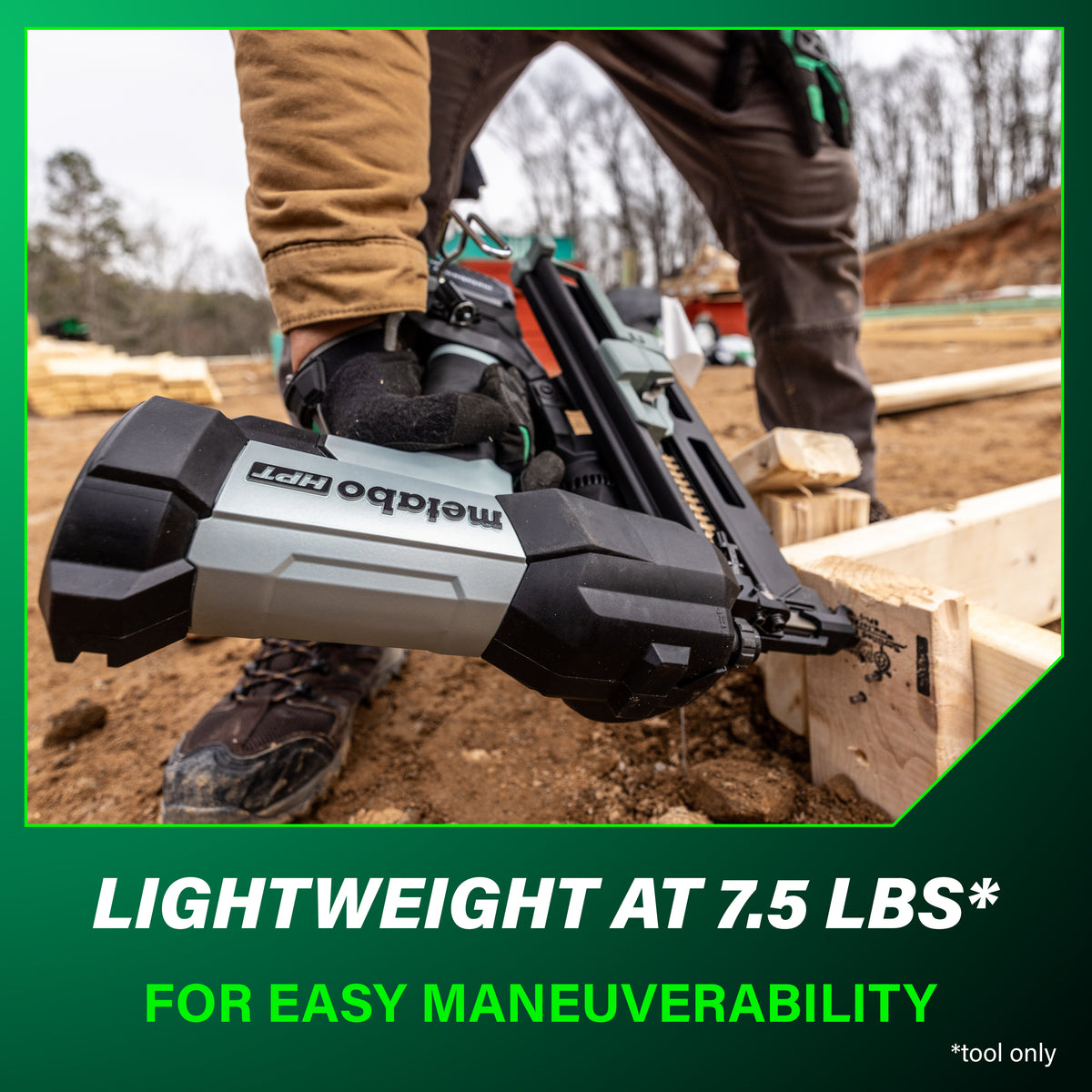

At 7.5 lb without the battery, the tool is compact enough to work inside form walls and around bracing. A bump and sequential mode switch, an LED light, and both rafter and belt hooks are standard.
The magazine is swappable with other Metabo HPT cordless pneumatic strip nailers, and the tool shares the 384005M Wearable Parts Kit with the framing and connector nailers. The Maintenance Jig Kit (384003M) and Air Refill Valve (384002M) round out on-site service.
This kit fits concrete contractors, foundation crews, and general contractors who build forms, shoring, or temporary structures and want to stop hand-driving duplex nails or running a hose.
Forms Up Faster, Forms Down Easier
Duplex nails leave a second head exposed so forms and bracing pull apart without wrecking the lumber.
- Drives 6d, 8d, and 16d duplex nails
- Up to 6 nails per second
- 120 joules of driving energy

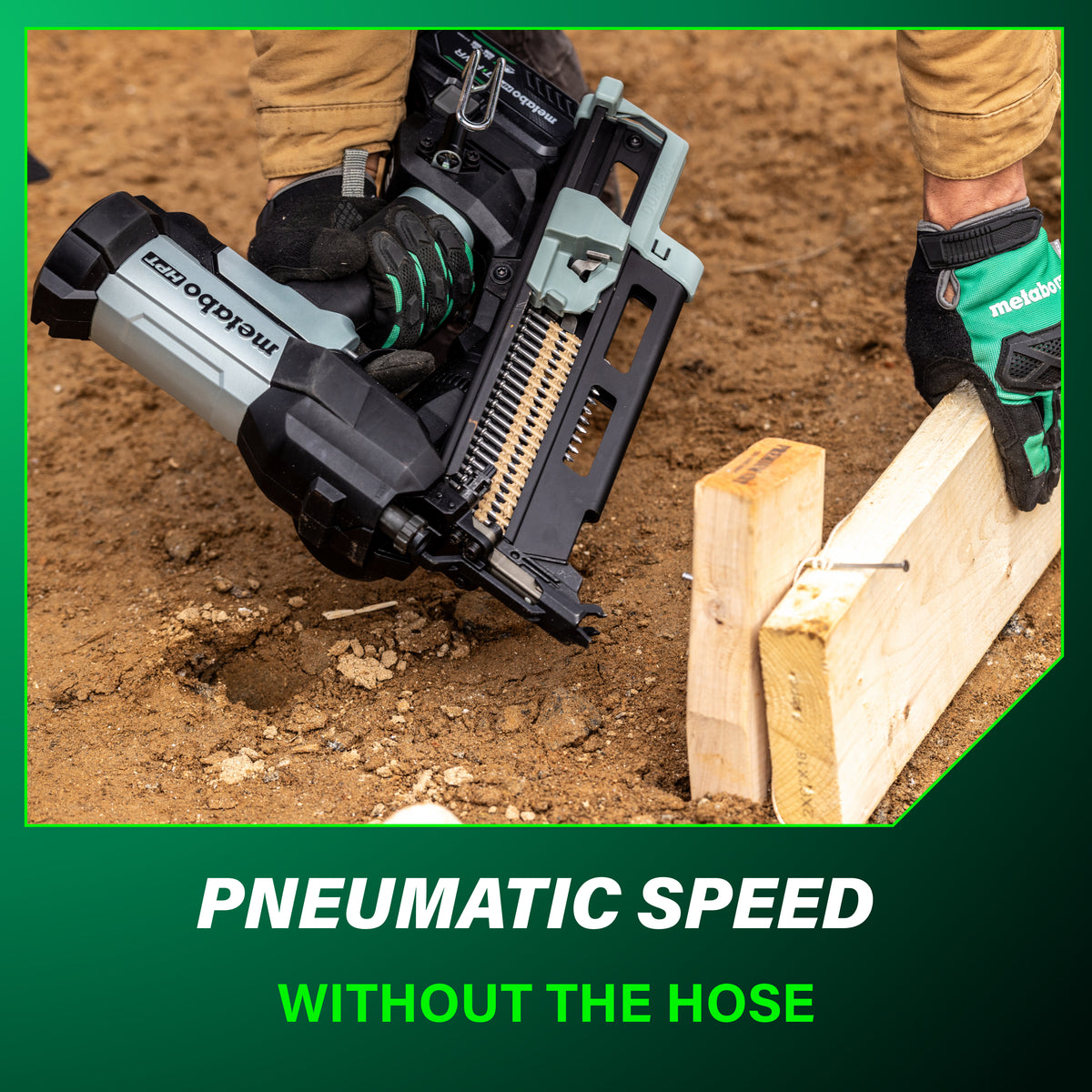

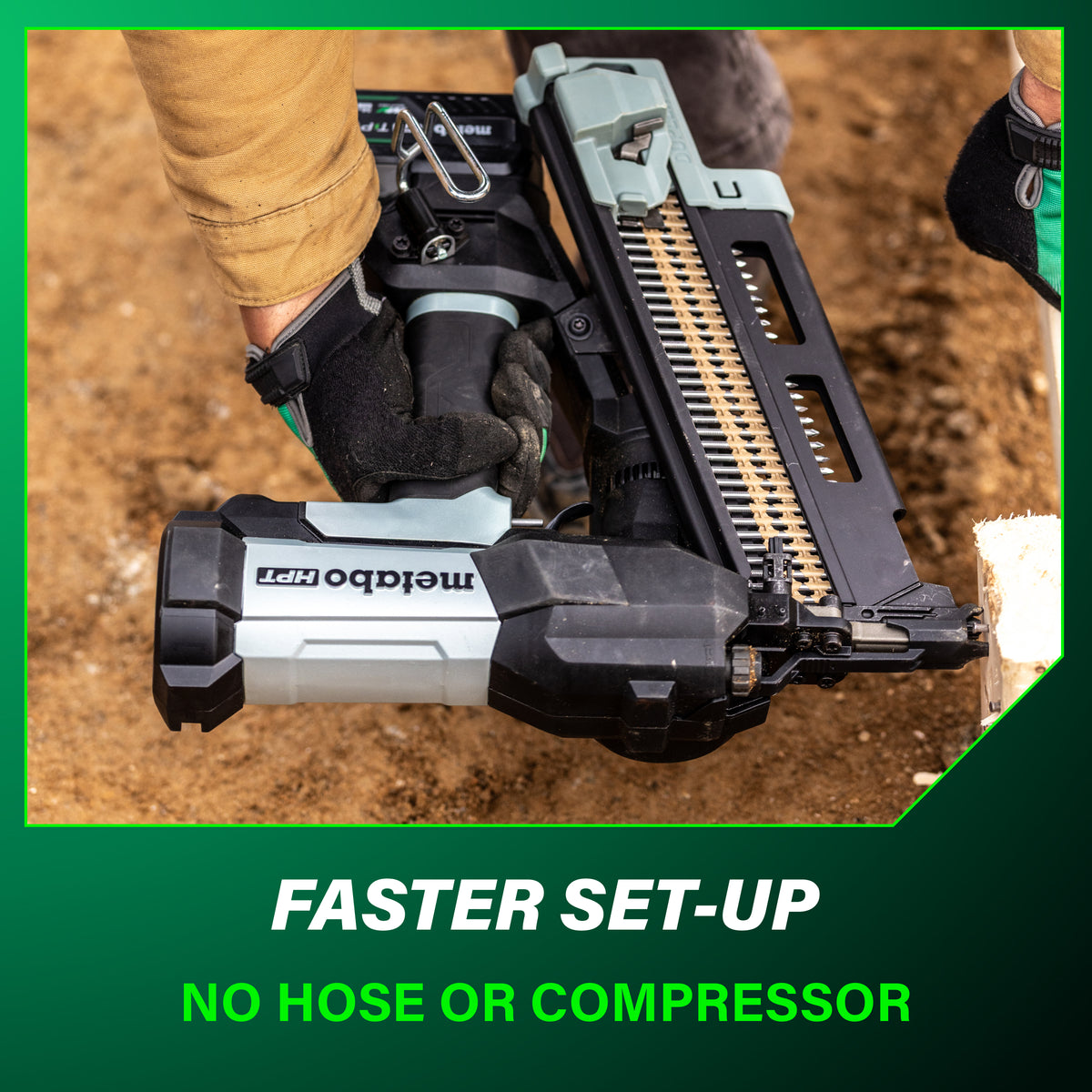

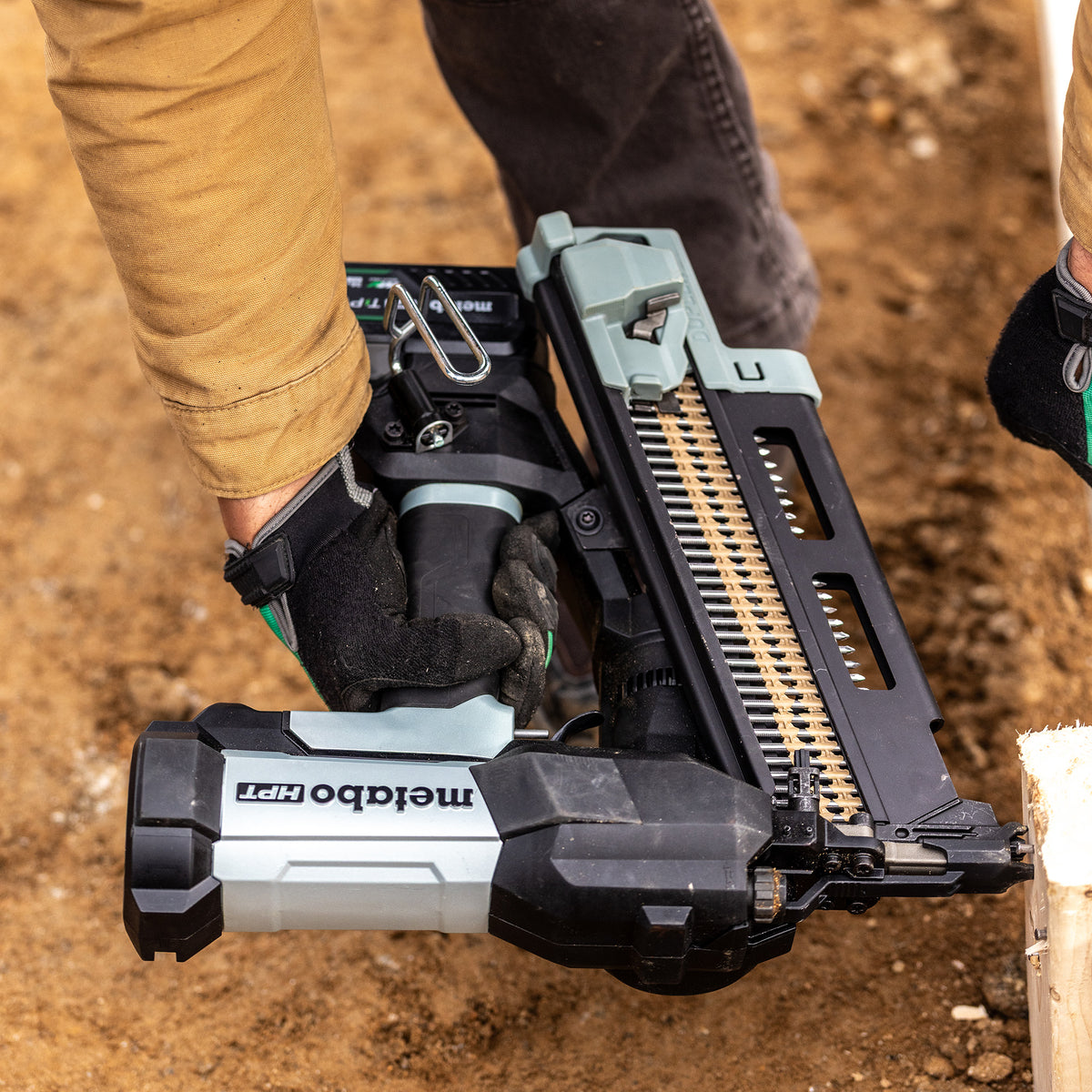

No Hose Around Rebar and Forms
Battery power keeps the deck clear of hoses and compressors.

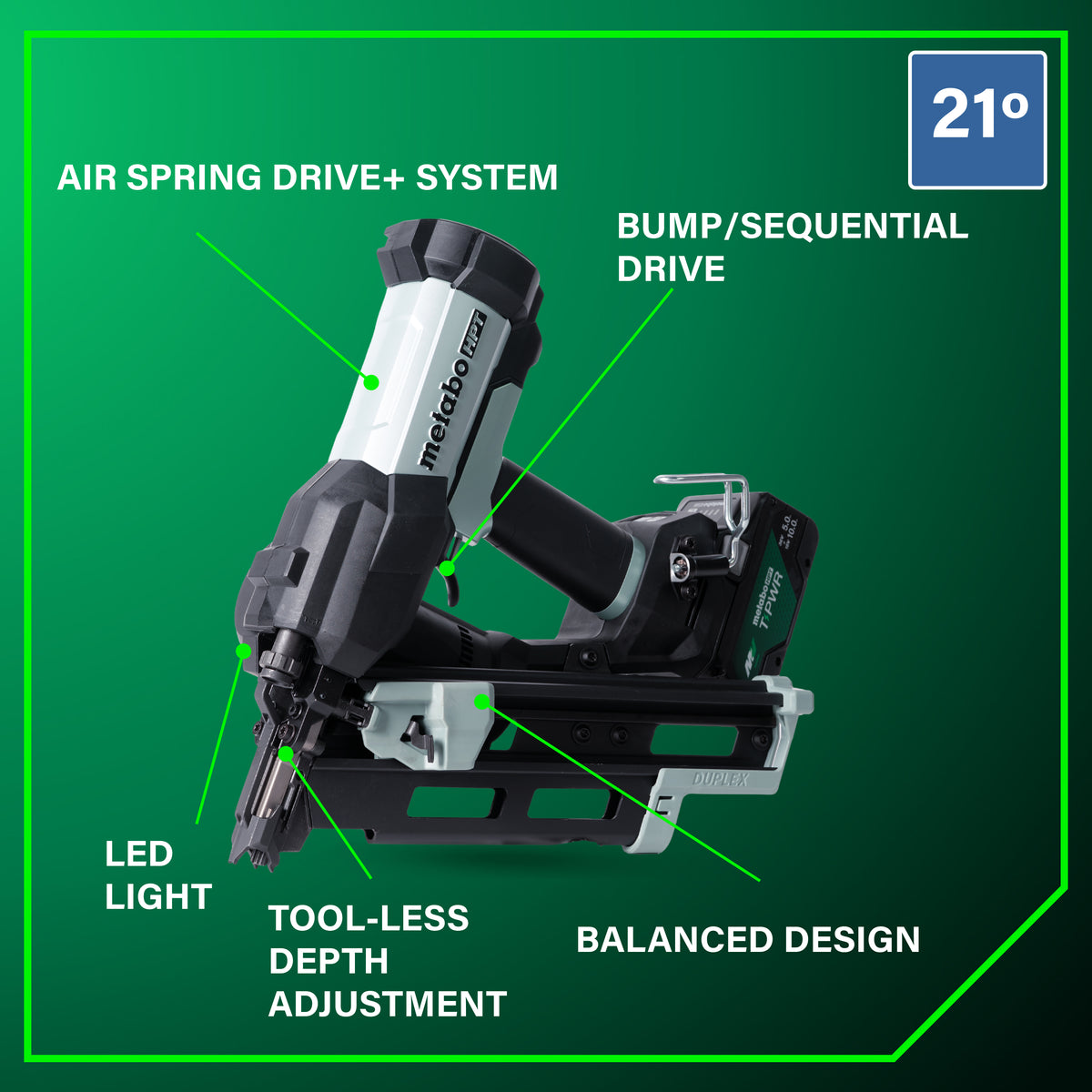

- Sealed air spring drive
- Brushless motor
- Bump and sequential fire modes
Runtime for Form Days

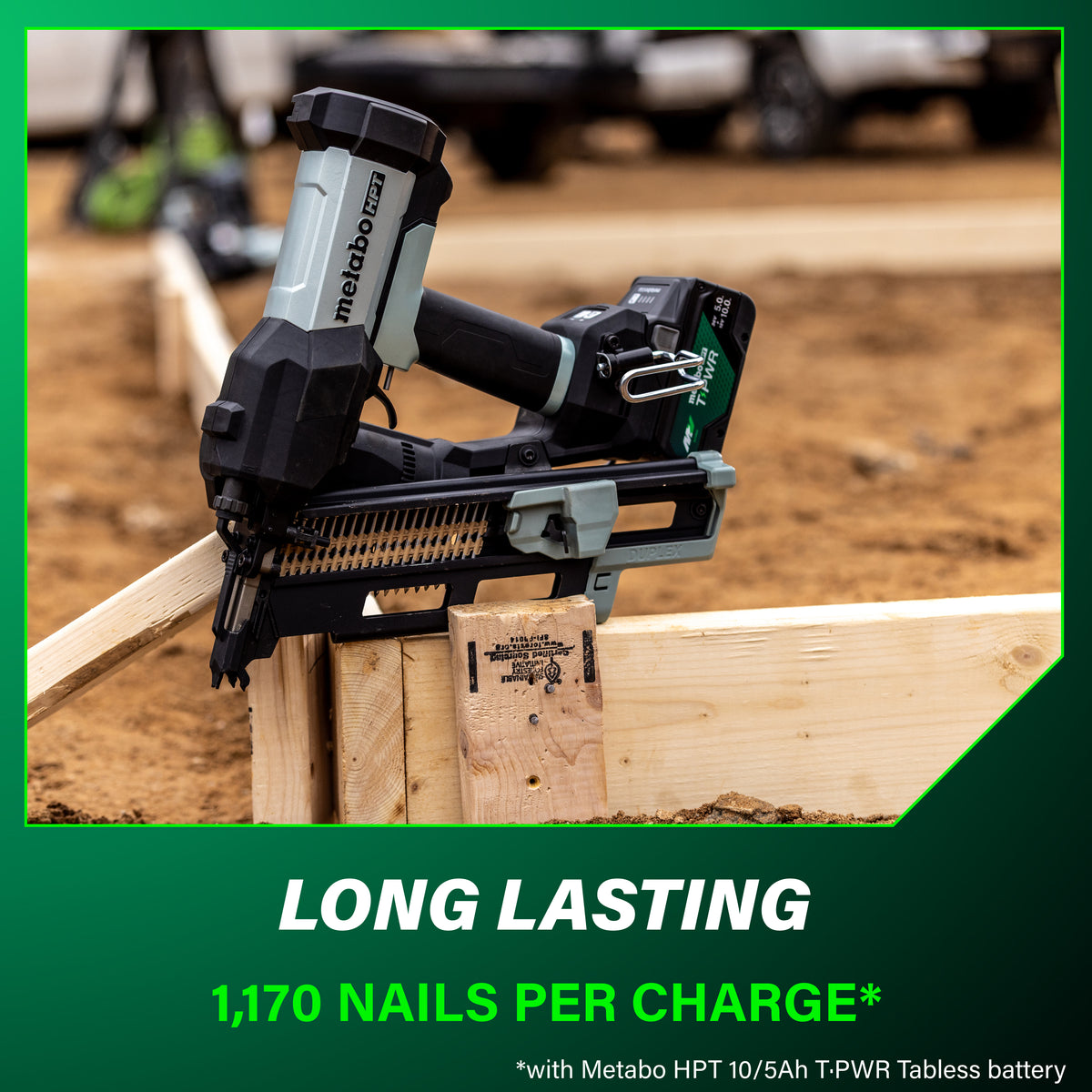

The included 10.0Ah battery is rated for up to 1,170 nails per charge.
- Approximately 75-minute recharge on the included quick charger
- On-battery fuel gauge
- Dry-fire lockout
Consistent Drive Depth
Set depth without tools so the second head stays exposed for easy stripping.
- Tool-less depth adjustment
- LED light

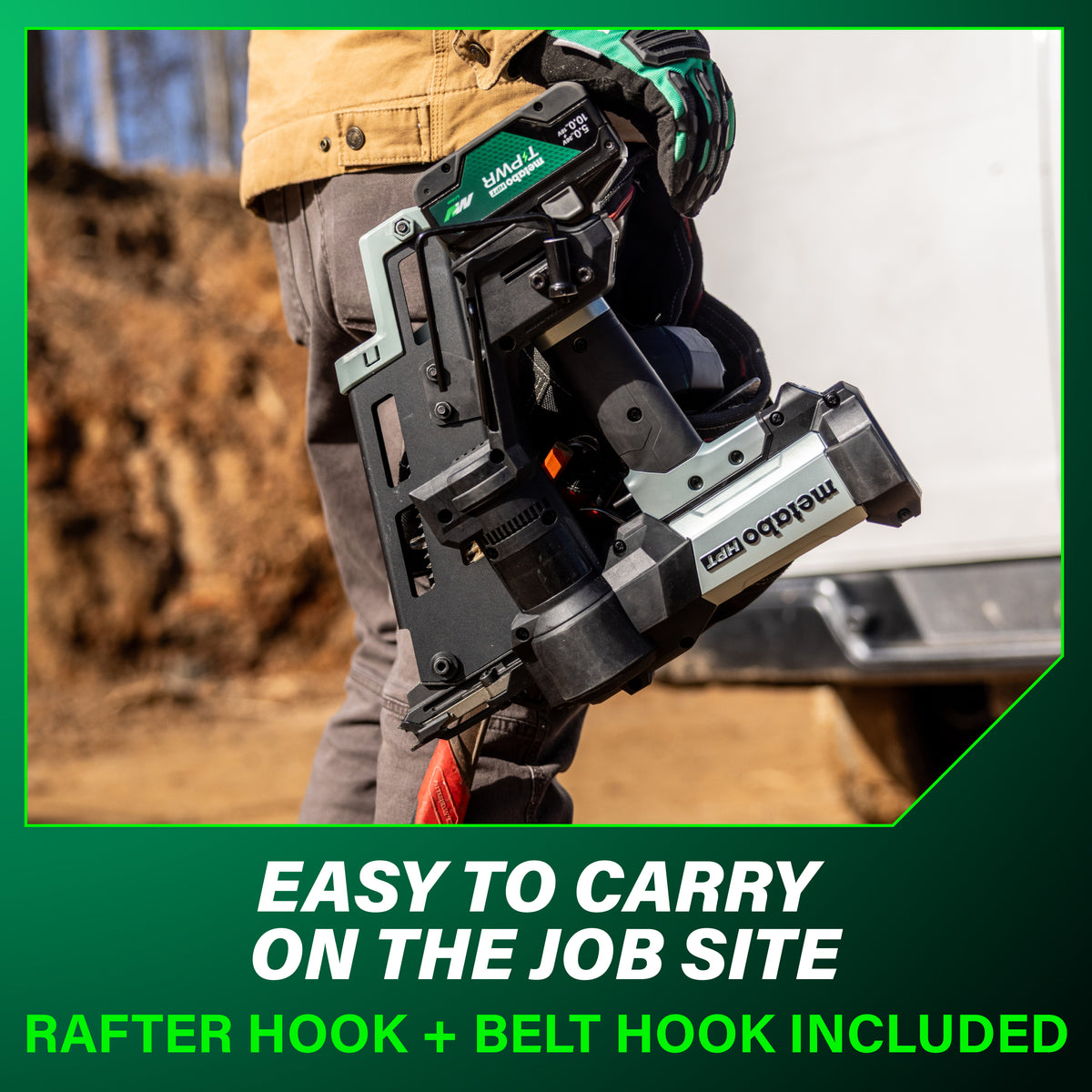

- Rafter hook and belt hook

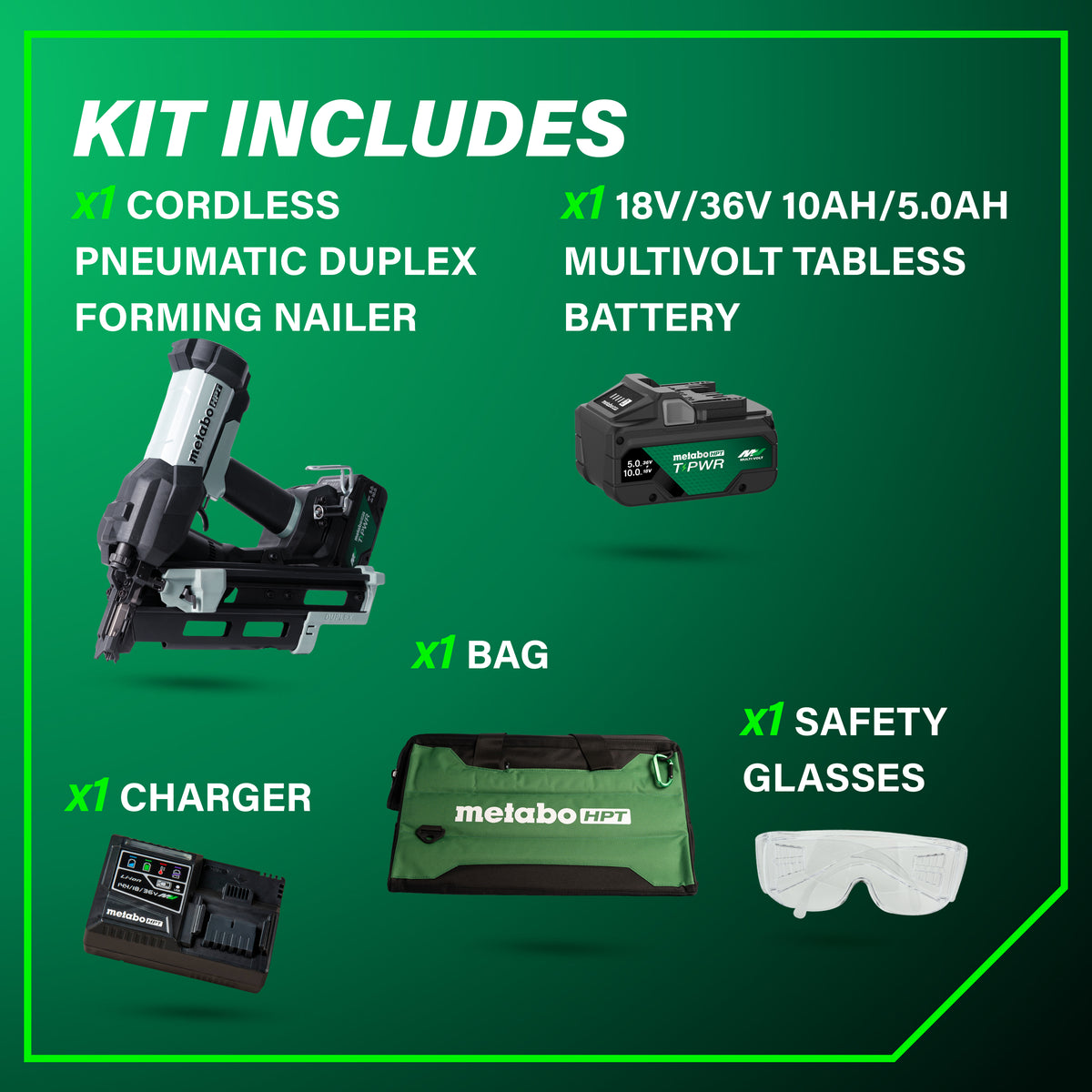

What's in the Box
- (1) NR1875DDA 18V Cordless Pneumatic Duplex Forming Nailer

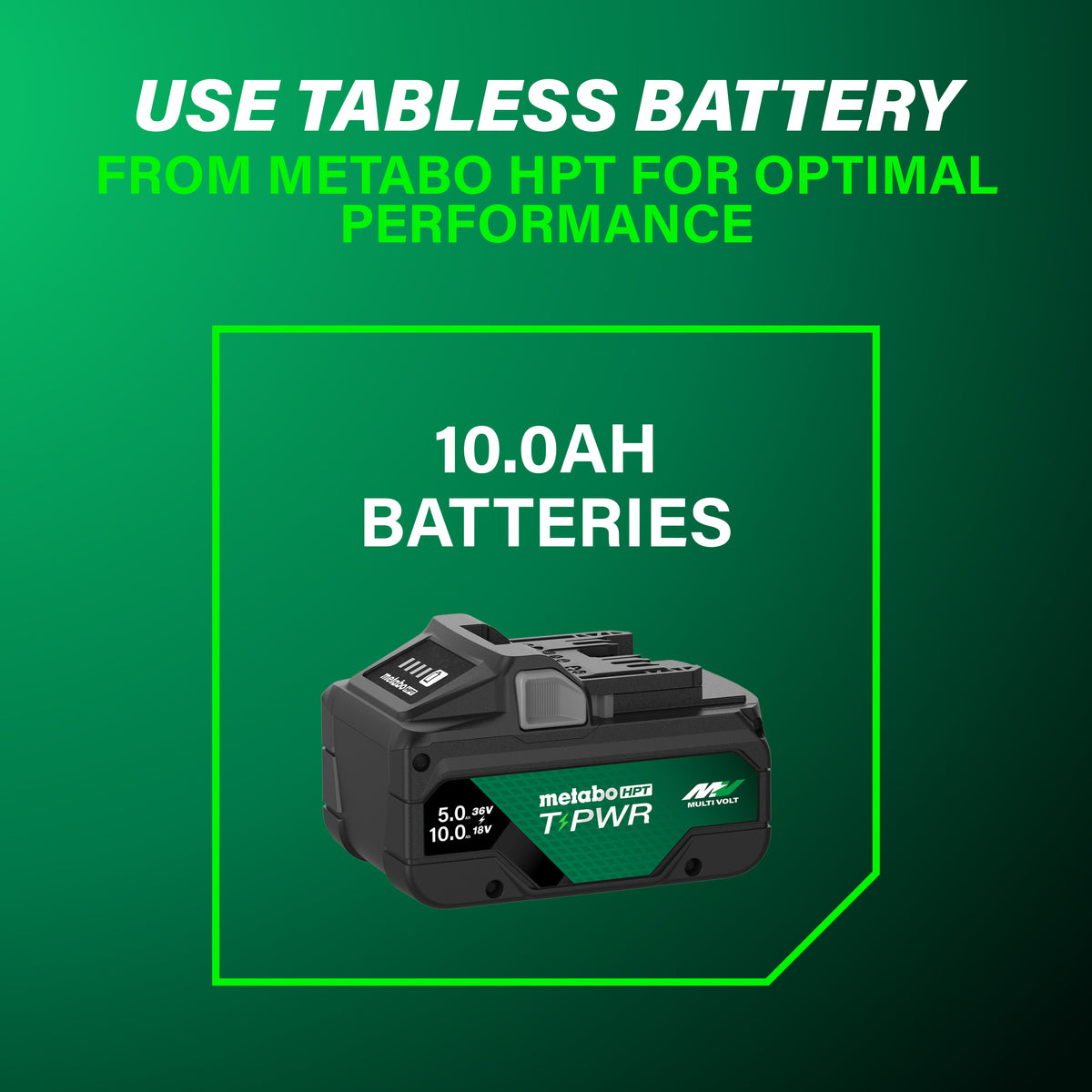

- (1) BSL3650MVT 18V/36V MultiVolt T-PWR Tabless Battery (10.0Ah at 18V / 5.0Ah at 36V)
- (1) UC18YSL3Q1Y Quick Charger
- (1) Duplex Magazine
- (1) Safety Glasses
- (1) Carrying Bag
Nails sold separately.
Key Specifications
| Voltage (V) | 18V |
|---|---|
| Fastener Type | Duplex (double-head) nails, 6d / 8d / 16d |
| Nail Length | 2-1/4 in. to 3 in. |
| Nail Diameter | 0.131 in. |
| Magazine Capacity | 31 nails |
| Driving Speed | Up to 6 nails per second |
| Driving Energy | 120 J |
| Nails Per Charge | Up to 1,170 (included 10.0Ah battery) |
| Firing Modes | Bump and sequential |
| Depth Adjustment | Tool-less |
| Motor | Brushless |
| Dry-Fire Lockout | Yes |
| LED Light | Yes |
| Dimensions (L x H x W) | 13-1/2 x 5-3/4 x 14-21/64 in. |
| Tool Weight (without battery) | 7.5 lb |
| Battery Weight | 2.2 lb |
Compatibility
Built For
Pro Tip
Set the depth so the lower head seats tight against the form and the upper head stays fully exposed. Drive it too deep and you lose the stripping advantage that is the whole reason to use duplex nails.

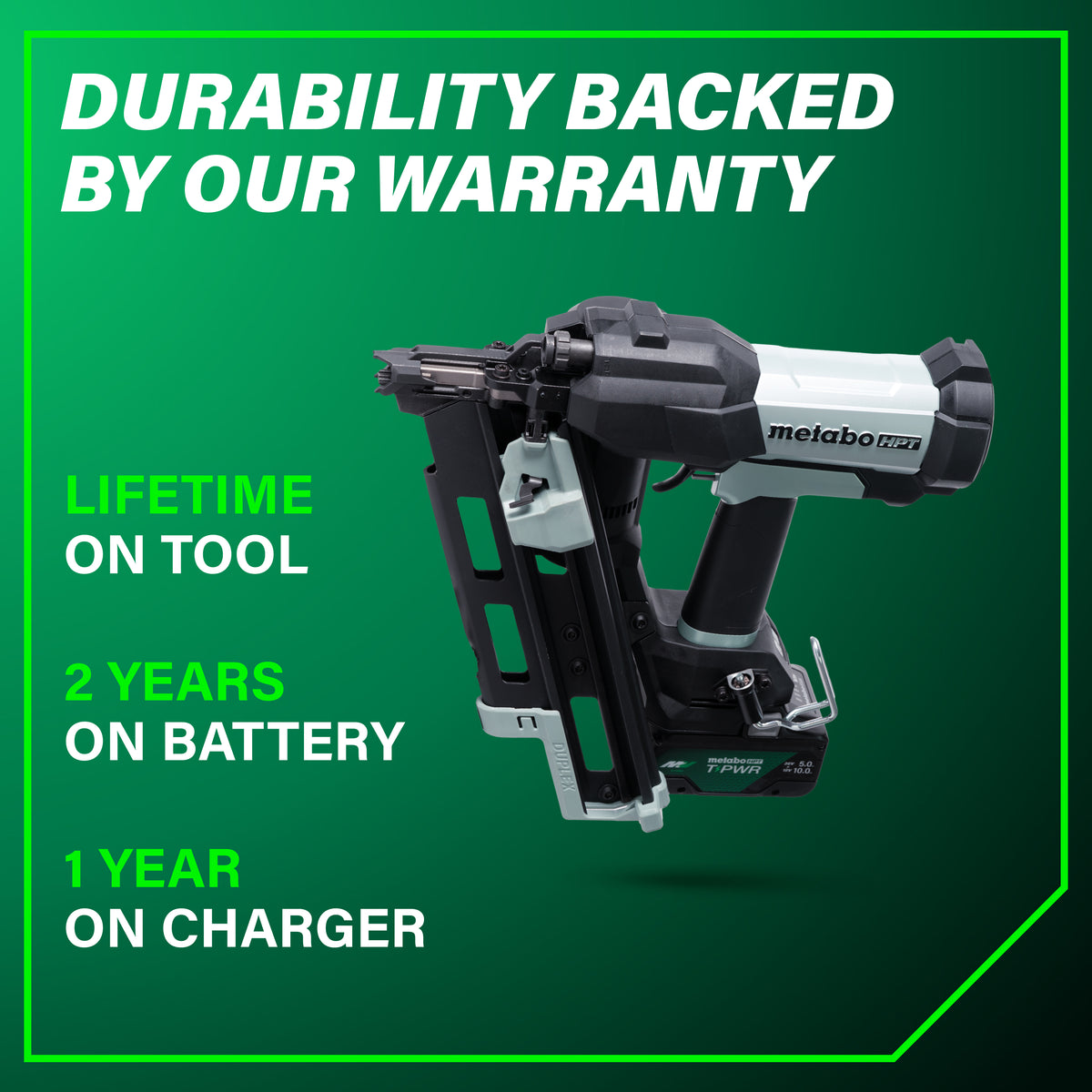

Warranty & Support
Tool Nut's Take
Duplex Nailing Finally Cuts the Cord
The Metabo HPT NR1875DDAQRY takes the most hose-hostile job on site, form work, and puts it on a battery.
- Who it's for: Concrete and foundation crews and GCs who build forms and temporary bracing.
- Why it stands out: Pneumatic-style speed with 6d, 8d, and 16d duplex nails and up to 1,170 nails per charge.
- Worth knowing: The 31-nail magazine means more reloads than a framing nailer, and nails are not included.
At a Glance
Common Questions
- Does this nailer need an air compressor, hose, or fuel cell? No. The air spring drive system is sealed inside the tool and is powered by the 18V battery, so there is no compressor, hose, or gas cartridge to buy or haul.
- How many nails will I get per charge? Metabo HPT rates it at up to 1,170 nails per charge on the included 10.0Ah MultiVolt T-PWR Tabless battery.
- How fast can it fire? Up to 6 nails per second, according to Metabo HPT.

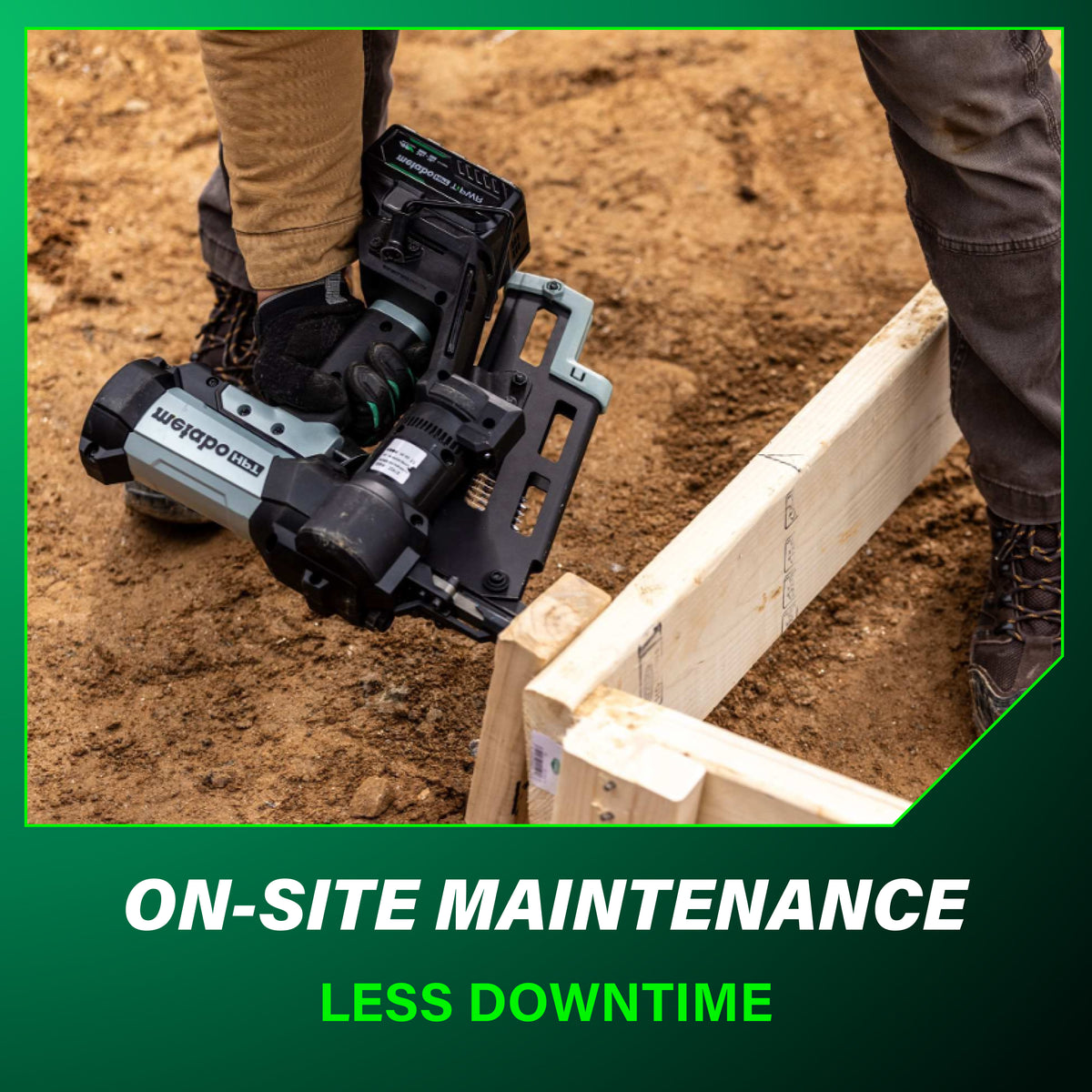

- Can the air spring be serviced in the field? Yes. Metabo HPT designed the line for on-site maintenance, with an optional Air Refill Valve (384002M), Maintenance Jig Kit (384003M), and a Wearable Parts Kit for replacing the driver blade and bumper without sending the tool to a service center.

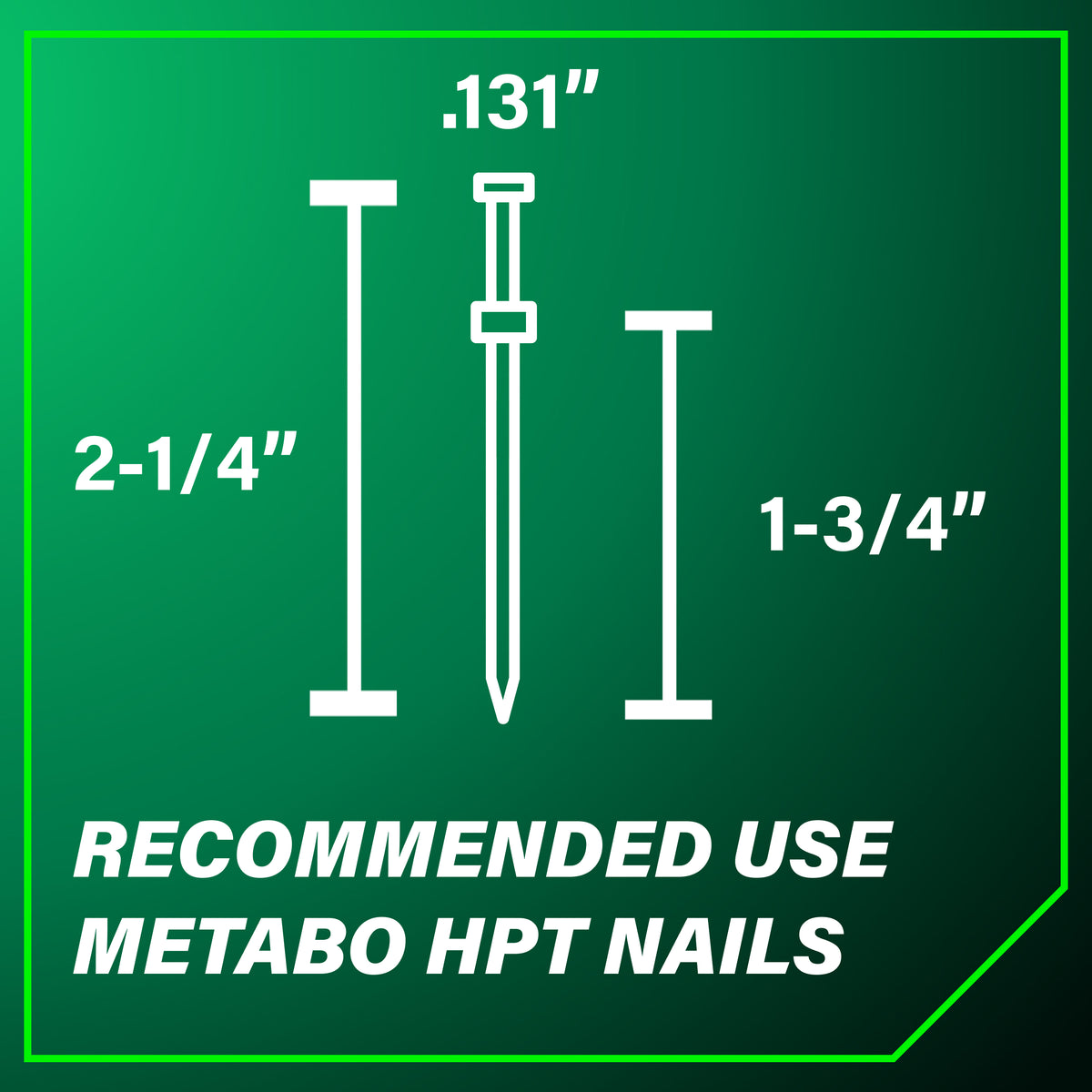

- What nails does it take? Double-head duplex nails in 6d, 8d, and 16d sizes, 2-1/4 in. to 3 in. long, 0.131 in. diameter.
