Dependability of high quality equipment is vital in every industry, so is working with equipment that can save both time and money.

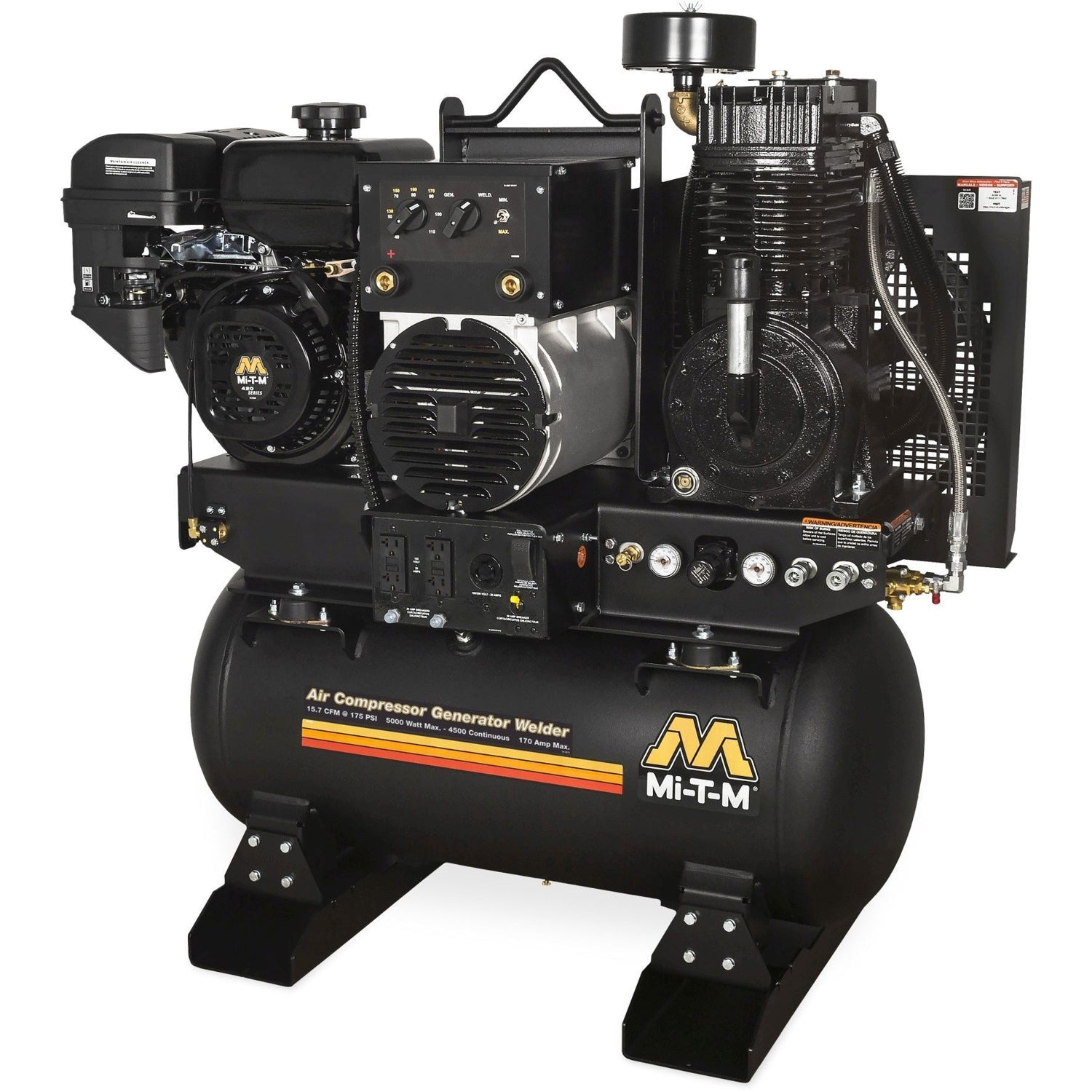

Maximum performance in a single machine, the industrial air compressor, generator, welder combination can tackle any job in the shop or in the field.

Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator

Generator: Brush-type 2 pole 120V/240V alternator · Total harmonic distortion (THD) less than 6% · 100% copper windings

Welder: Amperage selection switch, 170A or 220A maximum

Frame: Powder coated ASME receiver tank · 16-gauge powder coated two-piece belt guard

Components: Regulator and two gauges for tank and outlet pressure · Manual drain valves for proper maintenance · 16.5-inch fly wheel

AGW Series Operation
Generator Mode: AC current only · Selector switch set to idle down · Switch is set to full throttle
Welder Mode: DC current only · Engine must be running full throttle · Selector switch must be set to full throttle

Specifications:

• 15.7 CFM @ 175 PSI
• Displacement/Engine: 404cc Mi-T-M Engine with electric start (cables included, battery not included)
• Max. AC Output: 5000 watts
• Rated Speed: 3600 RPM
• DC Voltage: 50-170A
• Frequency/Voltage: 60Hz/120V/240V
• Receptacles: (2) 120V, 20A GFCI duplex, (1) 120V/240V, 20A twist lock
• Duty Cycle (10 min. run time): 150A @ 100%
• Warranty: 5 Year Subaru Engine
• Warranty: 2 Year Alternator
• Warranty: 2 Year Pump Exchange
• Certification: ASME - UM
