Milwaukee 2737B-20 M18 Fuel Barrel Grip Jig Saw, Tool Only
Milwaukee 2737B-20 M18 Fuel Barrel Grip Jig Saw, Tool Only
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview

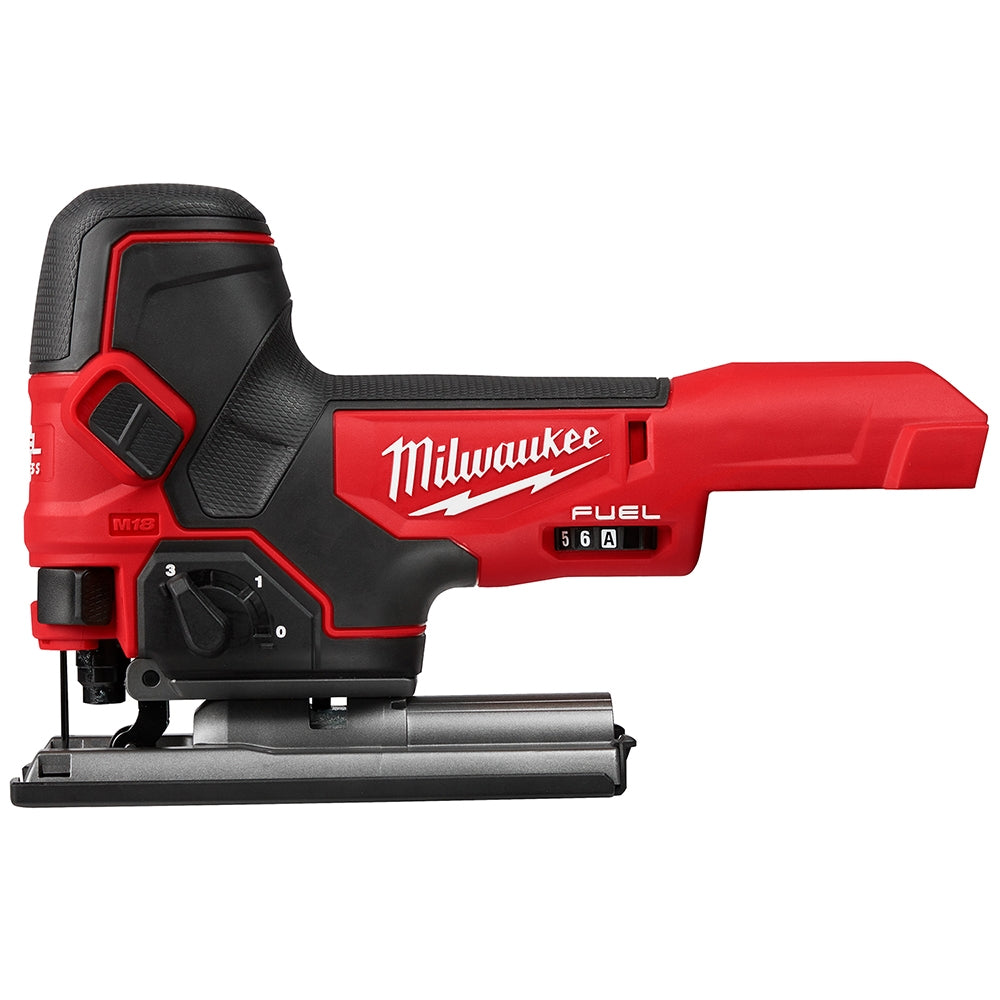

The Milwaukee 2737B-20 M18 FUEL Barrel Grip Jig Saw is a cordless barrel grip jig saw built for controlled curved cutting, plunge cutting, and finish work in wood, hardwood, laminated sheet goods, and metal. This is a jig saw designed for precise cutting across a wide range of materials. Model Number: 2737B-20. If you want the lower hand position and close-to-the-work feel that barrel grip users prefer, this is the setup Milwaukee built for that style of cutting.

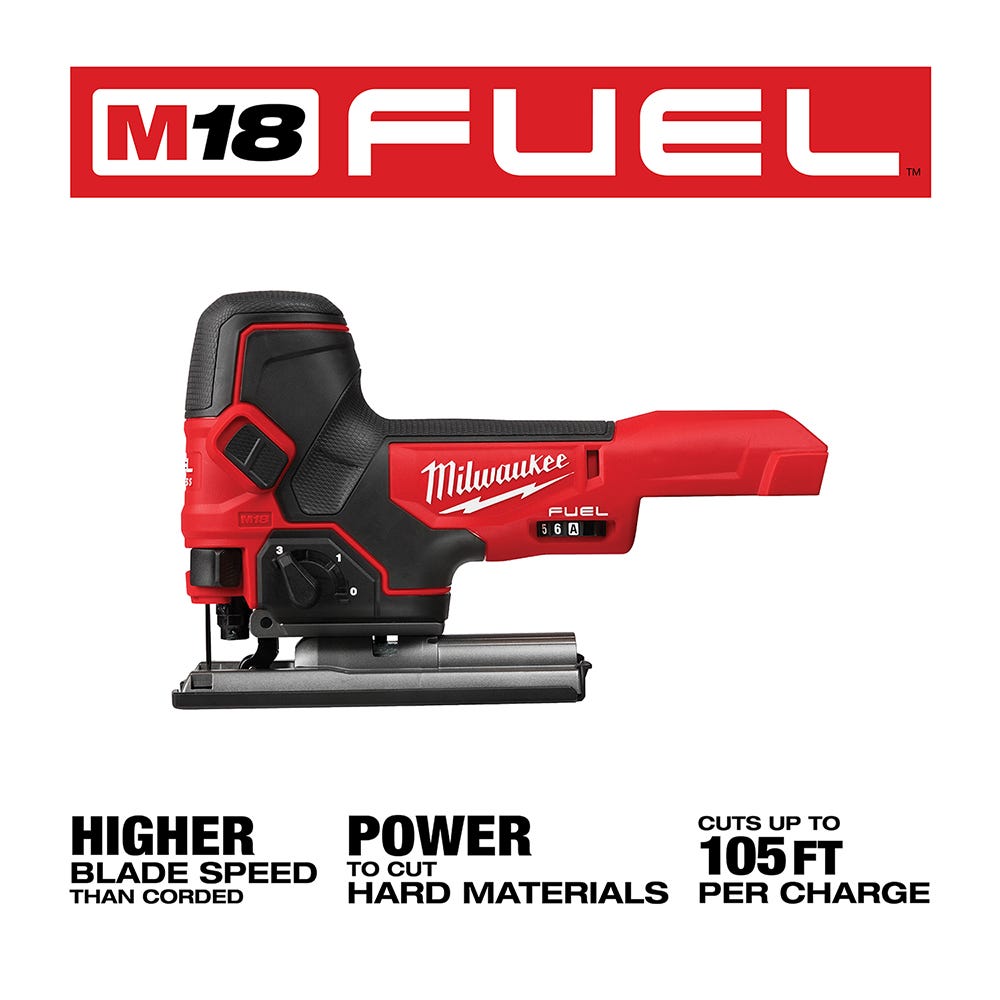

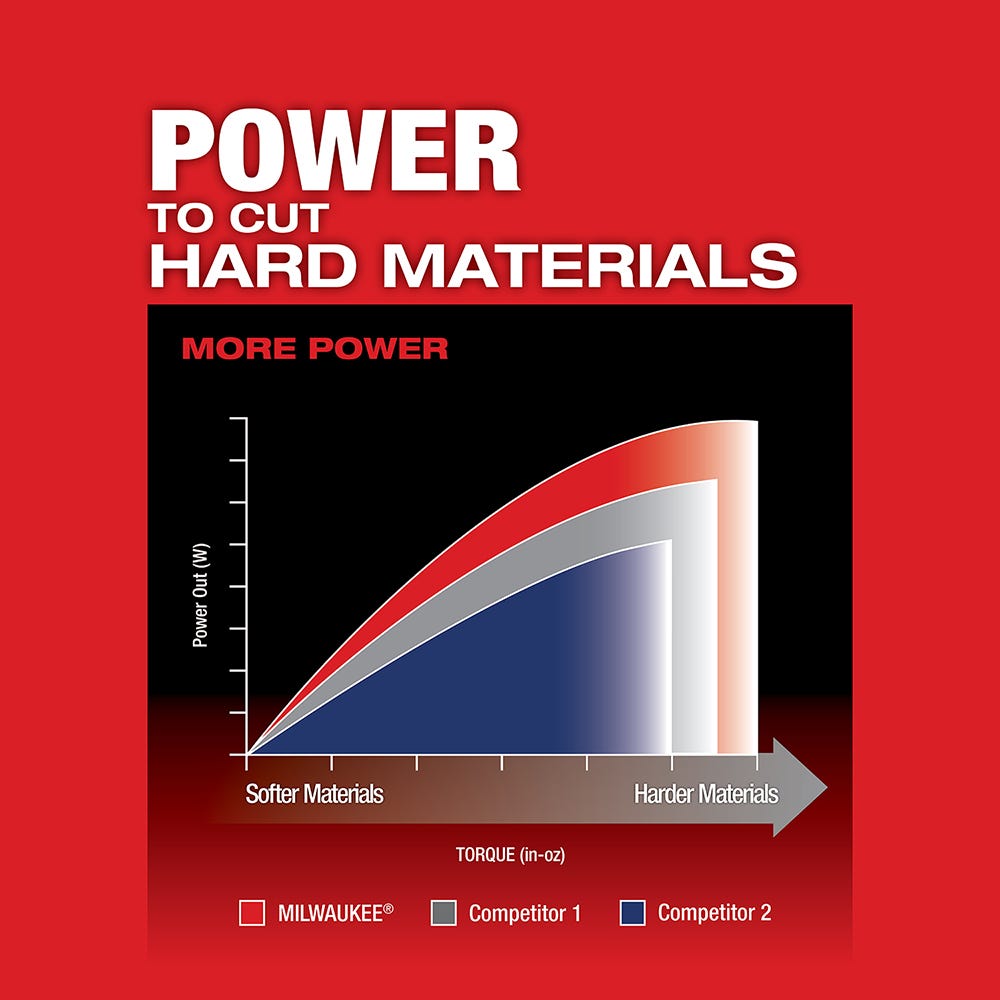

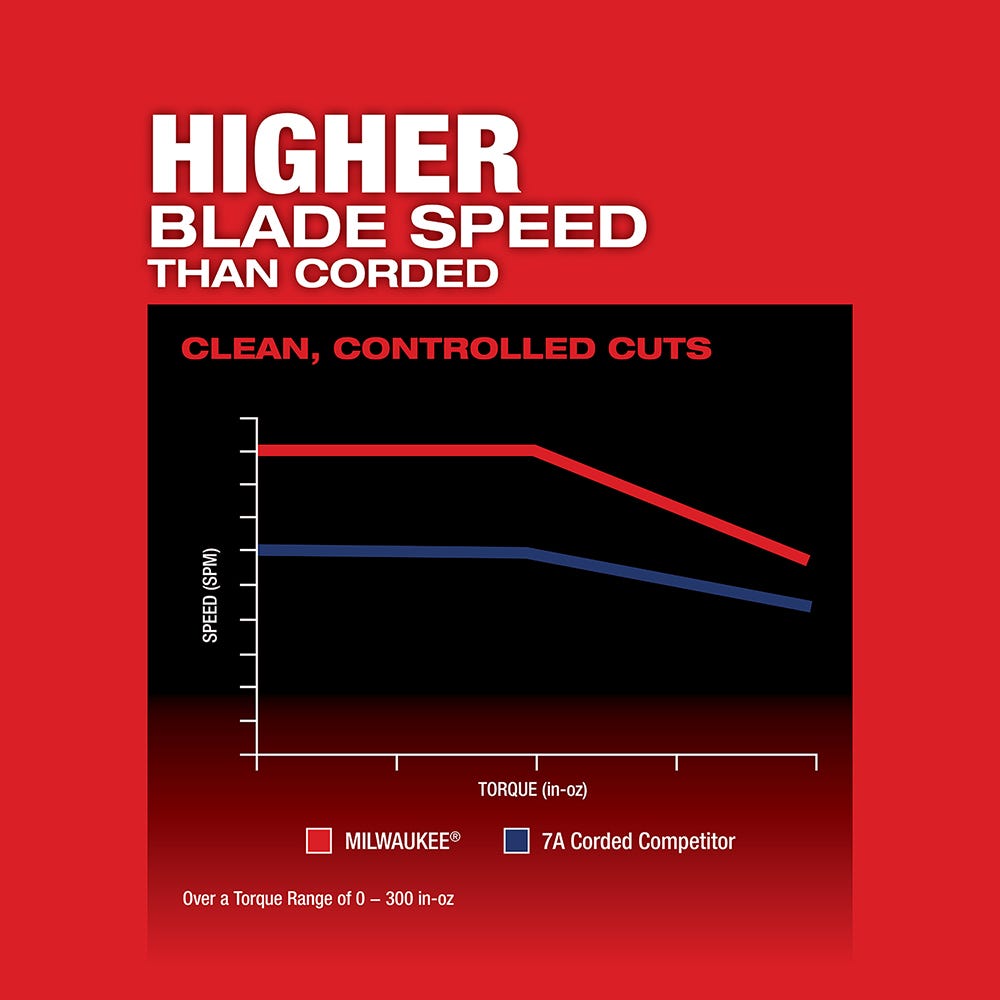

What matters most here is the mix of speed and control. The brushless motor drives the blade up to 3,500 strokes per minute, which helps the saw stay productive in tougher materials while still delivering cleaner results. Milwaukee also gives you six speed settings and four orbital positions, so you can tune the cut to the material instead of forcing one aggressive setup to do everything. For cleaner starts, the auto-control start feature begins slowly, then increases speed when the blade enters the material. That is useful when you're trying to keep a layout line tight on finished plywood, laminated board, or visible trim parts.
The barrel grip layout is the real reason many users will choose this model over a standard top-handle jig saw. With your hand lower and closer to the cut line, it is easier to guide the saw through curves, detail work, and tighter patterns. Milwaukee also uses ambidextrous on and off switches on both sides, so the saw works well from different hand positions and does not force an awkward grip when you are working around a cutout or following a tight radius.

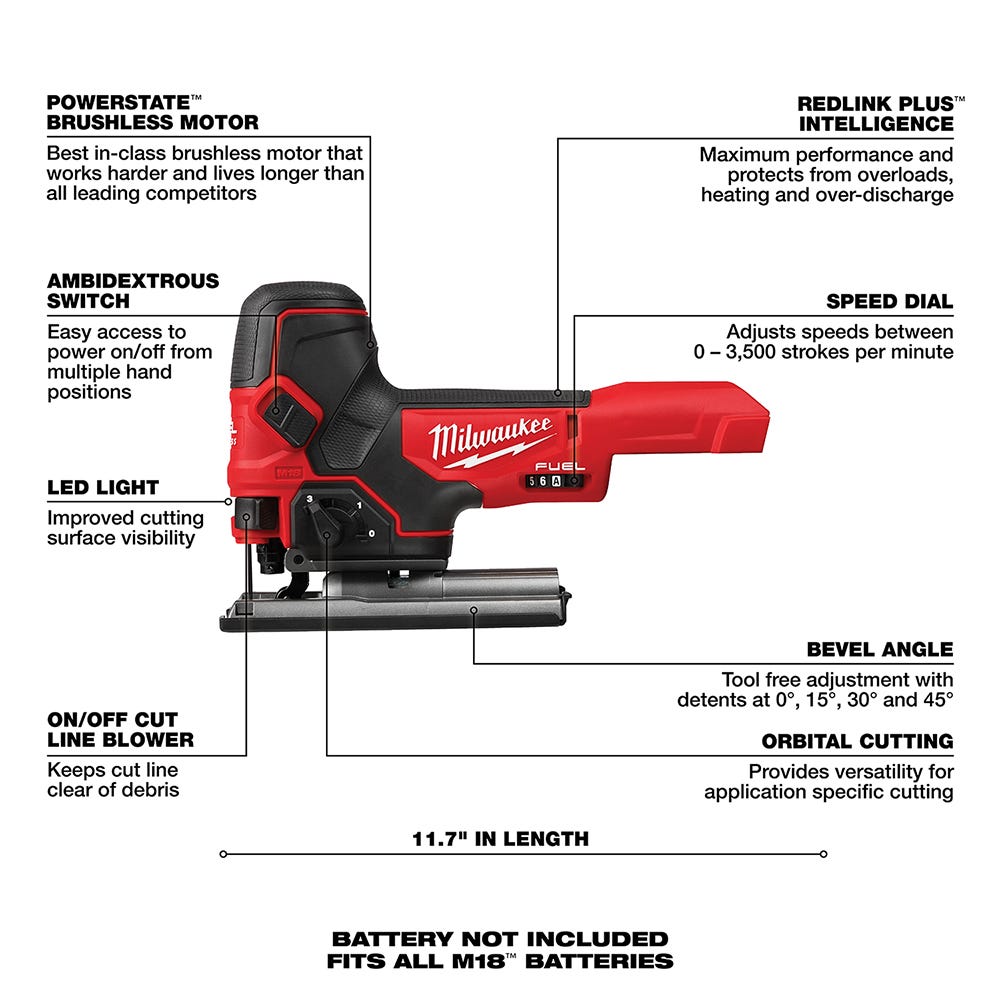

Milwaukee built in the jobsite features that actually help when you're cutting all day. The LED light keeps the blade path visible. The on and off cut line blower clears chips when you want a better view of the line, and you can turn the blower off when using dust extraction. Tool-free bevel adjustment with positive stops at 0, 15, 30, and 45 degrees makes angle changes faster and more repeatable, and the onboard hex wrench keeps that adjustment close at hand instead of rolling around the bottom of the toolbox.
Blade changes are tool-free, and the saw accepts standard T-shank jig saw blades, which matters because that keeps blade sourcing simple and opens up a wide range of options for wood cutting, laminate work, fine finish blades, and metal cutting blades. Stroke length is 1 inch, and cutting capacity is listed at up to 5.5 inches in wood and 0.38 inch in metal. That gives this saw enough range for common remodeling, punch list, cabinet, and general carpentry tasks without stepping into a specialty-only role.
Because this is part of the Milwaukee M18 system, it makes the most sense for users already running M18 batteries and chargers. Milwaukee lists compatibility with more than 150 tools on the M18 platform, so this bare tool fits cleanly into an existing cordless setup. If you already own M18 packs, the value is straightforward. If you do not, remember this is a bare tool and requires a separate battery and charger.
Who should buy it? Carpenters, remodelers, cabinet installers, finish guys, and serious DIY users who want a cordless jig saw with a barrel grip feel and strong cutting speed. It is also a good fit for users who switch between wood and light metal cutting and want one saw that can handle both with proper blades. If you prefer a top-handle saw for overhead work, this may not be your first choice. But if control at the cut line is the priority, this Milwaukee is the one to look at.

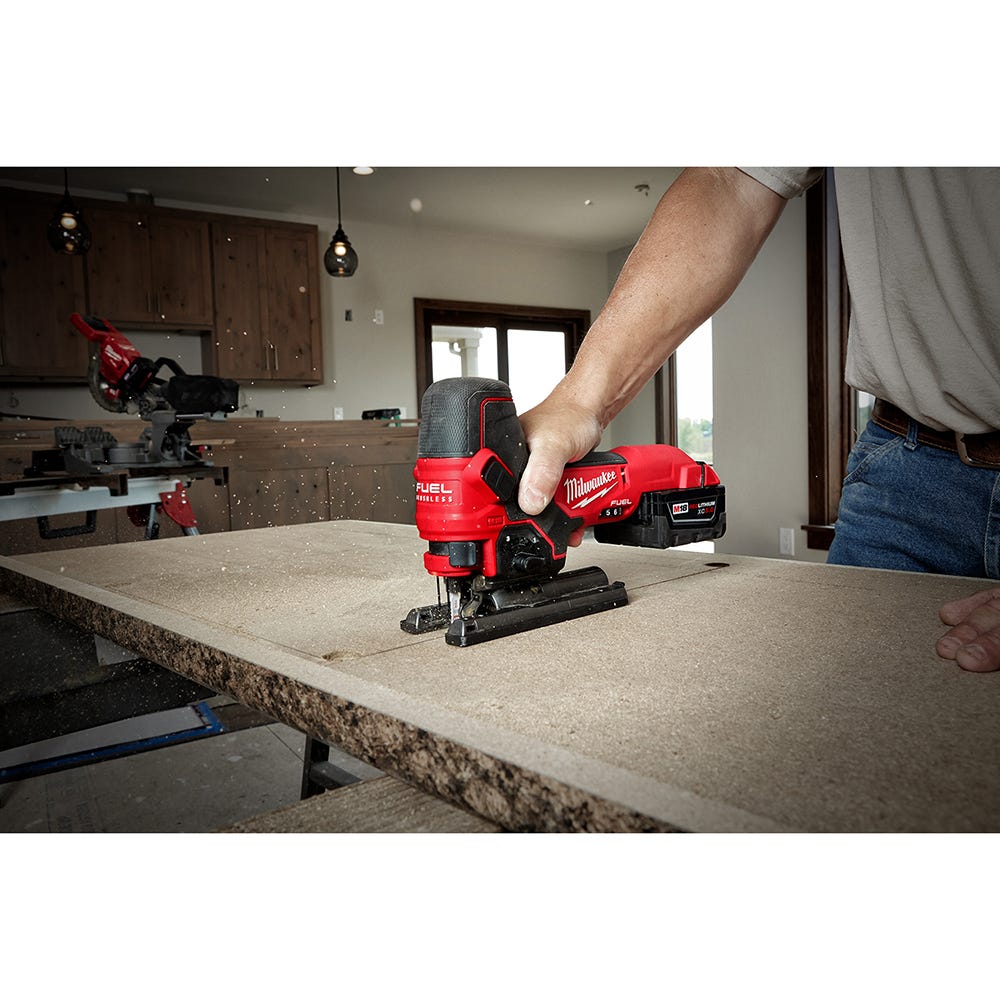

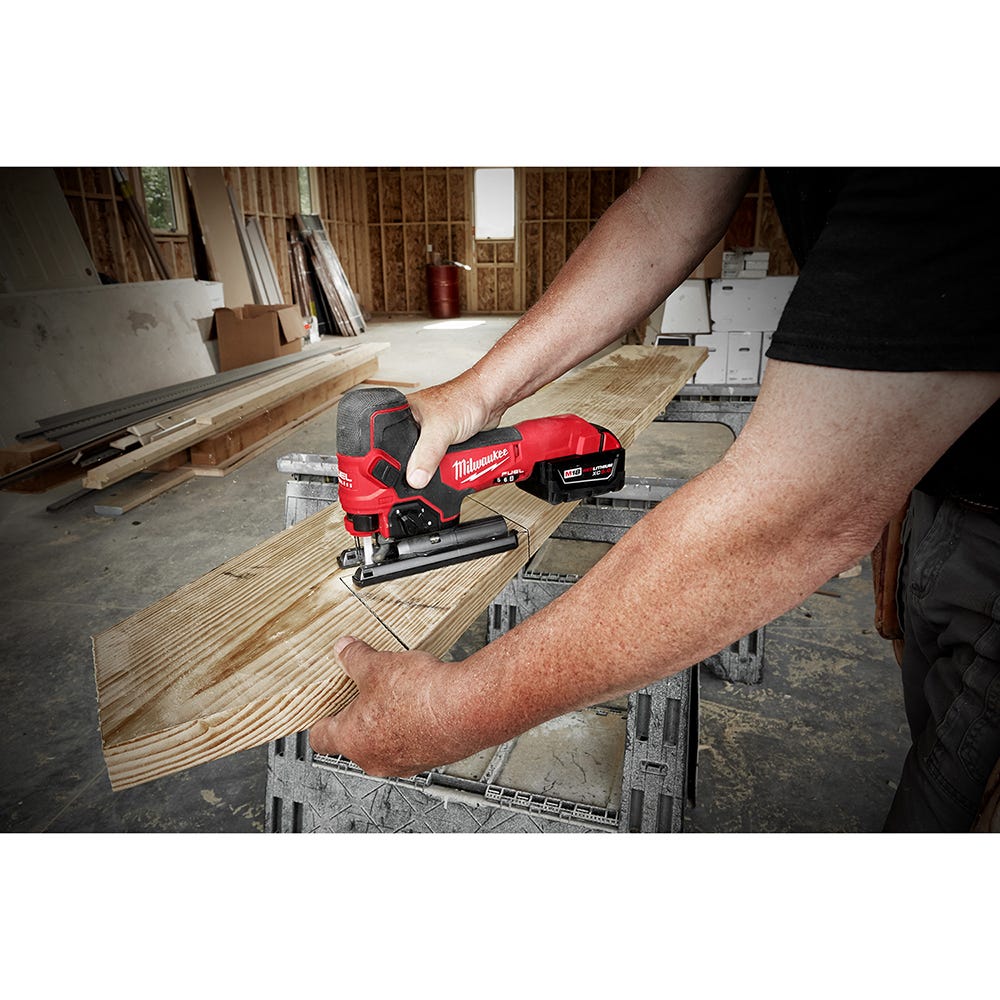

Closer Control at the Cut Line
The big advantage of a barrel grip jig saw is control. With your hand sitting lower and closer to the shoe, it is easier to steer through curves, start carefully on visible surfaces, and keep the blade tracking where you want it.
- Ambidextrous switches on both sides make it easier to power the tool from multiple hand positions
- Tool-free bevel adjustment has positive stops at 0, 15, 30, and 45 degrees for fast angle changes

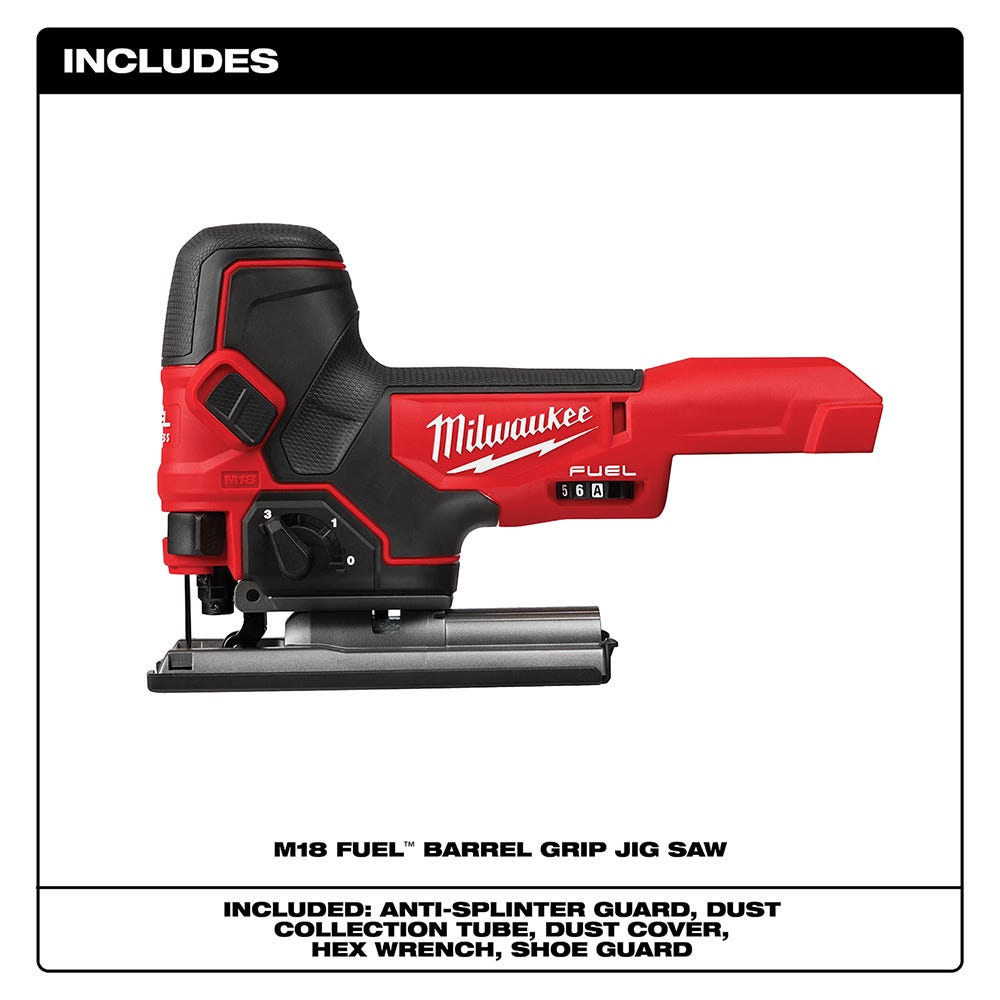

What's in the Box
- (1) Milwaukee 2737B-20 M18 FUEL Barrel Grip Jig Saw
- (1) Anti-Splinter Guard
- (1) Dust Collection Tube
- (1) Dust Cover
- (1) Hex Wrench
- (1) Shoe Guard
Battery and charger are sold separately.

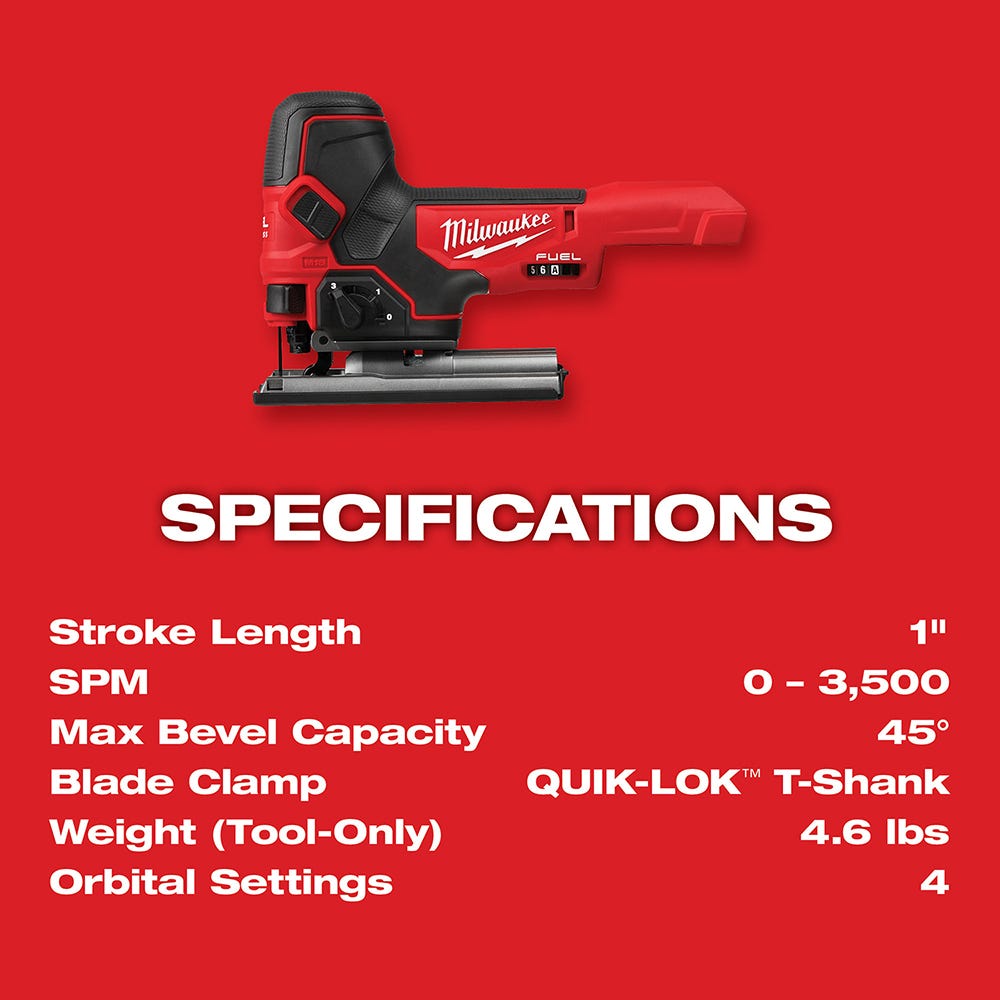

Key Specifications
| Voltage (V) | 18V |
|---|---|
| Power Source | Cordless |
| No-Load Speed | 0 to 3,500 SPM |
| Speed Settings | 6 |
| Orbital Positions | 4 |
| Stroke Length | 1 in |
| Cutting Capacity | 5.5 in wood; 0.38 in metal |
| Weight (lbs) | 4.59 lbs |
| Length | 11.7 in |
| Blade Interface | T-shank jig saw blades |
| Bevel Stops | 0°, 15°, 30°, 45° |
| Made In | Viet Nam |
Compatibility
Built For
Pro Tip
If you're hooking up dust extraction, switch the cut line blower off. That keeps the vac doing the work instead of fighting the airflow, and it helps keep the cut line cleaner on finished material.
Warranty & Support
Tool Nut's Take
Milwaukee 2737B-20 M18 FUEL Barrel Grip Jig Saw gets the important stuff right
This is the cordless jig saw we'd point barrel grip fans toward when they want real cutting speed, better line visibility, and solid control without going back to a cord.
- Who it's for: Pros and serious DIY users doing woodworking, remodeling, laminate cuts, cutouts, and occasional metal cutting who prefer a barrel grip over a top handle.
- Why it stands out: You get up to 3,500 strokes per minute, six speed settings, four orbital positions, tool-free bevel changes, and standard T-shank blade compatibility in one M18 package.
- Worth knowing: This is a bare tool, so plan on bringing your own M18 battery and charger. If you're already on M18, that's not a downside. It's the whole point.
Common Questions
- What battery platform does this saw use? It uses Milwaukee M18 batteries.
- Does this jig saw accept standard blades? Yes. It accepts T-shank jig saw blades.
- What is the maximum blade speed? The saw runs from 0 to 3,500 strokes per minute.
- Can the shoe bevel for angled cuts? Yes. It has tool-free bevel adjustment with detents at 0, 15, 30, and 45 degrees.
