Milwaukee M18 Red Exterior Rotary Laser Level Kit with Receiver, Tripod, & Grade Rod (3701-21T)
Milwaukee M18 Red Exterior Rotary Laser Level Kit with Receiver, Tripod, & Grade Rod (3701-21T)
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview

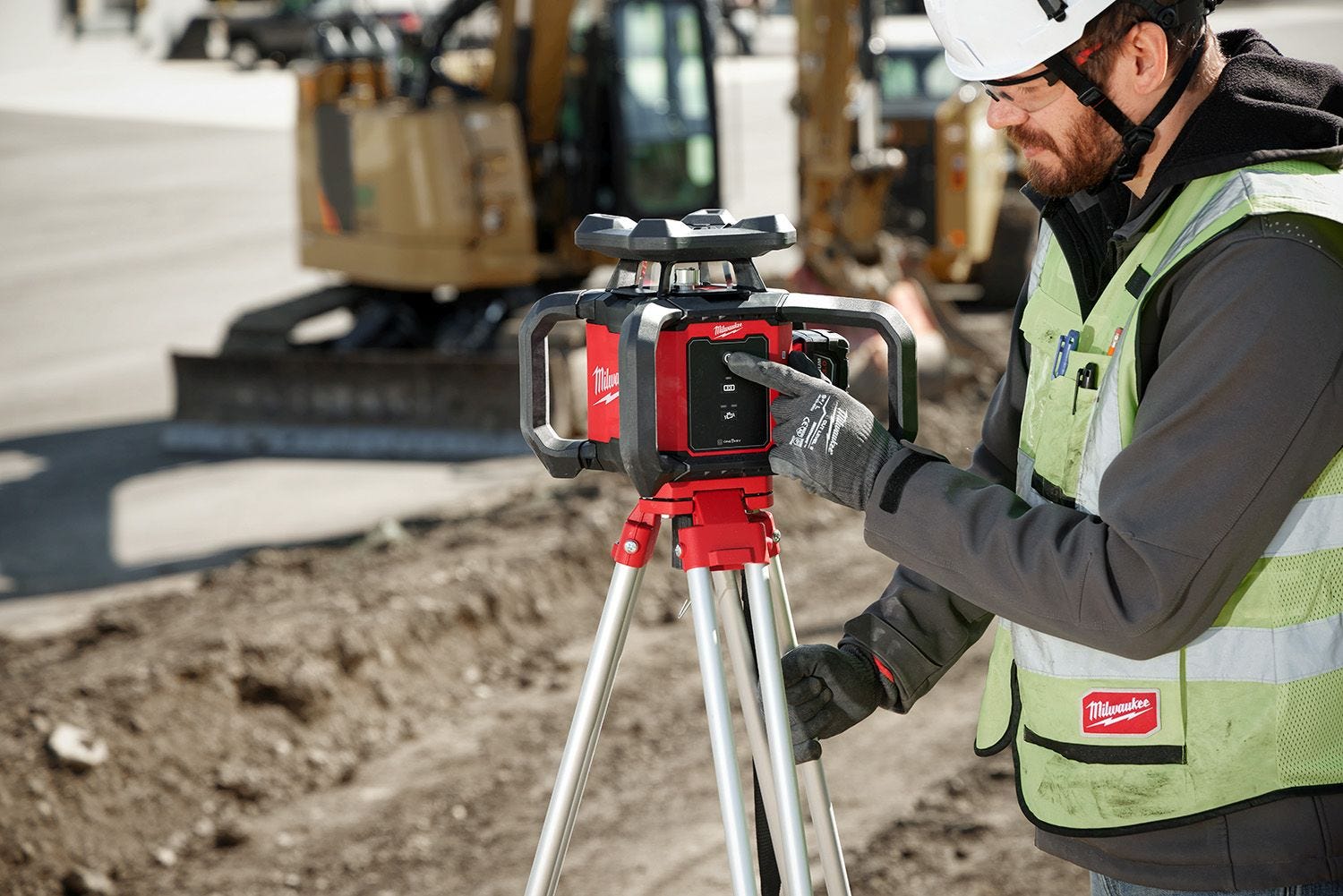

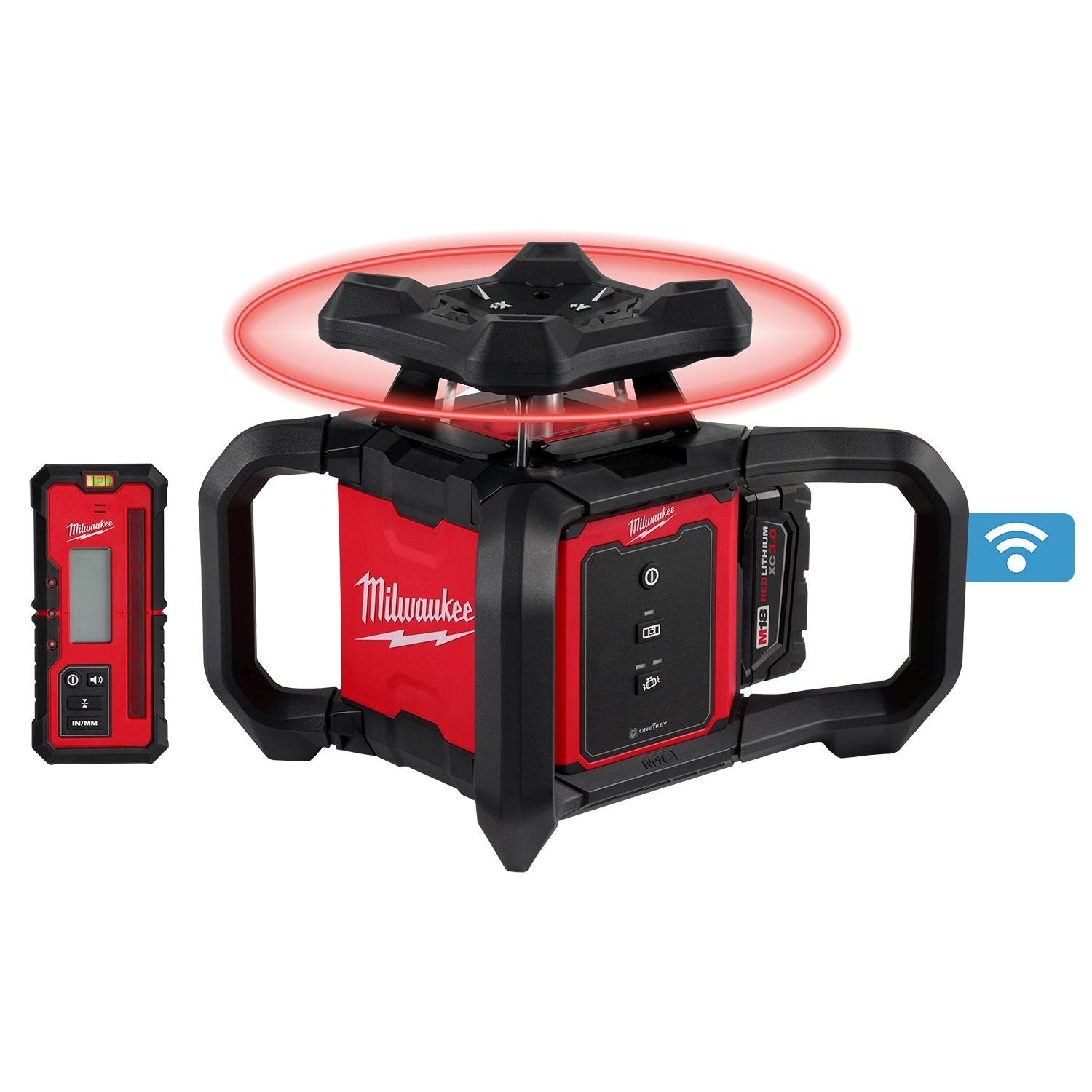

The Milwaukee 3701-21T M18 Red Exterior Rotary Laser Level Kit w/ Receiver, Tripod, & Grade Rod is a complete exterior leveling package for site contractors, concrete crews, and excavation and landscape pros. This is a self-leveling rotary laser level designed for outdoor grading, footings, slabs, and elevation work. Model Number 3701-21T. Everything needed to set up and shoot elevations comes in the kit: the red-beam rotary laser, receiver and clamp, aluminum tripod, grade rod, an M18 REDLITHIUM battery, a charger, and a carrying case.
Accuracy and range are what you pay for in a rotary laser. The 3701 holds +/- 3/32" at 100 ft and spins at 600 RPM, and with the included receiver it works across a 2,000 ft diameter. It self-levels within +/- 5 degrees in horizontal mode, and low and high bump sensitivity modes let you decide how hard the laser reacts if the tripod gets knocked. On a windy site or near running equipment, that choice matters. Milwaukee places it among its Milwaukee laser levels as the horizontal red-beam exterior model.

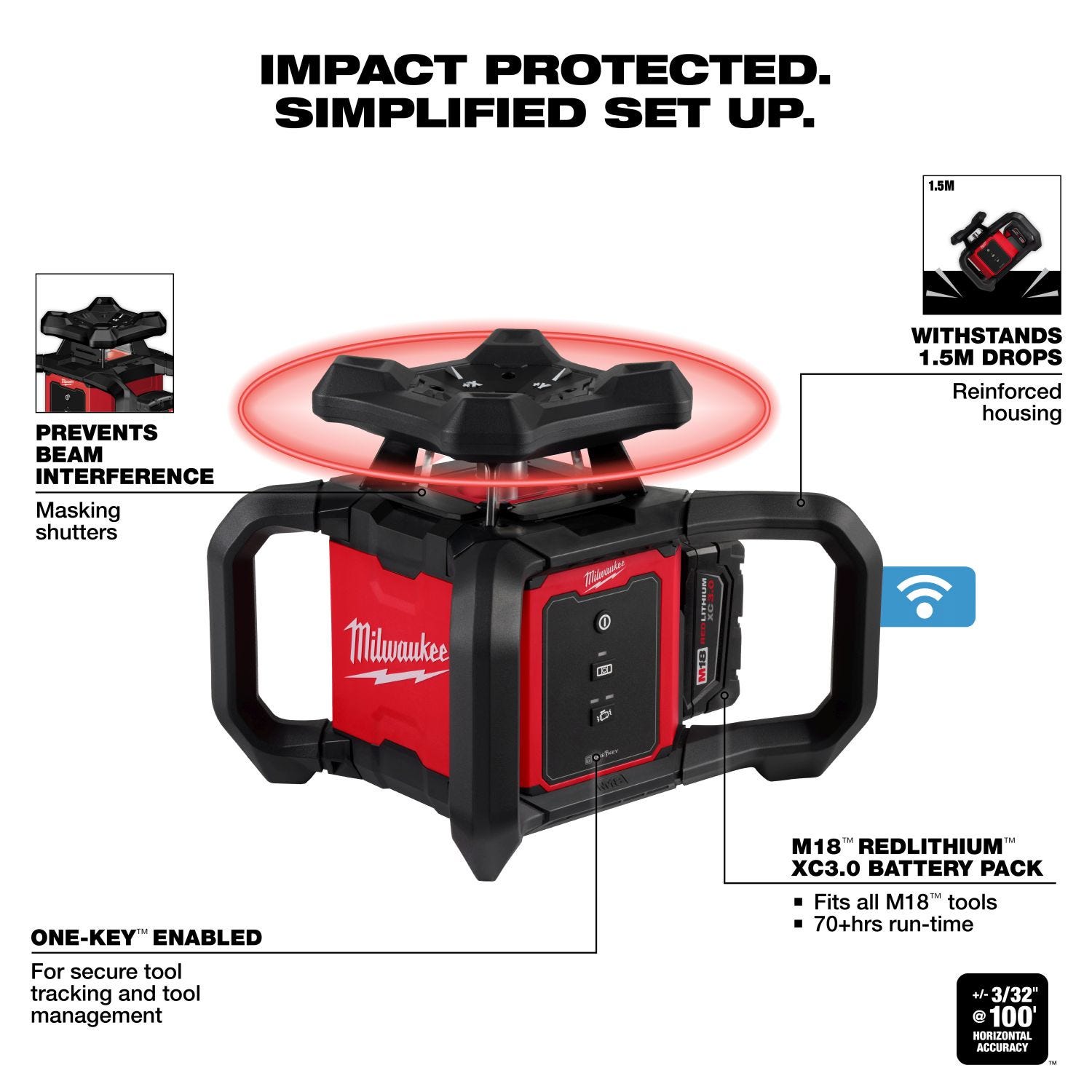

Milwaukee built it for site abuse. The reinforced housing withstands 4.9 ft (1.5 m) drops and a 6.6 ft (2 m) tripod tip, and the laser is IP66 rated against dust and water jets. Setup is a single button: power on, let it level, and go. Built-in manual masking shutters block the beam in any direction you choose, which prevents interference with other lasers and keeps the beam out of the eyes of nearby crews.

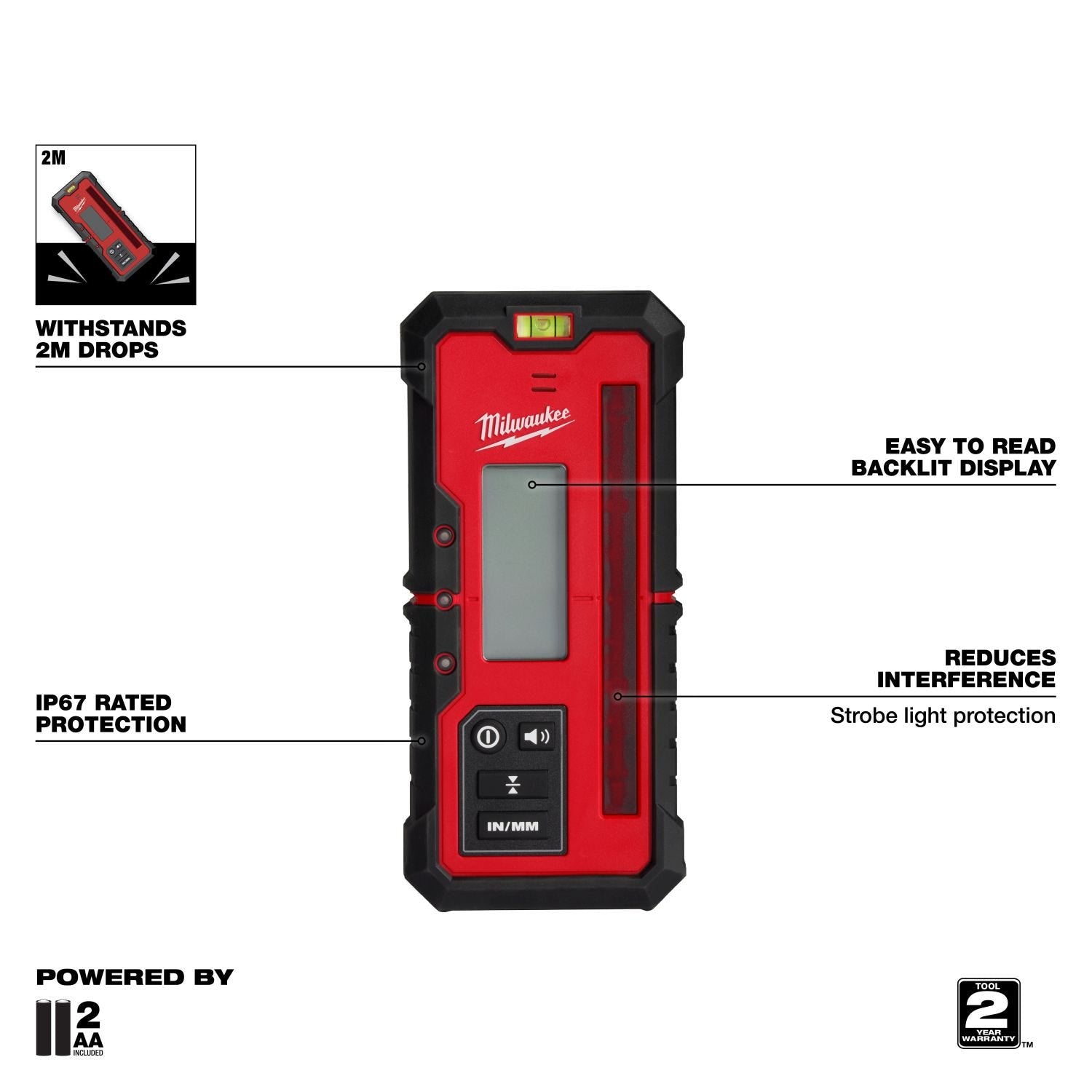

The included Milwaukee 3711 Red Exterior Rotary Laser Receiver picks up the beam across the full 2,000 ft working diameter. Built-in strobe light protection filters out flashing lights from equipment and vehicles that can trigger false readings, and the easy-to-read backlit display stays legible in low light. Milwaukee rates the receiver IP67 with a 6.6 ft (2 m) drop rating, and it runs on two AA batteries (included).
Power comes from the M18 system. The laser runs up to 70 hours on M18 power and accepts any M18 battery, so crews already running M18 tools can share packs instead of stocking alkaline cells. The kit includes an M18 REDLITHIUM XC battery and a charger. ONE-KEY tracking and tool management lets you locate the laser and manage it alongside the rest of your connected tools.

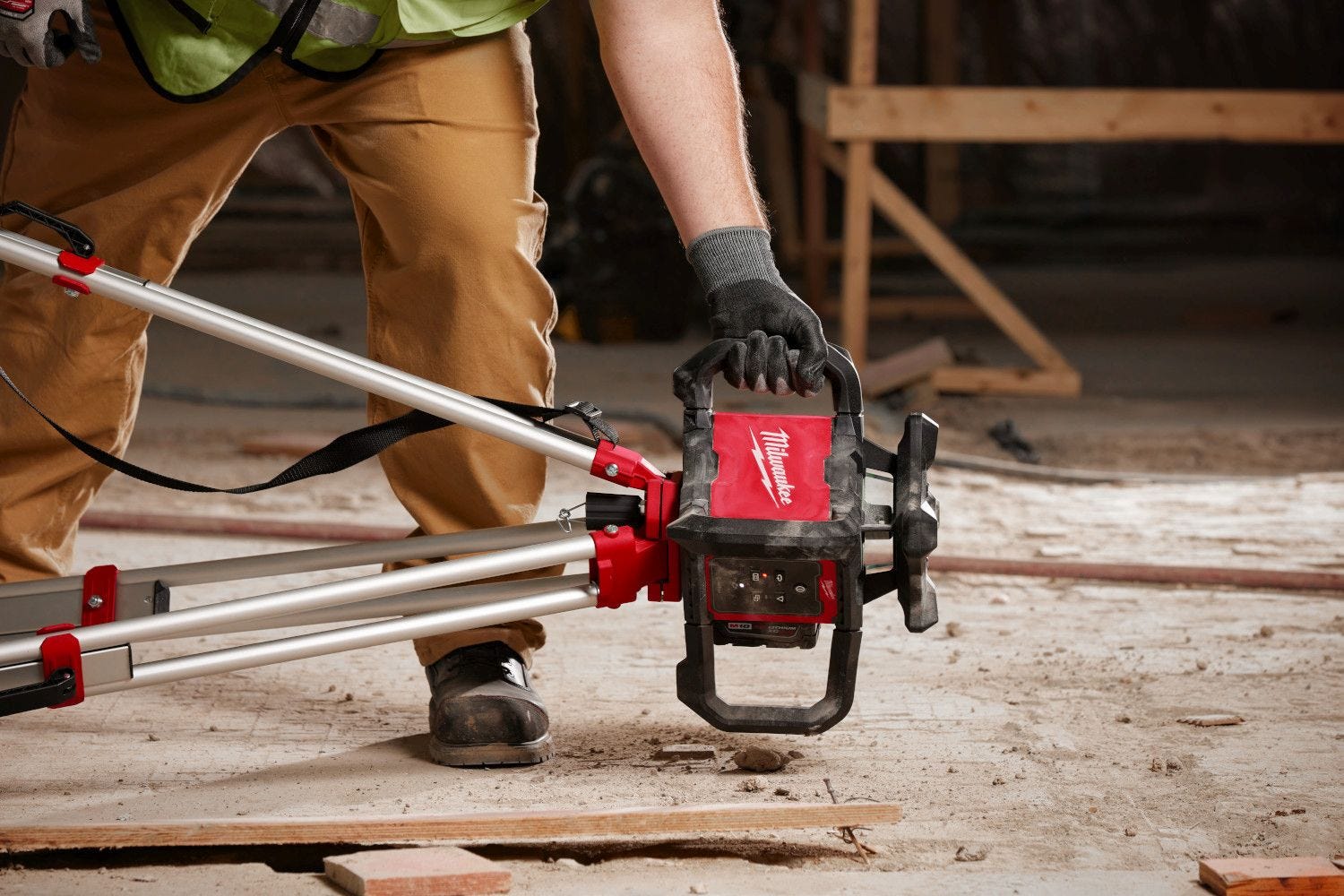

The Milwaukee 48-35-3700 Rotary Laser Tripod uses a durable aluminum design built to take more impacts and tips on site, and the 5/8"-11 threaded insert on the laser fits standard surveying tripods. The 8 ft grade rod and receiver clamp complete the setup for reading cut and fill.
Who should buy it? Concrete and flatwork contractors, excavation and site work crews, landscapers, fence and deck builders, and general contractors who set footings and check grades and want one kit that covers it all. It is a horizontal-only red-beam laser, so it is the right tool for exterior elevation work rather than interior layout or plumb points.
Shoot Grades Across the Site

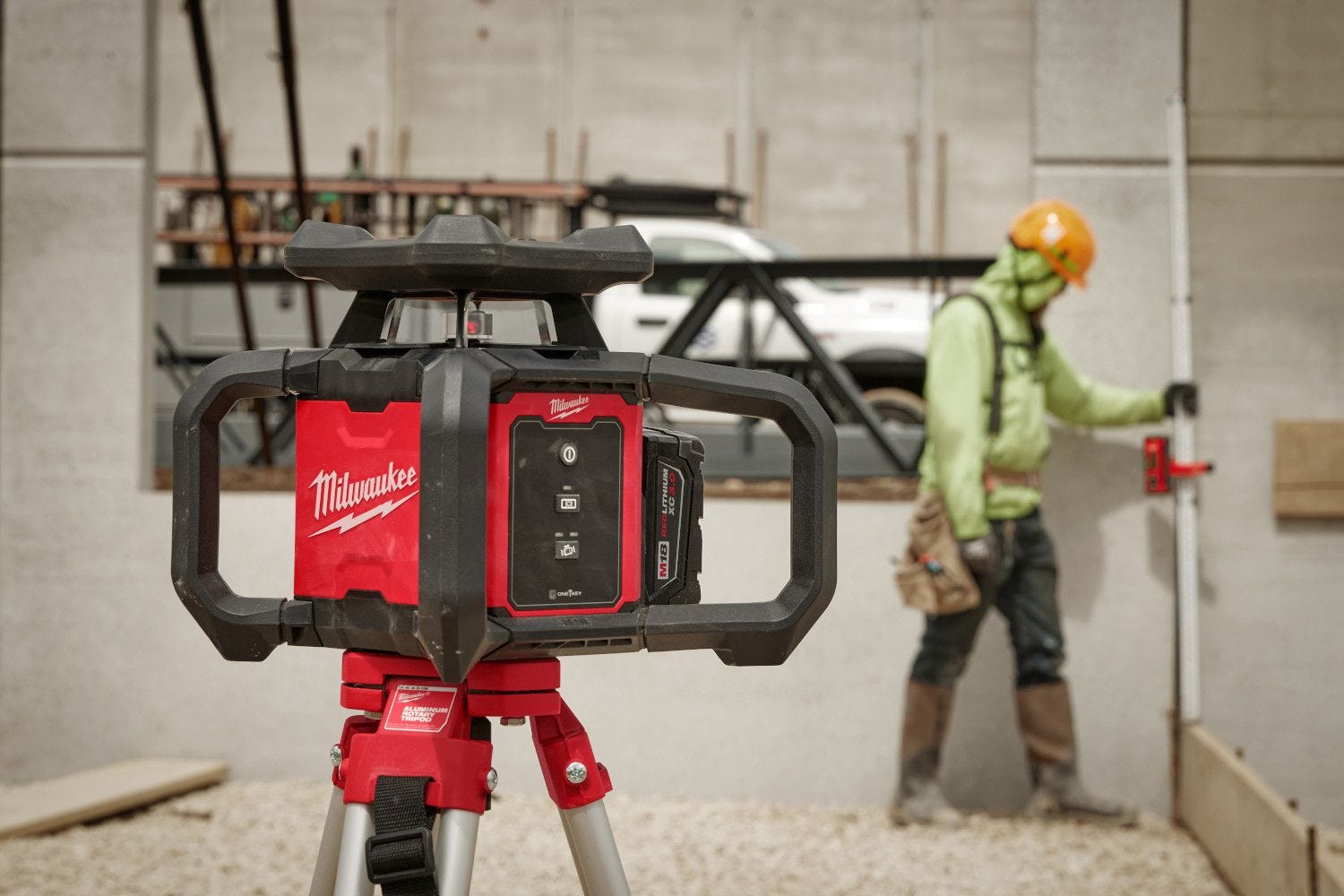

Set the laser once and one person can check elevations across a 2,000 ft diameter with the receiver and grade rod.
- +/- 3/32" accuracy at 100 ft
- 600 RPM rotation speed

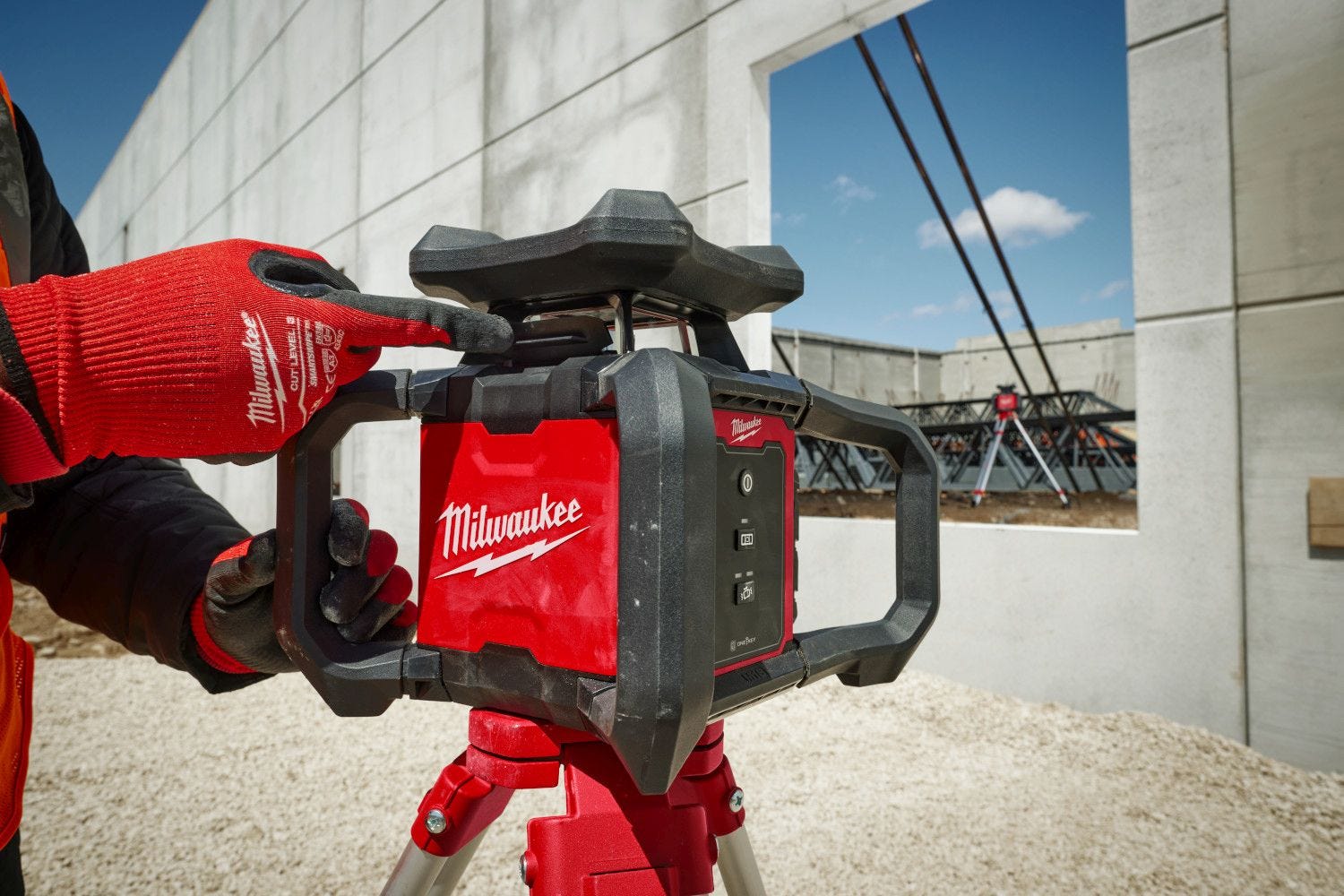

One-Button Setup
Power on, let it self-level, and start working. No menus to dig through when the excavator is waiting.
- Self-leveling within +/- 5 degrees
- Low and high bump sensitivity modes
Mask the Beam Where You Need To
Built-in masking shutters block the beam in any direction, keeping it off other crews and away from other lasers working the same site.
- Manual masking shutters prevent beam interference
- ONE-KEY tracking and tool management
Built to Survive the Jobsite
The reinforced housing is drop-rated and sealed against dust and water, so a tipped tripod or a rain shower does not end the day.
- Withstands 4.9 ft (1.5 m) drops and 6.6 ft (2 m) tripod tips
- IP66 dust and water protection

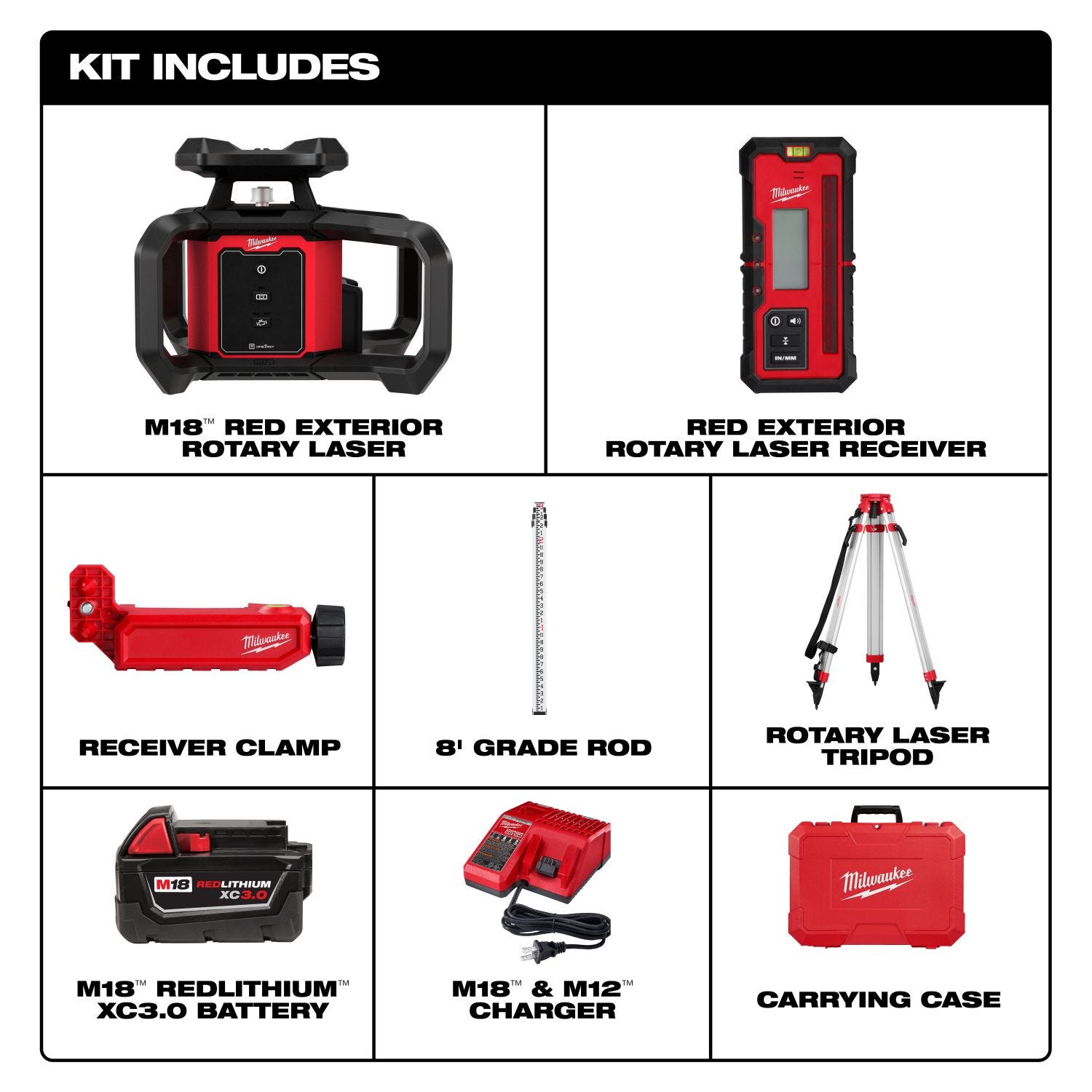

What's in the Box
- (1) M18 Red Exterior Rotary Laser Level (3701)
- (1) Red Exterior Rotary Laser Receiver (3711)
- (1) Receiver Clamp
- (2) AA Batteries
- (1) M18 REDLITHIUM XC Battery Pack
- (1) M18 & M12 Multi-Voltage Charger (48-59-1812)
- (1) Rotary Laser Tripod (48-35-3700)
- (1) 8 ft Grade Rod
- (1) Shoulder Strap
- (1) Carrying Case

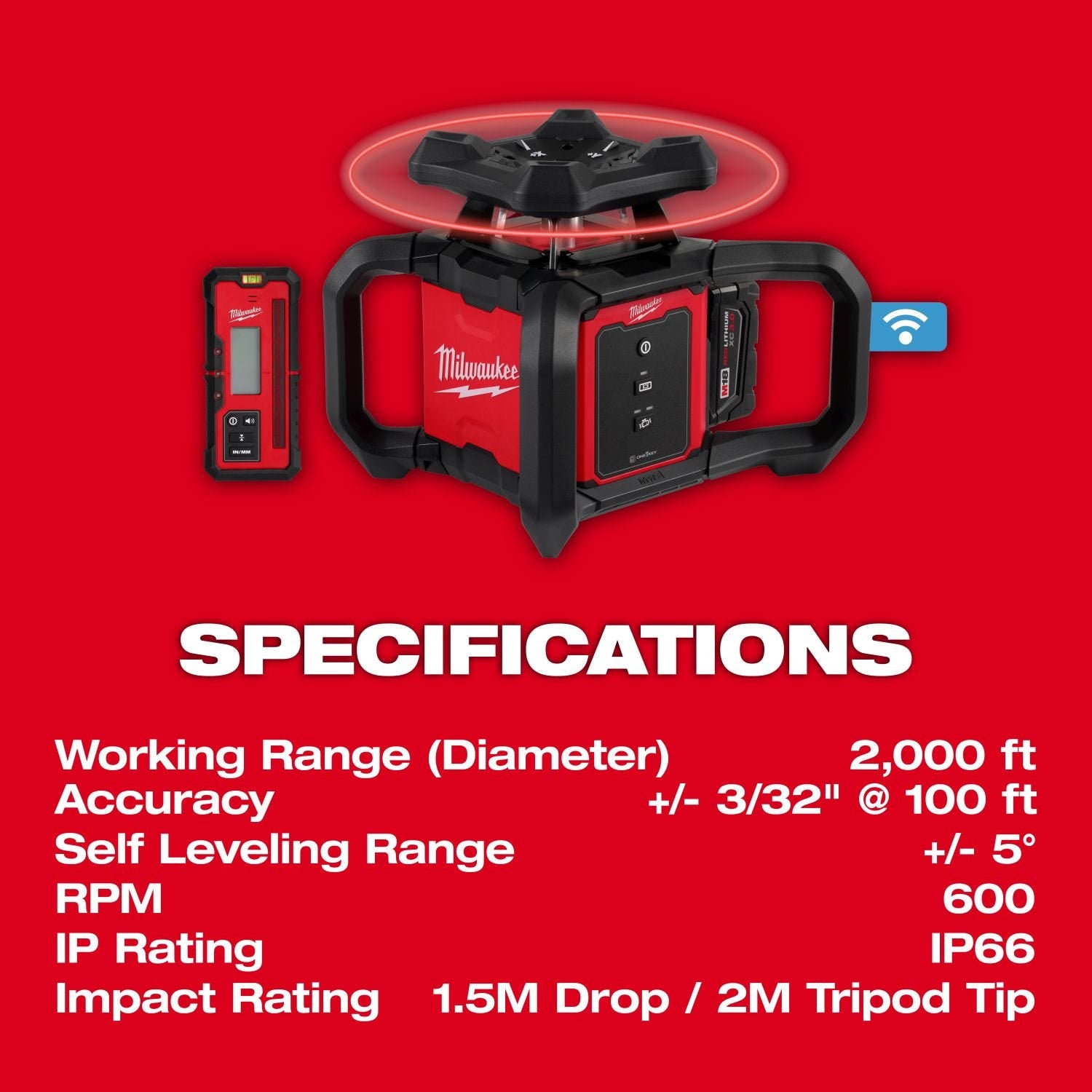

Key Specifications
|
|
+/- 3/32" at 100 ft |
|---|---|
|
|
2,000 ft with receiver |
|
|
+/- 5 degrees |
|
|
600 RPM |
|
|
Red / Horizontal |
|
|
Up to 70 hours |
|
|
IP66 (laser), IP67 (receiver) |
|
|
4.9 ft (1.5 m) drop / 6.6 ft (2 m) tripod tip |
|
|
5/8"-11 |
|
|
M18 battery |
Compatibility
Built For
Pro Tip
Switch to the high bump sensitivity mode any time equipment is working near the tripod, and shoot your benchmark again after anything touches the tripod. Checking one known elevation takes a minute; re-pouring a footing takes a week.
Warranty & Support
Tool Nut's Take
The Milwaukee 3701-21T M18 Red Exterior Rotary Laser Level Kit Is a Grade Crew in a Case
Laser, receiver, tripod, rod, battery, and charger in one kit, running on the batteries your crew already carries.
- Who it's for: Concrete, excavation, landscape, and site contractors who set elevations outdoors and already run M18.
- Why it stands out: 70 hours of run time on M18, a 2,000 ft working diameter, masking shutters, and drop protection rated for real site abuse.

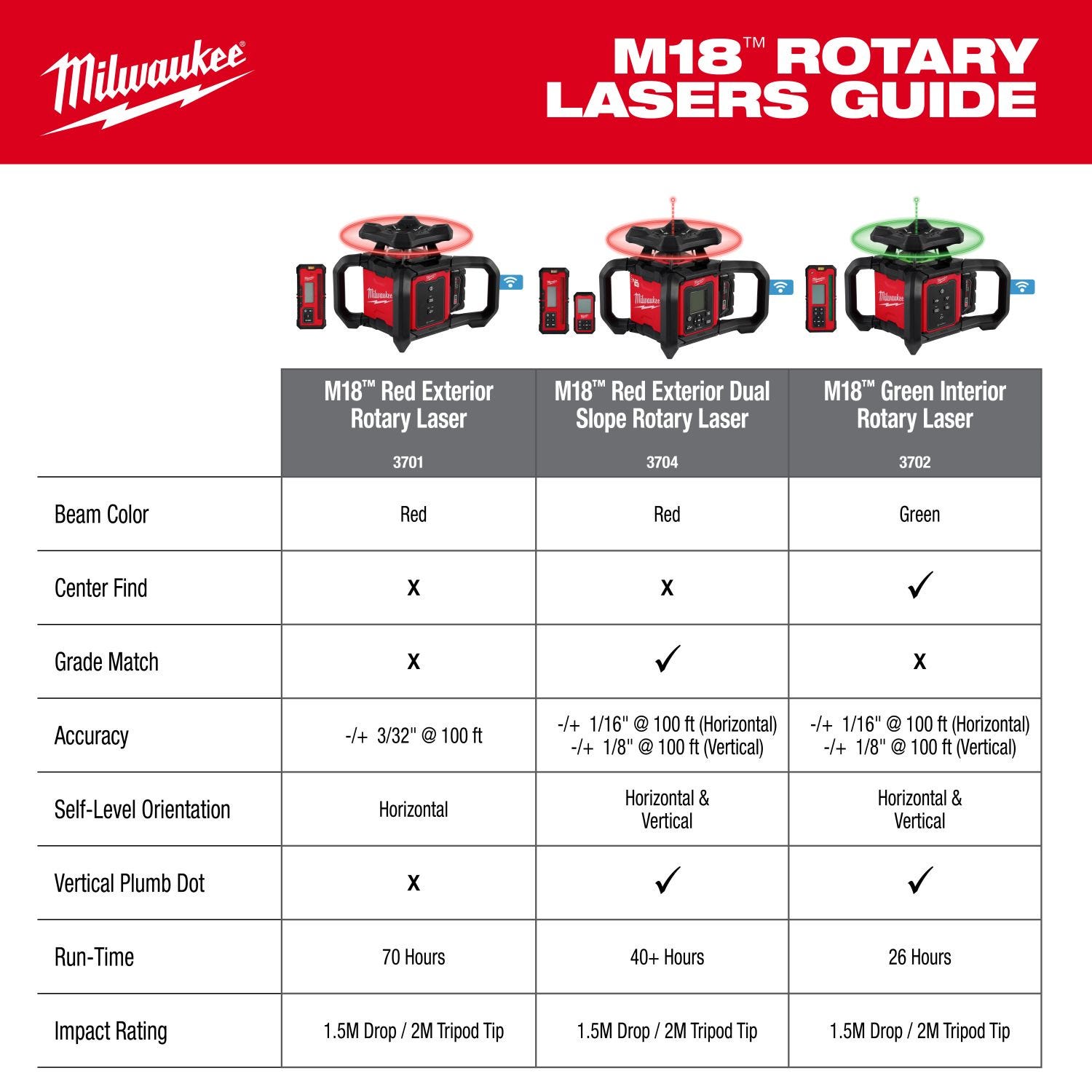

- Worth knowing: This is a horizontal red-beam model without grade matching or a plumb point. If you need to dial in slope, step up to a dual slope rotary laser.
Common Questions
- Does the kit include a battery and charger? Yes. It includes an M18 REDLITHIUM XC battery and the M18 & M12 Multi-Voltage Charger.
- What is the working range? Up to a 2,000 ft diameter with the included receiver.
- Can it be used indoors for layout? It is designed for horizontal exterior leveling. It does not offer vertical self-leveling or a plumb point.
- Will it work with my existing M18 batteries? Yes. It runs on any M18 battery.
