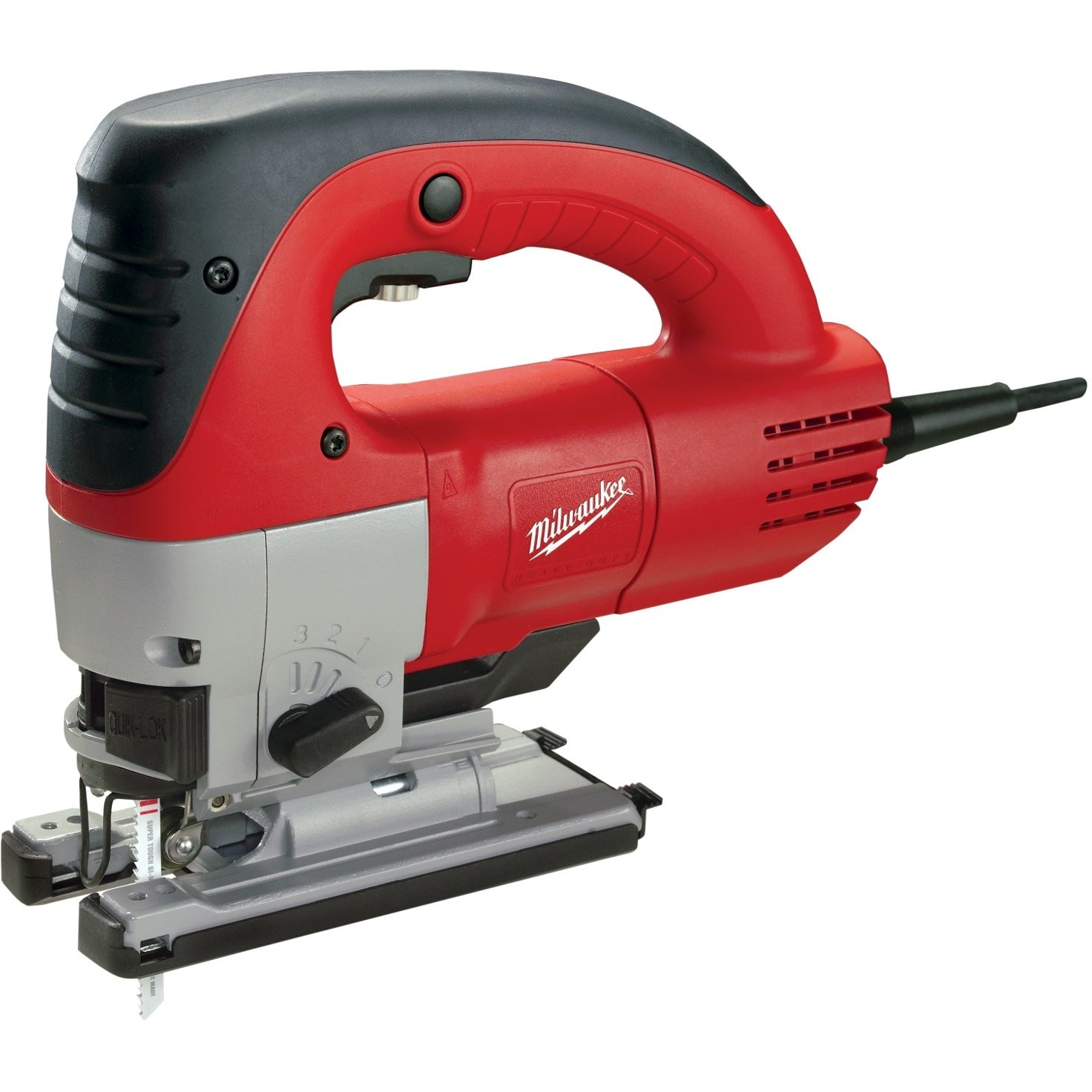

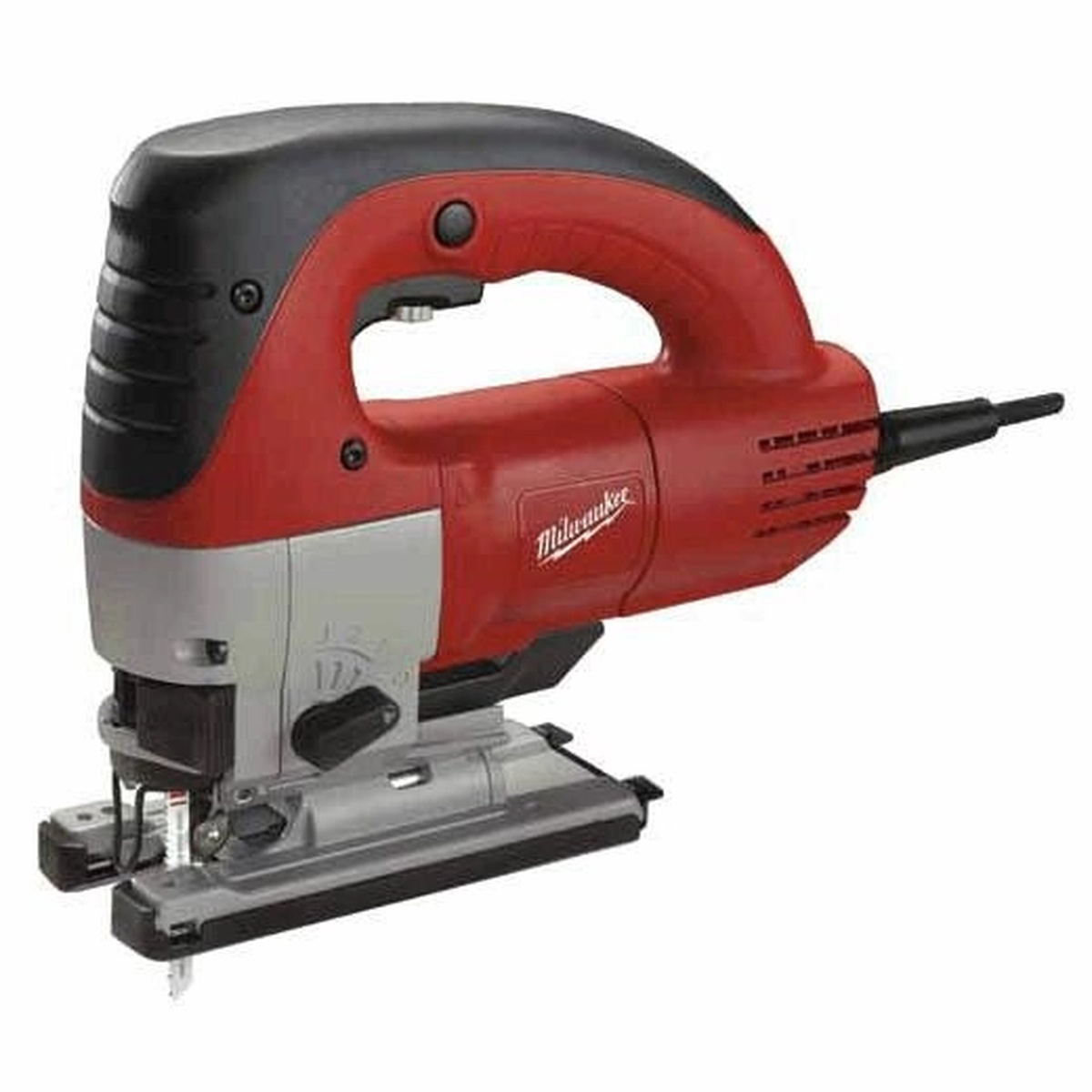

Milwaukee 6268-21 Corded Orbital Jigsaw
Milwaukee 6268-21 Corded Orbital Jigsaw
Out of Stock - Available to Order - Usually ships in 14-20 days
Product Details
Product Details
Key Features
Overview
The Milwaukee 6268-21 Corded Orbital Jigsaw is a corded top-handle jigsaw built for fast curved cutting, detail work, and general cutouts in wood and light-gauge metal. This is a jigsaw designed for controlled scroll cuts, plunge cuts, and bevel cuts on the jobsite or in the shop. Model Number 6268-21. If you want corded runtime, strong cutting speed, and a straightforward setup that works all day without battery swaps, this is the kind of saw that makes sense.
What matters here is how the specs work together. The 6.5 amp motor, 1 inch stroke length, and variable speed range of 0 to 3,000 strokes per minute give you enough cutting pace for everyday framing lumber, sheet goods, trim, and thinner metal. The 4-position orbital action lets you trade cut finish for cutting speed depending on the material and the job. When you need a faster rough cut, add orbital action. When you need a cleaner line, back it down and let the blade do more of the work.
Milwaukee built this saw around control, not just raw speed. The precision roller blade guide helps keep the blade tracking where you point it, which matters when you are following a layout line on a countertop cutout or working a tight radius. The built-in LED light improves visibility at the cut line, and tachometer feedback helps maintain cutting speed under load so the saw does not feel lazy once it touches real material.
On the handling side, this is a top-handle design with a cushion grip and a counterbalanced mechanism to reduce vibration. That makes a real difference when you are making a long run of repetitive cuts or trying to hold a smooth curve. Less shake means less wandering, less hand fatigue, and a better shot at finishing the cut without rework. The 12 foot 8 inch fixed cord also gives you more reach than a lot of corded tools, which is useful when the outlet is not right next to the bench or work area.
Milwaukee also kept the setup practical. The QUIK-LOK blade clamp accepts T-shank blades and makes blade swaps fast, so changing from a wood-cutting blade to a metal-cutting blade is not a project by itself. The shoe adjusts tool-free up to 45 degrees in both directions, which is a time-saver if you move between straight cuts and bevel work. For users who value speed on the setup side as much as speed in the cut, that is a feature worth having.
This saw is a good fit for carpenters, remodelers, cabinet installers, maintenance crews, and serious DIY users who want a dependable corded orbital jigsaw for regular use. It is especially useful for anyone doing interior cutouts, sink openings, curved trim work, sheet material cuts, and general punch-list work where portability matters but unlimited runtime matters more. If you prefer a corded platform and want accurate cutting with tool-free convenience, the Milwaukee 6268-21 lands in a very practical sweet spot.
Control the Cut, Not Just the Speed
This saw is set up for the kind of work where accuracy matters as much as speed. Between the roller blade guide, LED light, and reduced-vibration design, it gives you better control when you are following layout lines, trimming openings, or working curves that need to look clean when you are done.
- Precision roller blade guide helps keep the blade tracking true through detailed cuts
- Counterbalanced mechanism reduces vibration for better comfort and steadier control
- LED light improves sightline visibility at the cut line
What's in the Box
- (1) Milwaukee 6268-21 Orbital Jig Saw
- (1) Carrying Case
- (1) Dust Shield
- (2) Blades
Key Specifications
| Amperage | 6.5 A |
|---|---|
| Power Source | Corded, 120V AC |
| No-Load Speed | 0 to 3,000 SPM |
| Stroke Length | 1 in |
| Blade Type | T-shank |
| Maximum Bevel Capacity | 45 degrees |
| Weight | 6.4 lbs |
| Made In | Czech Republic |
Compatibility
Built For
Pro Tip
For cleaner finish cuts, start with lower orbital action and let the variable speed dial do the work. Save the higher orbital settings for faster rough cuts in thicker wood when finish quality is less important than speed.
Warranty & Support
Tool Nut's Take
Milwaukee 6268-21 Corded Orbital Jigsaw Still Makes Sense
If you want a no-nonsense corded jigsaw with good cut control, solid power, and quick setup features, this one checks the right boxes.
- Who it's for: Contractors, remodelers, installers, and serious DIY users who need a dependable jigsaw for curves, cutouts, bevels, and repeat use without worrying about battery runtime.
- Why it stands out: The mix of 6.5 amp corded power, 4-position orbital action, LED visibility, tachometer feedback, and tool-free blade and shoe adjustment gives it real jobsite practicality.
- Worth knowing: This is a corded top-handle saw, so it is best for users who value unlimited runtime and consistent power more than cordless portability.
Common Questions
- What type of blades does this jigsaw use? It uses T-shank jigsaw blades.
- Does the shoe bevel for angle cuts? Yes. The shoe adjusts tool-free up to 45 degrees in both directions.
- Is the speed adjustable? Yes. It has a variable speed trigger and a variable speed range of 0 to 3,000 strokes per minute.
- Is this a corded or cordless jigsaw? This is a corded 120V AC jigsaw.
