Milwaukee M18 FUEL Brushless Compact Router and Accessories Kit, Tool Only
Milwaukee M18 FUEL Brushless Compact Router and Accessories Kit, Tool Only
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

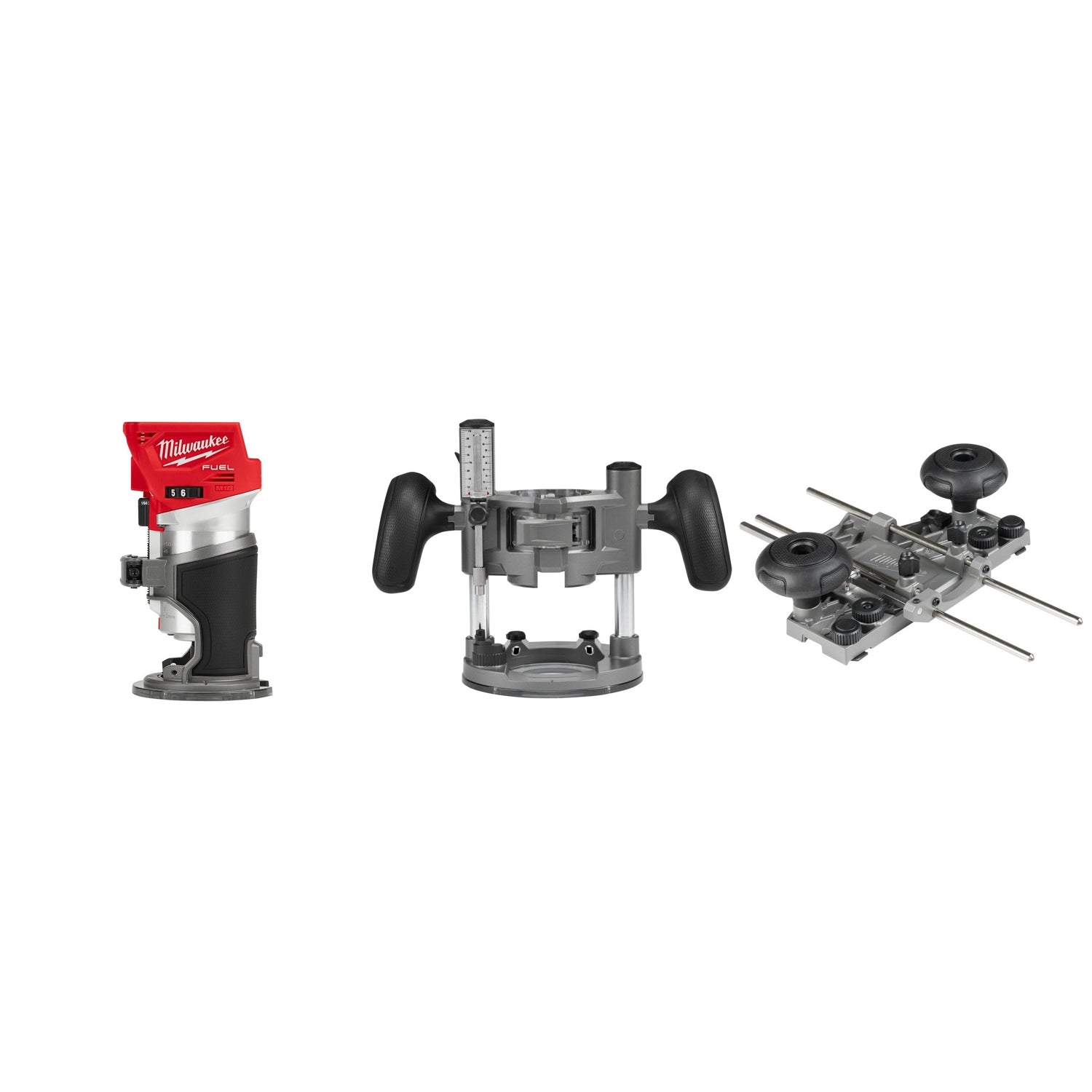

The Milwaukee M18 FUEL Brushless Compact Router and Accessories Kit (Bare Tool) is a cordless trim router bundle built to cover more than edge profiling. This is a compact router kit designed for edge routing, plunge routing, template work, and straight guided cuts on Milwaukee guide rails. Model Number 2723-20-48-10-5601-48-11-2838 combines three Milwaukee products: the 2723-20 M18 FUEL Compact Router, the 48-10-5601 Compact Router Plunge Base, and the 48-11-2838 Router Guide Rail Adapter. The router is sold as a bare tool, so battery and charger are not included.

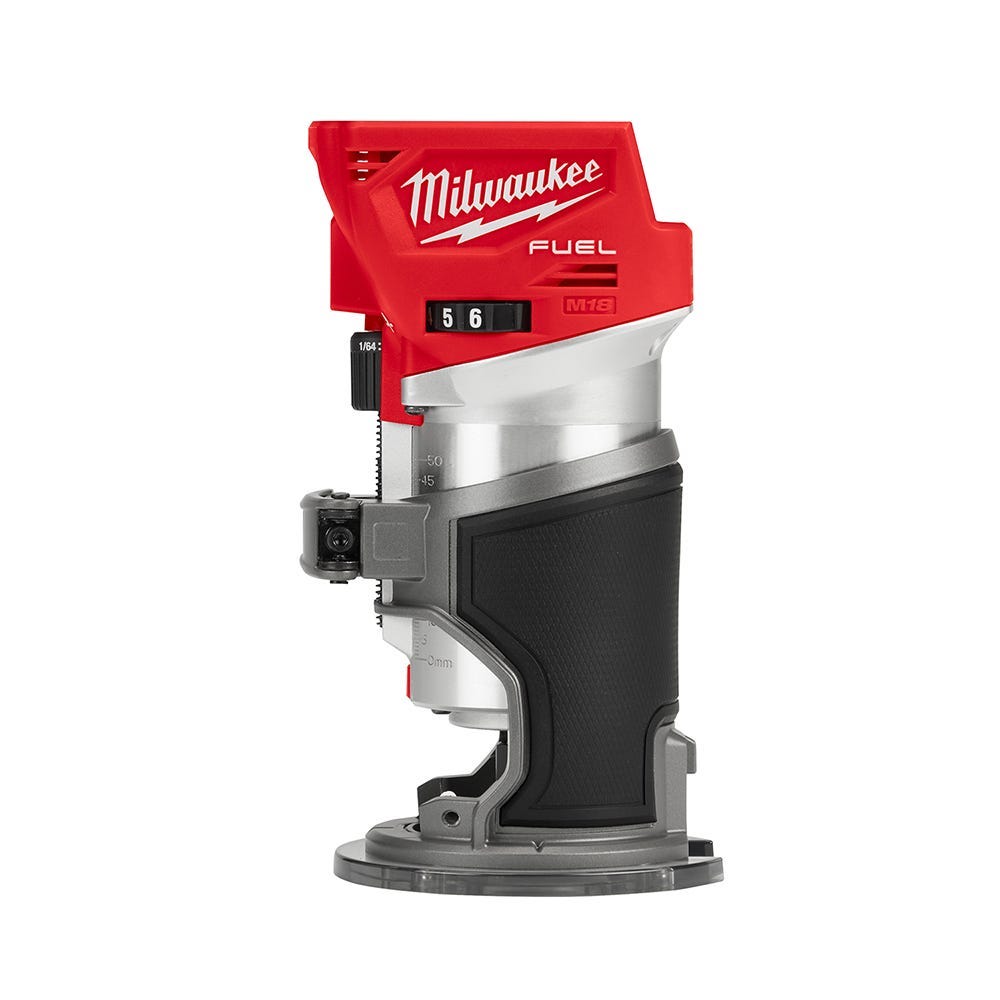

The router is the core of the kit. Milwaukee's POWERSTATE brushless motor and REDLINK PLUS electronics give it the power of a corded 1.25 HP compact router and a top speed of 31,000 RPM, with a variable speed dial from 10,000 RPM up. Lower speeds keep larger-diameter bits and heat-sensitive materials under control, and full speed leaves clean edges in hardwood. REDLINK PLUS also protects the tool and battery from overload, overheating, and over-discharge. Milwaukee rates it at up to 250 feet of 3/8" roundovers in red oak on a single M18 REDLITHIUM XC5.0 battery.
Depth setting is quick on the fixed base. A macro adjust button moves the motor through 1-1/2" of travel to get close fast, and a fine adjustment screw dials in the final depth in increments finer than 1/64". A tool-free spindle lock means bit changes need only the 11/16" collet wrench, and the router accepts 1/4" shank bits. Dual LED lights illuminate the work surface, and the 4" round sub-base gives the tool a stable footprint on narrow edges.

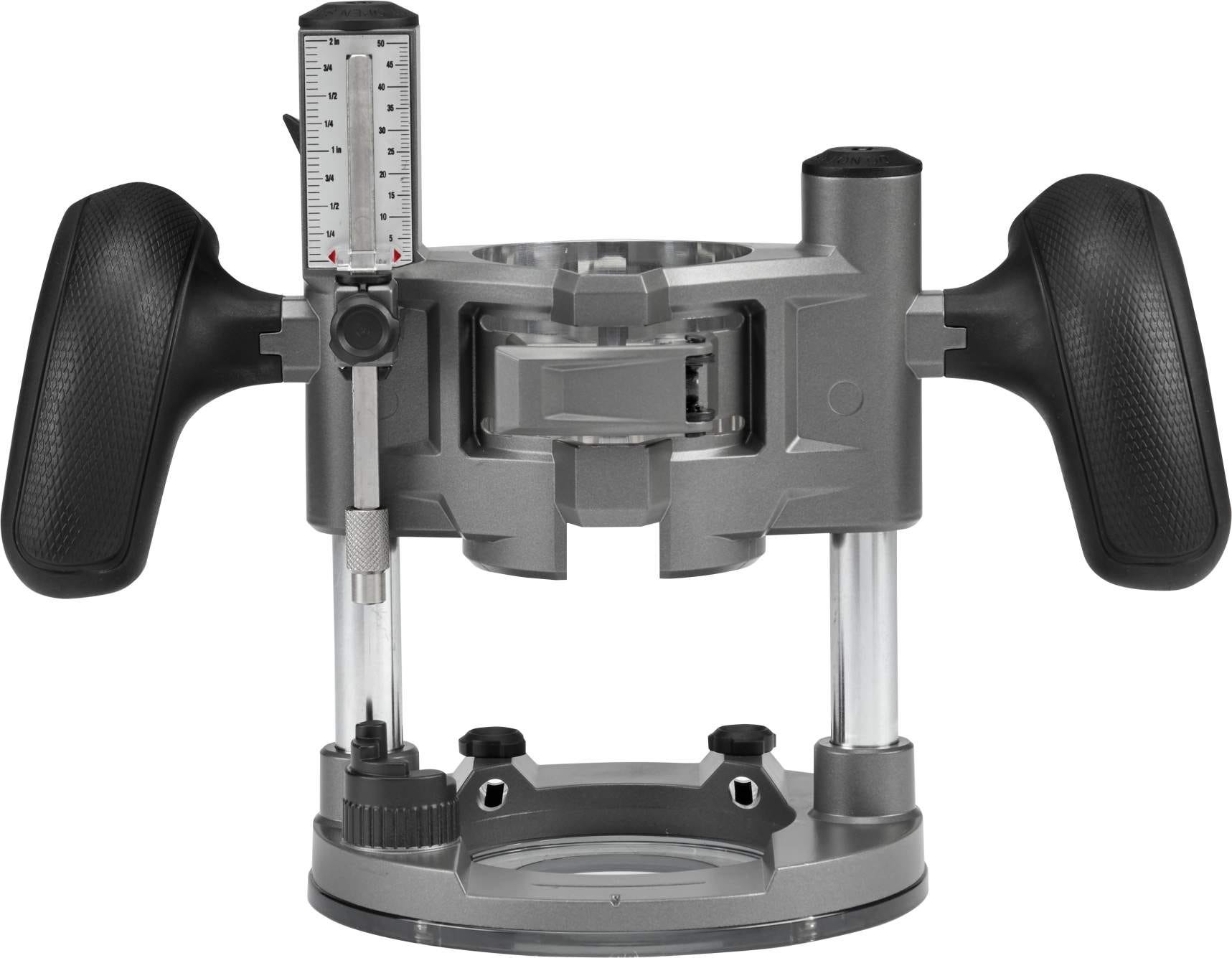

The plunge base turns the router into a tool for stopped grooves, mortises, inlays, and hinge work. It provides 2" of plunge depth with a 6-step depth turret in 1/8" increments and a micro-adjust depth rod for repeatable cuts. A spring-loaded plunge with robust lock rails keeps the motion smooth, and a cam lock holds the router securely while making base swaps easy. The base body is machined aluminum and comes with its own dust shroud. It also accepts the 5-3/4" template guide sub-base plate that ships with the router, which takes 1-1/4" template bushings.

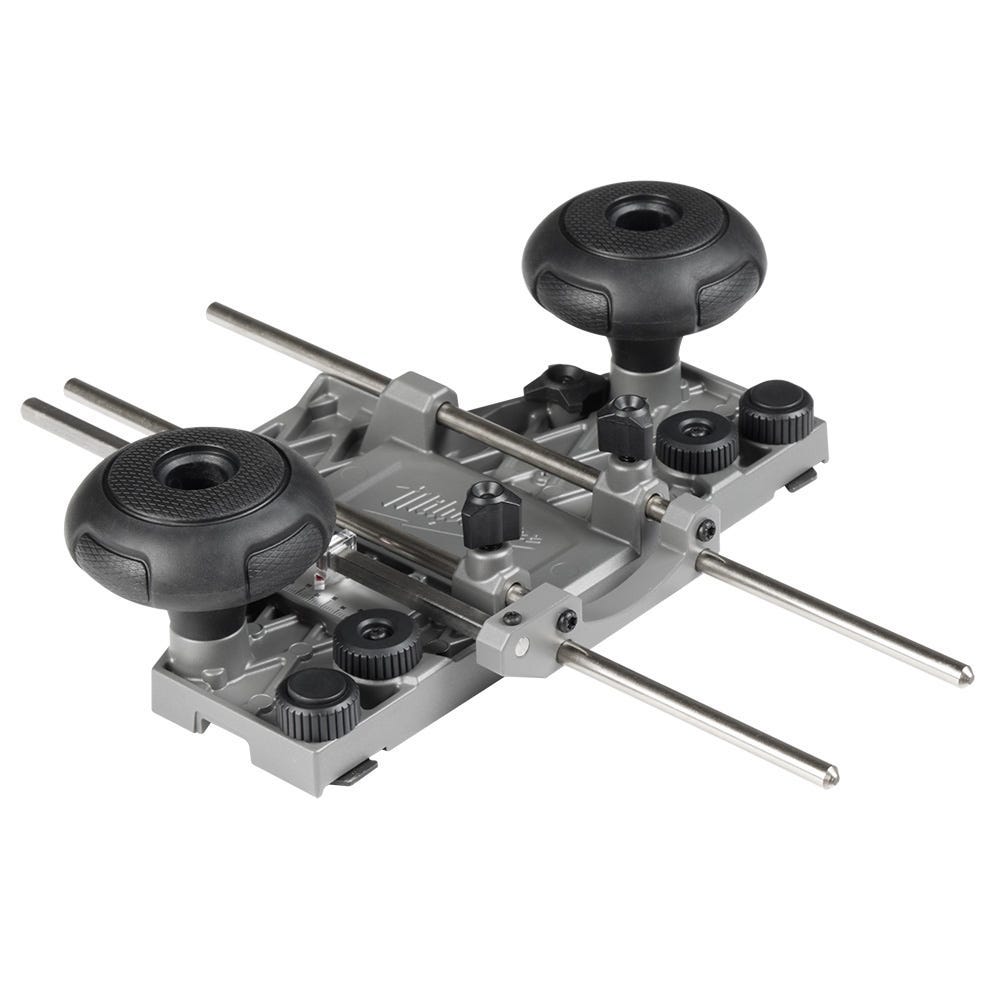

The guide rail adapter is the piece that sets this kit apart. It mounts the router to Milwaukee guide rails, such as the Milwaukee 55" track saw guide rail, for laser-straight dadoes, grooves, and edge cuts on the jobsite or in the shop. Aluminum construction, a cam lock system, and anti-tilt feet keep passes smooth and consistent, and overmolded pommels add control. The adapter has a 2" depth adjustment range, a depth scale marked in inches and millimeters, and an included gauge block that speeds up setup.
The router also comes with a straight edge guide and a dust shroud for the fixed base, so it handles edge-guided routing and dust extraction right out of the box. The router runs on any Milwaukee M18 battery. Milwaukee's runtime rating is based on the XC5.0 pack.
This kit fits trim carpenters, cabinet installers, remodelers, and woodworkers who already run Milwaukee M18 tools and want one compact router that covers edge profiling, plunge routing, and rail-guided straight cuts. Owners of the Milwaukee track saw get the most out of it, since the rail adapter rides the same guide rails. If you only need edge profiling, the router alone will do; if you want the full system without buying the accessories one at a time, this is the setup to get.
Corded Power Without the Cord
The 2723-20 brings corded compact router performance to a cordless tool, so you can profile installed trim or cabinet parts anywhere on the site.
- 10,000 to 31,000 RPM variable speed
- Macro adjust with 1-1/2" of range plus fine depth adjustment
Plunge Cuts at Set Depths
The plunge base drops the bit into the work at a preset depth and returns it on a spring, which makes stopped grooves, mortises, and hinge gains repeatable.
- 2" of plunge depth
- 6-step depth turret in 1/8" increments with micro-adjust rod
Straight Cuts on the Rail
The guide rail adapter locks the router onto Milwaukee guide rails for dadoes and grooves that run dead straight across a full sheet.
- Cam lock and anti-tilt feet for smooth passes
- 2" depth adjustment with inch and millimeter scale
What's in the Box
- (1) Milwaukee M18 FUEL Compact Router (2723-20)
- (1) Fixed Base
- (1) 1/4" Collet
- (1) 4" Round Sub-Base Plate
- (1) 5-3/4" Template Sub-Base Plate
- (1) Dust Shroud (fixed base)
- (1) Straight Edge Guide
- (1) 11/16" Collet Wrench
- (1) 7/16" Spindle Wrench
- (1) Milwaukee Compact Router Plunge Base (48-10-5601)
- (1) Dust Shroud (plunge base)
- (1) Milwaukee Router Guide Rail Adapter (48-11-2838) with gauge block
Bare tool: battery, charger, and guide rails sold separately.
Key Specifications
|
|
M18 (18 V) |
|---|---|
|
|
POWERSTATE brushless |
|
|
1.25 HP |
|
|
10,000 to 31,000 RPM |
|
|
1/4" |
|
|
1-1/2" |
|
|
2" |
|
|
6 steps, 1/8" increments |
|
|
2" |
|
|
1-1/4" (with 5-3/4" template sub-base) |
|
|
Dual LED |
|
|
Aluminum |
Compatibility
Built For
Pro Tip
Set the rail adapter depth with the included gauge block before you lock the router onto the rail. On a run of identical dadoes, that preset saves a test cut on every panel.
Warranty & Support
Tool Nut's Take
The Milwaukee M18 FUEL Compact Router and Accessories Kit Turns a Trim Router Into a System
The 2723-20 is already one of the best cordless trim routers going, and the plunge base and rail adapter let it take on work that normally needs a bigger router or a homemade jig.
- Who it's for: M18 users in trim, cabinet, and remodel work, especially anyone who already owns the Milwaukee track saw and its rails.
- Why it stands out: Three bases worth of capability on one motor: fixed for edges, plunge for stopped cuts, and rail-guided for straight dadoes.
- Worth knowing: It is a bare tool kit. Battery, charger, and guide rails are separate.
Common Questions
- Does this kit include a battery? No. The router is a bare tool; battery and charger are sold separately.
- Are guide rails included? No. The guide rail adapter is included, but Milwaukee guide rails are sold separately.
- What bit shank size does the router take? 1/4" shank router bits.
- Can I use template guides? Yes. The included 5-3/4" template sub-base plate accepts 1-1/4" template bushings and also works with the plunge base.
