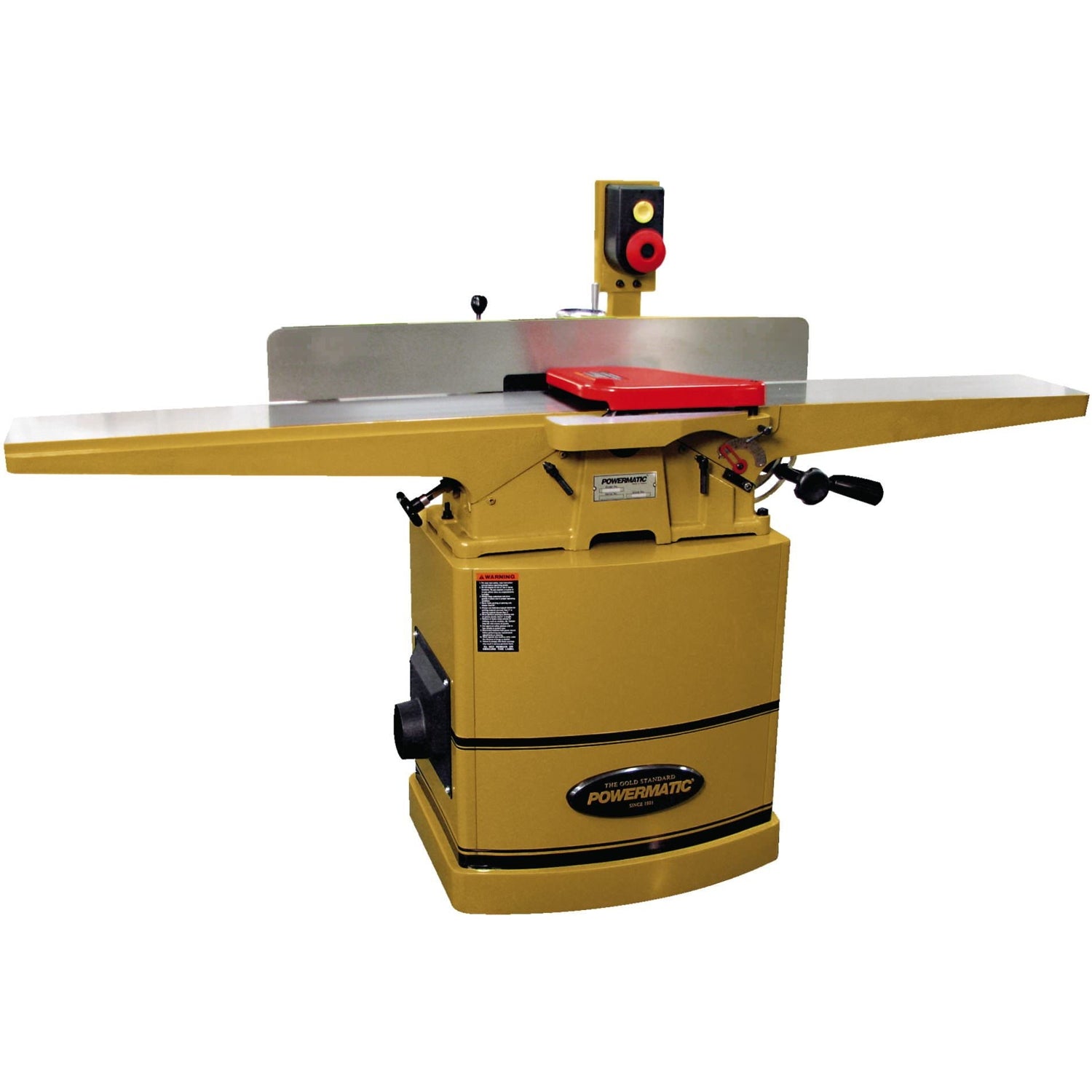

The Powermatic 1610086K 60HH 8" Jointer, 2HP 1PH 230V, Helical Head is a stationary woodworking jointer built for flattening faces, straightening edges, and preparing rough lumber for glue-ready stock. This is a jointer designed for precision edge jointing and face jointing in furniture shops, cabinet work, millwork, and serious home shops. Model Number: 60HH. If you want cleaner cuts, less tear-out, and a machine that feels easier to fine-tune than older straight-knife designs, this is the kind of upgrade that makes sense.

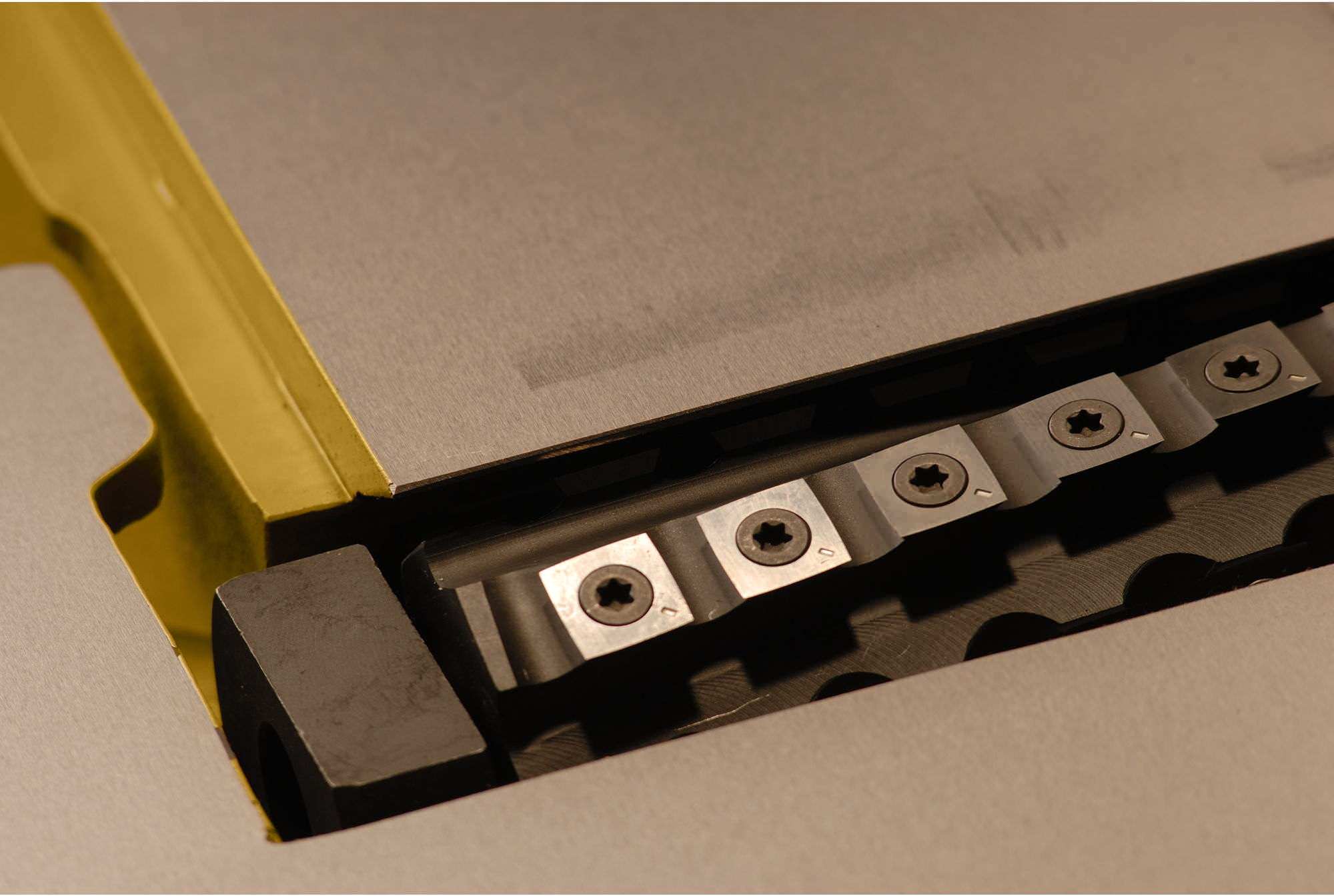

The big selling point here is the helical cutterhead. Powermatic pairs this machine with 54 four-sided carbide inserts, which matters because carbide holds up well and the segmented cutting action tends to leave a better finish in figured or difficult grain. Compared with a basic straight-knife jointer, you get a smoother cut, less noise, and less of that frustrating chip-out that can ruin a board right before glue-up. The cutterhead runs at 7,000 RPM, so the machine has the speed to keep the cut consistent while the 2 HP motor handles regular hardwood jointing duties in a serious shop environment.

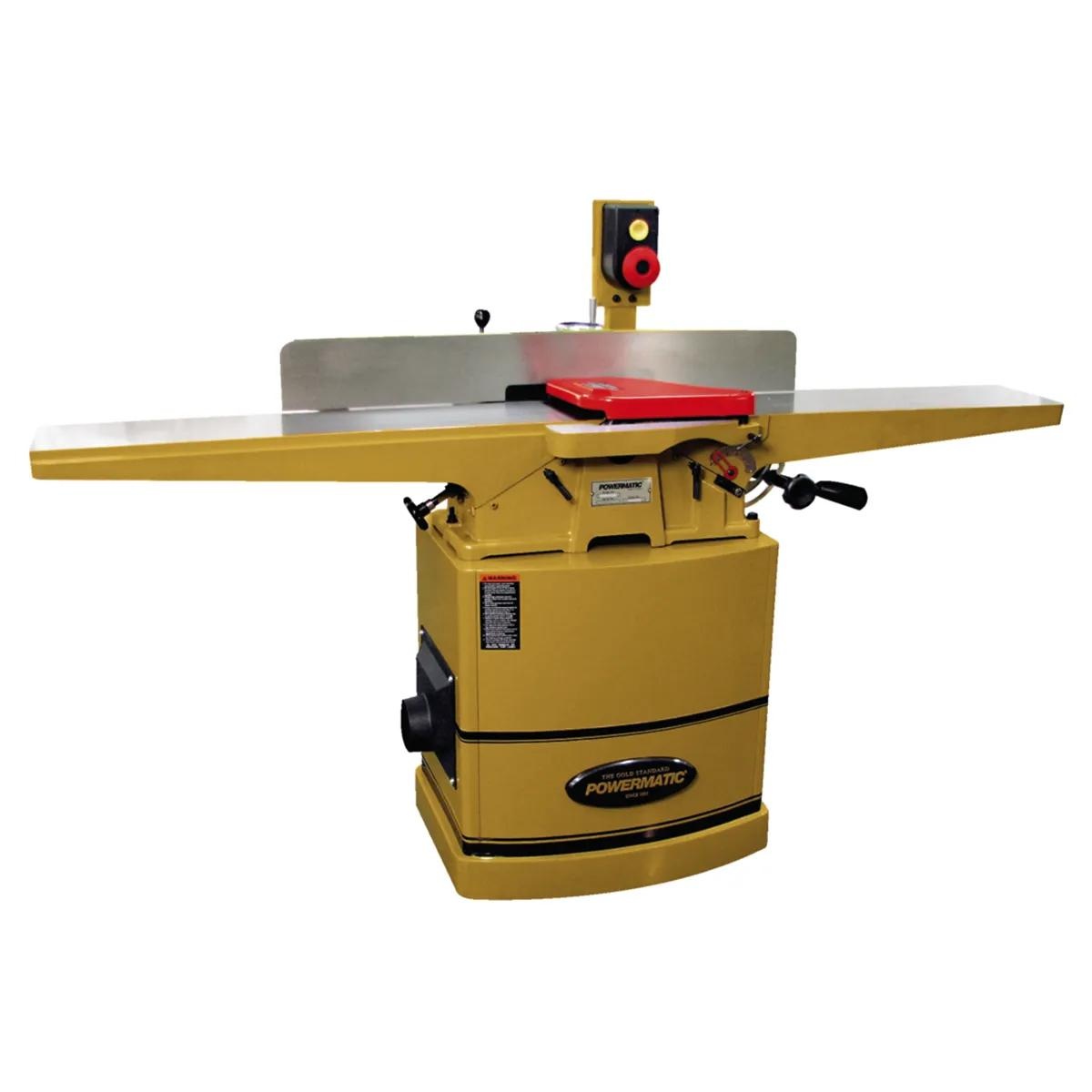

Just as important as the cutterhead is the size of the machine around it. The 73 inch precision-ground cast iron bed gives you the support needed for longer material, which helps keep boards registered flat as they move across the tables. On a jointer, table length is not just a number on a spec sheet. It directly affects how stable the board feels during the pass and how easy it is to produce a straight result on longer stock. Powermatic also uses dovetailed ways for the tables, adding to the solid, machine-tool feel buyers expect in this class.

The infeed adjustment setup is built for real use, not just brochure talk. The infeed table lever lets you move quickly to your general depth setting, then fine-tune the cut depth with the handle. That is a practical feature when you're moving between rougher stock removal and lighter finishing passes. Instead of creeping up on the setting the whole time, you can get close fast and then dial it in with more control.

Fence adjustment is another place where this machine separates itself from lighter-duty options. The fence tilts by way of a handwheel-operated worm gear system, which gives smoother, more controlled movement than a simple manual tilt-and-clamp setup. If you cut bevel edges or need reliable angle changes, that extra control saves time and cuts down on setup frustration. The fence itself measures 38 inches by 4-3/4 inches, and the non-mar insert helps protect the table surface during adjustments.

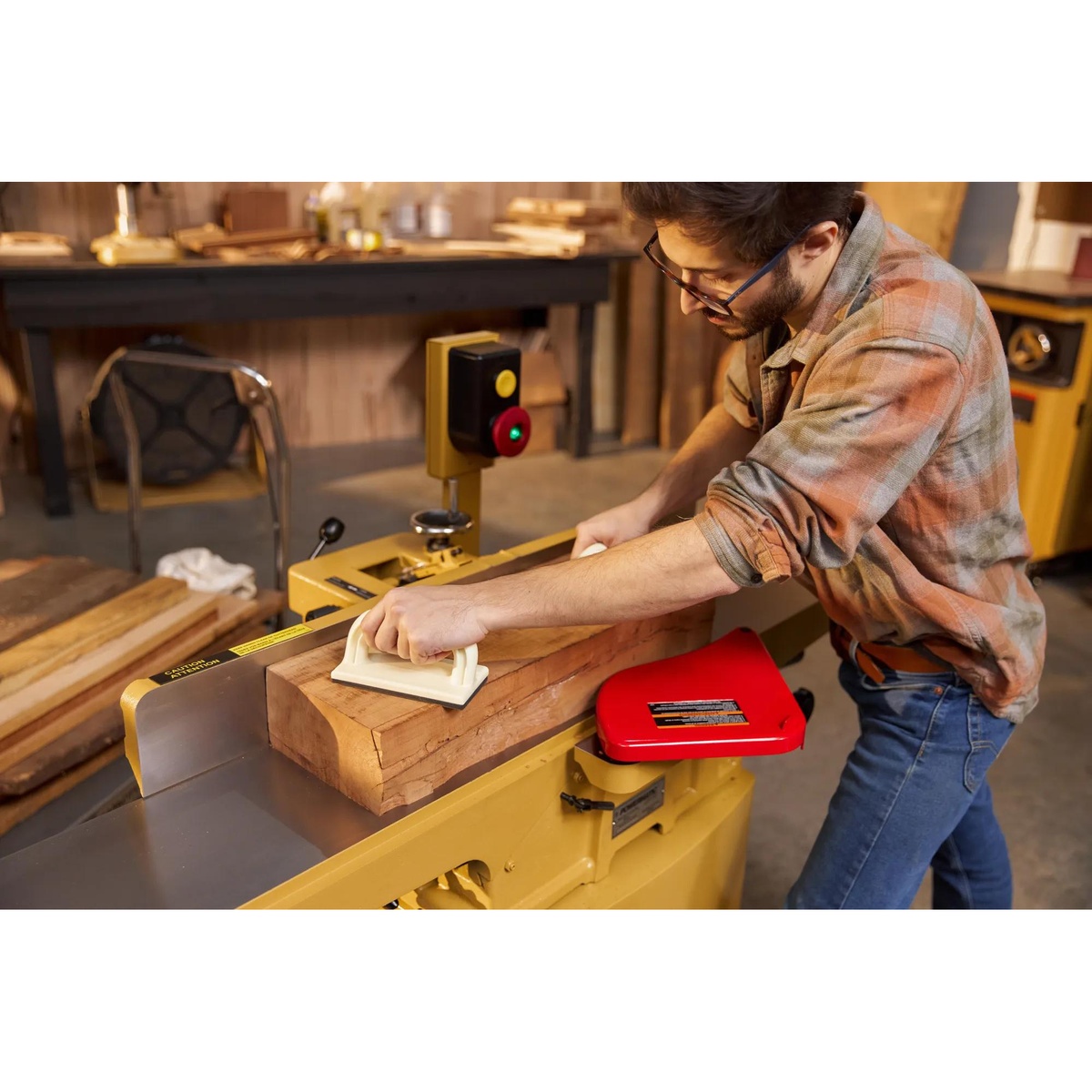

For shop practicality, the Powermatic 60HH includes a 4 inch dust port for connection to dust collection, which is a must on a machine like this if you want clean operation and consistent chip removal. The switch is mounted high for easier access, and the magnet-backed push blocks can be stored right on a metal surface of the machine so they stay close by instead of disappearing into a drawer. Those sound like small details until you use the jointer every day.

This Powermatic jointer is best suited for woodworkers who are past entry-level tools and want better finish quality, better support for longer boards, and more refined controls. It fits well in cabinet shops, furniture making, architectural millwork, remodel work with a dedicated wood shop, and advanced DIY setups that process their own lumber. If your work depends on straight edges, flat faces, and repeatable setup, the Powermatic 60HH 8-inch jointer earns its footprint.

Why the Powermatic 1610086K 60HH 8" Jointer, 2HP 1PH 230V, Helical Head Makes Sense

This is the jointer you buy when you are done fighting short beds, fussy fence adjustments, and finish quality that still needs too much cleanup.

• Who it's for: Woodworkers, cabinet shops, and advanced DIY users who need dependable face-jointing and edge-jointing with cleaner results on hardwoods and figured stock.
• Why it stands out: The helical head, long 73 inch bed, and worm gear fence system give you the three things that matter most on a jointer: surface quality, stock support, and easier setup.
• Worth knowing: This is a 230V single-phase stationary machine with a serious footprint and weight, so it is best for a dedicated shop, not a casual corner setup.

• Is this a helical head jointer? Yes. The Powermatic 60HH uses a helical cutterhead with 54 four-sided carbide inserts.
• What power does it require? It is prewired for 230V single-phase power.
• How wide a board can it joint? The cutting capacity width is 8 inches.
• Does it support dust collection? Yes. It has a 4 inch dust port for connection to dust collection.
