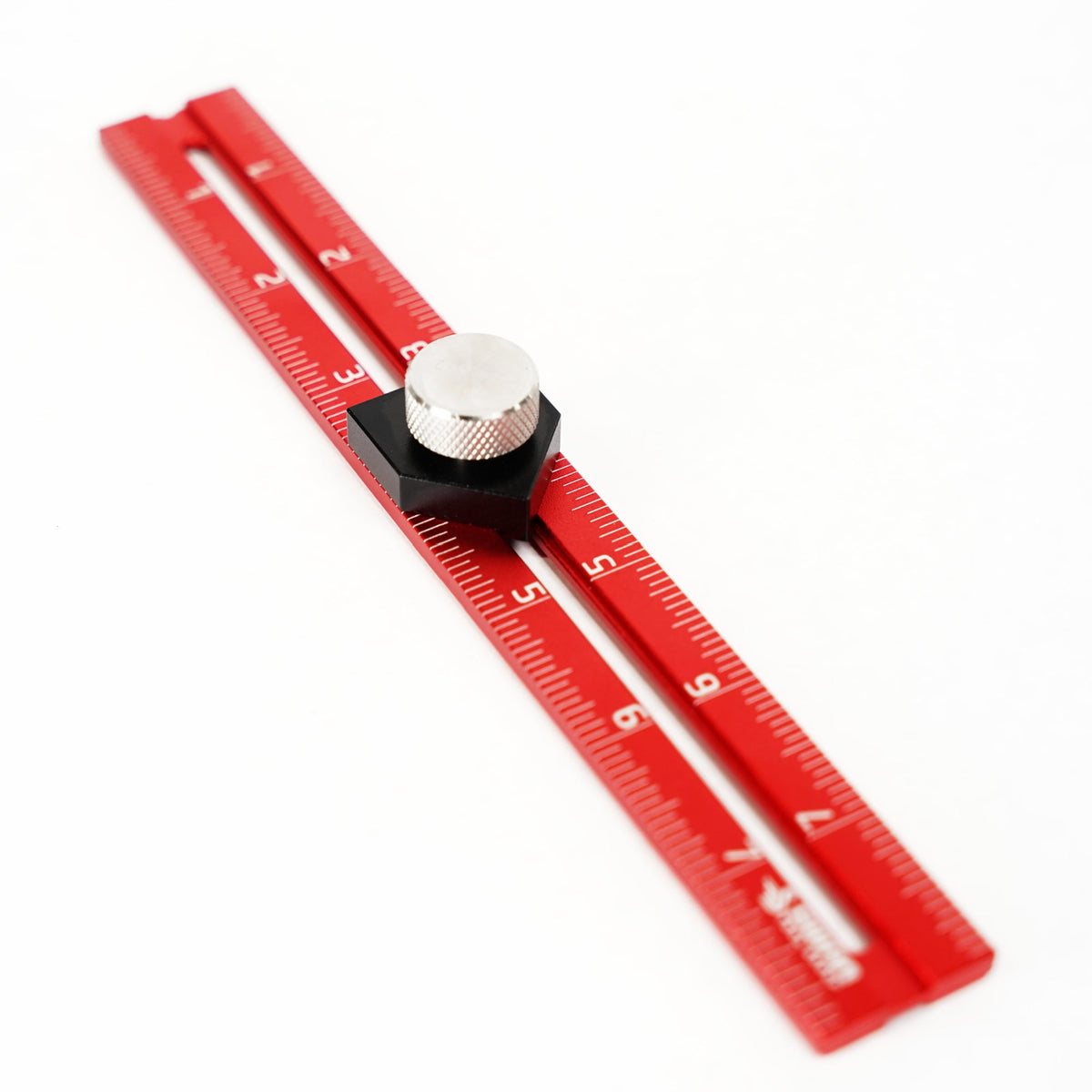

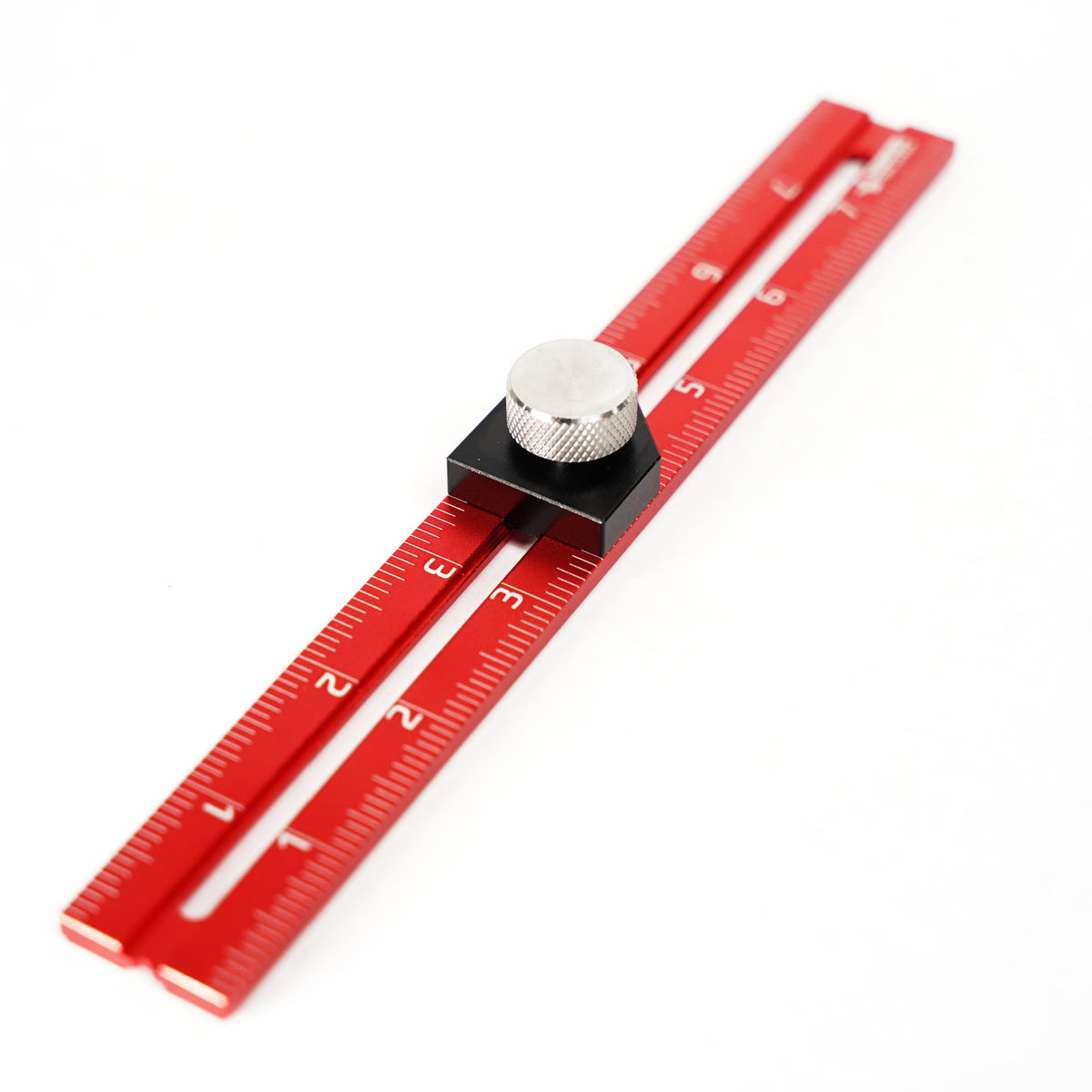

The Swan Red Tail Offset Ruler OR800 is a precision woodworking layout ruler built for offset marking, angle layout, and straight measuring in cabinet work, trim work, and general shop layout. This is a layout ruler designed for repeatable offset marking and woodworking layout. Model Number: OR800. If you spend time marking reveals, edge offsets, or repeat lines on stock, this tool is made to speed that process up and keep your marks consistent.

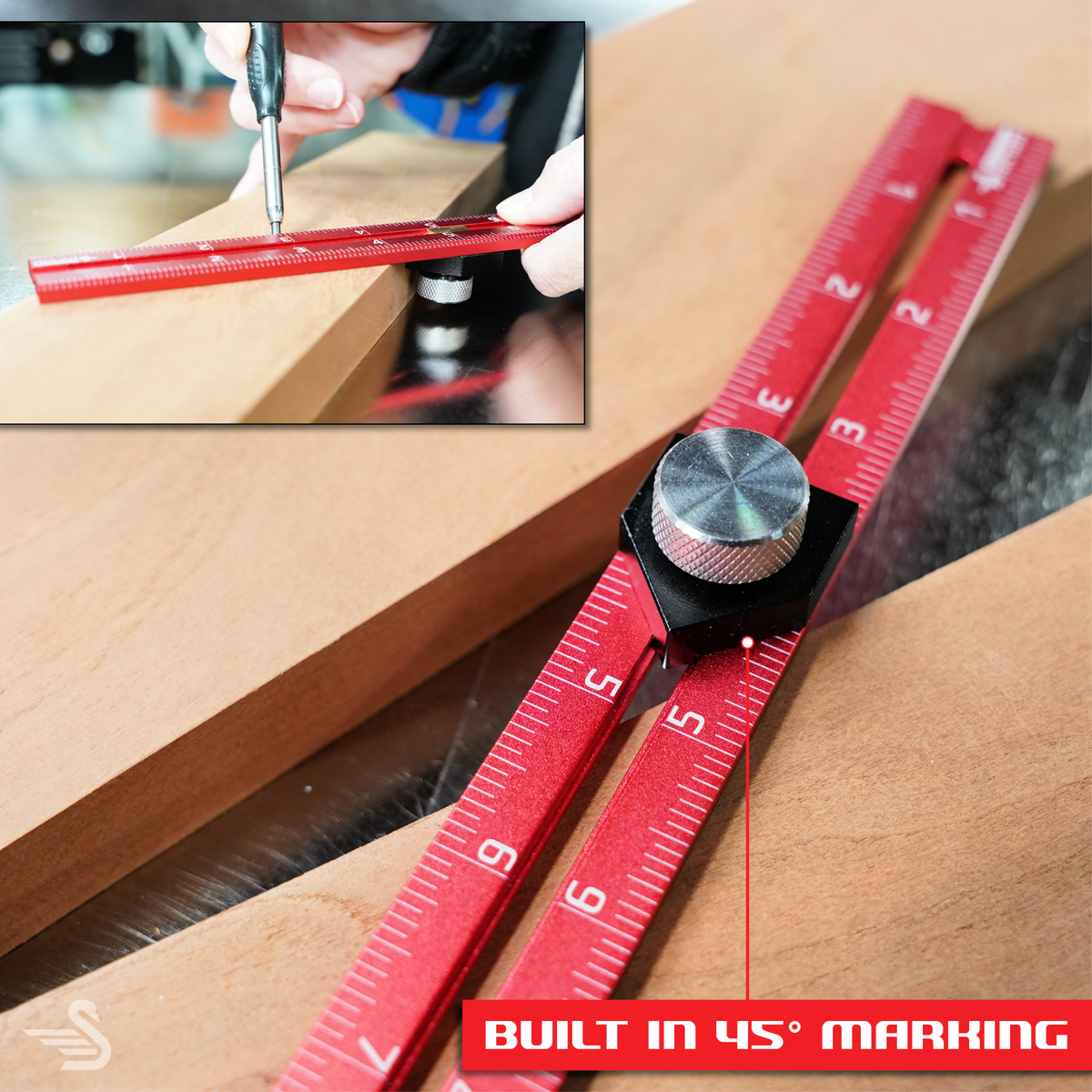

What makes this tool useful is that it pulls several common layout jobs into one compact format. According to the product data, it works as an offset guide, a 90 degree square, a 45 degree square, and a standard ruler. That means less swapping between separate layout tools when you are moving between trim, paneling, casement moldings, or box work. For a lot of bench and install tasks, that saves more time than people expect.

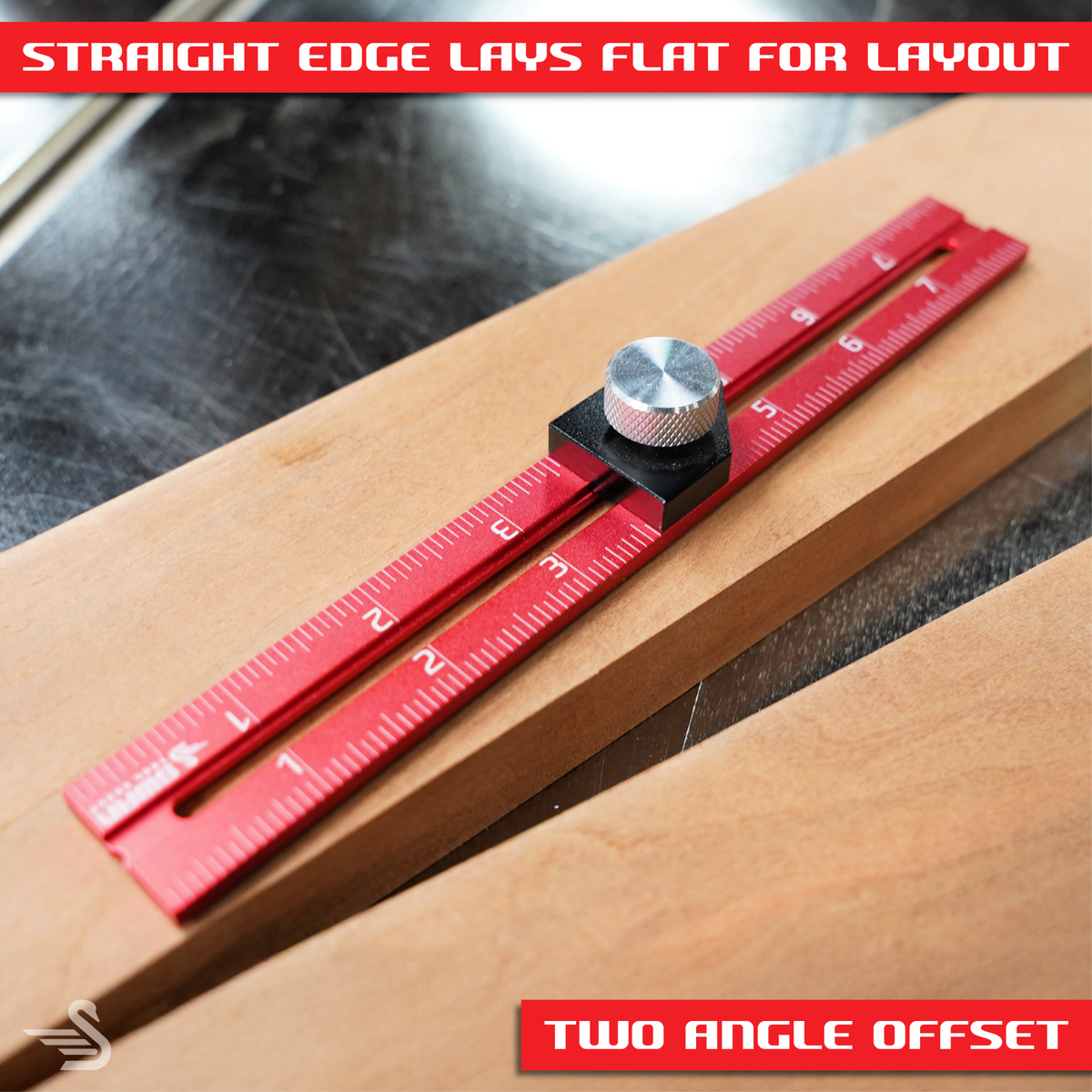

The 8 inch format keeps it compact enough for close work while still giving you practical reach for smaller parts and finish details. The lay-flat design is especially useful because it keeps the ruler settled on the work surface instead of rocking around while you try to hold a pencil and keep your mark straight. On delicate layout work, that simple detail is the difference between a clean repeatable line and a line you end up second-guessing.

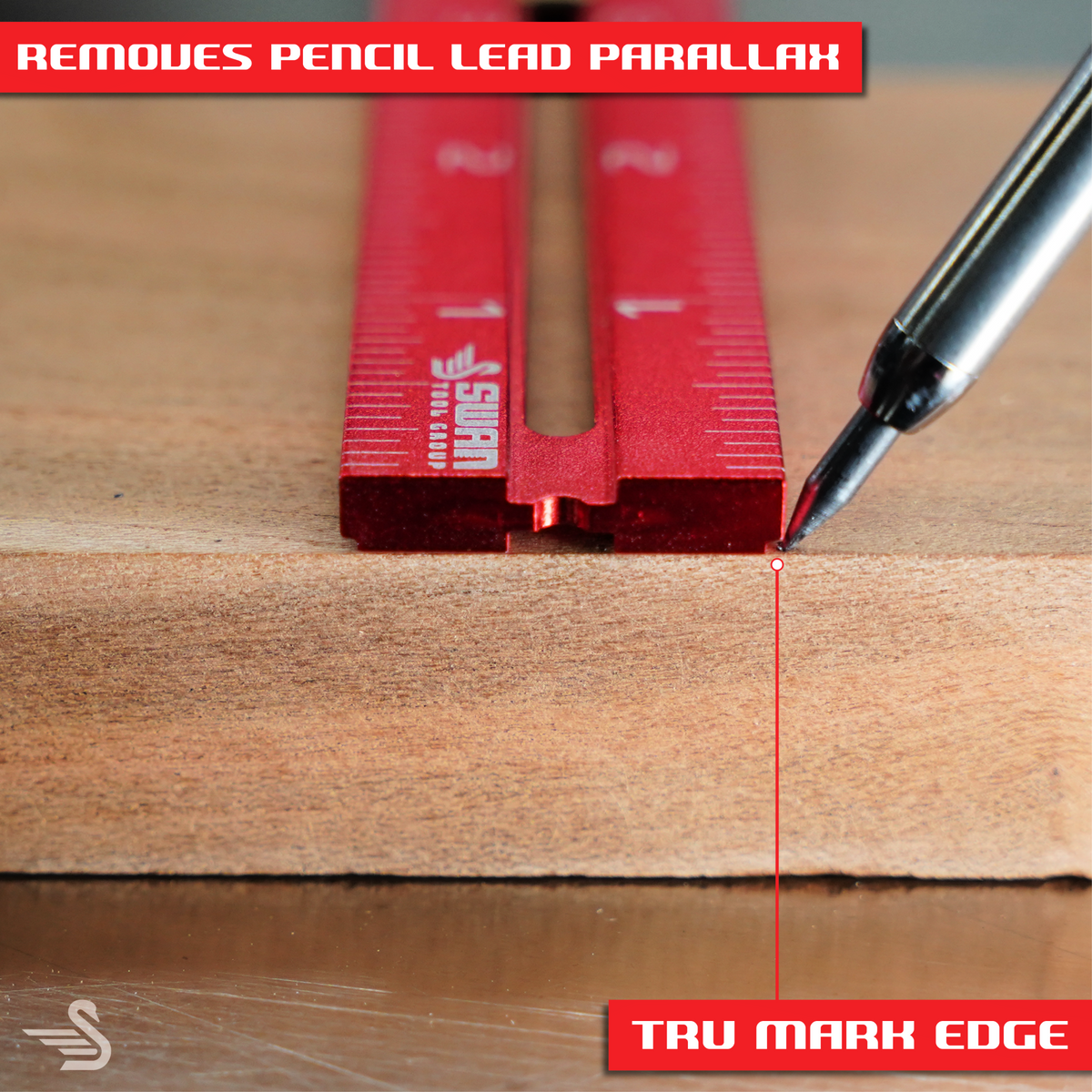

Swan also calls out its Tru-Mark Edge feature, which is intended to improve line placement without relying on extra center-finding tricks or backup measuring tools. In plain terms, the goal here is cleaner, more predictable marks with less fuss. For trim carpenters, cabinet installers, and woodworkers doing visible finish work, that is the whole game. Layout mistakes usually do not show up until assembly or install, so a tool that helps avoid them is worth paying attention to.

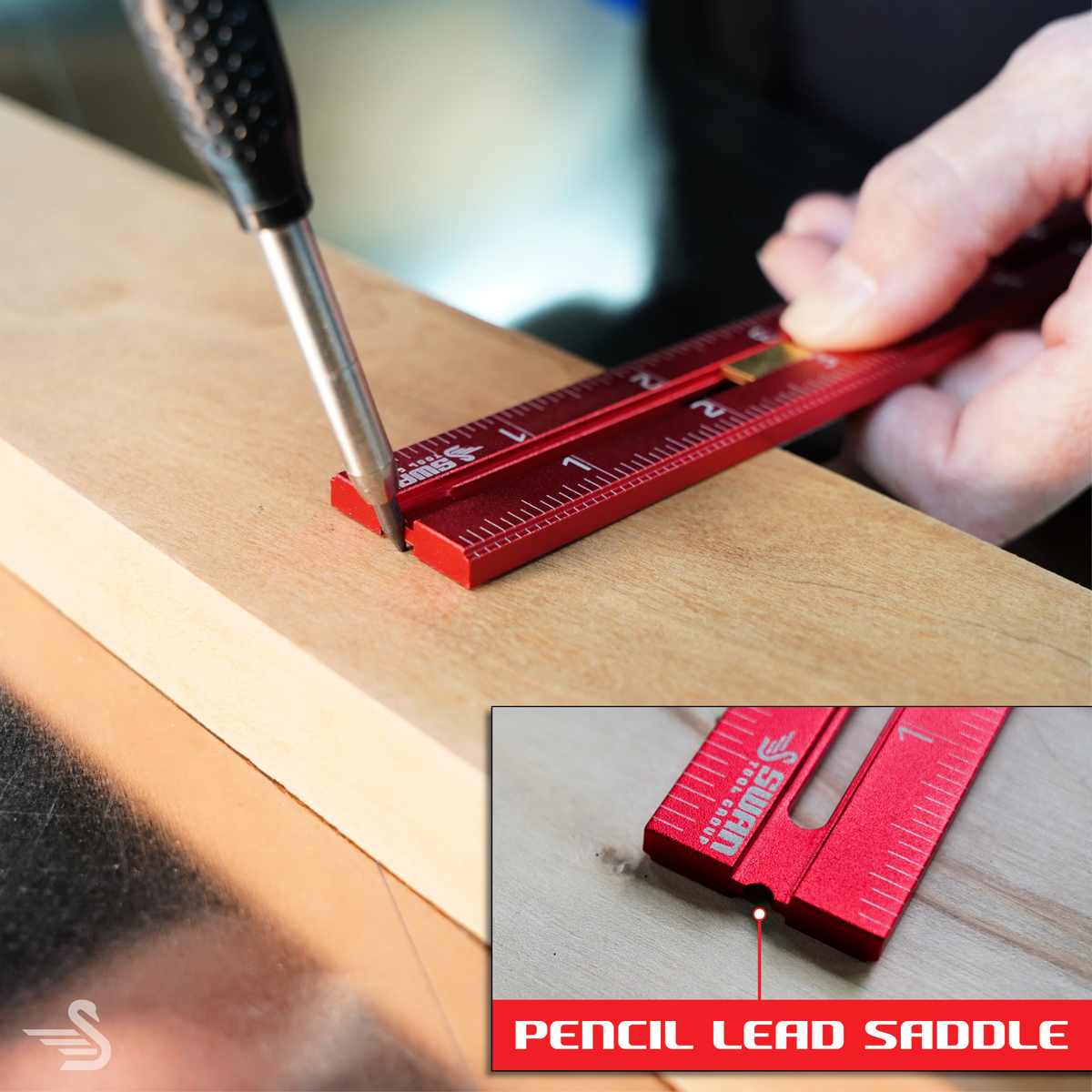

The dedicated pencil saddle is another practical detail. Instead of free-handing the pencil against an edge and hoping your spacing stays true, the ruler gives you a controlled point of reference for consistent line placement. That is useful for repeated offsets on face frames, trim stock, panel parts, and small casework components where a little drift in the line can throw the fit off fast.

There is also some system flexibility built in. The OR800 is listed as interchangeable with the RED TAIL Ruler Set, part number R4612AL. If you already work within that Swan layout system or plan to expand later, that gives this ruler more long-term value than a one-off shop accessory.

Who should buy it? This is a smart pick for cabinetmakers, trim carpenters, finish carpenters, and serious DIY users who care about layout accuracy and repeatability. If your work involves consistent reveals, angle marks, or quick bench layout on smaller parts, the Swan Red Tail Offset Ruler OR800 makes a lot of sense. If you only need a basic straightedge for rough measuring, it is probably more specialized than you need. But if layout precision matters to your finished result, this is exactly the kind of small tool that earns its spot fast.

• What kind of tool is this? It is a woodworking layout ruler designed for offset marking, straight measuring, and 45 degree and 90 degree layout work.
• What jobs is it best suited for? The source data specifically calls out cabinetry, trim work, paneling, box making, casement moldings, and general woodworking layout.
• Does it only work as a ruler? No. It is described as combining an offset guide, 90 degree square, 45 degree square, and standard ruler in one tool.
• Can it be used with other Swan layout products? Yes. The OR800 is listed as interchangeable with the RED TAIL Ruler Set, part number R4612AL.

Why the Swan Red Tail Offset Ruler OR800 earns bench space

This is the kind of small layout tool that saves time every time you use it, especially when your work needs clean, repeatable marks instead of close-enough guesses.

• Who it's for: Finish carpenters, cabinet installers, woodworkers, and detail-focused DIY users doing trim, casework, or bench layout.
• Why it stands out: You get offset marking, square layout, angle layout, and straight measuring in one compact tool, plus a pencil saddle that is built around repeatability.
• Worth knowing: This is a specialized layout tool, not just a basic ruler. If precision layout is part of your workflow, that is a plus. If you only need rough measuring, it may be more tool than you need.
