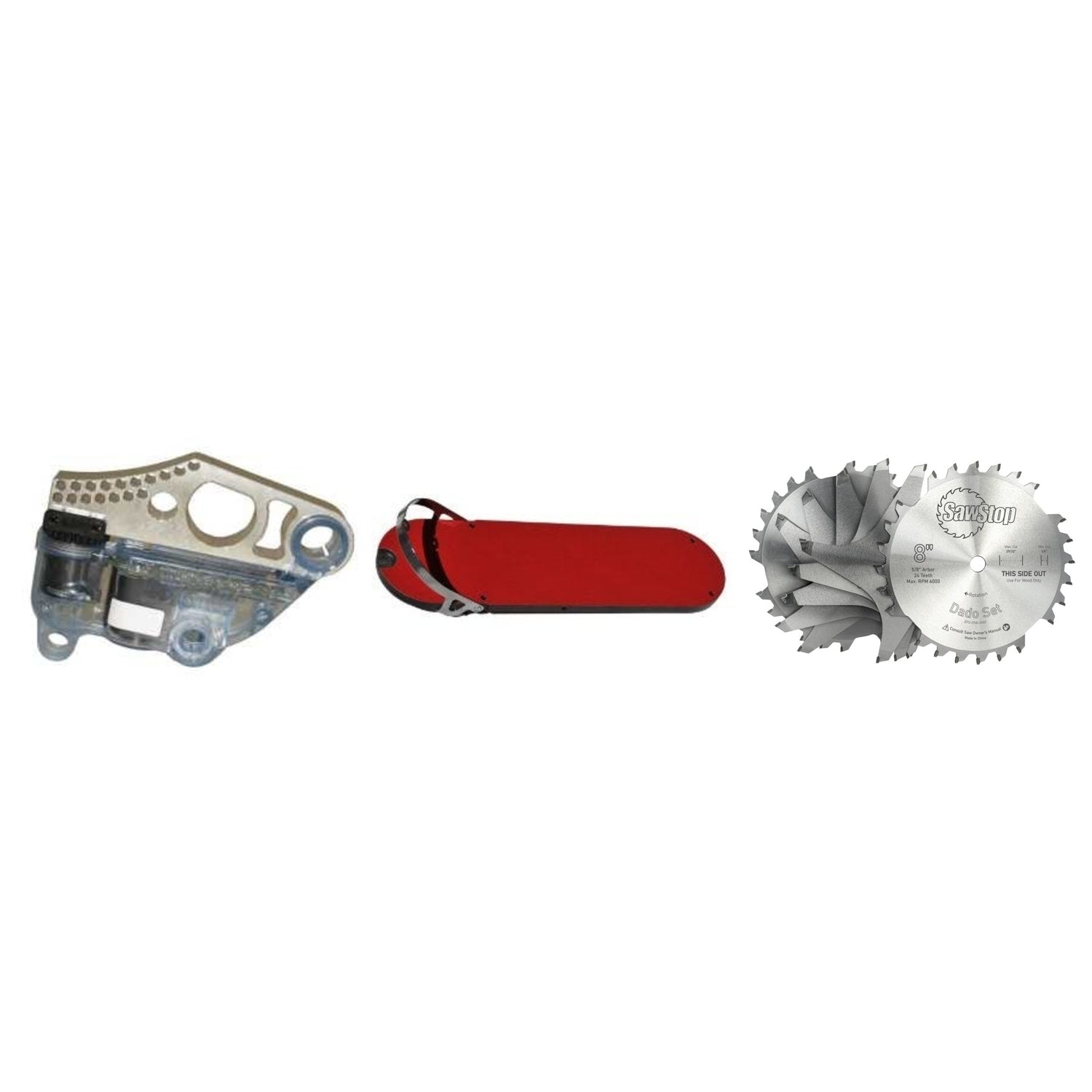

Kit Includes

• SawStop TSDC-8R3 8" Table Saw Dado Brake Cartridge
• SawStop TSI-DLD Dado Lock Down Insert
• Sawstop BTS-DS8-2402 Premium 8-in. Dado Set

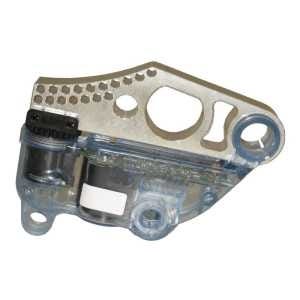

SawStop TSDC-8R3 8" Table Saw Dado Brake Cartridge

SawStop TSDC-8R2 8" Table Saw Dado Brake Cartridge

• Revolutionary SawStop protection
• Compatible with all standard 8" dado sets up to 13/16" thick
• Compatible with all woods and other non conductive materials

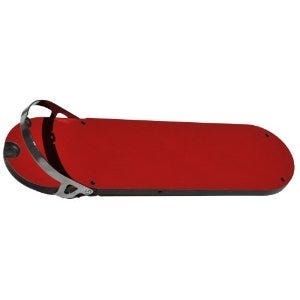

SawStop TSI-DLD Dado Lock Down Insert

• Positive locking latch allows for tool-free operation
• Positioning screws ensure a solid and precise fit in the table
• Pre-formed clearance slots for SawStop blade guard and riving knife
• Solid phenolic core
• Low-friction, wear-resistant melamine surface
• Dado inserts for 8″ dado sets

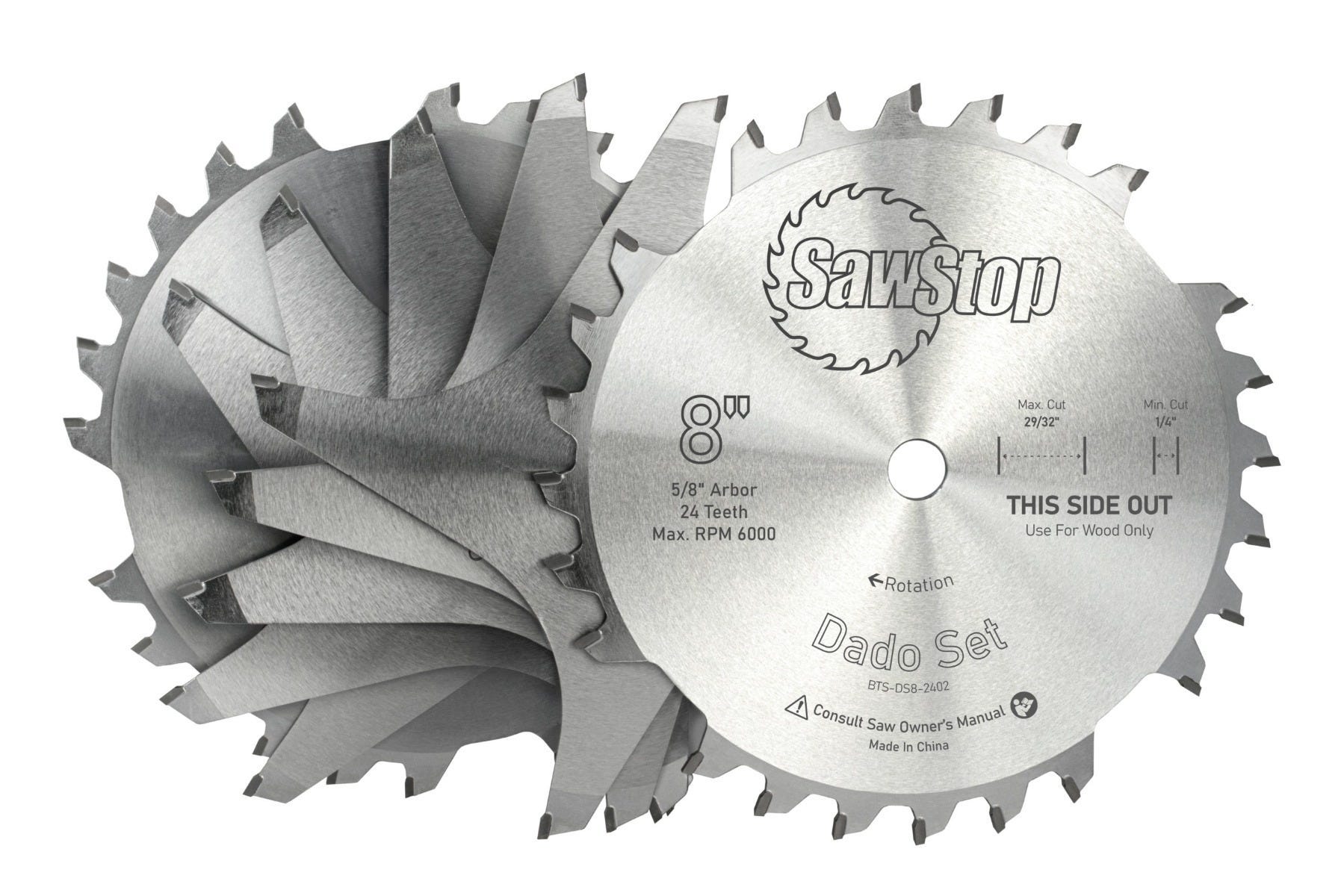

Sawstop BTS-DS8-2402 Premium 8-in. Dado Set

Premium specialized blade set ideally suited for cutting hardwoods and softwoods.

• True-To Size Cuts: 24-Tooth main blades and flat-grind chippers provide cleaner cuts
• Extended Cutting Range: A variety of chipper widths provides maximum flexibility
• Cleaner Cuts: -5 hook means less tear out for cleaner cuts
• 8", 5/8 arbor, 24-tooth main blades, 5 chippers, 6 shims, 1/4" to 29/32" cutting range, -5 hook angle, 6000 maximum RPM
• Plastic case included
• Compatible with ICS, PCS, CNS, JSS models of SawStop saws
