SawStop TSBC-10R3 10" Table Saw Brake Cartridge
SawStop TSBC-10R3 10" Table Saw Brake Cartridge
In Stock - Ready to Ship
Product Details
Product Details
Key Features
Overview

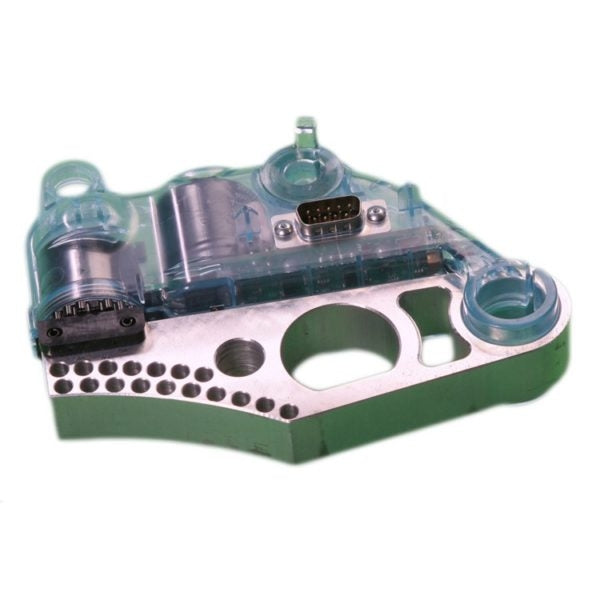

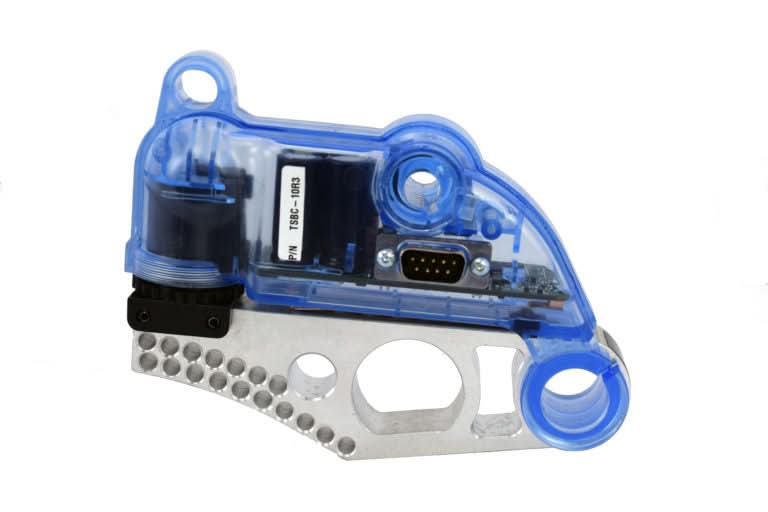

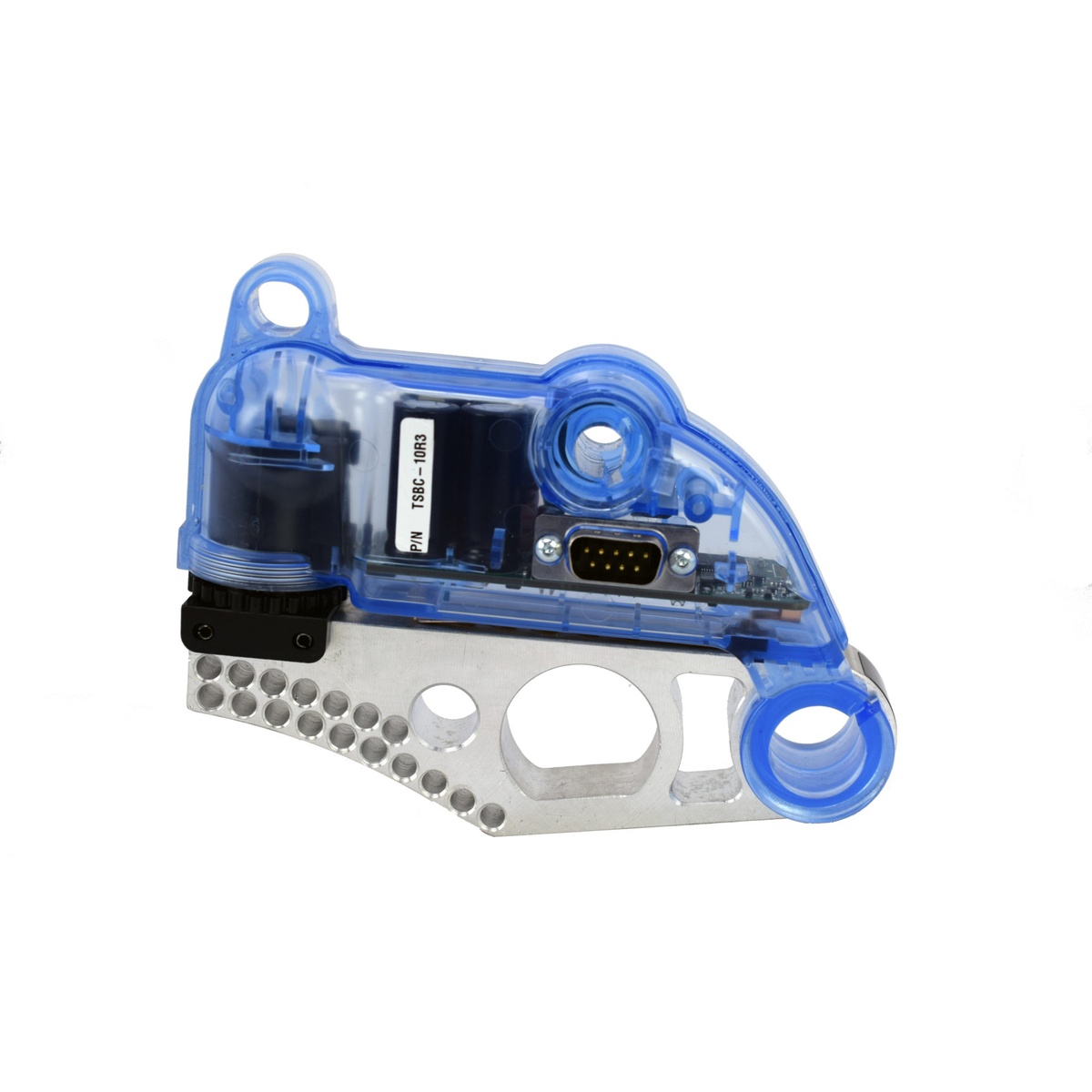

The SawStop TSBC-10R3 Table Saw Brake Cartridge for 10-Inch Blades is a replacement safety cartridge for compatible SawStop table saw setups using a standard 10-inch blade. This is a table saw brake cartridge designed for blade-stopping safety protection. Model Number TSBC-10R3. If you own a SawStop saw, this is one of those parts you do not want to be without because it is what makes the saw's signature safety system work.
What this cartridge actually does is simple: the saw's microprocessor continuously senses the blade, and if it detects contact with skin, the cartridge activates the system within 5 milliseconds. That speed is the whole story here. It is not a convenience feature. It is the part that turns a serious table saw accident into something far less severe.
The TSBC-10R3 is not just a block of hardware. SawStop builds it with an RS232 connection that serves as the interface between the cartridge and the saw, allowing the stop signal to get where it needs to go immediately. There is also a mylar debris shield that helps insulate the aluminum brake from metal particles, which matters when cutting stock that may have hidden nails, staples, or screws and could otherwise cause unwanted activation.
Inside the cartridge, a heavy-duty spring held under 150 pounds of pressure drives the aluminum block into the blade path when triggered. That is the mechanical side of the system, and it is why the response is so fast and so decisive. For shops, garages, and serious home woodworkers running standard 10-inch blade setups, keeping the correct brake cartridge on hand is just smart planning. If you use a SawStop table saw as intended, this is a critical replacement part, not an optional accessory.
Know What You Are Installing
This is the replacement cartridge for a standard 10-inch blade setup, and the details matter. You are not buying a generic table saw part. You are buying the component that enables the SawStop blade-stopping system to do its job.
- Designed as a standard brake cartridge for 10-inch blade applications
- Uses an RS232 port to connect the cartridge to the saw's safety system
- Includes a debris shield to help reduce unwanted activation from metal particles
Key Specifications
| Compatible Blade Diameter | 10 in |
|---|---|
| Activation Time | 5 milliseconds |
| Spring Pressure | 150 lbs |
| Weight | 1 lb |
| Dimensions | 7 x 3 x 8 in |
| Color | Blue |
Tool Nut's Take
SawStop TSBC-10R3 Table Saw Brake Cartridge for 10-Inch Blades is the part you keep on hand before you need it
If you run a SawStop with a standard 10-inch blade, this is one of the smartest spare parts you can buy ahead of time.
- Who it's for: SawStop owners, cabinet shops, jobsite crews, school shops, and serious DIY users who depend on their table saw and want the right replacement brake cartridge ready to go.
- Why it stands out: It is purpose-built for the SawStop safety system, with a 5 millisecond activation time, a direct interface to the saw, and the debris shield details that show this was designed for real shop conditions.
- Worth knowing: This is a specific replacement part for standard 10-inch blade setups, so make sure your saw and blade configuration match before you order.
