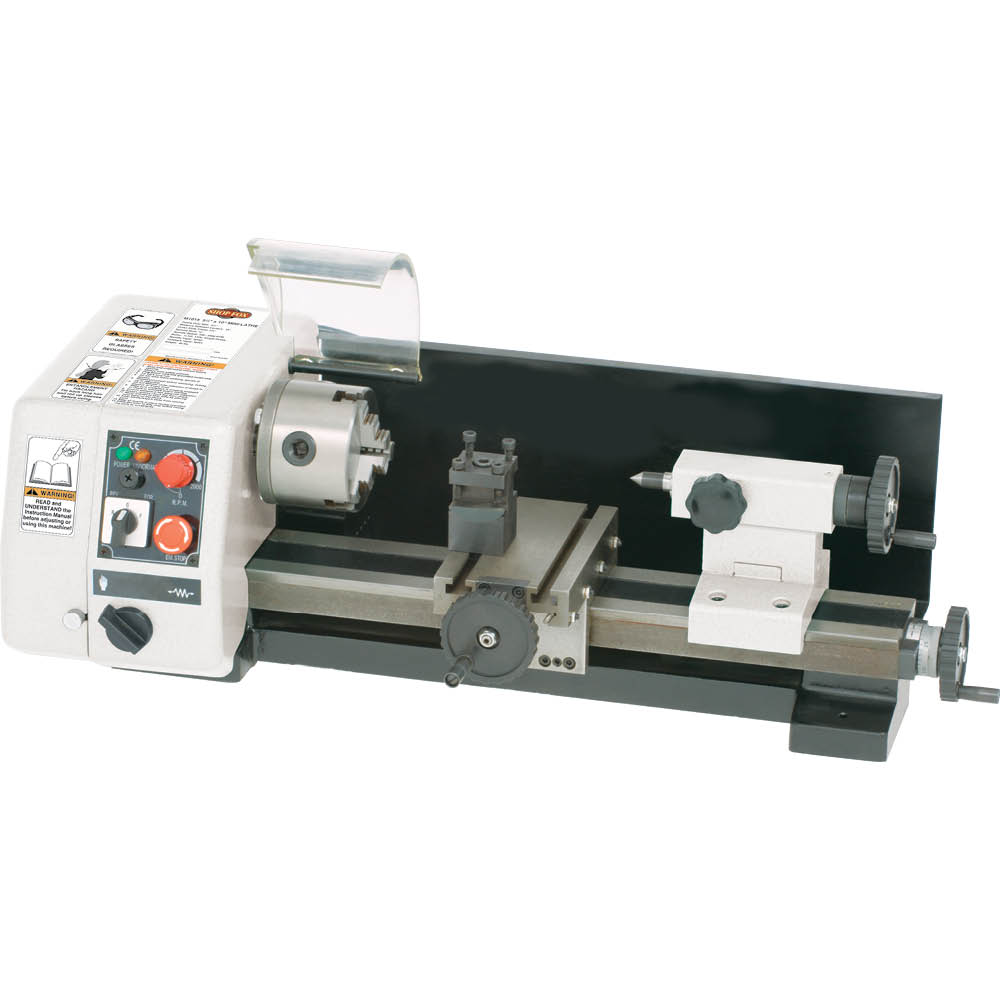

Created for the mini machine shop enthusiast, the M1015 Metal Lathe has all the features and precision required for small-scale turning. In fact, it has proven to be a hugely popular machine for scale model building. It includes a 3" three-jaw chuck, and a full selection of optional accessories is also available for a wide variety of setups. [Note: Machine does not include a thread-cutting kit, as may be indicated in some materials.]

• Motor: 1/5 HP, 110V, single-phase, 1.2A
• Swing over bed: 6"
• Distance between centers: 10"
• Swing over cross slide: 4-1/8"
• Swing over saddle: 5"
• Cross slide travel: 2-3/8"
• Carriage travel: 10"
• Spindle speeds: variable speed, 100-2000 RPM
• Spindle bore: 0.375"
• Spindle taper: MT#2
• Bed width: 3-1/4"
• Tailstock barrel taper: MT#1
• Tailstock barrel travel: 2"
• Leadscrew: 16 TPI
• Thread range (inch): 5 @ 16-24 TPI
• Max. tool size: 3/8"

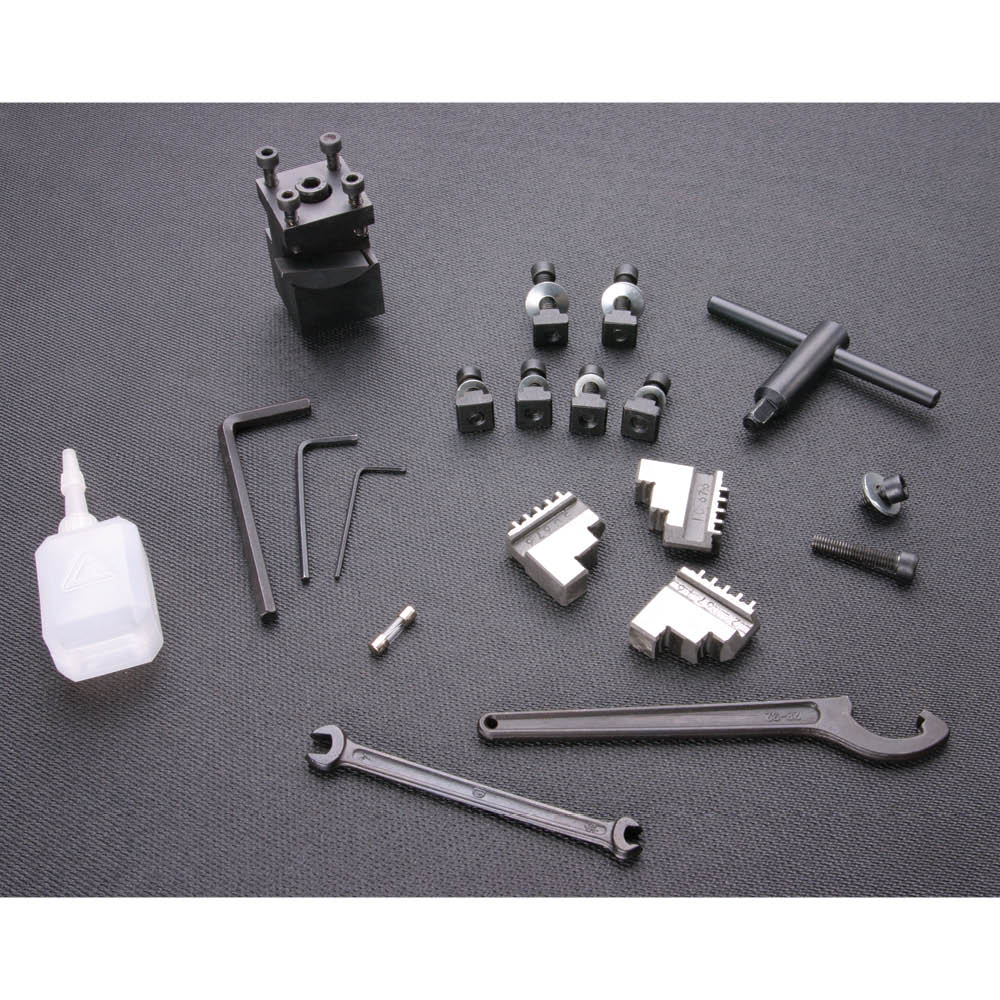

• Included as standard equipment: 3" 3-jaw chuck with internal & external jaws, 4 hex wrenches, double-ended wrench, socket head wrench, MT#1 dead center, oil cup, chuck key, 2 T-nuts
