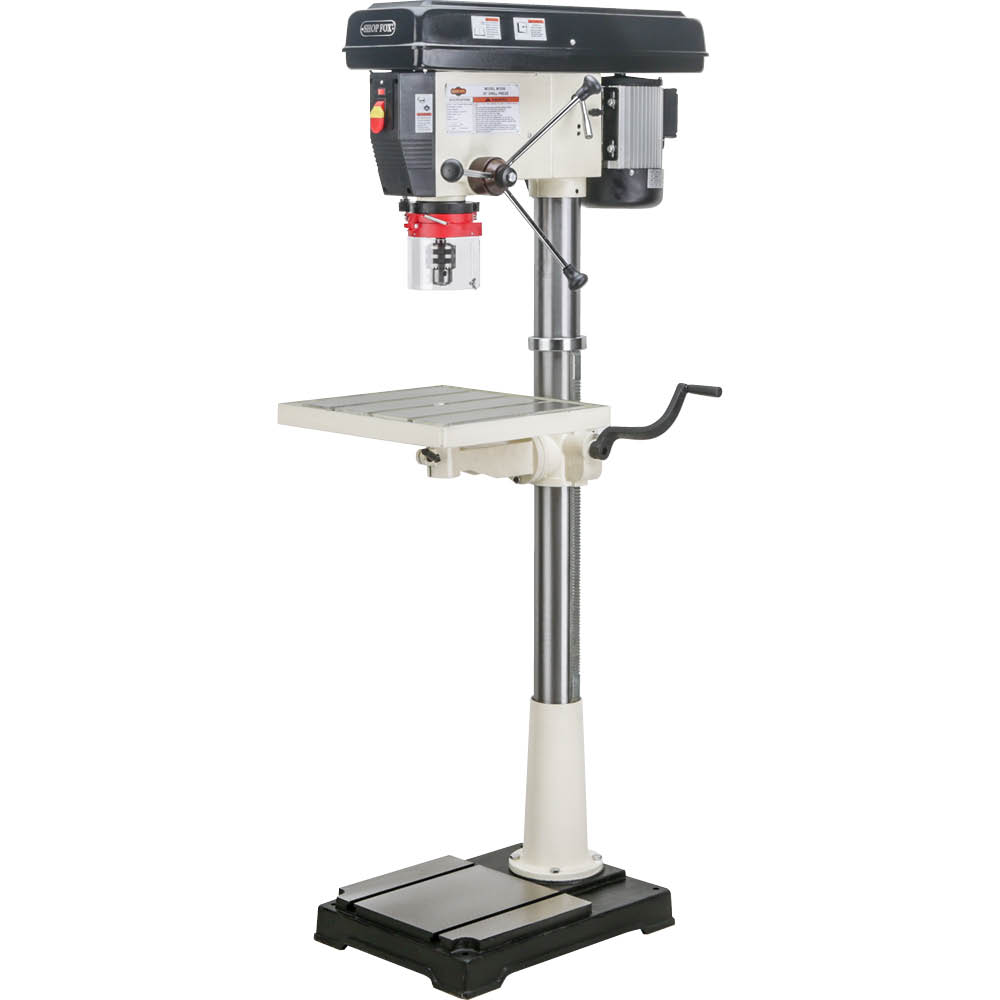

The Shop Fox M1039 20" Professional Grade Floor Drill Press is a heavy-duty stationary drilling machine built for serious shop work. This is a floor drill press designed for accurate drilling in wood and mild steel. Model Number: M1039. If you need more capacity, more table support, and more travel than a light bench model can give you, this machine is aimed squarely at that job.

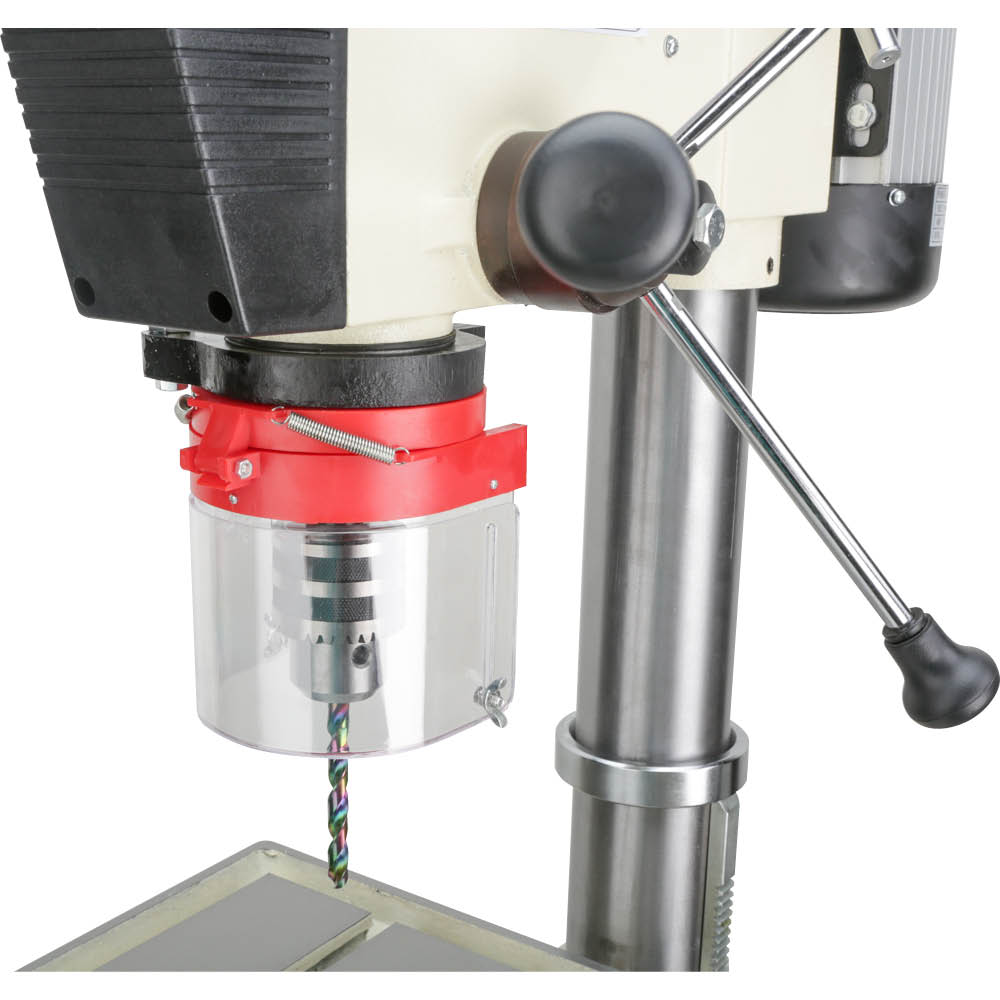

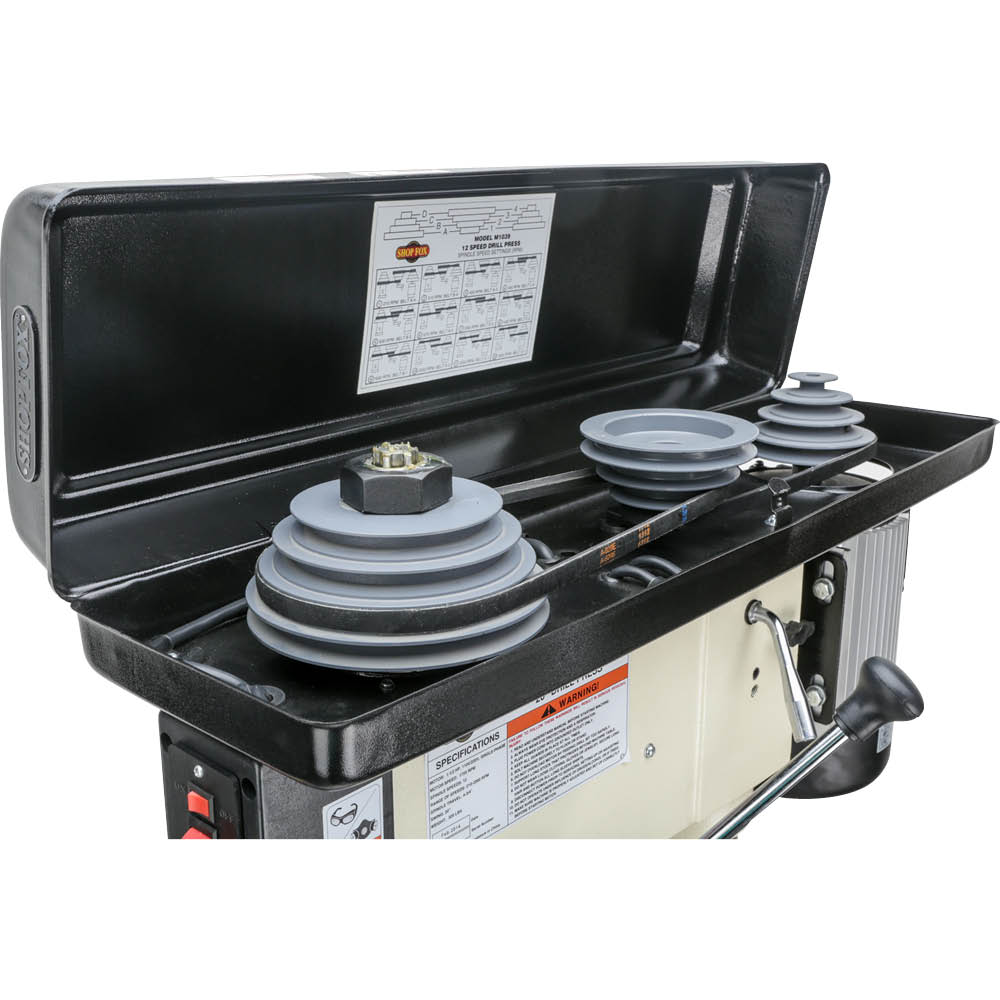

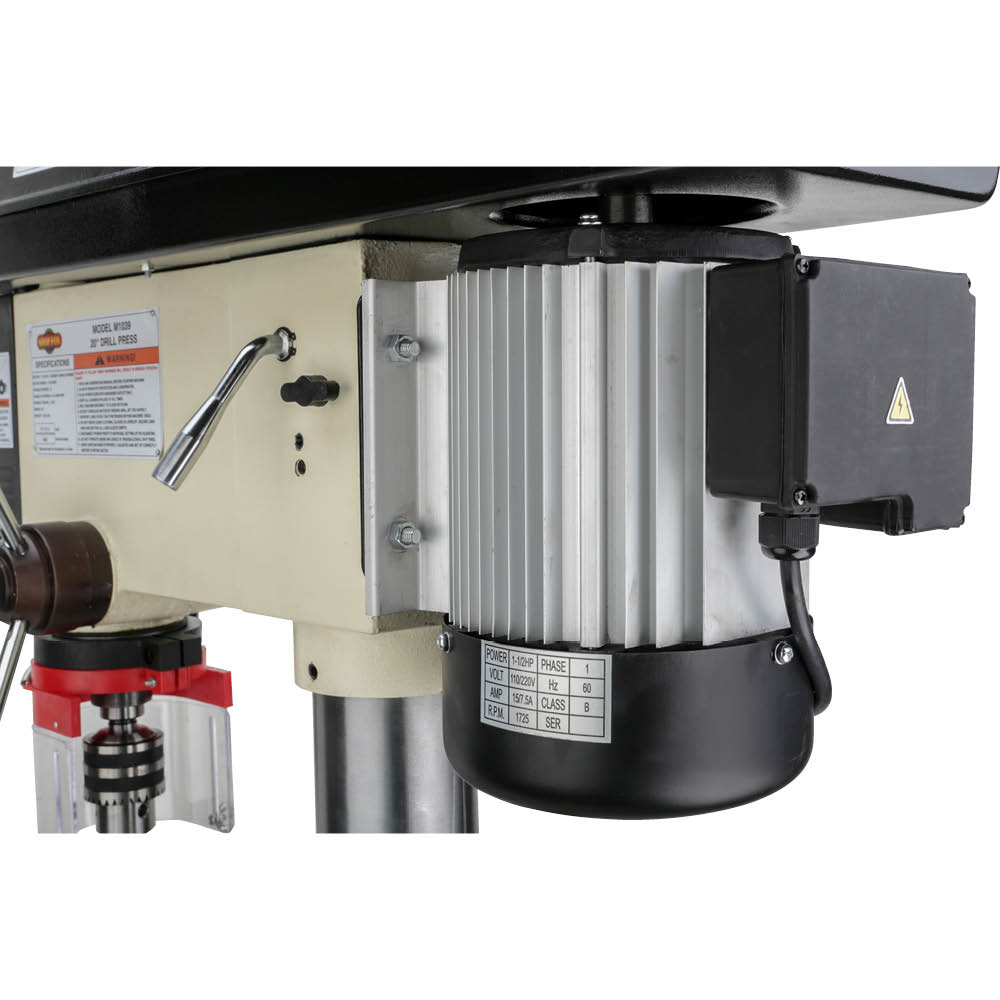

At the core is a 1-1/2 HP single-phase motor that can be wired for 120V or 240V, and it drives a 12-speed range listed from 210 to 3300 RPM in the most complete source data. That matters because drill presses live or die by speed control. Slower settings help when drilling metal and larger diameters, while the upper end gives you the speed you want for smaller bits and wood. The 5/8 inch keyed chuck and 1-1/4 inch mild steel drilling capacity tell you this is not a hobby-only machine.

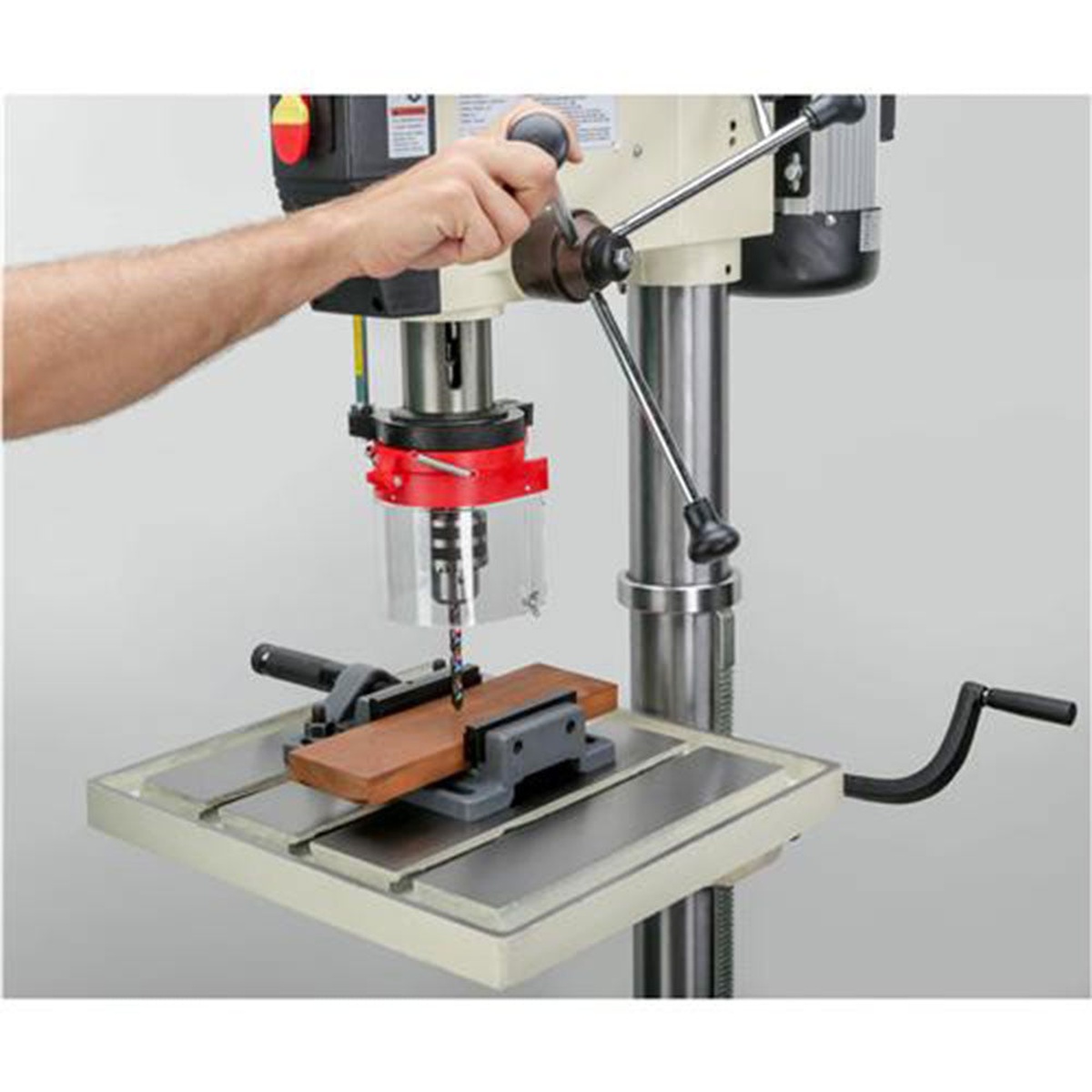

The M1039 earns its keep with setup flexibility. The cast iron table measures 16-3/4 inches by 18-3/4 inches, which gives you much better support for larger stock, jigs, and vises than the small tables found on lighter machines. T-slots make clamping straightforward, and the built-in coolant channel is a real plus when drilling metal because it helps manage cutting fluid instead of letting it run everywhere. The table also swings 360 degrees and tilts 90 degrees in both directions, so angled drilling and awkward workpieces are a lot more manageable.

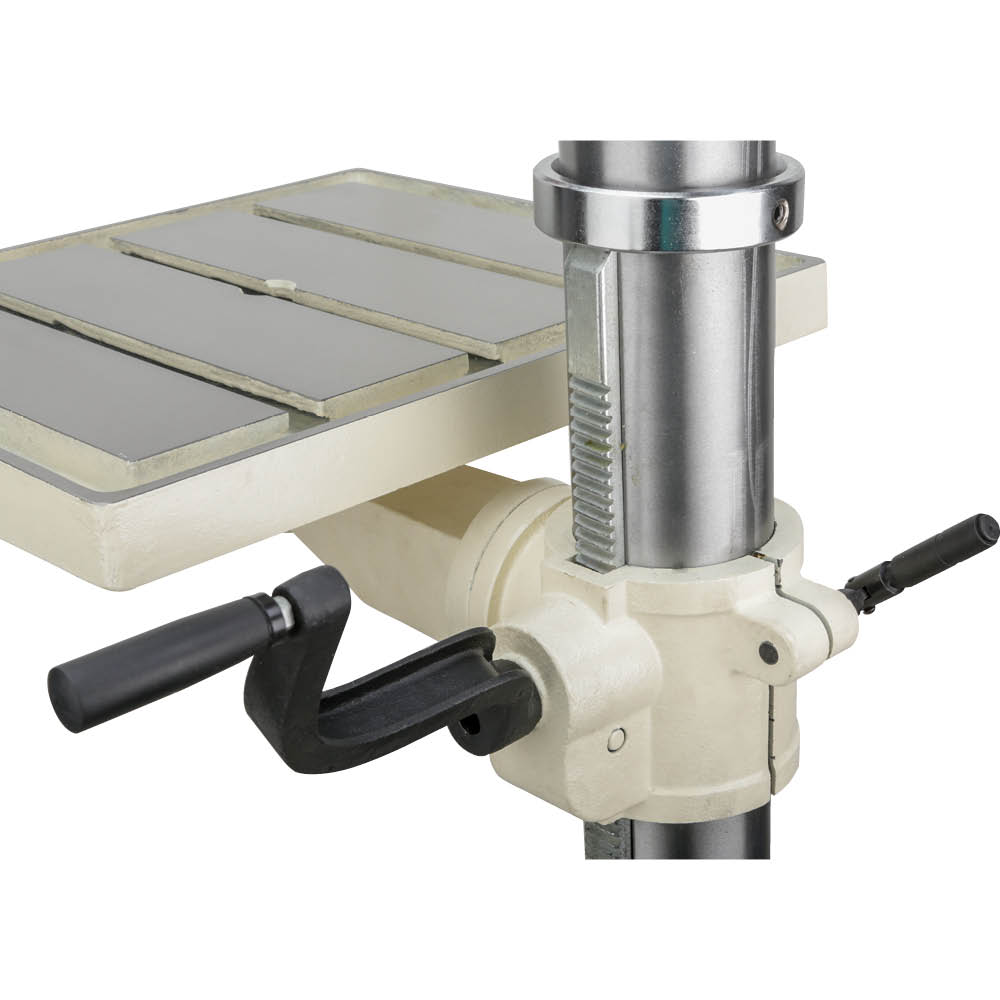

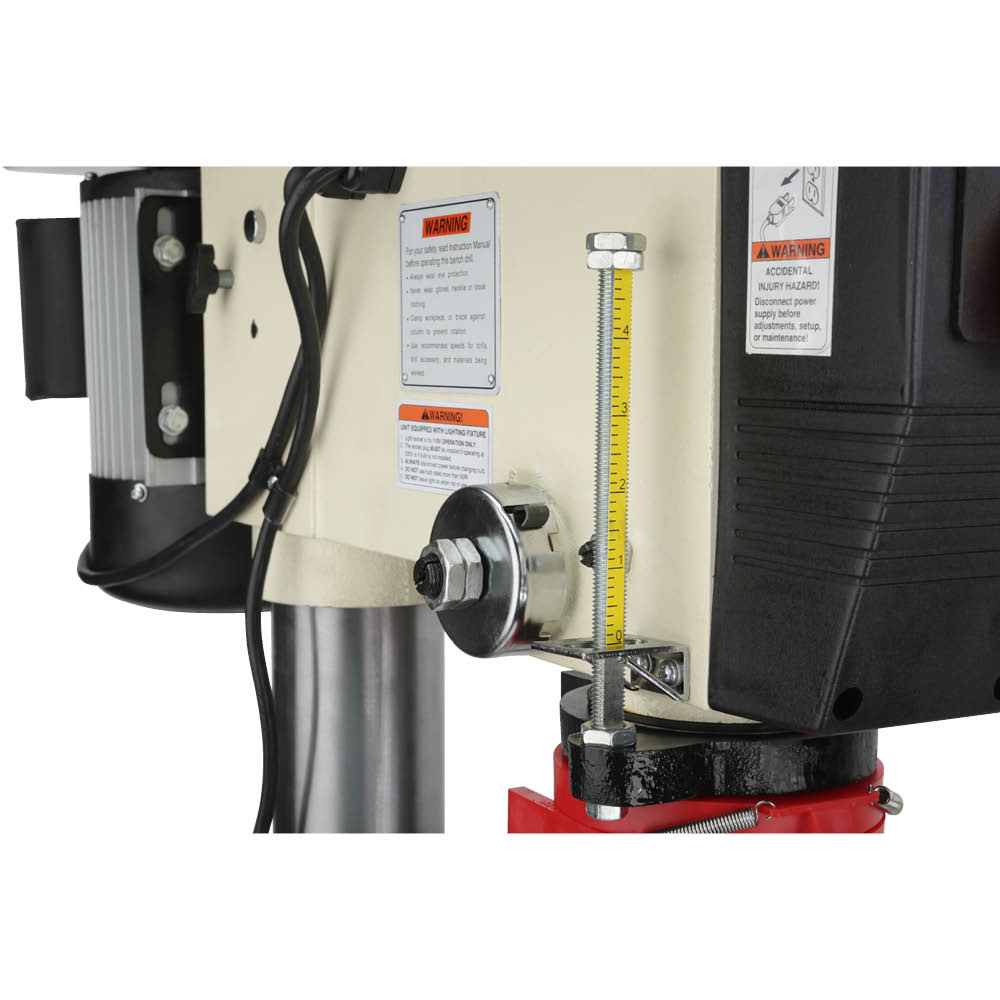

Vertical table movement is handled by a rack-and-pinion system with a crank handle, which is exactly what you want on a machine this size. It makes table height changes more controlled, especially when you are working with heavier fixtures or repositioning for different material thicknesses. A threaded depth stop adds repeatability for production-style work, shelf pin layouts, hardware installation, or anytime you need multiple holes at the same depth.

The 4-3/4 inch spindle travel is another real advantage. On the job, that means more drilling depth in a single pass and less fiddling with repositioning. For woodworkers, that helps with thicker stock and cleaner workflow. For metalworking, it gives you more room to handle deeper drilling operations without immediately running into the limits of a smaller press.

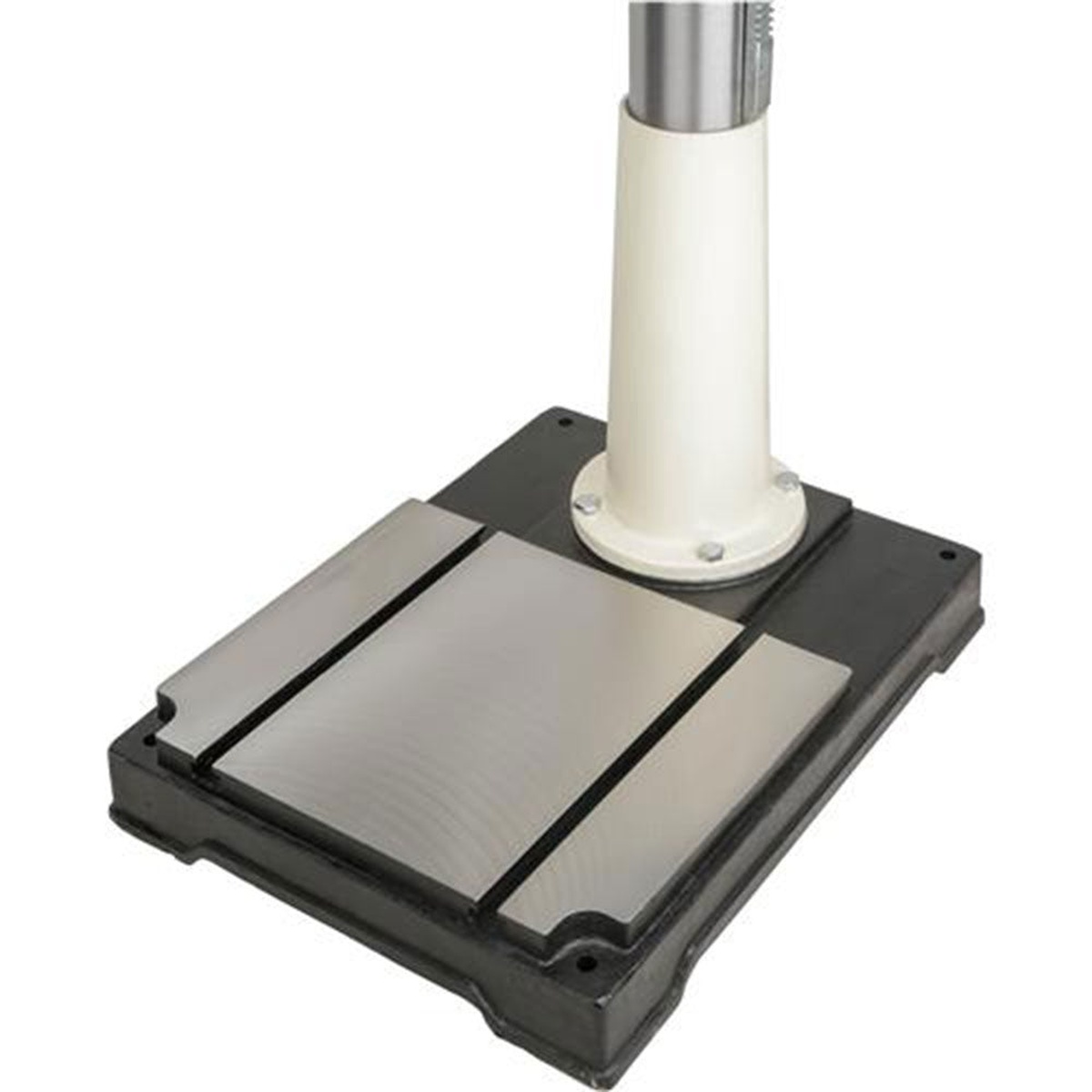

Shop practicality is covered well here too. The built-in light on 120V setups helps keep the bit and layout line visible at the table, which is useful when you are drilling small parts or working under shop lighting that throws shadows. At 317 pounds, this is a substantial machine with the kind of mass that helps stability during drilling. That extra weight is not convenient when moving it into place, but it is exactly what you want once it is on the floor and bolted down.

Who should buy it? This machine makes sense for dedicated woodshops, metalworking shops, school shops, serious furniture makers, fabrication spaces, and advanced DIY users building out a permanent workshop. If you only drill occasional small parts, this is more machine than you need. If you want a floor-standing drill press with real table size, travel, and capacity, the Shop Fox M1039 is built for that kind of work.

Shop Fox M1039 20" Professional Grade Floor Drill Press Means Business

This is the kind of floor drill press you buy when you are done fighting small tables, short travel, and light-duty shop machines.

• Who it's for: Woodworkers, metalworkers, school shops, and serious home shops that need a permanent stationary drill press with real capacity.
• Why it stands out: Big cast iron table, 12-speed range, 4-3/4 inch travel, 1-1/2 HP motor, and the T-slot coolant-channel table setup that actually supports metalworking.
• Worth knowing: It is a 317 lb machine, so plan the install before it shows up. That weight is a hassle once, but a benefit every time you pull the feed handle.

• Is this a bench drill press or a floor drill press? It is a stationary floor drill press.
• What power does it require? The motor is 120V/240V single-phase and comes prewired for 120V.

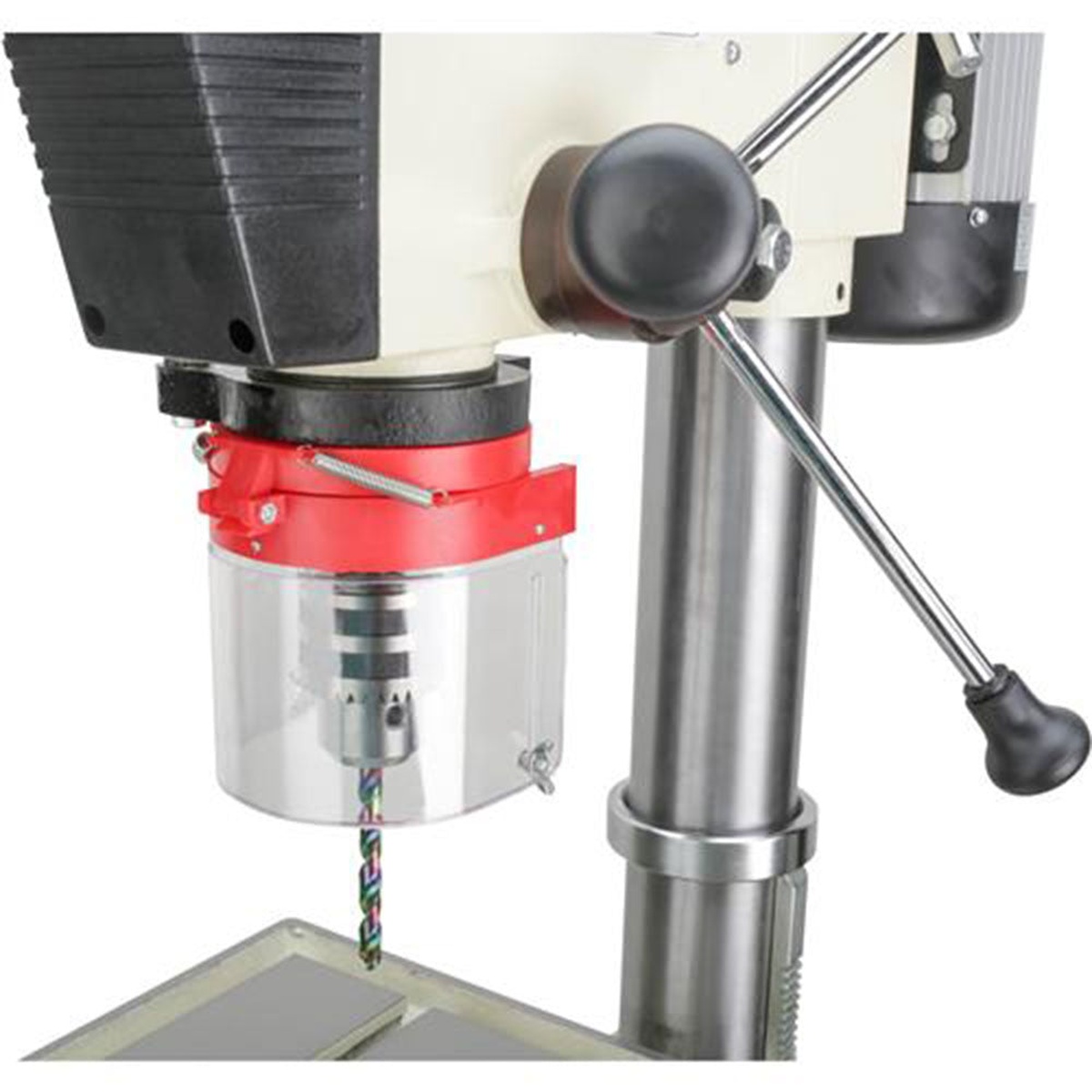

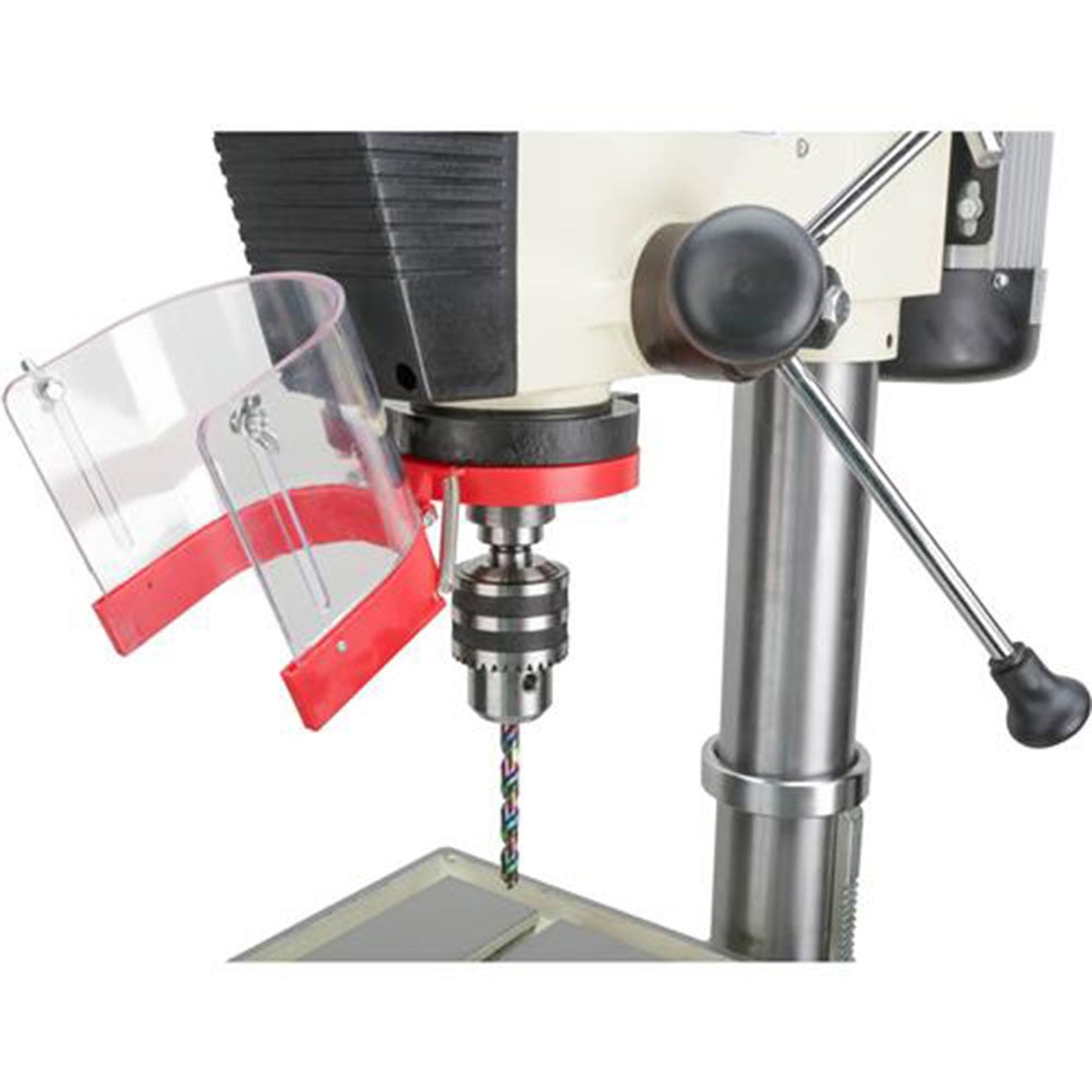

• What size chuck does it use? It uses a 5/8 inch keyed chuck.
• How much spindle travel does it have? The spindle travel is 4-3/4 inches.
• Can the table tilt and swing? Yes. The table swings 360 degrees and tilts 90 degrees in both directions.
