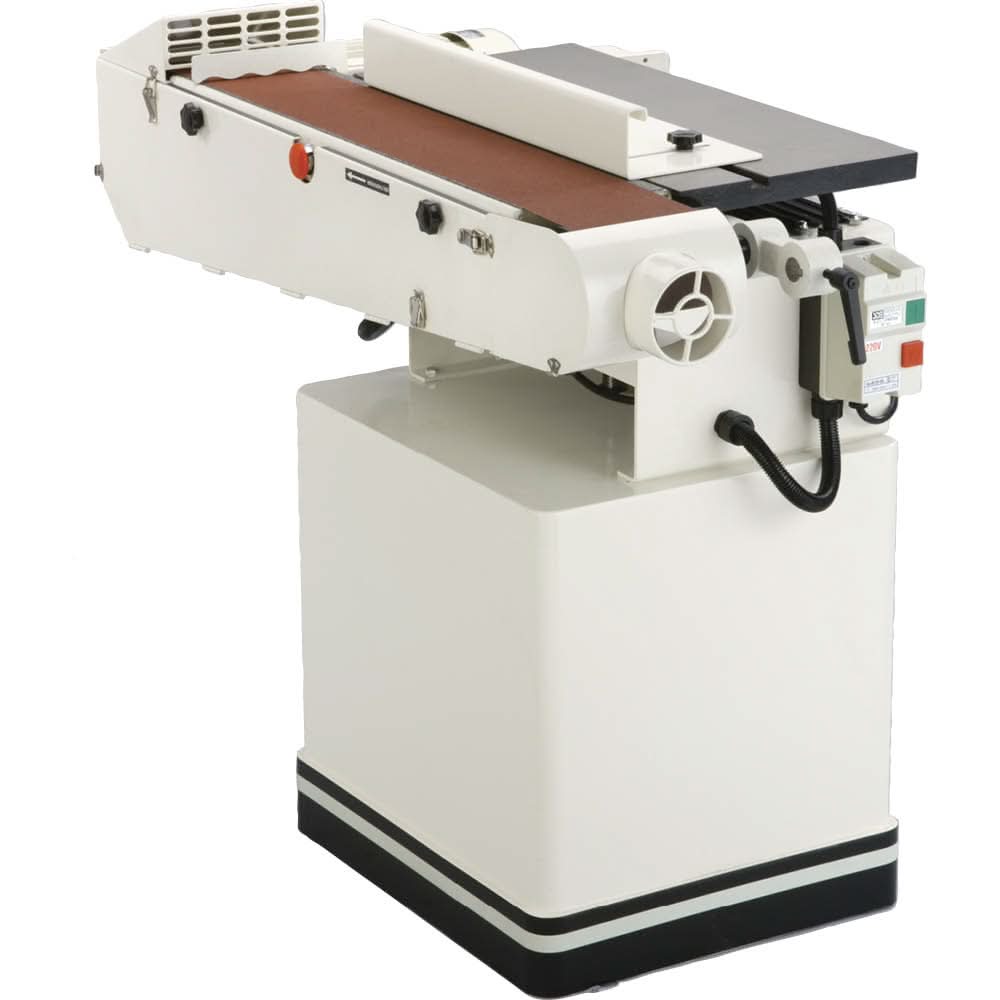

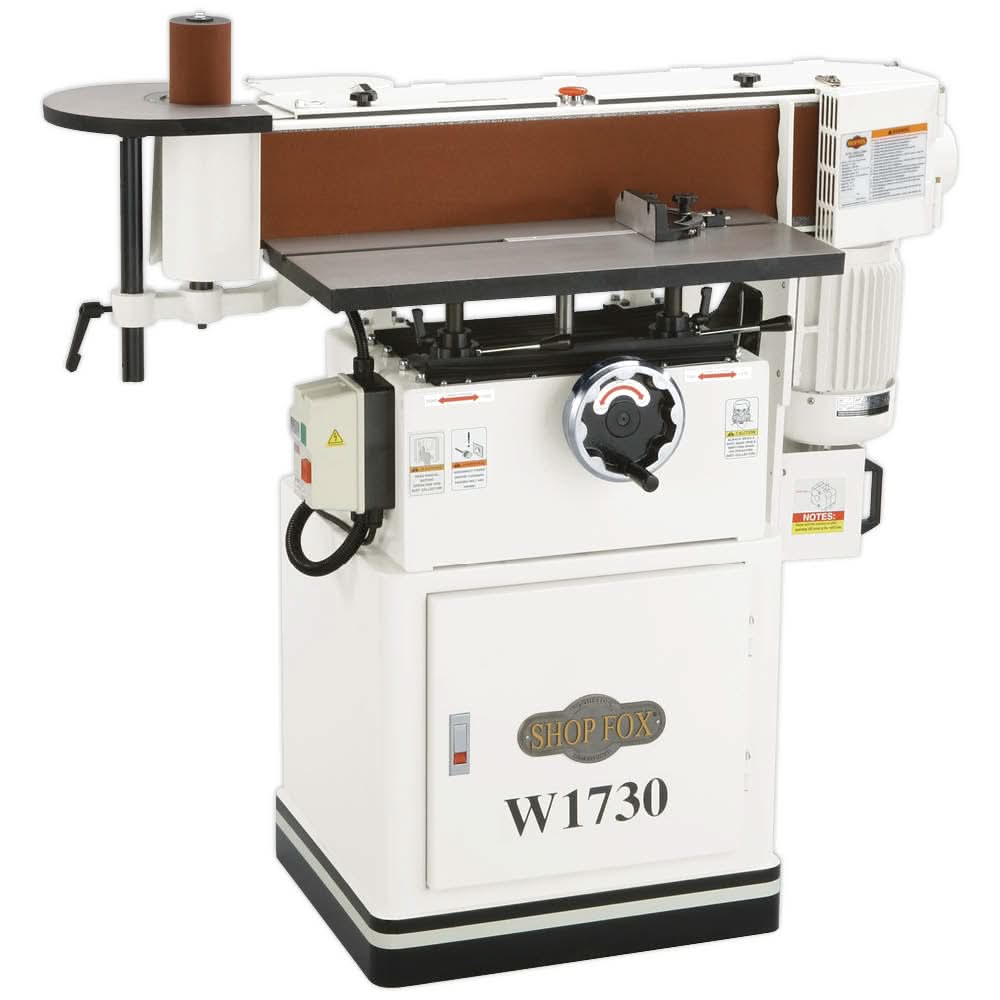

This sander features a 6" x 89" belt that oscillates 1/4" vertically at fifty-two times per minute! It also has a quick-release belt tension lever, graphite-coated platen that tilts 090, and a 2 HP, 240V motor. The W1730 has a 26-7/8" x 12" precision-ground cast-iron main table for edge sanding and a 10" x 11-1/2" cast-iron auxiliary table for spindle sanding. Three non-oscillating spindle sanding drums, measuring 1-1/2", 2", and 3" in diameter are included for sanding smaller contoured surfaces. Other features include a 180 adjustable miter gauge, two 4" dust ports, powder-coated finish, and a removable fence.

• Motor: 2 HP, 240V, single-phase, 1725 RPM
• Precision-ground cast-iron tables
• Table size: 26-7/8" x 12"
• Table travel: 3-3/4" vertical
• Aux. table size: 10" x 11-1/2", travel: 10"

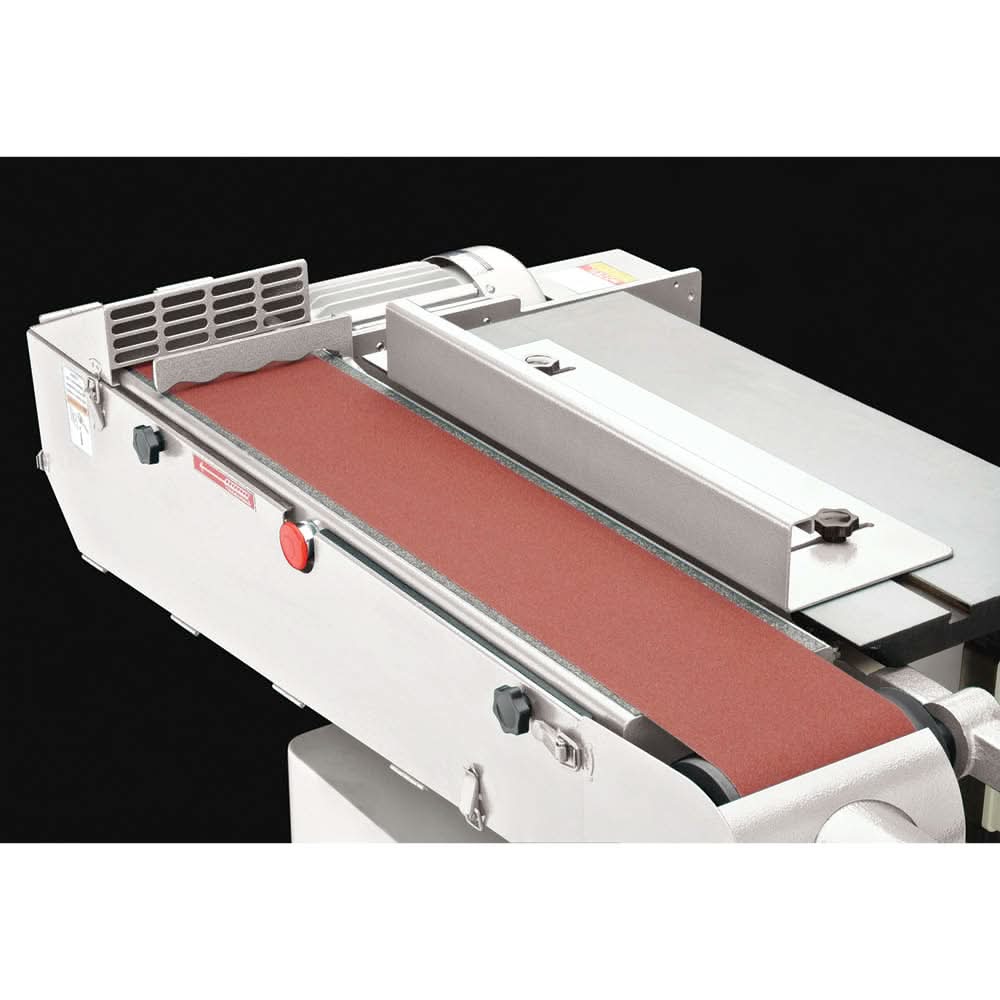

• Sanding belt size: 6" x 89"
• Sanding belt speed: 3150 FPM
• Sanding belt oscillation stroke: 1/4"
• Drive drum diameter: 7"
• Idler roller diameter: 3-7/8"
• Platen with graphite pad: 6-3/4" x 30-1/4"
• Platen tilt: 090 (5 scale)

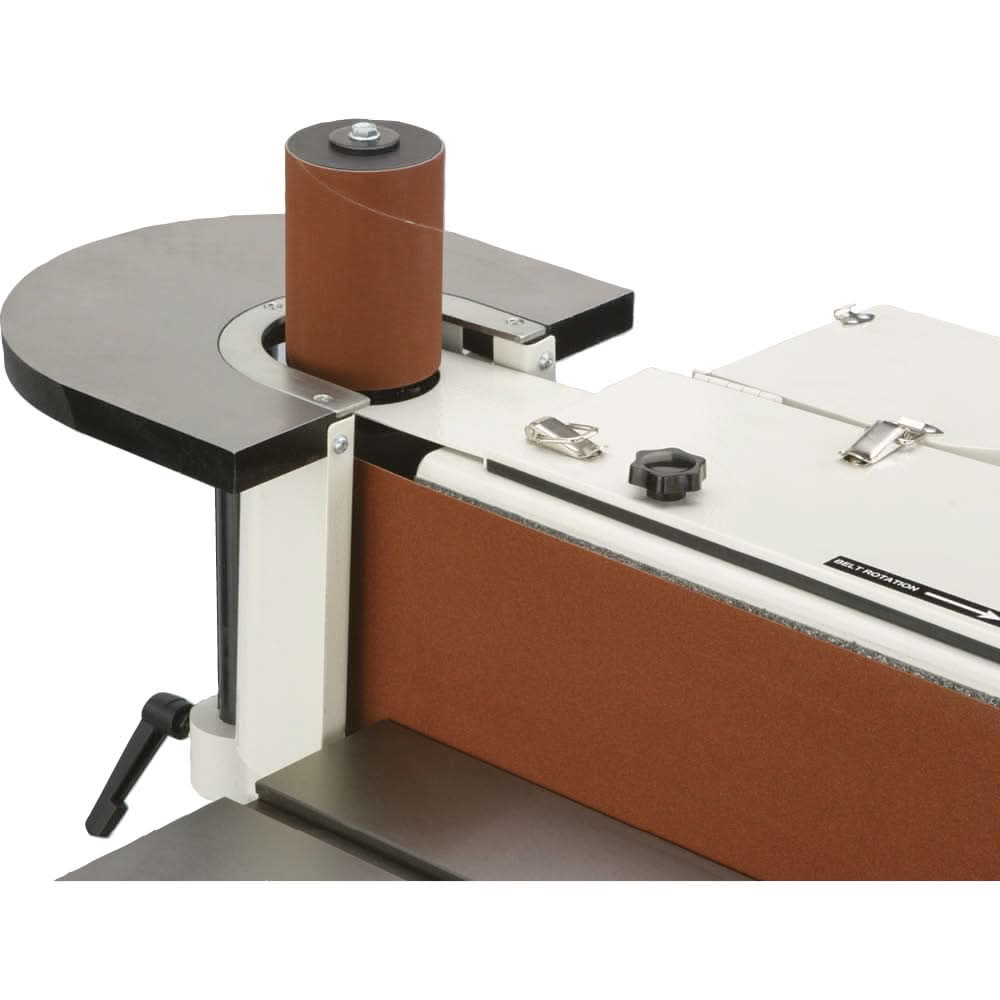

• 3 spindle drums: 1-1/2", 2", 3" x 4-1/2" high
• T-Slot table & miter gauge
• Two 4" dust ports
• Quick-release belt tension lever
• Graphite-coated platen
• Oscillating sanding belt
• Shielded & permanently lubricated ball bearings
