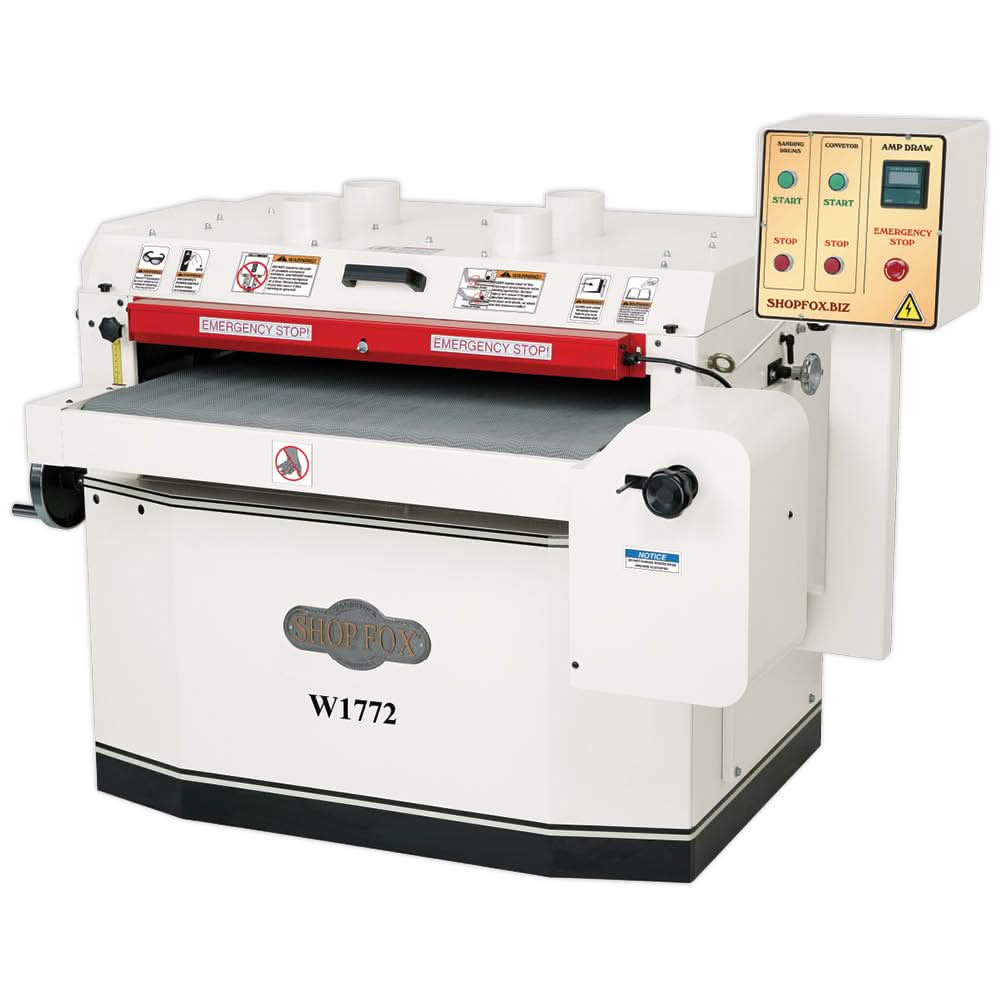

Shop Fox W1772 10 HP 37-Inch Drum Sander
Shop Fox W1772 10 HP 37-Inch Drum Sander
In Stock - Ships from Manufacturer
Product Details
Product Details
Designed for production shops, this 37" sander has what it takes to get those big jobs donefast. Sand boards and panels up to 4" thick and 36-1/2" wide, using two different abrasive grits in the same pass with the dual 6" sanding drums. Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency. Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4" dust ports, and a 10 HP, 240V, single-phase motor. Certified to CSA and UL standards.

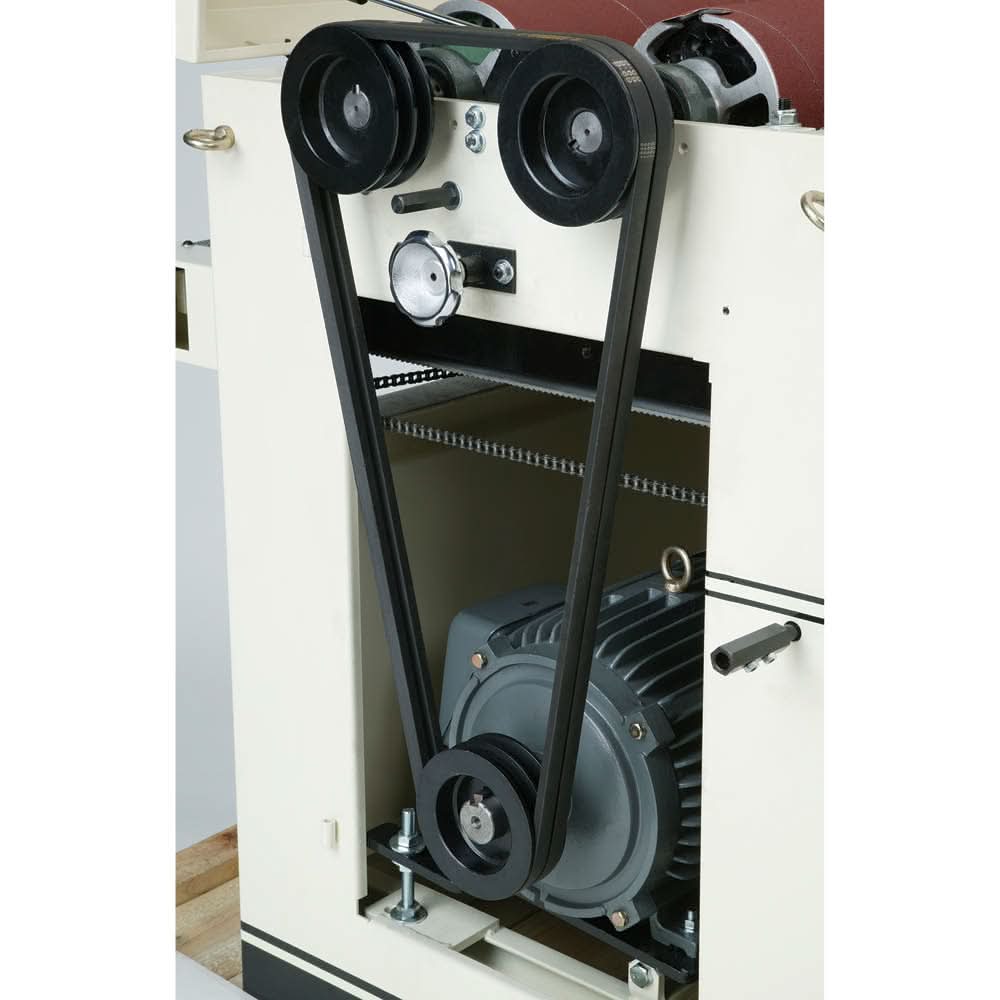

- Sanding drum motor: 10 HP, 240V, single-phase, TEFC, 1725 RPM

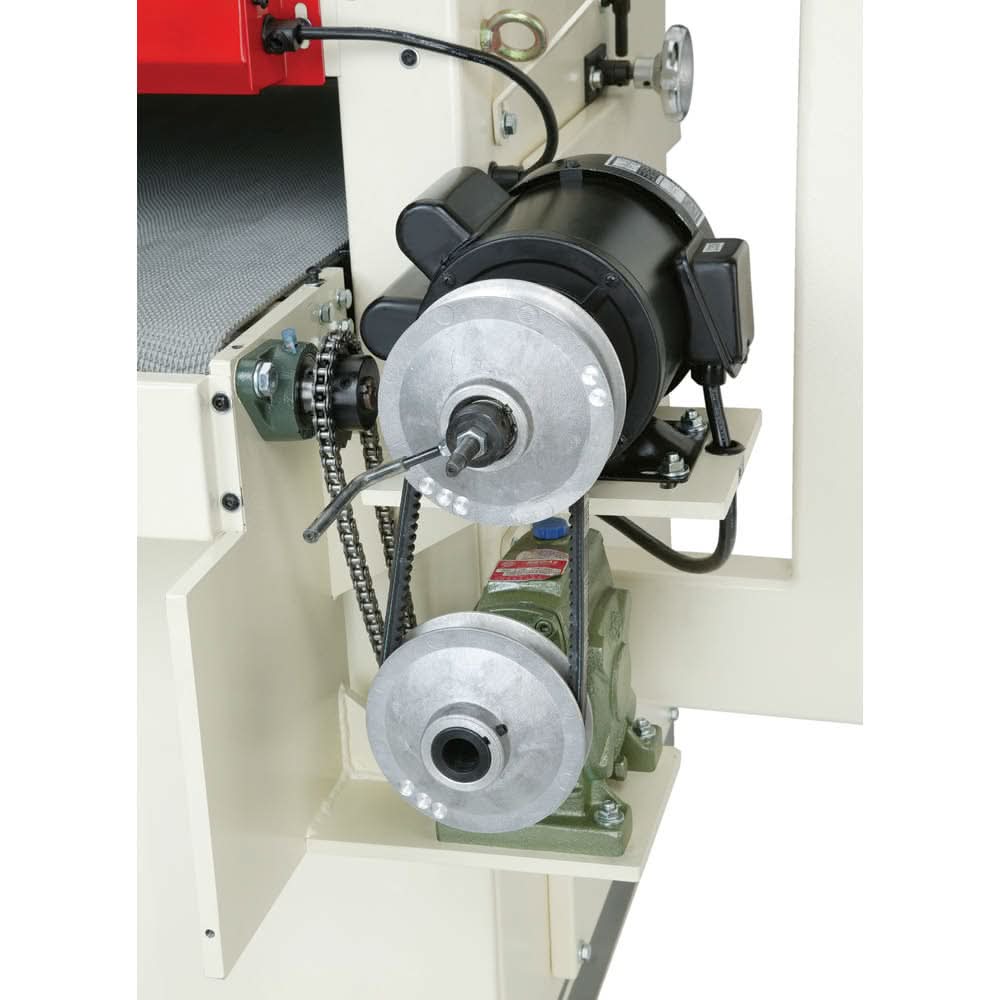

- Conveyor motor: 1/3 HP
- Drum surface speed: 2800 FPM
- Max. board width: 36-1/2"
- Max. board thickness: 4"
- Min. board length: 9"
- Min. board thickness: 1/16"
- Conveyor feed rate: Variable, 618 FPM

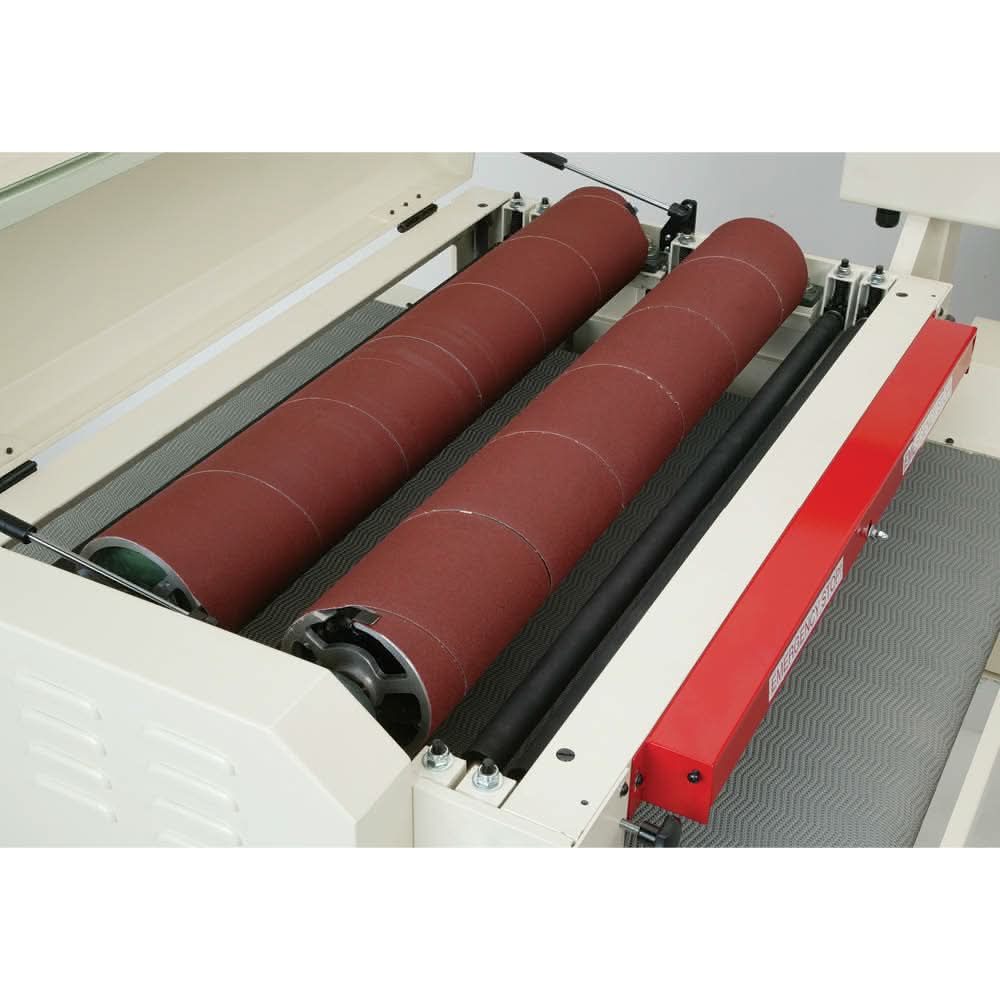

- Sanding drums: (2) steel/rubber
- Drum diameter: 6"
- Dust ports: (4) 4"
- Sandpaper dimensions: 6" x 138"
- Overall size: 62"W x 49"H x 53"D
- Approximate shipping weight: 1379 lbs.
