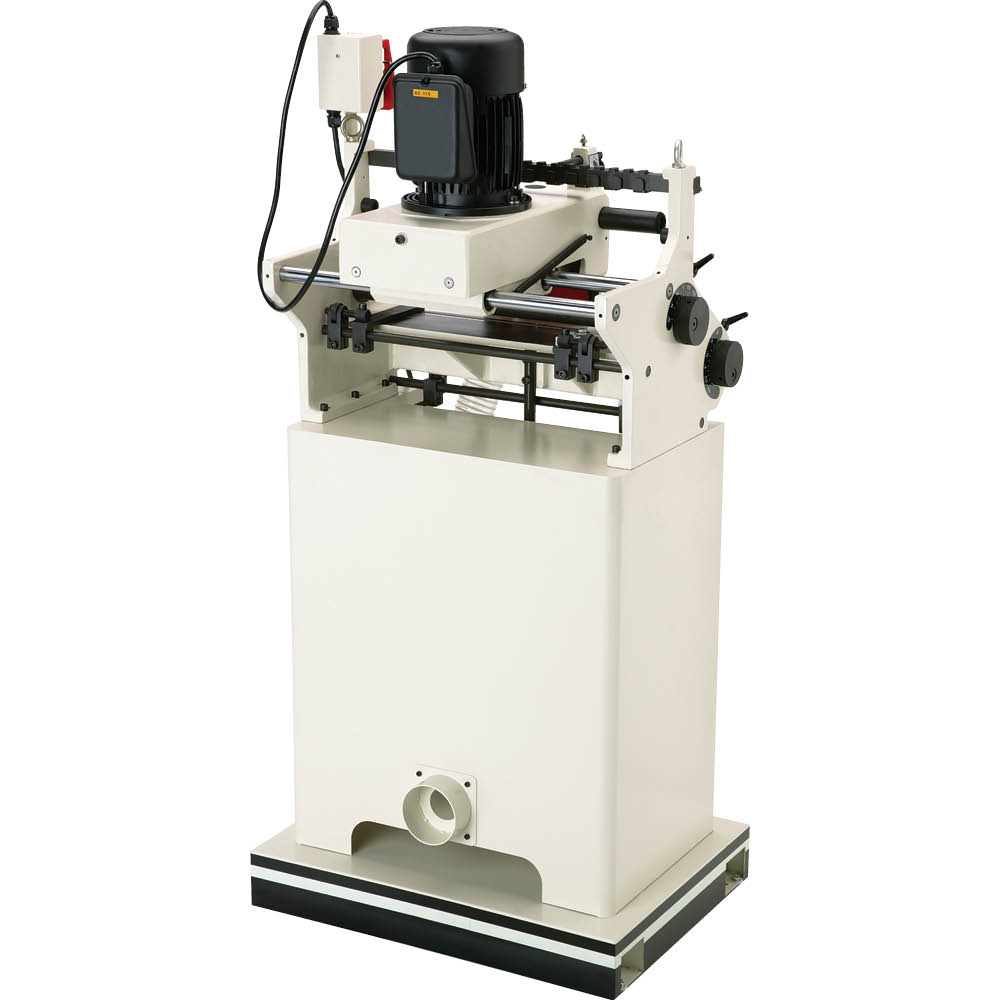

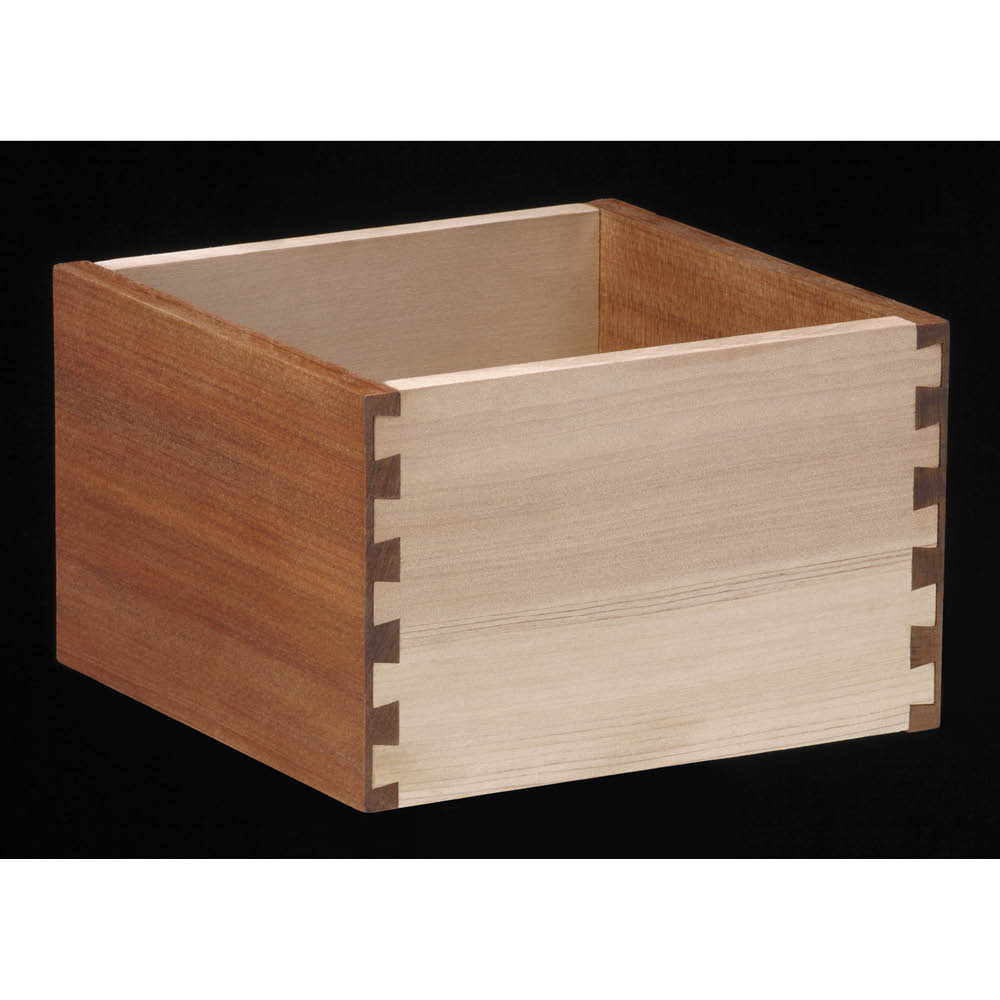

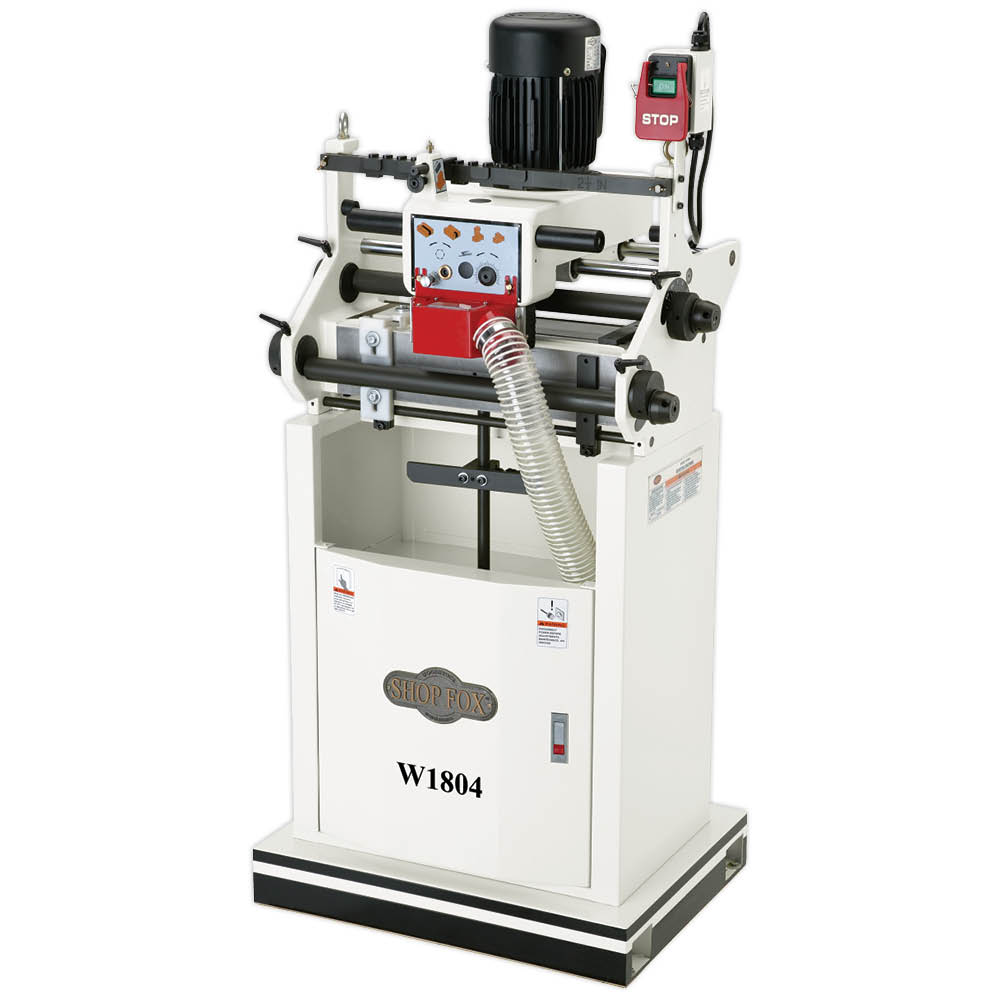

Making strong and attractive half-blind dovetail joints has never been so easy! Simply set up this 11" Dovetail Machine to match the stock width and thickness, make a few adjustments to get a glove-like fit, and then crank out dozens of perfect dovetail joints every hour. Accepts workpieces as large as 28" long x 11-1/4" wide and as small as 7-7/8" long x 2-3/8" wide. Includes templates for four different dovetail sizes.

• Motor: 1 HP, 110V/220V, prewired 110V, single-phase
• Table size: 19-1/2" x 7"
• Floor to table height: 38-5/16"
• Overall size: 30-1/2"W x 57"H x 22-1/2"D
• Number of spindles: 1
• Spindle speed: 18,500 RPM

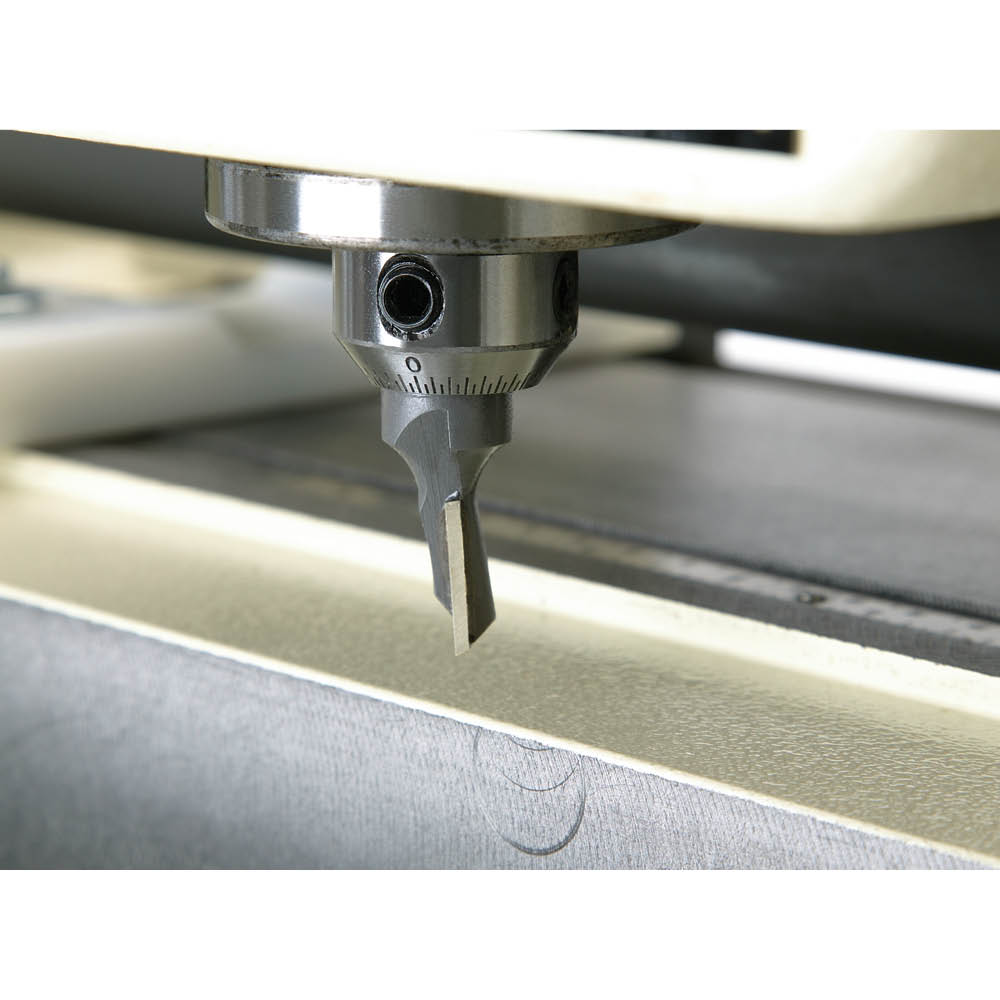

• Dovetail bit: 10 angle x 5/8" left-hand
• Dovetail bit shank: 1/2" (12mm)
• Dovetail templates: 1", 1-1/2", 2", 2-1/2"
• Max. dovetail height: 3/4"
• Min. dovetail height: 3/16"
• Max. stock thickness: 1-3/4"
• Min. stock thickness: 13/32"
• Max. stock size: 28"L x 11-1/4"W
• Min. stock size: 7-7/8"L x 2-3/8"W
• Precision-milled cast-iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened-and-ground chrome steel slide ways
• Ball bearing linear guides
• Four-sided dovetail template bar

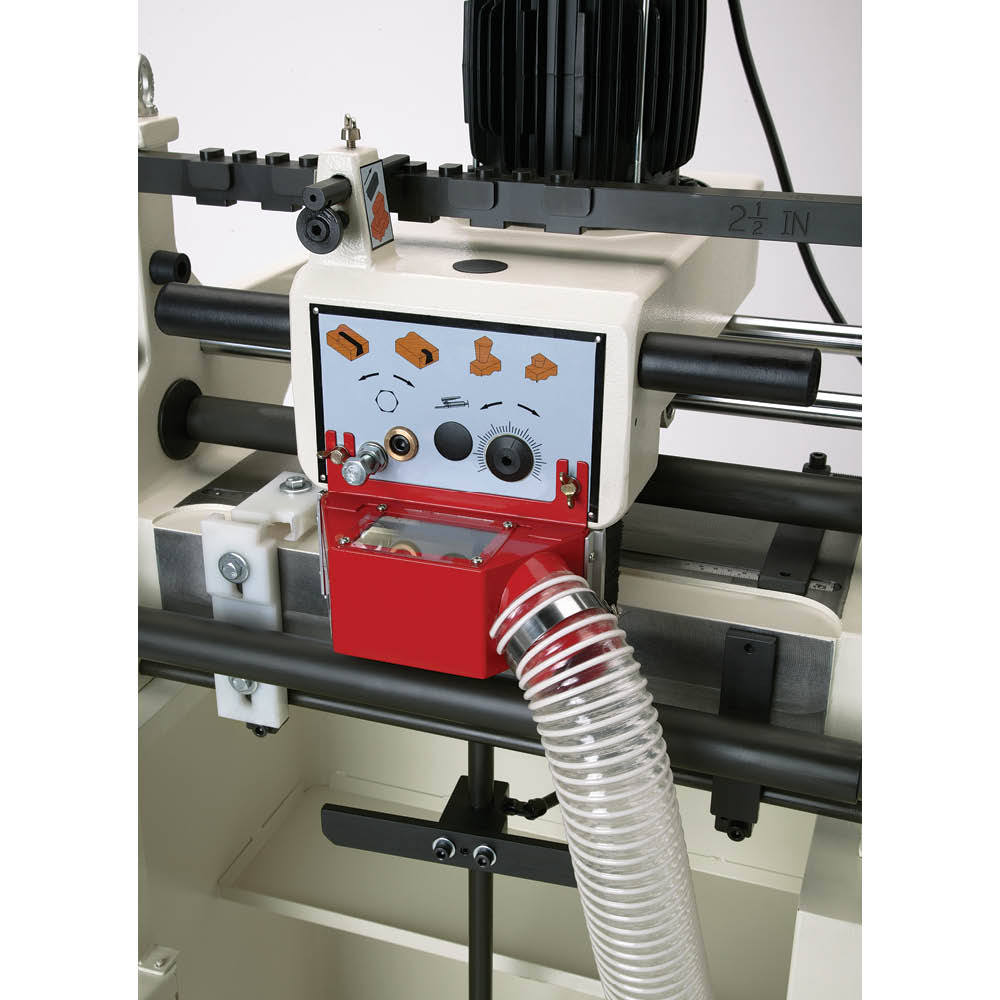

• Micro-adjustable spindle head
• Workpiece stops
• Quick cam clamp
• Spring-loaded carriage for smooth operation
• ON/OFF push button switch with oversized stop paddle
• 4" dust port
• 2 camlock bar clamps
• Approximate shipping weight: 366 lbs.
