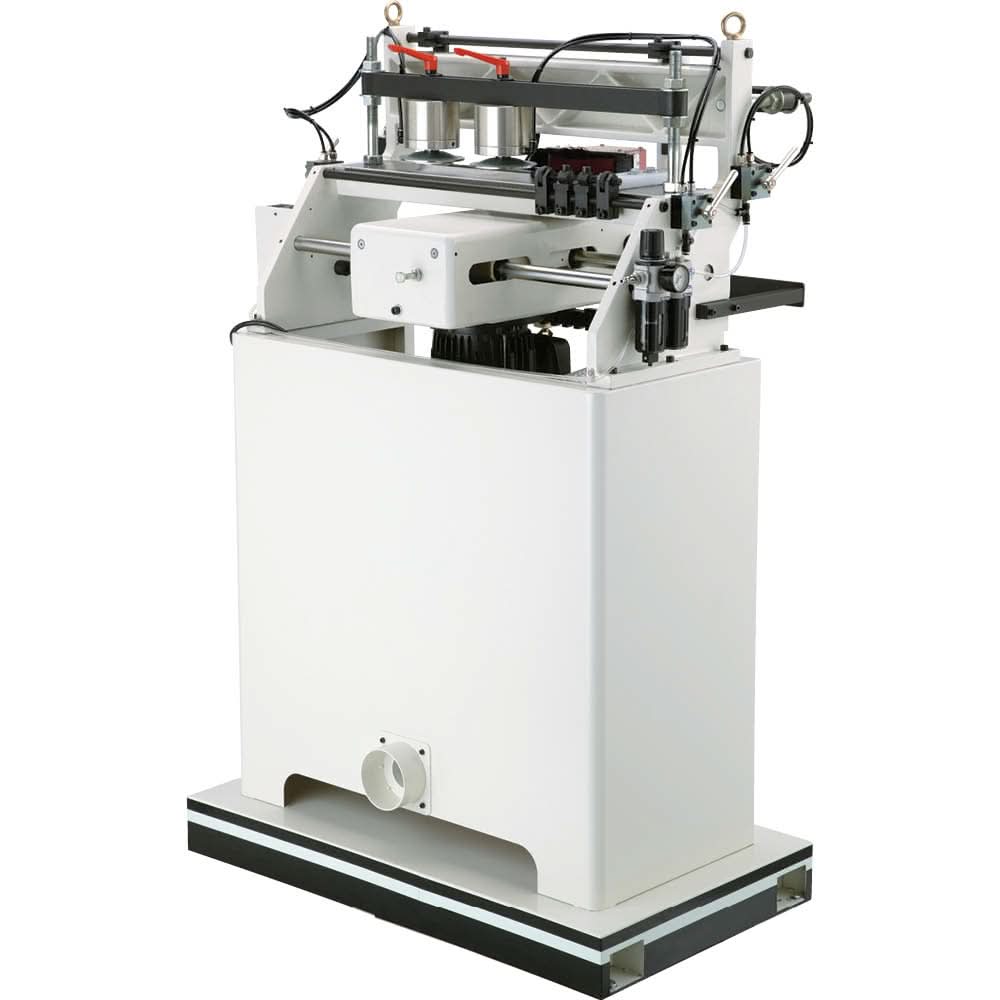

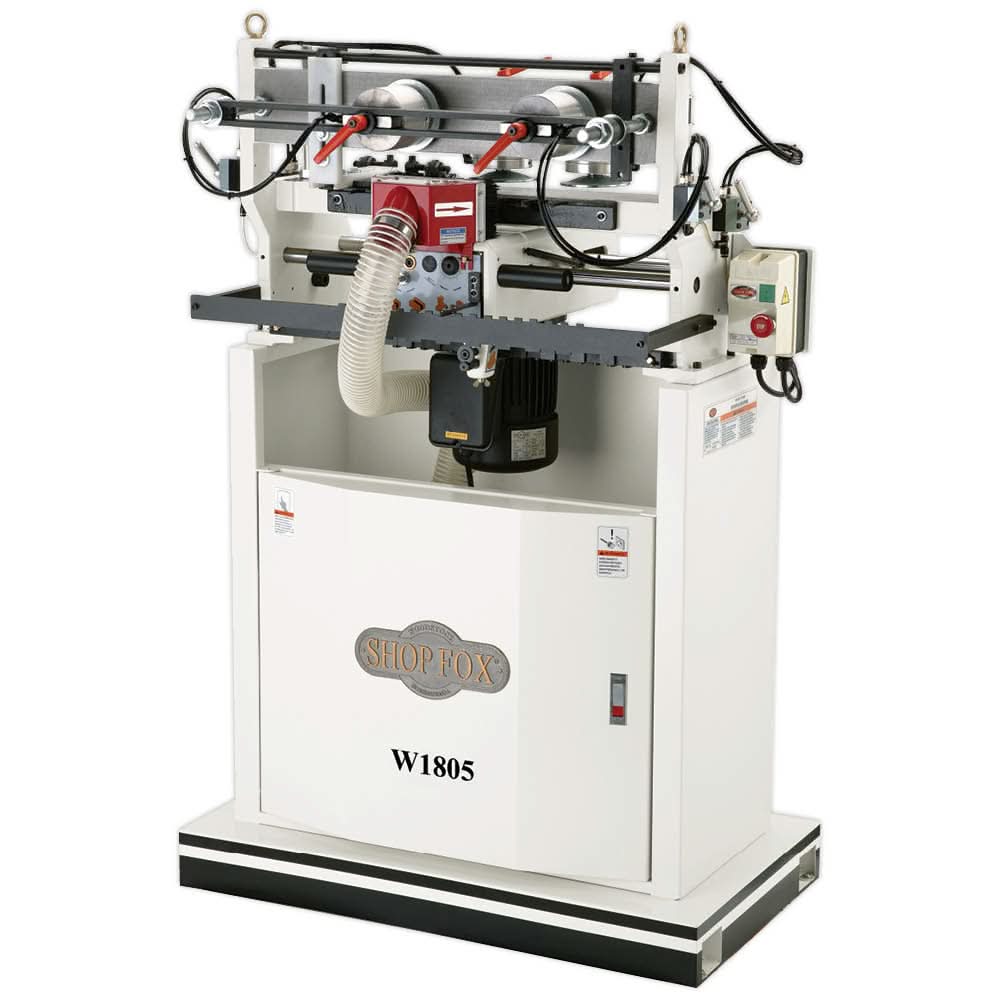

This luxury version Dovetail machine creates strong and attractive half-blind dovetailed in no-time. Instead of cam-lock clamps, this machine features pneumatic clamps that are faster and easier to use, a larger workpiece capacity, and a magnetic switch with thermal overload protection. Also, the motor is pre-wired for 220V, and inverted so vertical workpieces are inserted/removed from above rather than below, which makes it easier and more ergonomic to operate.

• Motor: 1 HP, 110V/220V, prewired 220V, single-phase
• Table size: 24" x 7-3/4"
• Floor to table height: 46-7/16"
• Overall size: 35-5/8"W x 56-7/8"H x 26-1/2"D
• Number of spindles: 1
• Spindle speed: 18,500 RPM

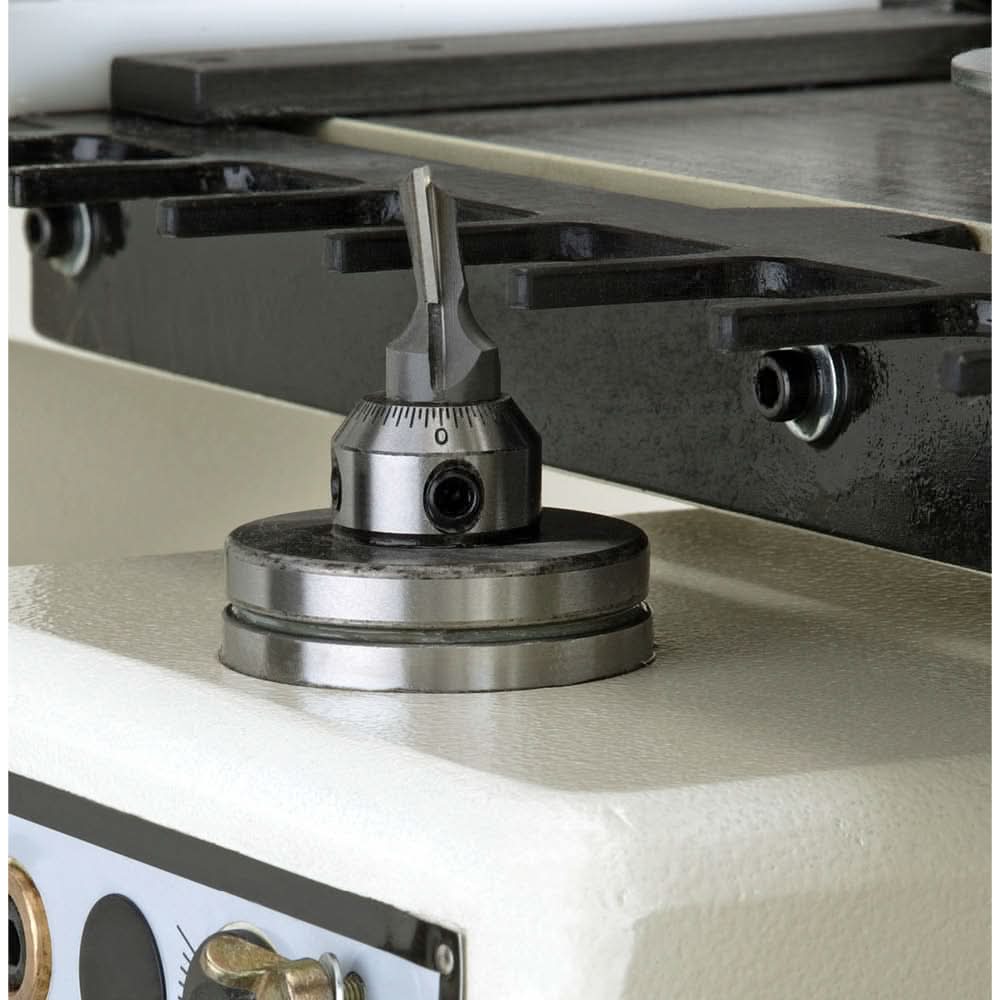

• Dovetail bit: 10 angle x 5/8" left-hand
• Dovetail templates: 1", 1-1/2", 2", 2-1/2"
• Dovetail bit shank: 1/2" (12mm)
• Max. dovetail height: 3/4"
• Min. dovetail height: 3/16"
• Max. stock thickness: 2-3/8"
• Min. stock thickness: 13/32"
• Max. stock size: 59"L x 16-1/2"W
• Min. stock size: 7-7/8"L x 2-3/8"W
• 4" dust port
• Precision-milled cast-iron table frame
• Cast aluminum carriage
• Steel stand
• Hardened-and-ground chrome steel slide ways
• Ball bearing linear guides
• Four-sided dovetail template bar
• Micro-adjustable spindle head
• Workpiece stops

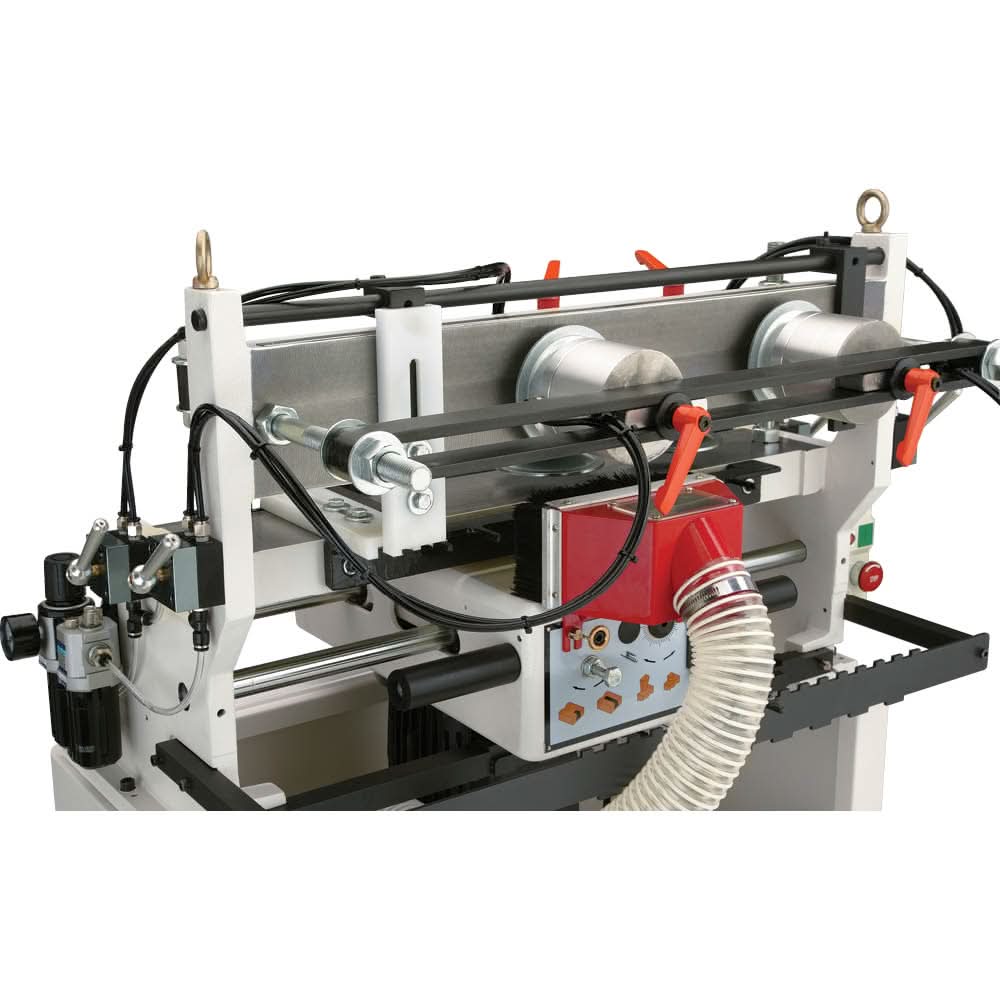

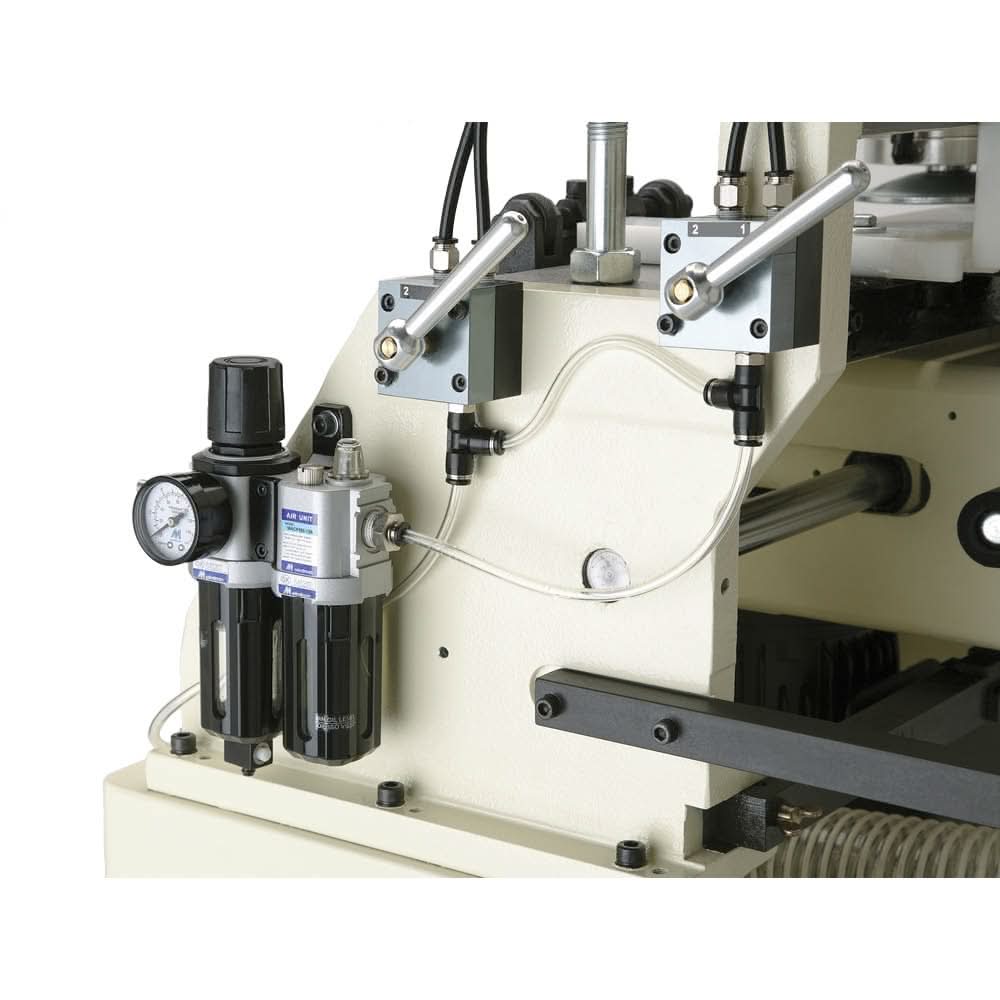

• Quick air cylinder clamp, air filter/regulator/lubricator with pressure gauge
• Spring-loaded carriage for smooth operation
• Magnetic switch with thermal overload protection
