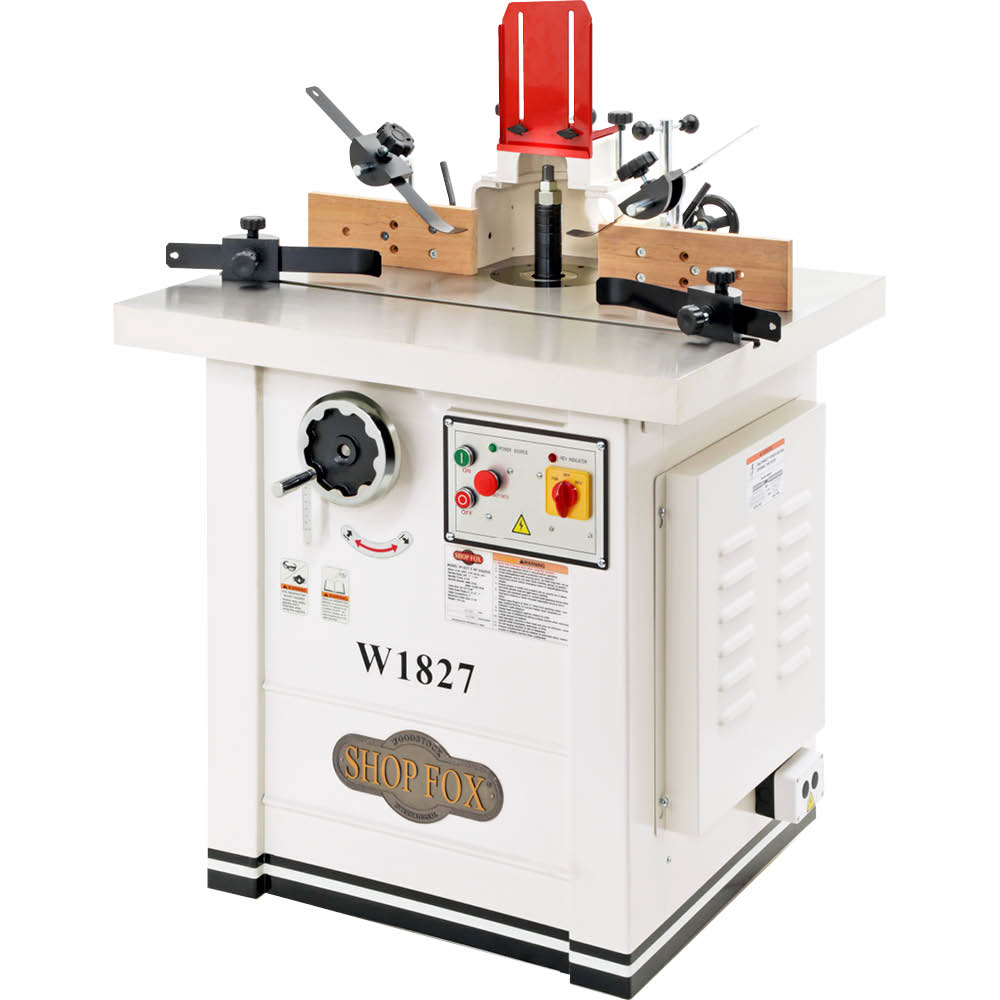

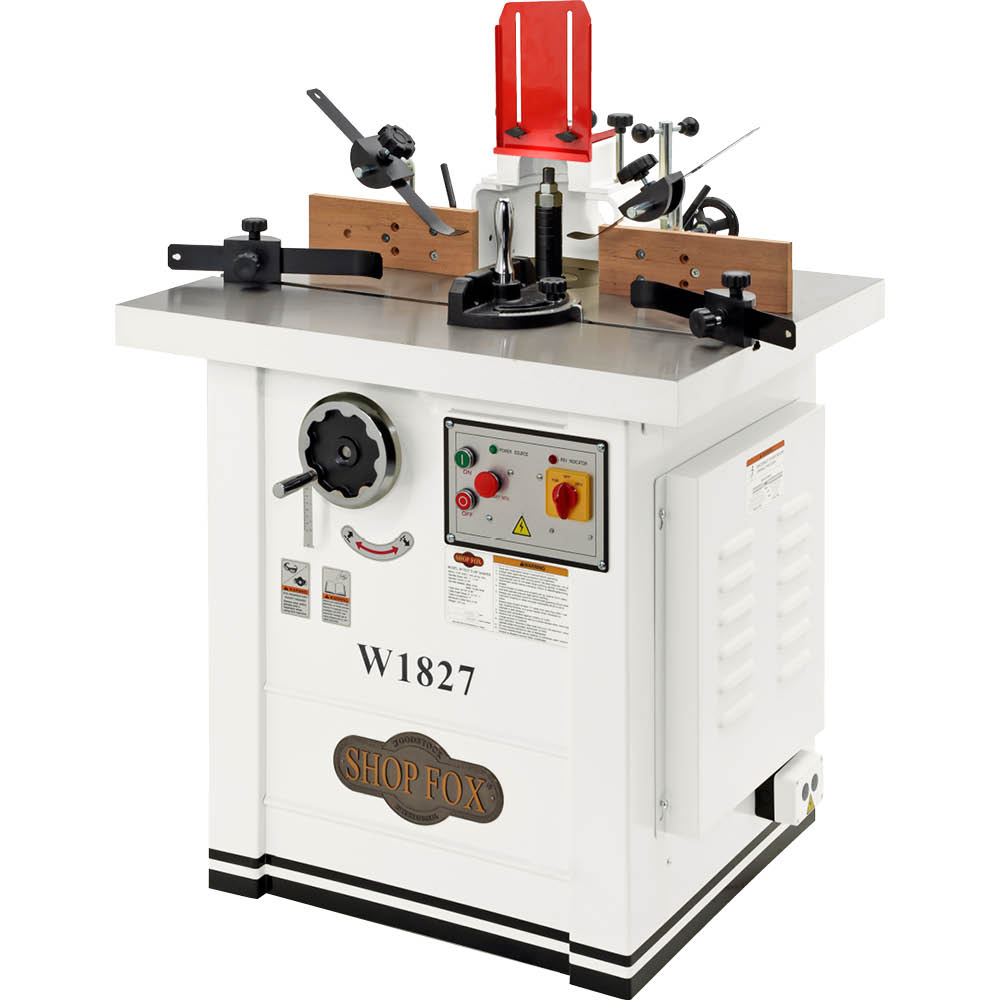

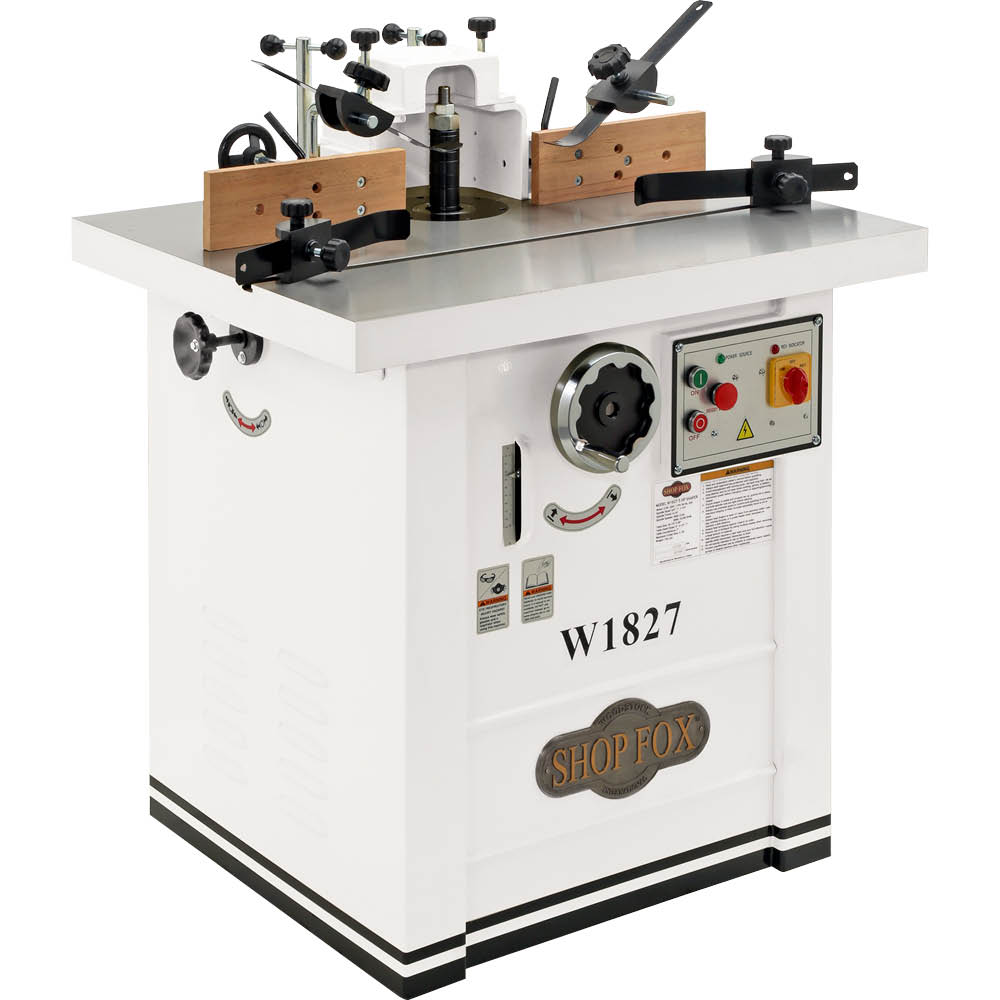

This 5 HP Spindle Shaper is sized to handle large raised-panel doors and extra-wide moulding profiles. With three included spindle sizes (3/4", 1", 11/4") and four spindle speeds ranging from 3600 RPM to 10,000 RPM, choosing the right shaper cutter for the job will never again be a problem. The long spindle lengths also allow total flexibility for running tall cutters or stacking multiple cutters and spacers. Its heavy cast-iron split adjustment fence lets you dial in just the right amount of offset for edge profiling, and the heavy cast-iron table and stable base are made for the toughest jobs. This Shaper is made for production!

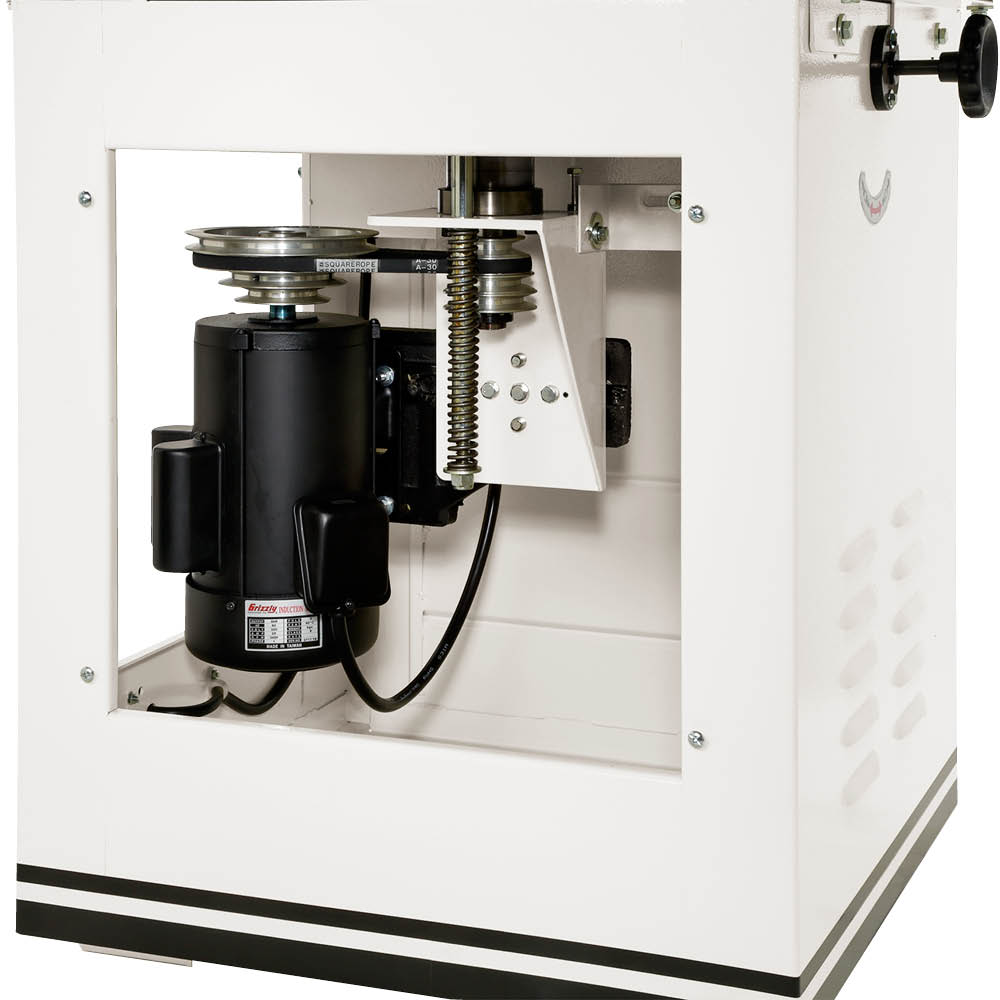

• Motor: 5 HP, 220V, single-phase, 3450 RPM, 25A
• Precision-ground cast-iron table size: 35-1/2" x 28" x 2-5/16"
• Floor-to-table height: 34-3/4"
• Spindle travel: 3-1/4"
• Spindle sizes: 3/4", 1", 1-1/4"
• Max. cutter heights (per spindle): 4-1/4", 4-5/8", 5-1/8"
• Spindle openings: 2", 3", 3-1/2", 7"
• Spindle speeds: 3600, 5100, 8000, 10,000 RPM
• Max. cutter diameter: 5-7/8"
• Table counterbore: 7"

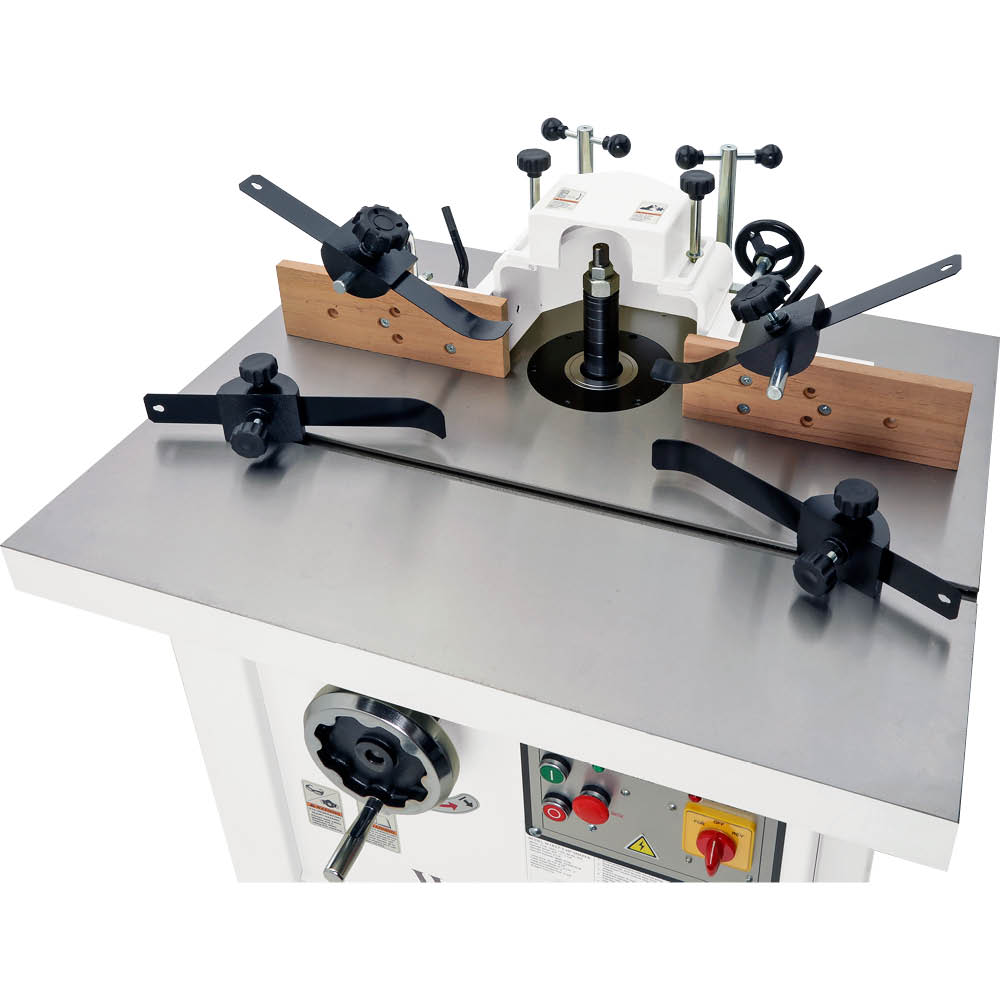

• Fence: cast-iron, independently adjustable

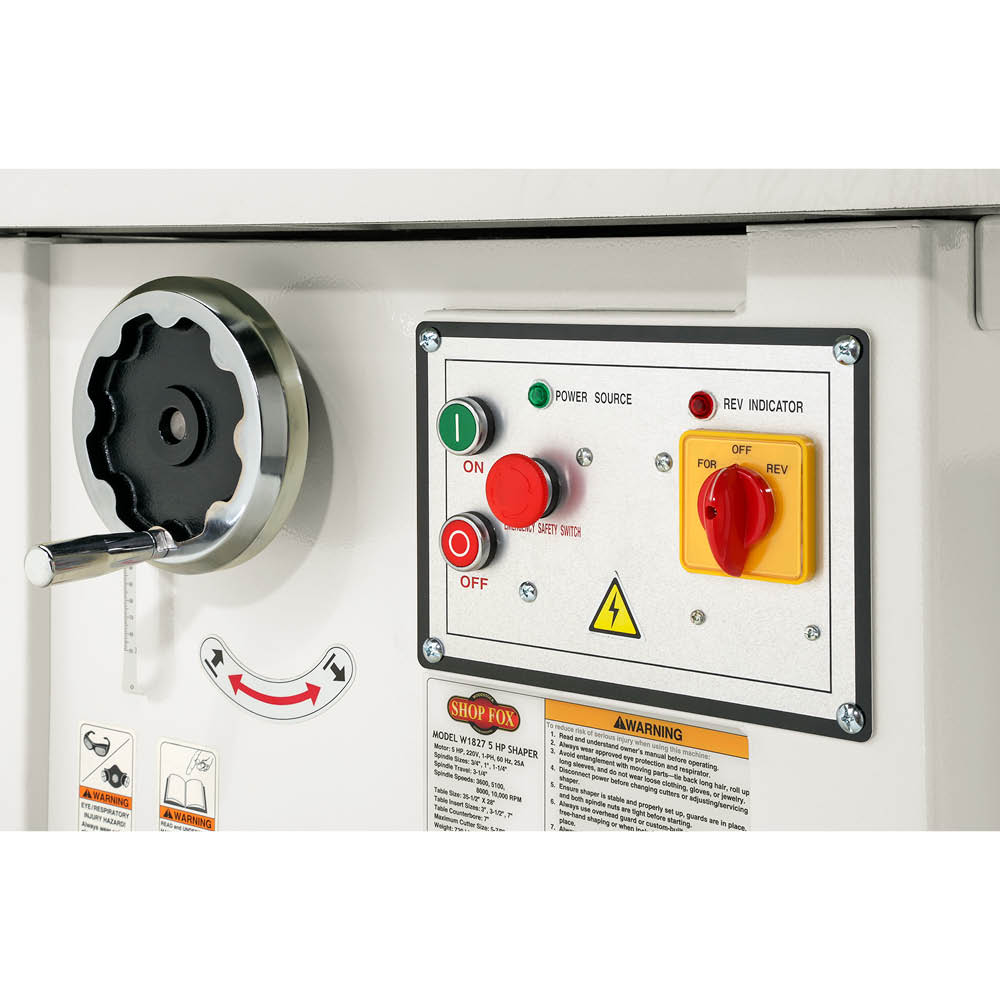

• Switch: push button controls with magnetic safety switch and thermal overload protection
• One 4" dust port
• Micro-Adjustable fence
• Spindle height scale
• Spindle spacers and nuts, hold-down assemblies and table inserts
• FWD/REV spindle rotation switch
