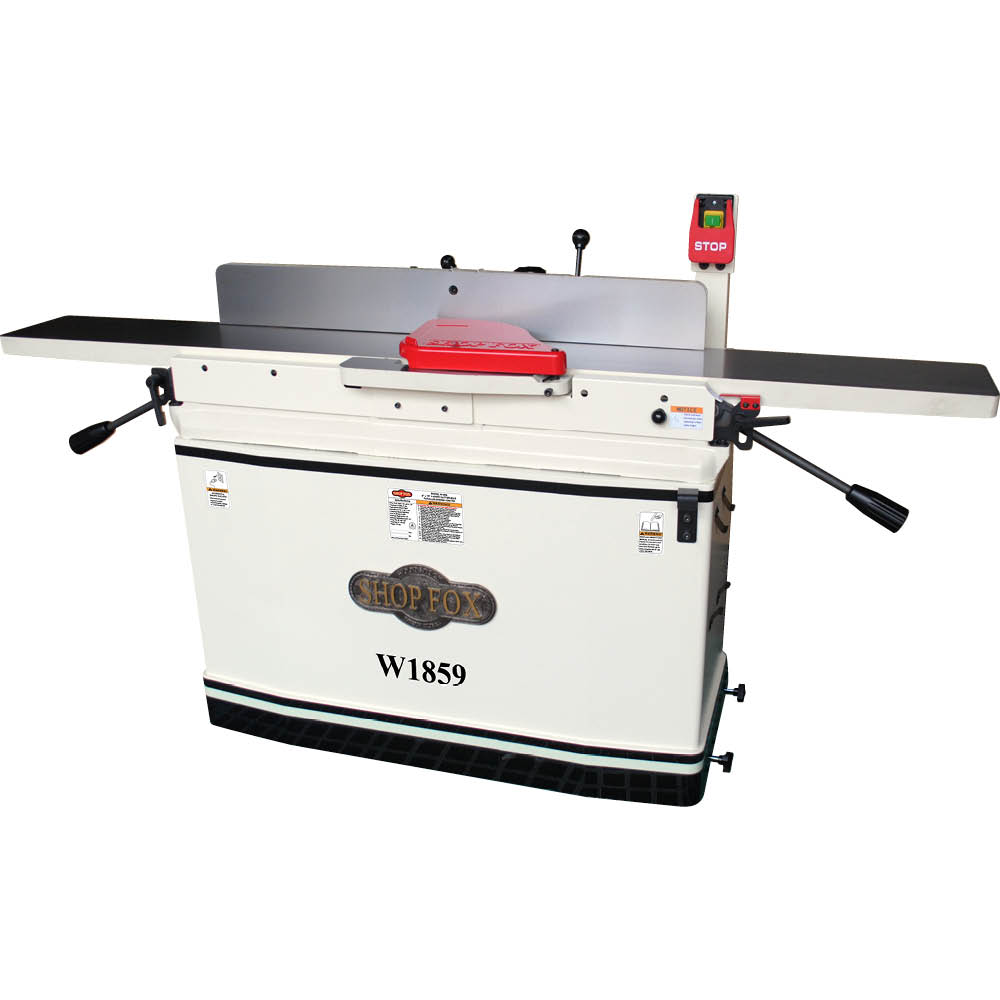

This 8" Parallelogram Jointer features extra-long infeed and outfeed tables that can be adjusted transversely and longitudinally to each other for ultra-precision face flattening and edge jointing. Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted magnetic switch is conveniently located for easy on and easy off. This version features a straight knife cutterhead.

• Motor: 3 HP, 230V, single-phase
• Total table size: 9" x 76"
• Fence size: 4-5/8" x 38"
• Maximum depth of cut: 1/8"
• Rabbeting capacity: 1/2"
• Cutterhead speed: 5500 RPM
• Cutterhead diameter: 3-1/16
• Cuts per minute: 22,000
• Cutterhead knives: 4
• Lever-adjusted table height with depth gauge
• Center-mounted fence with rack and pinion adjustment
• Built-in mobile base
• Precision-ground cast-iron tables
• Extra-long 40" infeed table
• Powder-coated finish
• 4" dust port with built-in dust chute
• Parallelogram table design
• Power transfer: Poly V-belt
• Switch: magnetic push-button switch with large off paddle for safety
• Fence system: positive stops at +/- 45 degrees and 90 degrees
• Approximate shipping weight: 470 lbs
• CSA certified
