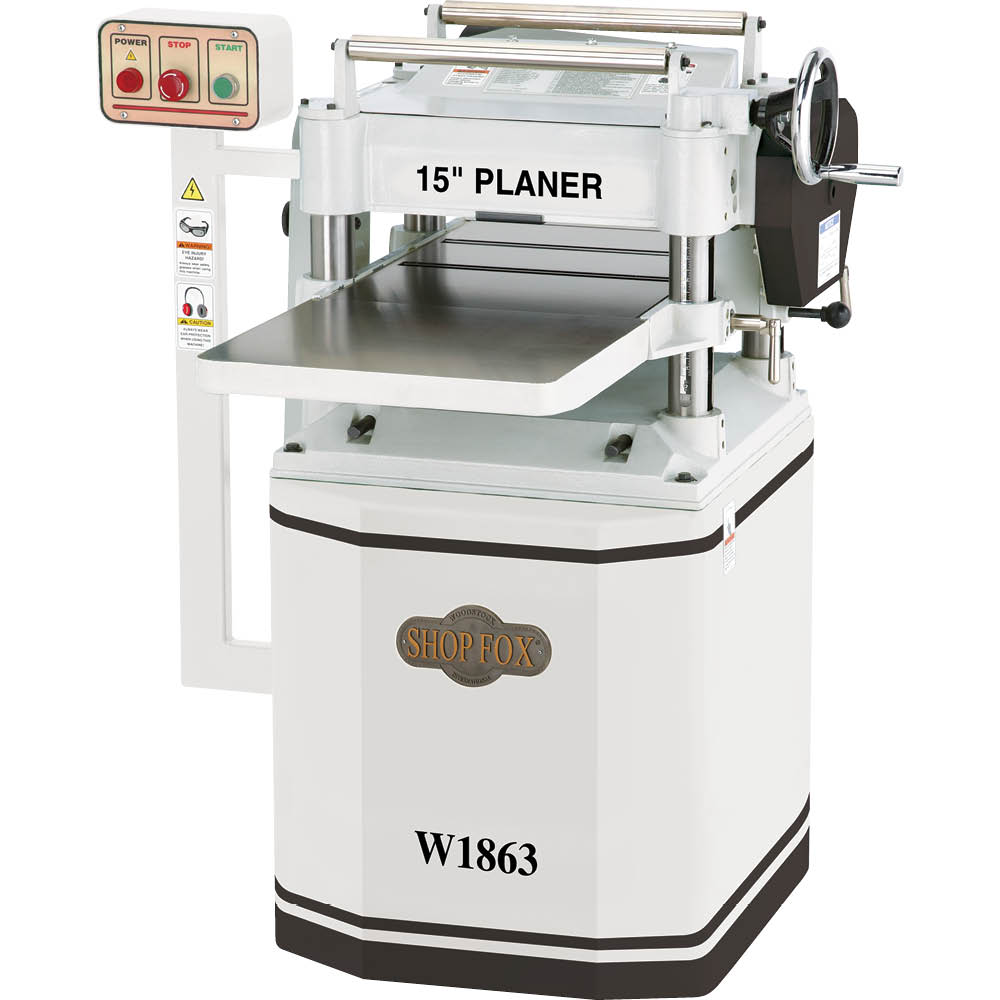

No corners were cut when putting together this feature-rich 15" planer. With its 4-flute helical cutterhead, 52 indexable four-sided carbide inserts, and two-speed gearbox, ultra-smooth surfacing is the new normal, even on figured grain. Other features include a pedestal-mounted switch, precision-ground cast-iron infeed and outfeed tables, and large board return rollers for efficient production. CSA certified.

• Helical cutterhead with triple V-belt drive
• 2-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table and extension wings
• Locking table
• Magnetic switch overload protection
• Ball bearing return rollers
• Depth scales in both inch and metric
• Pedestal-mounted control panel
• Motor: 3 HP, 240V, 15A, single-phase
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum stock thickness: 3/16"
• Minimum stock length: 6"
• Maximum depth of cut: 1/8"
• Feed rate: 16 FPM & 20 FPM
• Cutterhead diameter: 3"
• Cutterhead inserts: 52
• Cutterhead flutes: 4
• Infeed rollers: solid serrated steel
• Outfeed rollers: knurled steel
• Table size with extension wings: 15" x 48"
• Dust port: 4"
• Approximate shipping weight: 581 lbs.
• CSA certified
