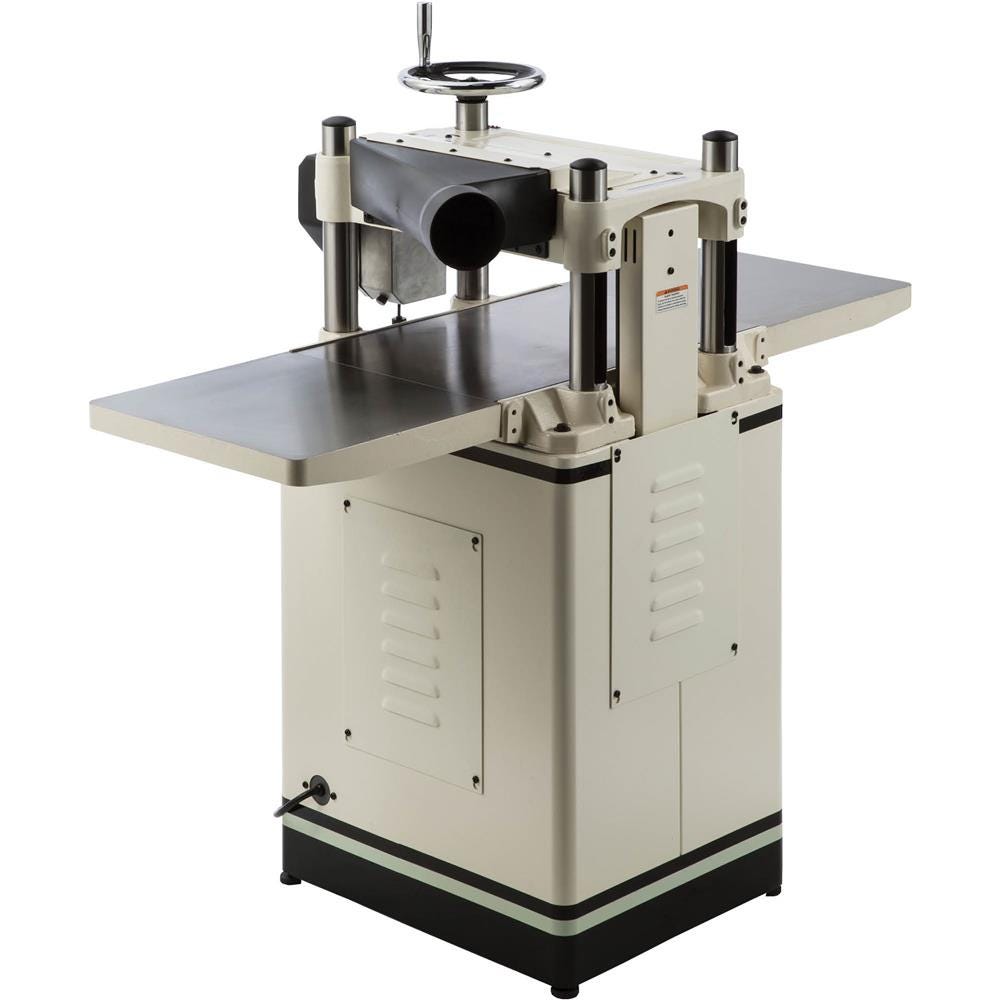

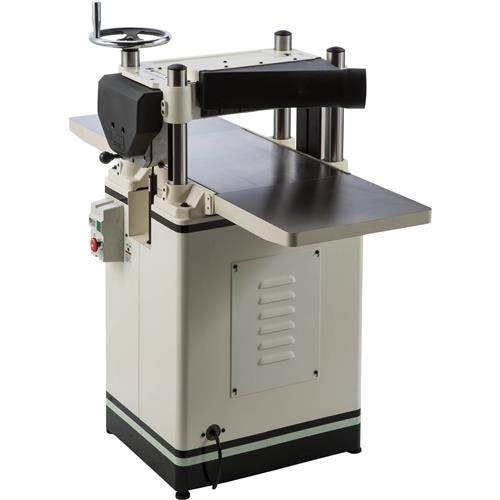

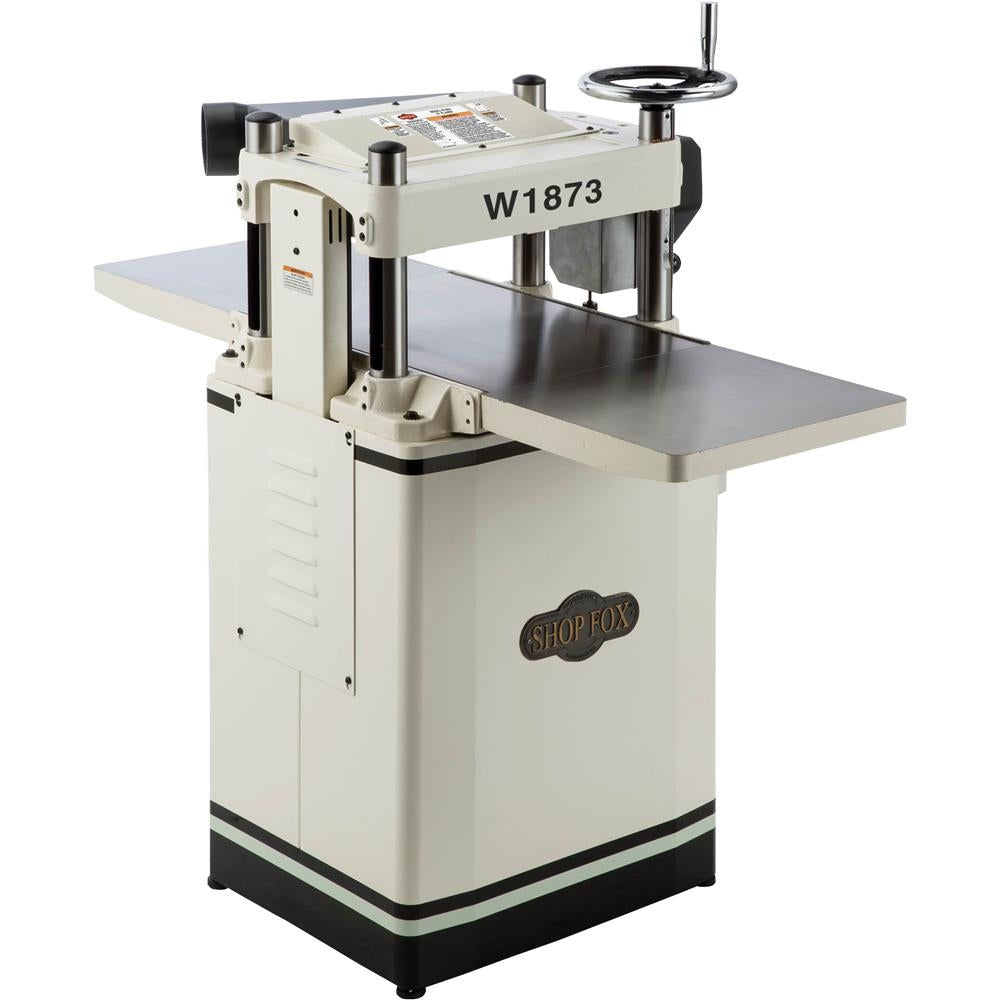

The W1873 15" Fixed Table Planer features a powerful 3 HP motor and 5200 RPM, 3-HSS knife cutterhead. What makes this planer unique is the fixed table height that is ideal for setting up with permanent infeed and outfeed roller tables allowing for greater efficiency in production settings. The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high-production feed rate. The headstock sits atop a sturdy four-column support with easy handwheel height adjustment thanks to the twin gas struts on either side.

• Motor: 3 HP, 230V, single-phase
• Table size w/cast-iron wings: 15-1/2"W x 49"L
• Maximum cutting width: 15"
• Maximum cutting height: 6"
• Minimum cutting height: 3/16"
• Maximum cutting depth: 1/8"
• Minimum length of stock: 6"
• Feed rates: 16, 28 FPM
• Cutterhead diameter: 2-5/8
• Cutterhead speed: 5200 RPM
• Overall depth: 49"
• Overall height: 47-1/2"
• Four heavy duty support columns
• Fixed table height design
• Anti-kickback fingers
• Oil bathed 2-speed gearbox
• Cast-iron extension wings
• Elevation scale with both inch and metric
• Magnetic switch
• Poly-V belt drive
• Cabinet-style stand
• Large top-mounted handwheel
• Approximate shipping weight: 300 lbs
