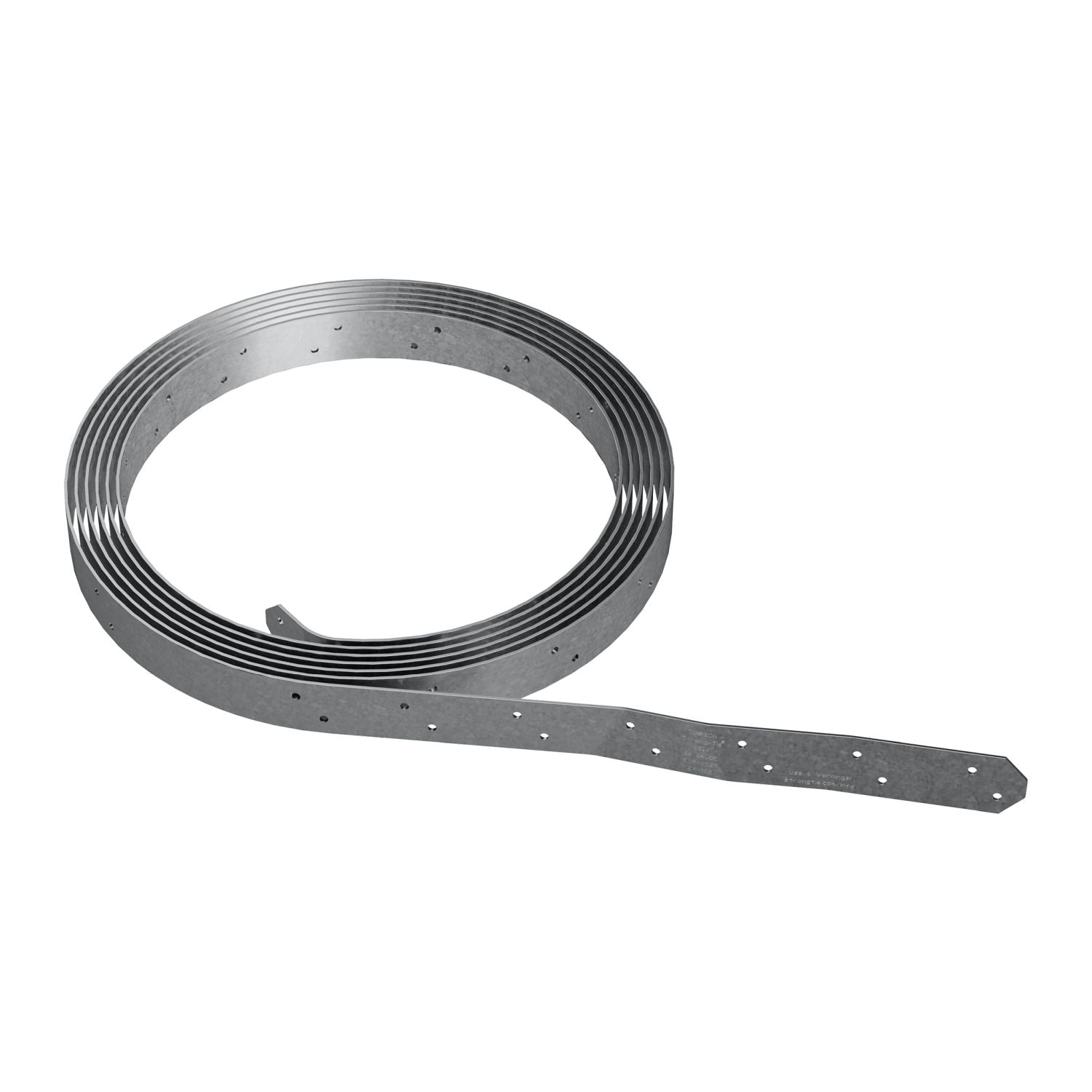

Simpson Strong-Tie 100-ft.14-Gauge Galvanized Coiled Strap (CS14)
Simpson Strong-Tie 100-ft.14-Gauge Galvanized Coiled Strap (CS14)
Out of Stock - Available to Order - Usually ships in 5-7 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie CS14 Coiled Strap is a continuous utility strap for wood framing and reinforcement work. This is a coiled strap designed for resisting tension and uplift loads. Model Number CS14. If you are tying framing members together for roof uplift resistance, shear wall overturning resistance, or general wood-to-wood reinforcement, this strap gives you a long roll you can cut on site instead of working around fixed strap lengths.
The CS14 uses 14-gauge steel, which puts it on the heavier side of the CS strap family. In practical terms, that means more material where it counts when the connection needs to handle higher forces. The strap is 1-1/4 in. wide, sized to fit nominal 2x lumber, so it works cleanly in common framing layouts without forcing awkward placement. The 100 ft length is a real advantage for crews doing repetitive bracing, tie-down work, or custom cut lengths across multiple openings and connection points.
One of the biggest reasons contractors use a coiled strap like this is jobsite flexibility. Pre-cut straps are fine when every condition is predictable. Real jobs are not always like that. The CS14 can be cut to match the span and end-length requirements of the specific connection, which helps reduce waste and keeps the installer from making a near-fit piece work where it should not. Simpson Strong-Tie also positions this strap as a cost-effective alternative to pre-cut straps for that reason.
The material is steel with a Zinc Galvanized G90 finish. That finish adds corrosion resistance for typical framing applications, and it is one of the details that matters in storage, handling, and installed life. This is not just a strip of raw steel in a box. It is built as a connector product for structural applications where fastener pattern, edge distance, and code requirements matter. The prepunched hole pattern also helps speed layout and fastening compared to drilling or improvising on site.
For installation, the available product data notes that you should use all specified fasteners and follow applicable code requirements for minimum edge and end distance. Lowe's also lists installation with 8d or 10d common nails. Simpson Strong-Tie load guidance for this product family makes clear that the number of fasteners used affects allowable load, and that equal fastener placement at each end matters in floor-to-floor and similar applications. In other words, this strap is straightforward to use, but it still needs to be installed like a structural connector, not treated like generic flat stock.
On the job, this strap is commonly used where you need continuous load transfer through framing members. The manufacturer specifically calls out roof uplift and shear wall overturning resistance. That makes it a practical fit for framing crews, remodelers reinforcing existing structures, and builders working in areas where wind load performance is a real concern. It can also be used in single 2x stud or post applications, which gives it more versatility than a connection product that only works in one narrow assembly type.
If you are the type of buyer who wants one box to cover a lot of field conditions, the CS14 makes sense. It is especially useful for contractors who do not want to guess wrong on strap length before the truck leaves the shop. If your work regularly involves wood-to-wood fastening, structural reinforcement, or custom tie layouts, this is the kind of connector stock that earns its shelf space fast.
Cut What the Job Calls For
The big advantage here is simple: you are not locked into one strap length. A continuous coil lets you cut to suit the actual framing condition, which is a lot more useful on site than trying to make a standard piece fit a nonstandard connection.
- 100 ft coiled strap for multiple cuts from one roll
- 1-1/4 in. width sized to fit nominal 2x lumber
Made for Uplift and Overturning Resistance
This is not light-duty mending hardware. The CS strap line is intended for structural load paths where tension resistance matters, especially in assemblies dealing with uplift or overturning forces.
- Designed to resist tension and uplift loads
- Common uses include roof uplift and shear wall overturning resistance
Fastener Layout Matters
With straps like this, the steel is only part of the story. Load depends on using the right fastener count, maintaining end distance, and keeping the connection balanced at both ends.
- Use all specified fasteners per applicable code and manufacturer guidance
- Equal number of specified fasteners in each end is part of proper installation practice
Works Cleanly in Common Framing Layouts
The 1-1/4 in. profile is sized around nominal 2x framing, so it fits the kind of lumber most crews are already working with. That helps when you need reinforcement without overcomplicating the layout.
- Sized to fit nominal 2x lumber
- Used for wood-to-wood fastening applications
Key Specifications
| Material | Steel |
|---|---|
| Gauge | 14 ga. |
| Width | 1-1/4 in. |
| Length | 100 ft. |
| Finish | Zinc Galvanized, G90 |
| Application | Fastening Wood-to-Wood |
| Fits Lumber Size | Nominal 2x |
| Package Quantity | 1 |
Built For
Pro Tip
Before you cut the CS14, lay out your clear span and both end lengths first. On strap jobs, the cut is easy to fix only once, but missing the required fastener area at either end means starting over with a fresh piece.
Tool Nut's Take
Simpson Strong-Tie CS14 Coiled Strap is the right call when fixed-length straps are slowing you down
This is a practical framing connector for crews who want heavier-gauge material and the freedom to cut exact lengths on site.
- Who it's for: Framers, builders, and remodelers doing wood-to-wood reinforcement, uplift tie work, and shear wall related connections.
- Why it stands out: You get 14-gauge steel, a 100 ft roll, and a width sized for nominal 2x lumber, so one carton can cover a lot of field conditions.
- Worth knowing: This is only as good as the installation. Fastener count, end distance, and code-driven layout are part of the system, so treat it like a structural connector, not generic strap stock.
Common Questions
- What is the CS14 used for? It is a continuous utility strap used to resist tension and uplift loads, including applications related to roof uplift and shear wall overturning resistance.
- Can this strap be cut on site? Yes. The CS14 is a coiled strap designed to be cut to length on the job site.
- What size lumber does it fit? The product data states it is sized to fit nominal 2x lumber.
- What finish does it use? The CS14 uses a Zinc Galvanized G90 finish.
