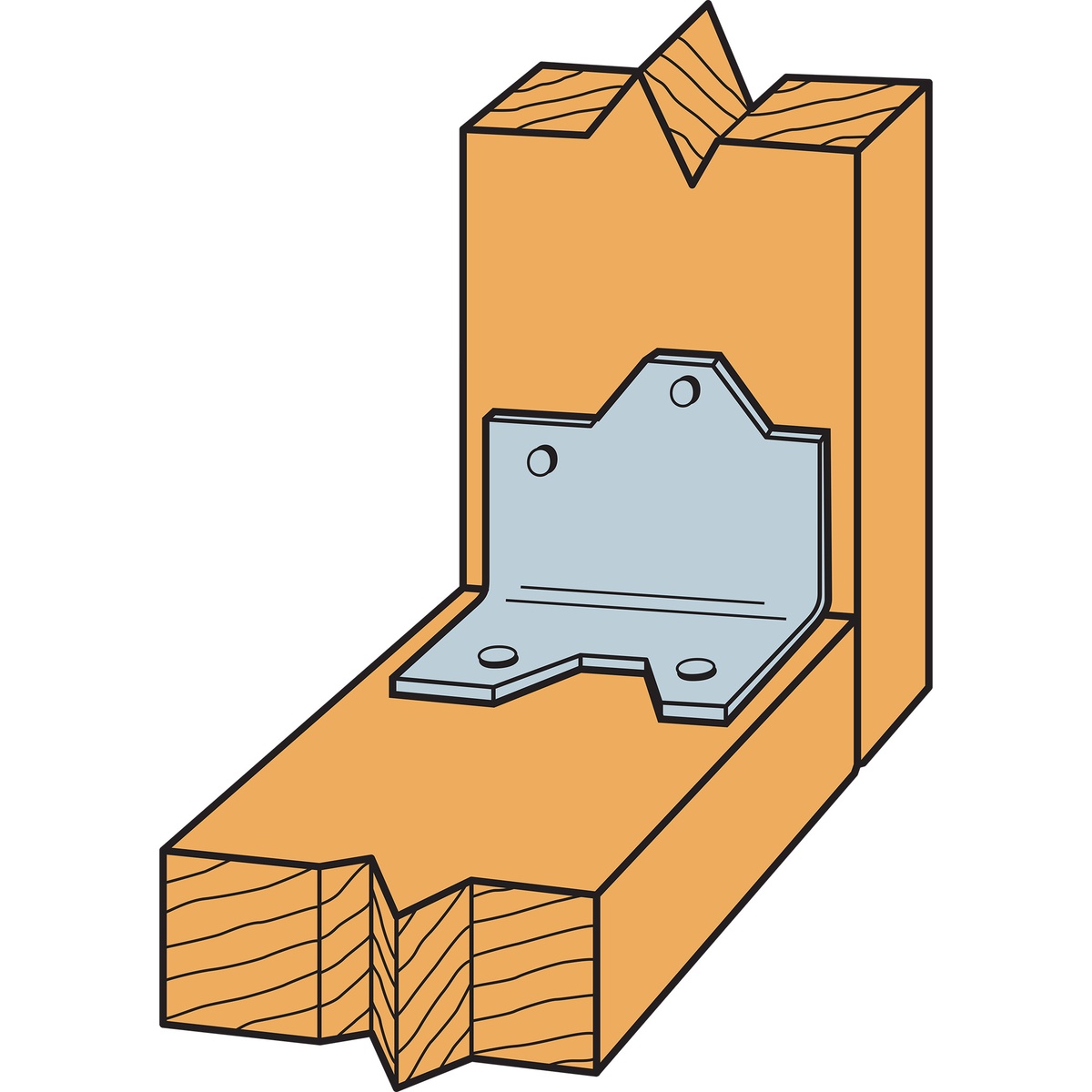

The Simpson Strong-Tie L50Z Reinforcing L Angle is a 5 inch structural angle connector built for fastening wood-to-wood connections. This is a reinforcing angle designed for strengthening intersecting wood members in framing and general construction. Model Number: L50Z. If you need a compact connector that gives you defined fastener locations and published load values, this is the kind of hardware you reach for instead of improvising a clip from scrap metal.

What separates this angle from generic brackets is that it is load rated and built around known fastening locations. Simpson Strong-Tie calls out this L angle as a general utility-reinforcing connector, and the tabulated load values account for connection eccentricities. In plain terms, that means the connector is engineered for how these joints actually get loaded in the real world, not just for holding two pieces of wood together on paper.

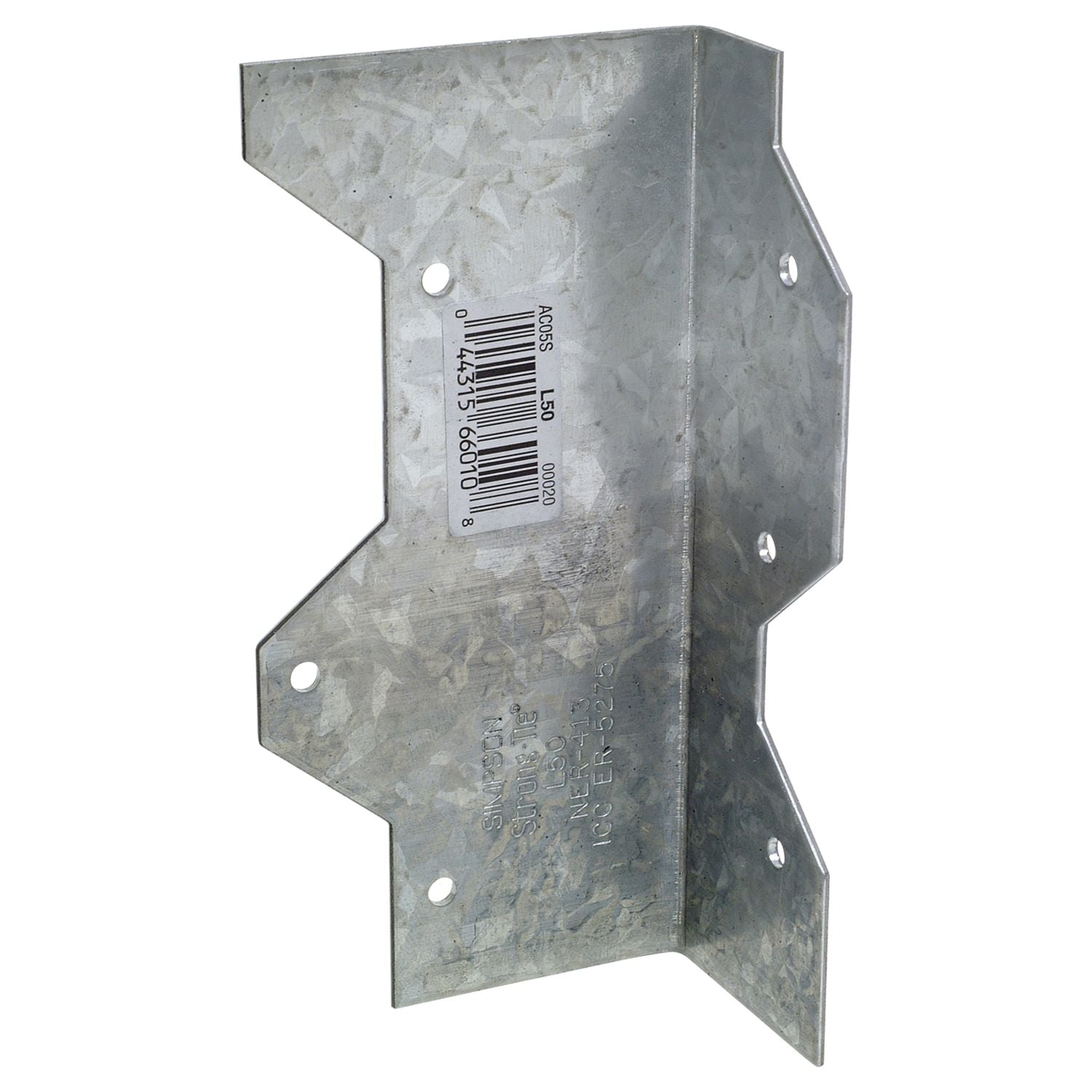

The 5 inch length gives the Simpson Strong-Tie L50Z Reinforcing L Angle more reach than the smaller versions in the same series, which helps spread the connection across more material. It is made from 54 mil, 16 gauge steel, so it has the stiffness needed for reinforcement work without becoming bulky or awkward to place in tight framing layouts. Lowe's also lists six holes, which lines up with the practical goal here: enough fastening points to build a solid connection while keeping installation straightforward.

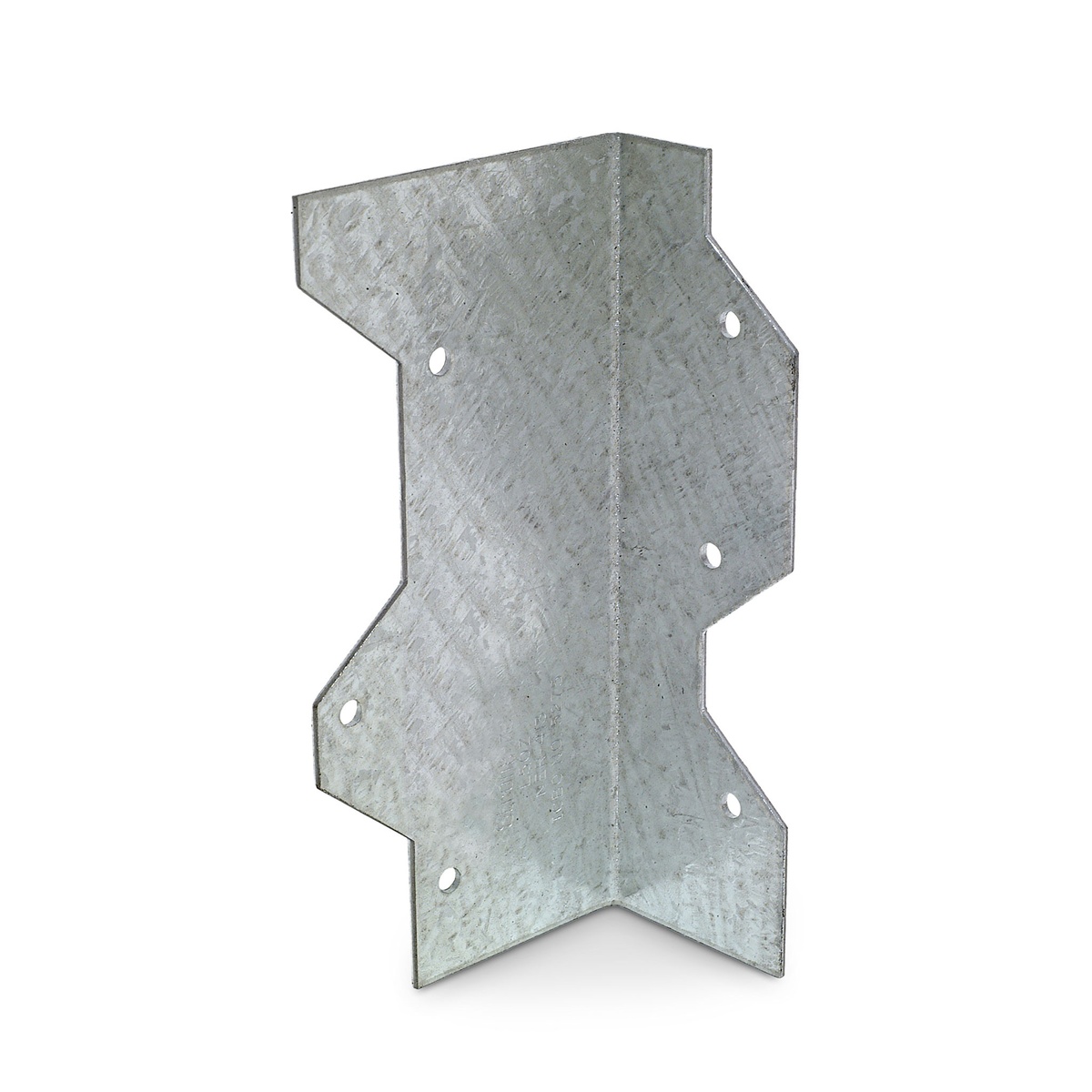

One of the smarter details is the staggered nail pattern. That layout reduces the possibility of splitting, which is a real advantage when you are fastening close to the edge of framing lumber. Instead of concentrating fasteners in a straight line, the pattern spreads them out so the wood is less likely to crack during installation. That saves time and helps preserve the strength of the joint you are trying to reinforce in the first place.

The finish is another reason to pay attention to the exact model. The L50Z uses a ZMAX coating, and supplementary retailer data identifies it as a heavier galvanized finish intended for added corrosion resistance. For exterior work, deck framing, or treated-wood applications, that is a practical upgrade over a standard indoor-use connector. If the job calls for a connector that may see moisture or more aggressive conditions, the finish is not a minor detail.

Installation flexibility is good here as well. Simpson Strong-Tie indicates the L angle can be installed using the specified fasteners, and Lowe's lists 10d common nails or #9 x 1-1/2 inch Strong-Drive SD screws for this model. That gives you options depending on access, speed, and the rest of the hardware package on the job. Simpson also notes that the wider leg should be nailed into the joist so the connector can carry table loads correctly and be fastened the way it was intended.

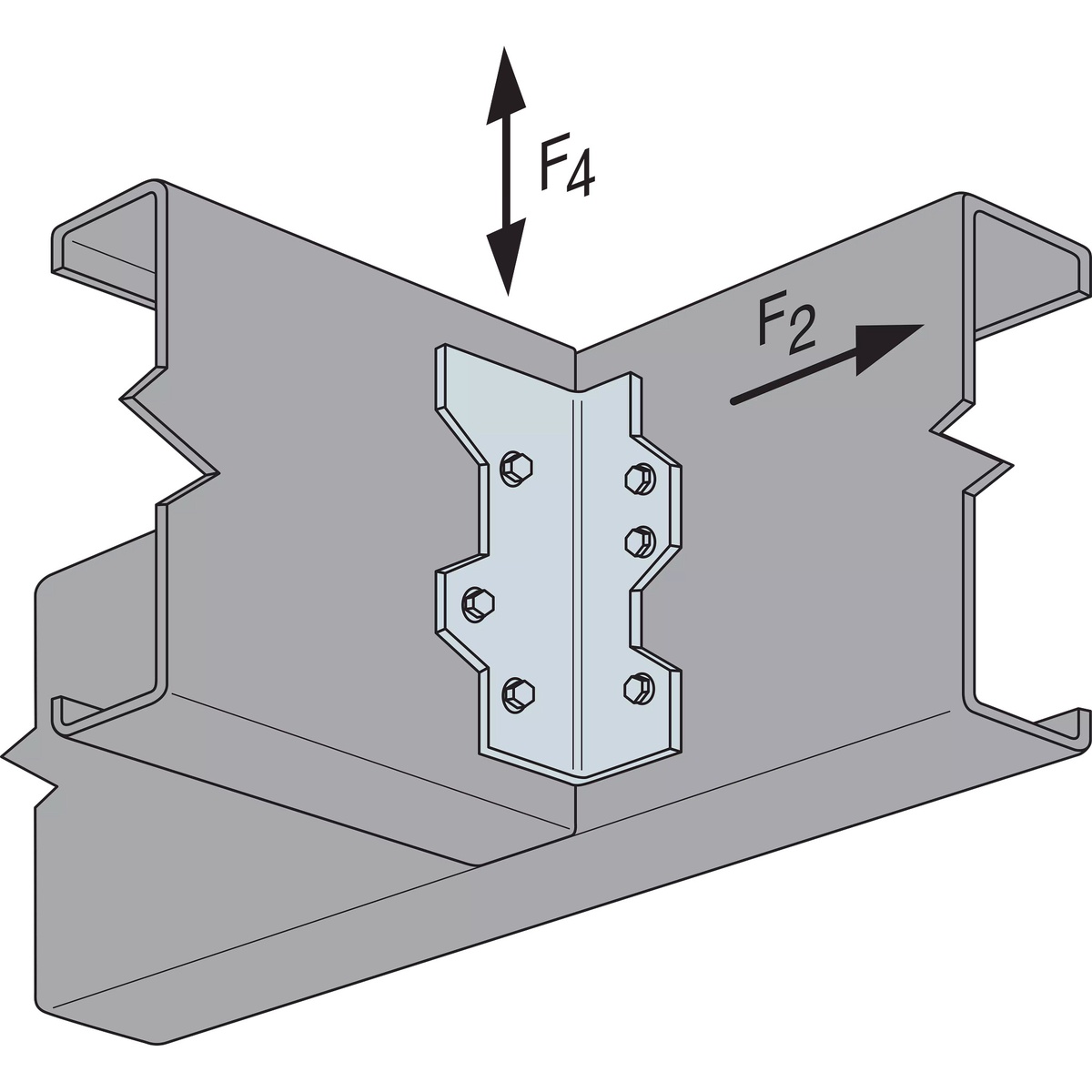

As far as use case goes, this connector makes sense for carpenters, deck builders, remodelers, and general contractors who need a compact reinforcing angle for framing corrections, tie-ins, blocking, and utility reinforcement. It is also load rated for wood and cold-formed steel applications at the series level, but the clearly stated application for this specific listing is fastening wood-to-wood. If your goal is a simple, proven way to reinforce a corner or member intersection without fabricating your own bracket, this is the right type of part.

Simpson Strong-Tie L50Z Reinforcing L Angle is the right fix when you want a real connector, not a guess

This is a simple part, but it earns its spot because it gives you a compact, load-rated reinforcement option with a better finish for tougher wood framing jobs.

• Who it's for: Carpenters, deck builders, remodelers, and contractors reinforcing wood-to-wood joints.
• Why it stands out: The staggered hole pattern, defined fastener locations, 16 gauge steel, and ZMAX finish make it a smarter choice than a generic angle or field-made bracket.
• Worth knowing: It is only as good as the install, so use the specified fasteners and follow the intended orientation. That is where engineered hardware pays off.

• What is the Simpson Strong-Tie L50Z Reinforcing L Angle used for? It is used for fastening and reinforcing wood-to-wood connections in framing and general construction.
• What size is this angle? This model is 5 inches long, 1.43 inches wide, and 2.43 inches high.
• What is it made from? It is made from 16 gauge steel with a ZMAX galvanized finish.
• What fasteners are listed for installation? Supplementary retailer data lists 10d common nails or #9 x 1-1/2 inch Strong-Drive SD screws.
