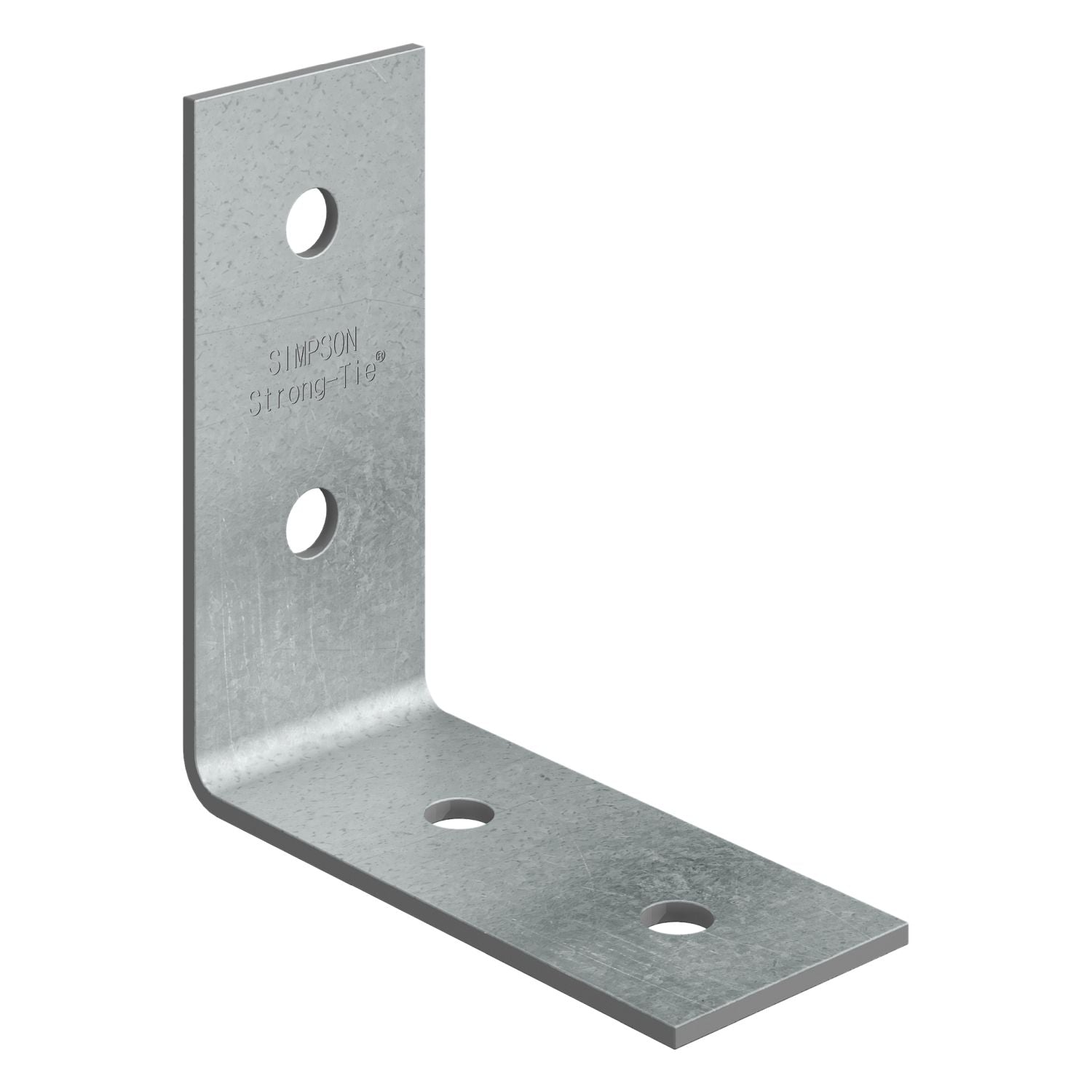

Simpson Strong-Tie HL53HDG Heavy Angle is a heavy L-shaped framing angle built to reinforce wood-to-wood connections at a 90 degree corner. This is a heavy angle designed for reinforcing right-angle wood connections where uplift resistance, lateral resistance, and overall corner stability matter. Model Number: HL53HDG. If you are tying framing members together and want a connector that is more substantial than a light angle bracket, this is the kind of hardware you use.

The big story here is strength through simple design. The HL series is made to help reinforce wood members in right-angle connections, and Simpson specifically calls out resistance to uplift and lateral forces. In practical terms, that means the connector is doing more than just holding pieces in place during assembly. It is there to help the connection stay put when loads try to pull it apart or rack it sideways.

For this specific model, the HL53HDG uses 7 gauge steel with equal leg dimensions of 5-3/4 inches by 5-3/4 inches and a leg length of 2-1/2 inches. That size gives you a compact but still heavy-duty framing angle that fits applications where you need a stronger connector without moving up to a much larger part. The two-hole-per-leg layout keeps installation straightforward and works with bolt-based fastening.

The hot-dip galvanized finish is a real advantage on this version. Simpson offers HL angles in multiple finishes across the line, and the HDG models are the better pick when corrosion protection matters more. Supplementary data also identifies this model as suitable for treated lumber, which is exactly where many builders want the extra protection. If the connection is going into pressure-treated material or a more exposed environment, the HDG coating is the safer choice over a basic zinc finish.

Installation is bolt based. Simpson specifies installing HL angles with bolts, and notes that lag screws of equal diameter with a minimum length of 5 inches may be substituted for bolts in the beam with no reduction in load. Toolup lists this HL53HDG with (4) 1/2 inch machine bolts required, which matches the visible four-hole layout used on this size. As always with structural connectors, the right fastener in the right hole pattern is what gets you the published performance.

One of the more useful details in Simpson's engineering notes is that lateral loads in both directions are achieved when connectors are installed in pairs. That matters for builders laying out bracing and reinforcement details because it tells you this part can do more when used as a mirrored set rather than as a single angle on one side only. If your application calls for resistance from both directions, plan the connection accordingly instead of assuming one bracket does everything.

As a category, this is not a decorative bracket or a basic shelf angle. It is structural connector hardware for framing and reinforcement work. The product sits in Simpson Strong-Tie's wood construction connector lineup and is intended for jobs where reliability, known dimensions, and published load guidance matter. That makes it a better fit for contractors, framers, remodelers, and serious builders than for someone looking for generic hardware store angle stock.

If you are the buyer, the short version is simple: choose the Simpson Strong-Tie HL53HDG Heavy Angle when you need a compact heavy angle for wood framing connections, want hot-dip galvanized corrosion protection, and need a connector designed specifically for structural right-angle reinforcement. It is especially well suited to framing repairs, reinforced corner connections, treated lumber builds, and other applications where a light-duty angle would be the wrong call.

Simpson Strong-Tie HL53HDG Heavy Angle Gets Straight To The Point

This is the kind of connector you buy when a basic angle bracket is not enough and you want a real framing-grade part with better corrosion protection.

• Who it's for: Framers, builders, remodelers, and anyone reinforcing structural wood-to-wood 90 degree connections.
• Why it stands out: 7 gauge construction, hot-dip galvanized finish, and a design specifically meant to resist uplift and lateral forces.
• Worth knowing: This is a single heavy angle, not a hardware kit. You need the correct bolts or approved lag screw substitution to get the published performance.

• What is the Simpson Strong-Tie HL53HDG Heavy Angle used for? It is used to reinforce wood-to-wood connections where two members meet at a 90 degree angle.
• Is this connector suitable for treated lumber? Yes. Supplementary product data lists the HL53HDG as suitable for treated lumber, and the hot-dip galvanized finish provides added corrosion protection.
• How is it installed? Simpson specifies installation with bolts. Simpson also states that lag screws of equal diameter and at least 5 inches long may be substituted for bolts in the beam with no reduction in load.
• How many fasteners does this model require? Toolup lists the HL53HDG as requiring (4) 1/2 inch machine bolts.
• Can one angle handle lateral loads in both directions? Simpson notes that lateral loads in both directions are achieved when HL angles are installed in pairs.
