Simpson Strong-Tie ACBH3X15.37-R1 ACBH 3-in. x 15-3/8-in. Joist-to-Beam Concealed Hanger
Simpson Strong-Tie ACBH3X15.37-R1 ACBH 3-in. x 15-3/8-in. Joist-to-Beam Concealed Hanger
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs
- Beam length tolerance of +/- 1/16 in. on each end enables easier installation
- Width: 3 in.
- Height: 15-3/8 in.

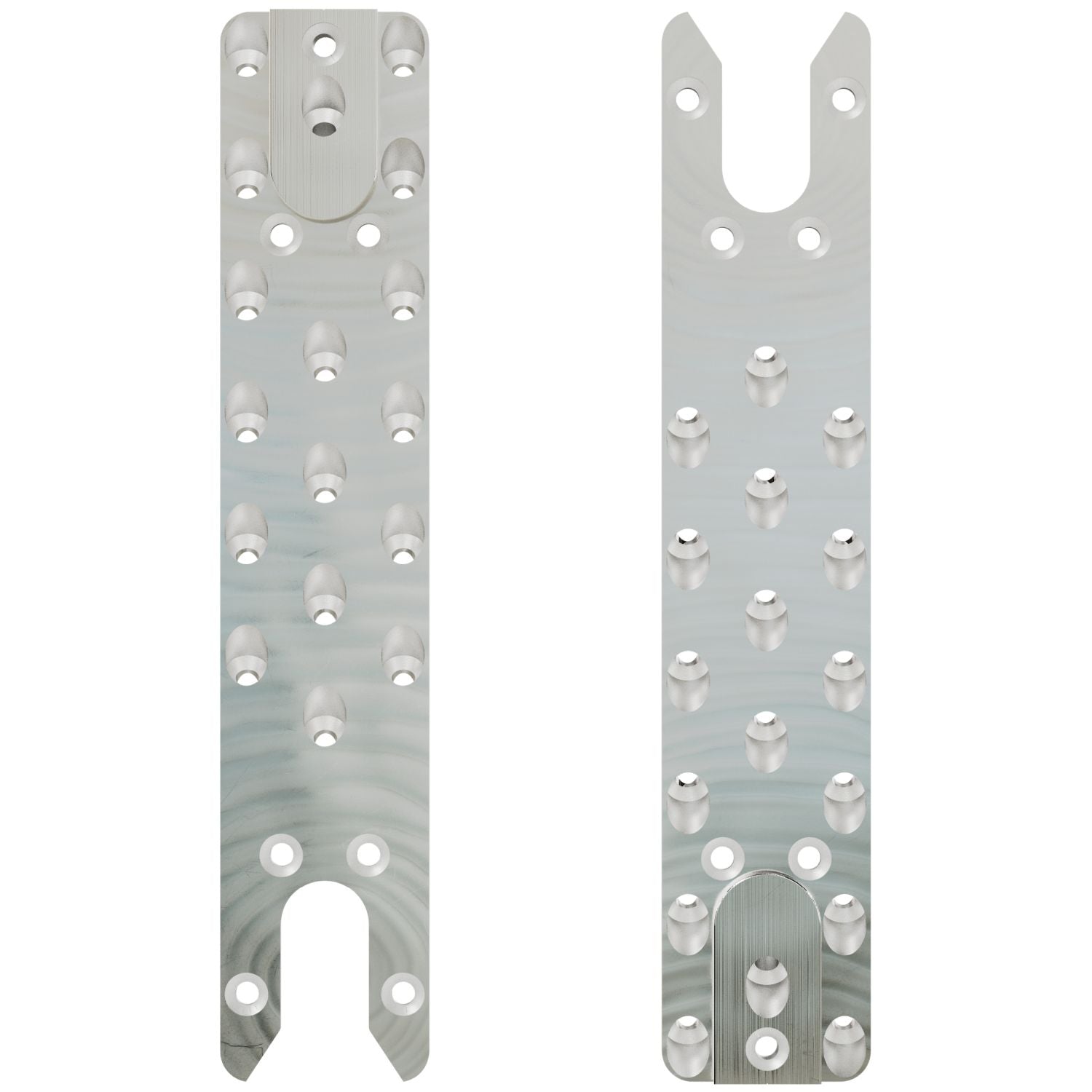

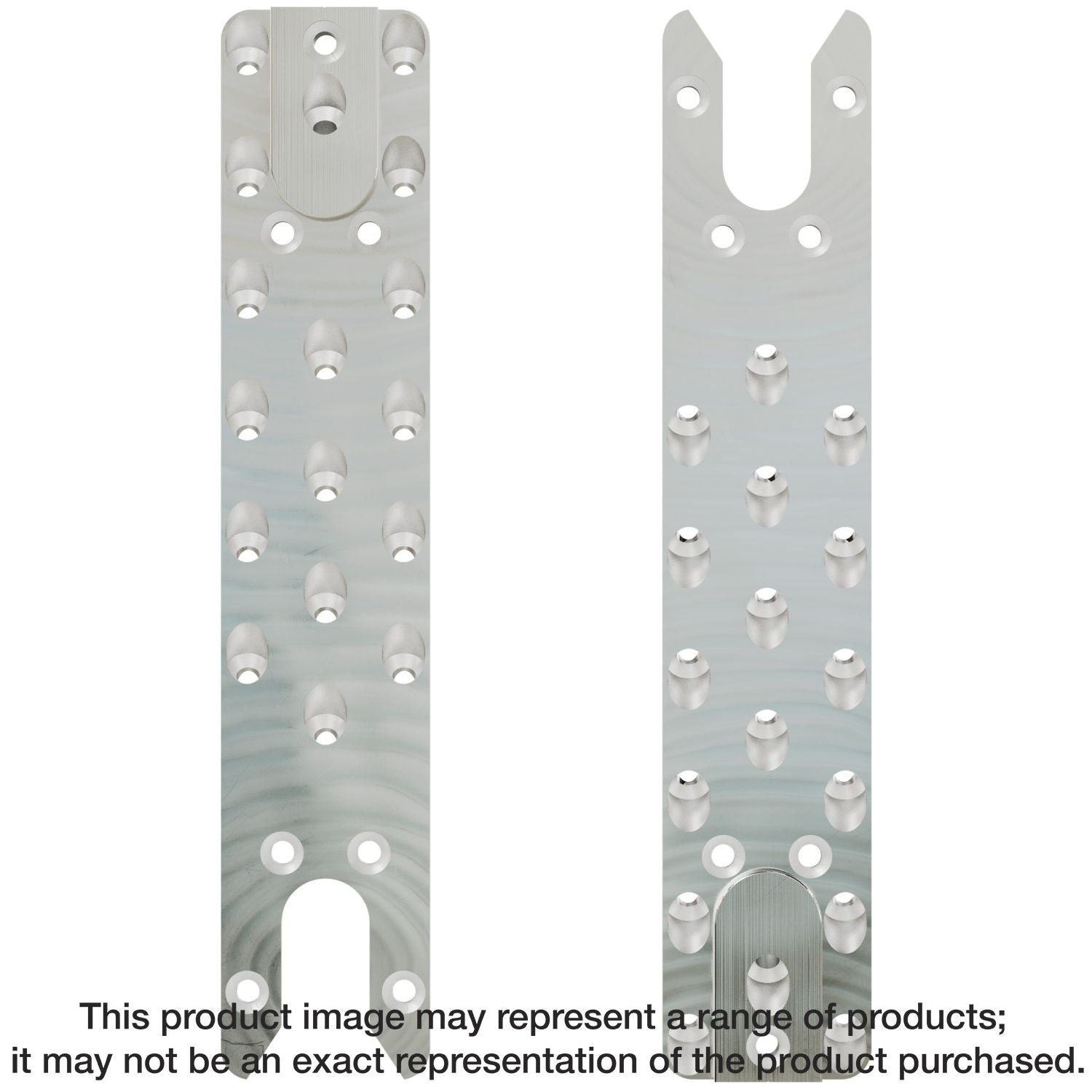

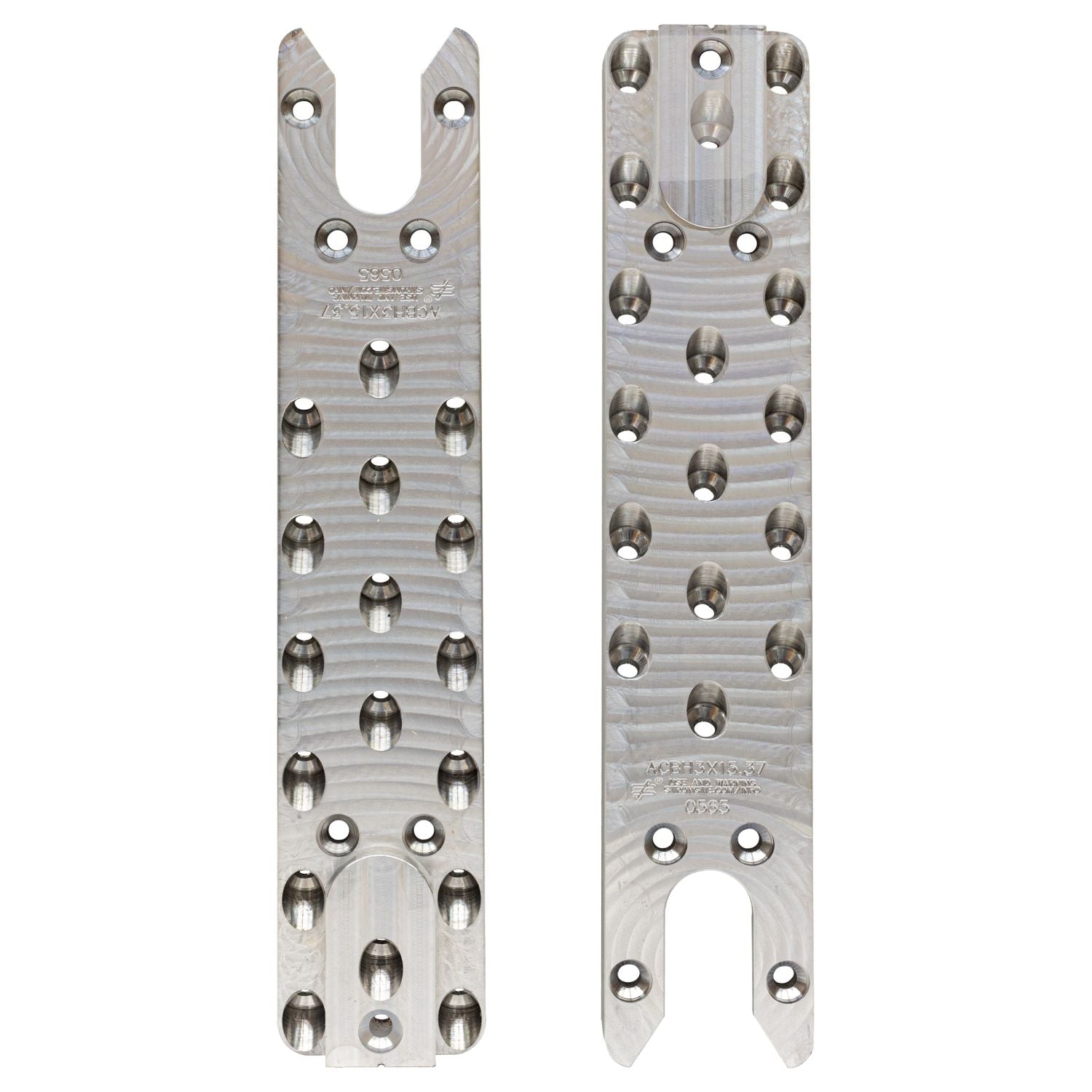

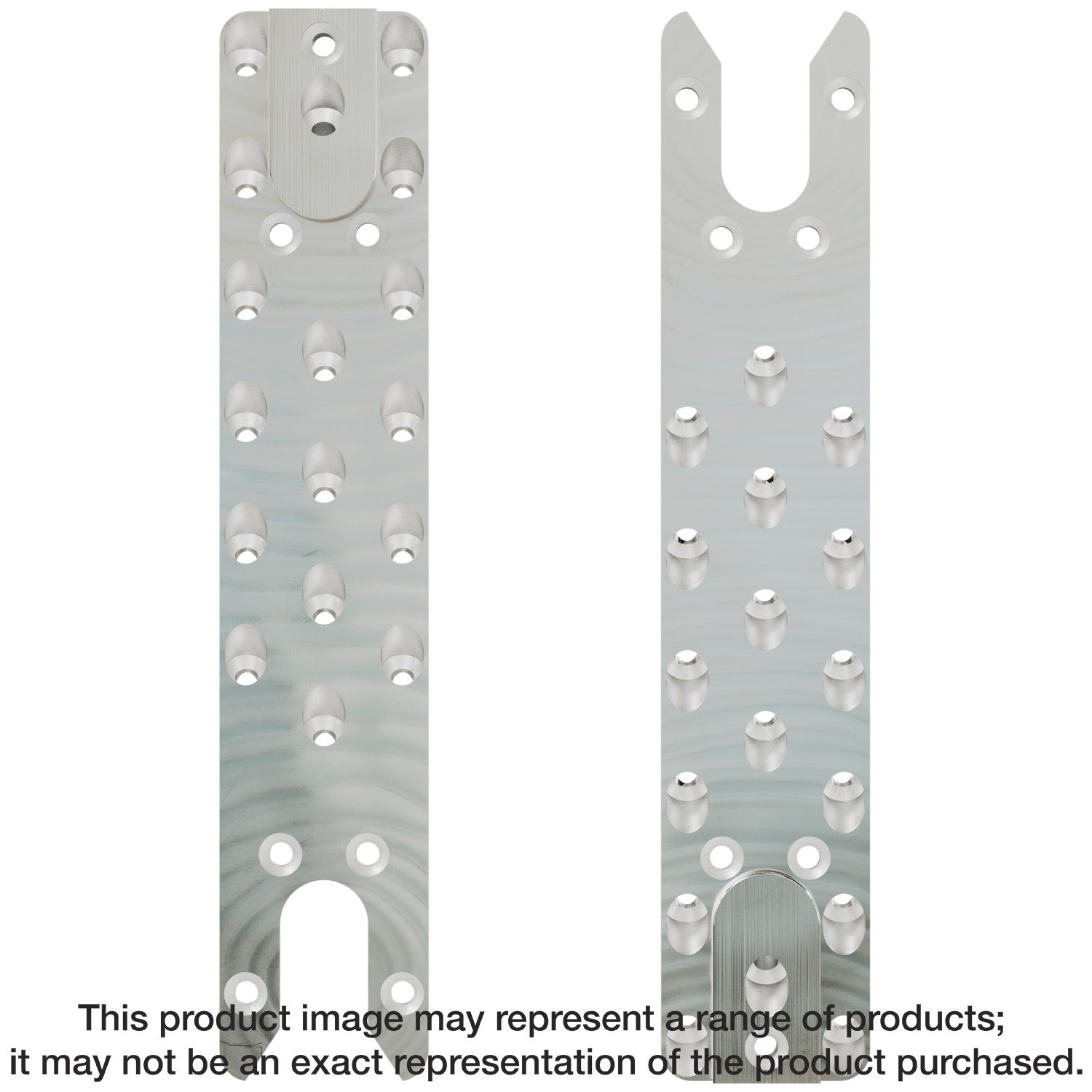

- Contains (2) backplates that make up (1) connection (screws not included)
The ACBH concealed beam hanger is made for the rigors of mass timber construction and is machined from aluminum for a high-capacity design. With an allowable stress design load capacity of up to 20 kips, it is the strongest connector in the Simpson Strong-Tie line of concealed end-grain beam hangers. Its concealed connection allows for a wood-only aesthetic while offering one- and two-hour fire resistance ratings per ASTM E119. This hanger installs easily in the factory using fully threaded Strong-Drive SDCF Timber-CF structural screws and offers generous onsite fit-up tolerance for smooth and easy beam installation. The ACBH is manufactured and stocked in the US for reliable availability.
- High capacity
- Concealed for architectural aesthetics and fire-rated performance
- One- and two-hour fire resistance ratings per ASTM E119
- Recommended for use at beam-to-beam connections in any Seismic Design Category, and at beam-to-column connections in Seismic Design Category A or B
- Multiple router options to suit jobsite needs
- Beam length tolerance of +/- 1/16 in. on each end enables easier installation
- Width: 3 in.
- Height: 15-3/8 in.
- Contains (2) backplates that make up (1) connection (screws not included)
Install With: (48) Strong-Drive SDCF22614 screws (not included)
