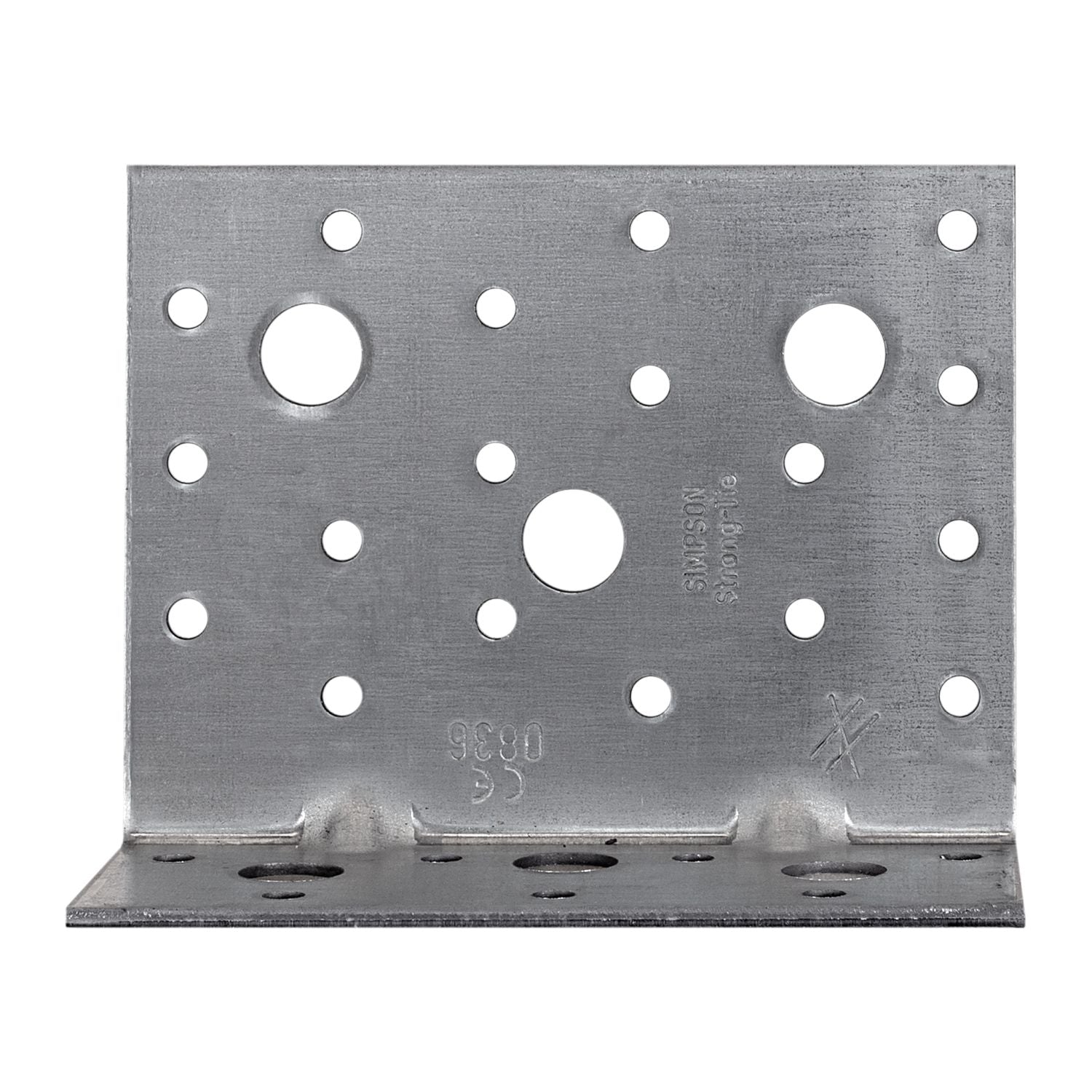

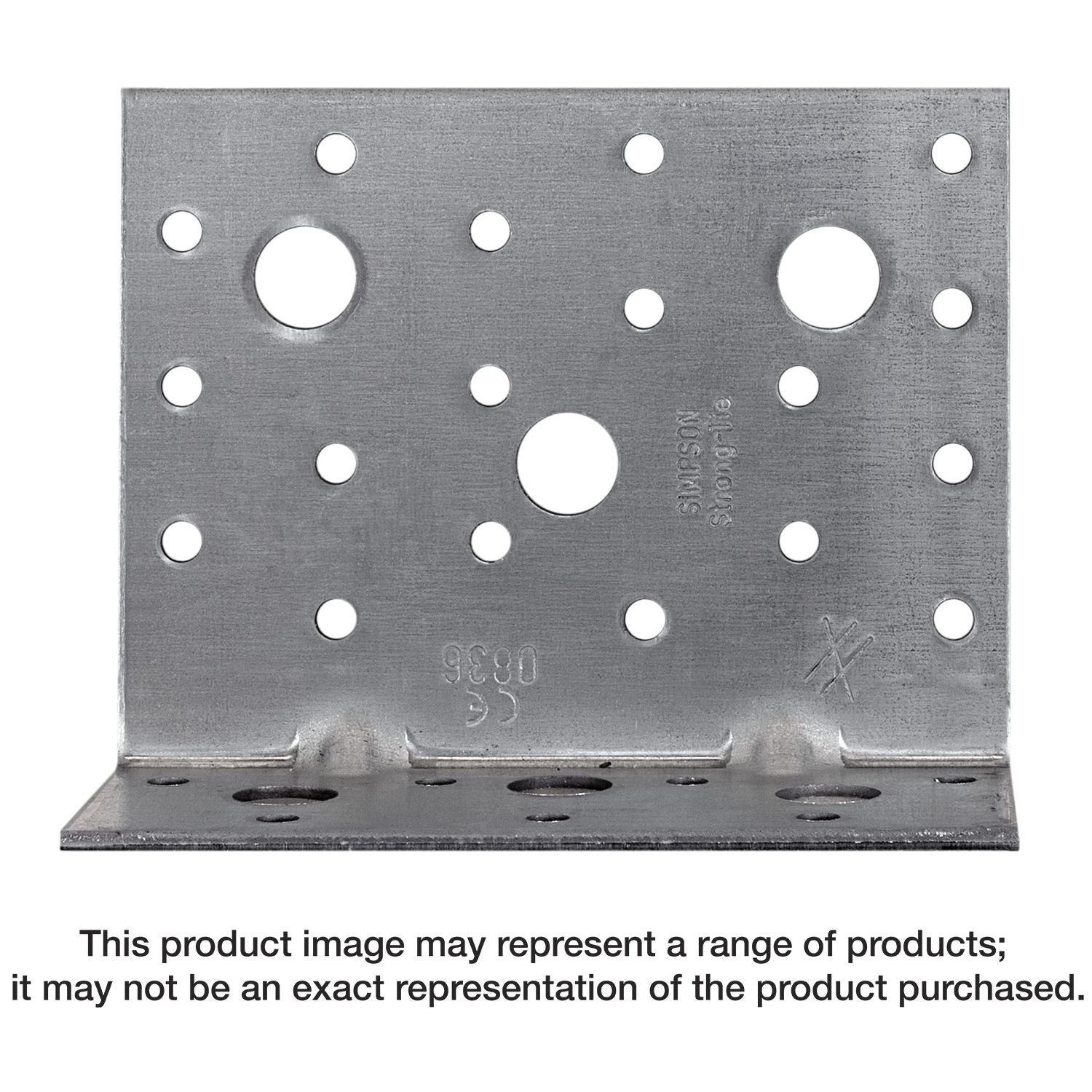

Simpson Strong-Tie AE116 AE 3-9/16-in. x 4-9/16-in. Angle Bracket for Cross-Laminated Timber
Simpson Strong-Tie AE116 AE 3-9/16-in. x 4-9/16-in. Angle Bracket for Cross-Laminated Timber
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Loads provided for screws or power-actuated nails
- All load directions addressed
- Heavy gauge provides high load capacity
- Anchorage to either CLT or concrete
- Made from 11-gauge steel
- Galvanized for extra corrosion resistance
- Height: 3-9/16 in.
- Depth: 1-7/8 in.
- Width: 4-9/16 in.
AE angle brackets are used to connect cross-laminated timber (CLT) wall panels to CLT floors or concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application.
- Loads provided for screws or power-actuated nails
- All load directions addressed
- Heavy gauge provides high load capacity
- Anchorage to either CLT or concrete
- Made from 11-gauge steel
- Galvanized for extra corrosion resistance
- Height: 3-9/16 in.
- Depth: 1-7/8 in.
- Width: 4-9/16 in.
Install With: Install with (25) CNA 4 mm x 60 mm nails or (25) SD #10 x 2-1/2 in. screws or (25) 0.162 in. x 2-1/2 in. nails; anchorage to concrete (18) 0.162 in. x 2-1/2 in. nails and (3) 1/2 in. anchor bolts or (18) SD #10 x 2-1/2 in. screws and (3) 1/2 in. anchor bolts
