Simpson Strong-Tie Outdoor Accents Avant Collection ZMAX, Black Powder-Coated Knee Brace Connector for 4x (APVKB45-4)
Simpson Strong-Tie Outdoor Accents Avant Collection ZMAX, Black Powder-Coated Knee Brace Connector for 4x (APVKB45-4)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

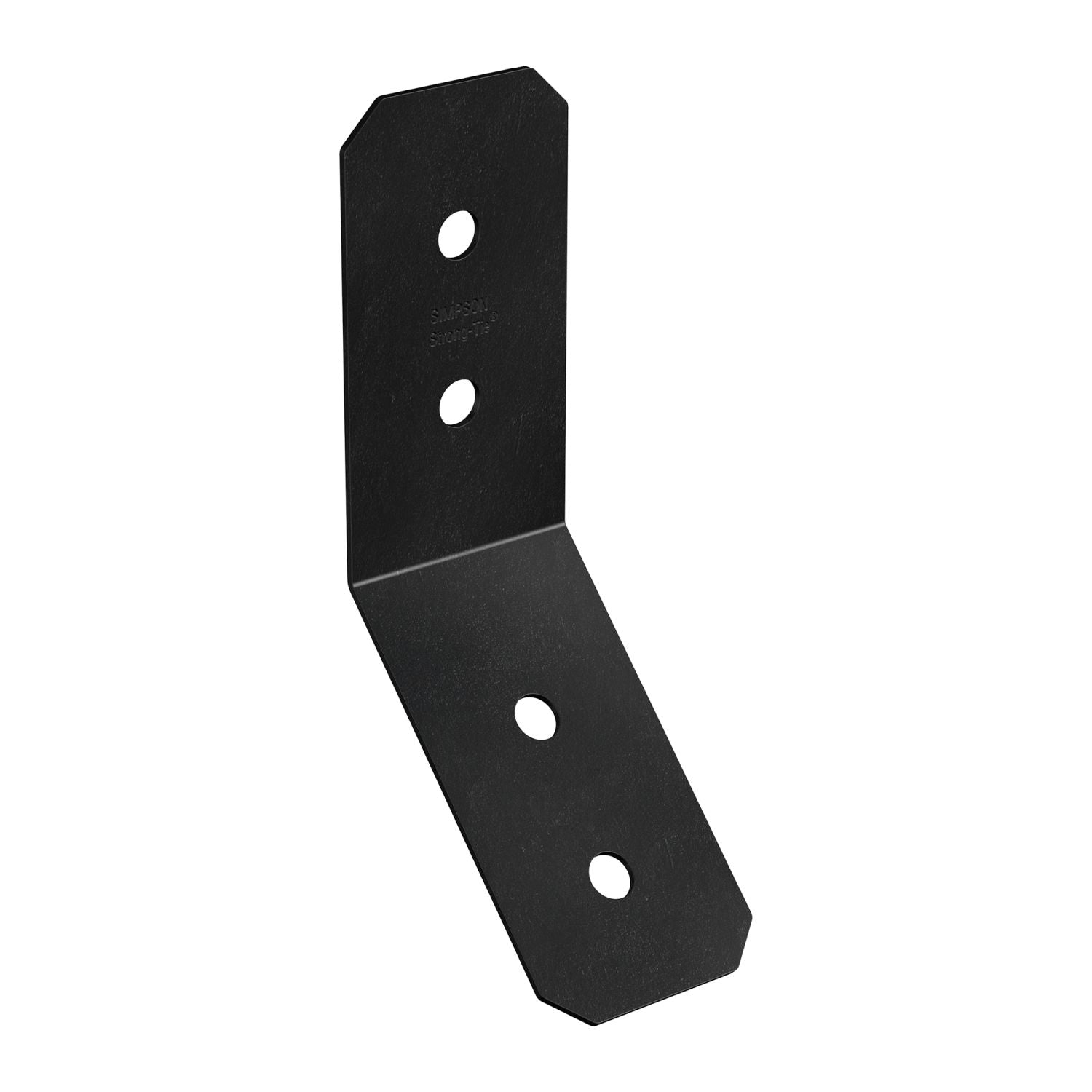

The Simpson Strong-Tie APVKB45-4 Knee Brace Connector is a decorative structural connector for attaching knee braces to posts or beams in outdoor wood construction. This is a knee brace connector designed for fastening wood-to-wood knee brace connections on exterior structures. Model Number: APVKB45-4. If you are building a pergola, pavilion, patio cover, or other custom outdoor frame with nominal 4x lumber, this connector gives you a cleaner, more intentional way to secure the brace while keeping the hardware look consistent with the Outdoor Accents Avant Collection.
What matters here is not just that it connects wood members, but that it does the job without making the finished project look like an afterthought. The APVKB45-4 is made from 12-gauge steel and uses a four-hole layout for attachment. That gives the connection a solid hardware presence, while the shaped profile adds a more finished look than generic flat framing hardware. For builders who care about both support and appearance, that combination is the whole point.
The finish is a big part of why this connector belongs outdoors. Simpson Strong-Tie uses ZMAX galvanization with a black powder coat, which is specifically called out for exterior and treated-wood applications. In plain terms, that means better corrosion resistance than a basic painted bracket, and it helps the connector keep its appearance over time on exposed structures where sun, moisture, and treated lumber chemistry are all working against ordinary hardware.
Installation is kept simple. The connector is designed to install with Simpson Strong-Tie Outdoor Accents 3-1/2 inch structural wood screws and Outdoor Accents hex-head washers, both sold separately. That matters because it lets you keep the same hardware style across the whole build instead of mixing connector styles, screw heads, and finishes. If you are already using Outdoor Accents hardware on a project, this piece drops right into that system cleanly.
For this specific version, sizing is for nominal 4x lumber. The table data lists a 3 inch L dimension with 5-5/8 inch W1 and W2 dimensions, which lines up with the intended geometry for 4x knee brace connections. That makes it the right choice when you want the connector sized to the lumber instead of trying to make a larger fitting work on a smaller brace layout.
The design itself is part of the appeal. This connector comes from the Outdoor Accents Avant Collection, which uses straighter edges for a more contemporary look. On a pergola or other visible outdoor structure, that subtle shape difference matters more than people think. You still get a connector meant for real fastening work, but it looks more at home on finished landscape structures, backyard pavilions, and exposed timber details.
Who should buy it? This is a smart fit for deck builders, general contractors, remodelers, and serious DIYers building outdoor living structures with visible brace connections. If the project is exposed, decorative, and built around nominal 4x braces, the Simpson Strong-Tie APVKB45-4 Knee Brace Connector makes sense. If you are just hiding hardware inside a rough frame, a basic connector may do the job. But if the connection will be seen, this one earns its keep.
Clean Brace Connections for Visible Outdoor Builds
This connector is made for the part of the build people actually see. Instead of a generic bracket look, it gives knee brace connections a finished black hardware appearance that fits pergolas, patio covers, and other exposed outdoor framing.
- Designed to attach knee braces to posts or beams
- Avant Collection profile uses straighter edges for a more contemporary look
- Black powder-coated finish helps the hardware blend into modern outdoor designs
Installs with the Outdoor Accents Hardware System
The APVKB45-4 is set up to work with the Outdoor Accents fastener and washer package, which keeps installation straightforward and the finished hardware style consistent across the whole structure.
- Installs with Outdoor Accents 3-1/2 inch structural wood screws
- Uses Outdoor Accents hex-head washers for the intended finished look
- Specified installation uses (4) STN22 washers and (4) SDWS22312DBB structural wood screws
Corrosion Resistance That Makes Sense Outdoors
Outdoor connectors live in a tougher environment than indoor framing hardware. The steel construction and dual-layer protective finish are what make this part worth using on exterior wood structures, especially when treated lumber is involved.
- Made from 12-gauge steel
- ZMAX galvanization adds corrosion protection
- Black powder coat adds another layer of durability and a finished appearance
What's in the Box
- (1) Simpson Strong-Tie APVKB45-4 Knee Brace Connector
Fasteners are not included. Install with the specified Outdoor Accents washers and structural wood screws, sold separately.
Key Specifications
| Material | 12-gauge steel |
|---|---|
| Finish | ZMAX galvanized with black powder coat |
| Application | Wood-to-wood knee brace connections |
| Nominal Lumber Size | 4x |
| L Dimension | 3 in. |
| W1 Dimension | 5-5/8 in. |
| W2 Dimension | 5-5/8 in. |
| Weight | 0.9 lb. |
Compatibility
Built For
Pro Tip
If you are building an exposed outdoor frame, use the matching Outdoor Accents washers and screws instead of mixing in standard structural fasteners. You get the intended fit and keep the hardware look consistent across every visible connection.
Warranty & Support
Tool Nut's Take
Simpson Strong-Tie APVKB45-4 Knee Brace Connector for Outdoor Builds That Need to Look Finished
This is the kind of connector you buy when the structure is doing real work and the hardware is going to stay visible.
- Who it's for: Builders and serious DIYers putting together pergolas, patio covers, and other outdoor frames with nominal 4x knee braces.
- Why it stands out: You get 12-gauge steel, exterior-ready corrosion resistance, and a cleaner architectural look than plain utility hardware.
- Worth knowing: This is a single connector and the required washers and structural screws are sold separately, so plan the hardware list before you start the build.
Common Questions
- What lumber size is this connector made for? It is designed for nominal 4x lumber.
- Can this be used outdoors? Yes. The connector uses ZMAX galvanization with a black powder coat for exterior and treated-wood applications.
- What is it used to connect? It is designed to attach wood knee braces to posts or beams in wood-to-wood construction.
- Are fasteners included? No. Fasteners are not included.
