Simpson Strong-Tie BA Top-Flange Joist Hanger for Double 3-1/2-in. x 9-1/2-in. Engineered Wood (BA7.12/9.5)
Simpson Strong-Tie BA Top-Flange Joist Hanger for Double 3-1/2-in. x 9-1/2-in. Engineered Wood (BA7.12/9.5)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

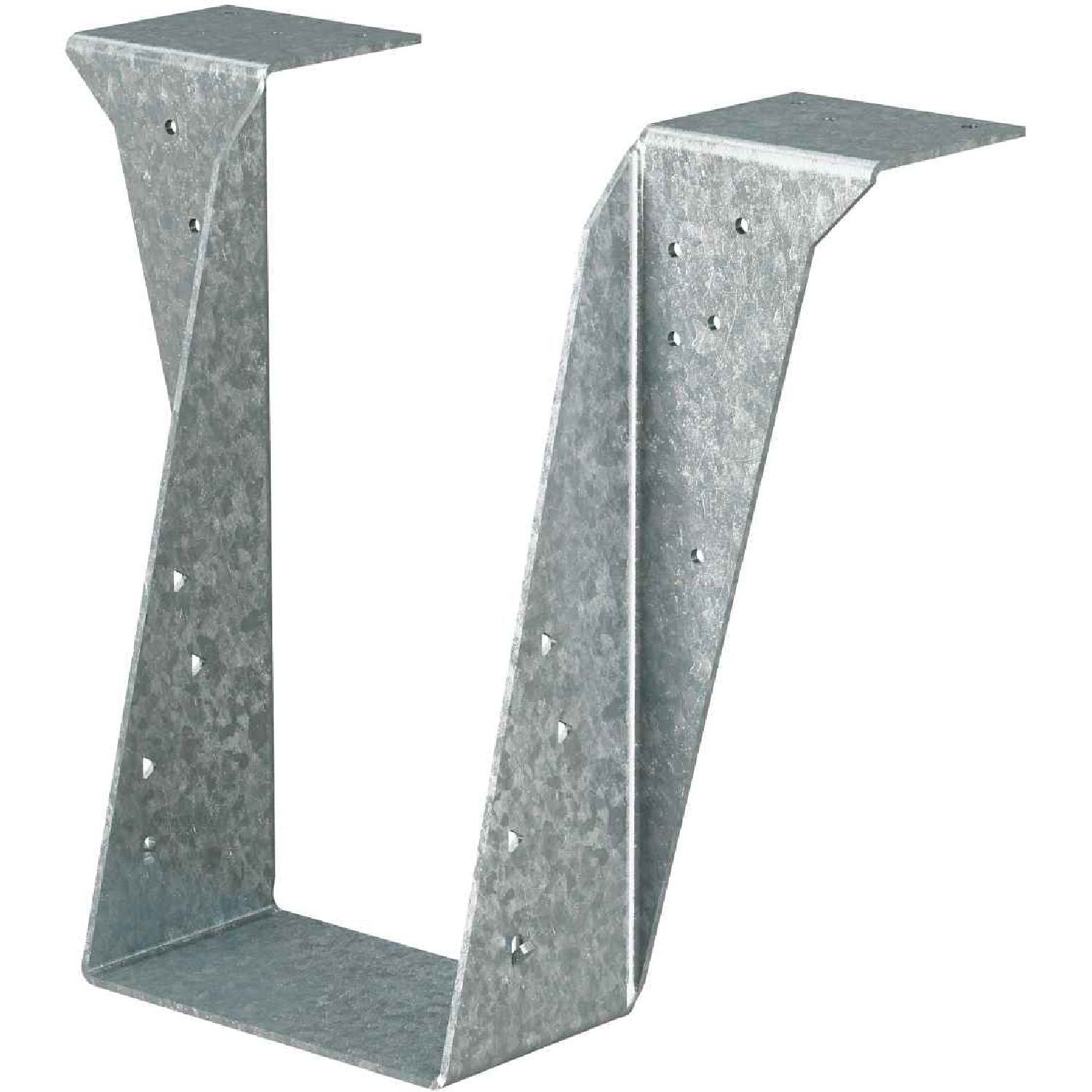

The Simpson Strong-Tie BA7.12/9.5 BA Top-Flange Joist Hanger is a galvanized top-flange joist hanger for supporting double 3-1/2 in. x 9-1/2 in. engineered wood members. This is a top-flange joist hanger designed for carrying joists from the top flange while helping control rotation. Model Number: BA7.12/9.5. If you are framing with wider built-up members and need a connector sized for that load path, this is the version in the BA series made for that application.
What makes the BA line useful is the one-piece design. Simpson Strong-Tie positions this series as a cost-effective alternative to welded hangers, and that matters on jobs where you want dependable support without stepping into more complicated fabrication. For this specific model, the 7-1/8 in. seat width fits double 3-1/2 in. members, while the 9-1/2 in. height matches the carried member size listed in the table. The 3 in. seat depth and 2-1/2 in. top flange dimension are part of the geometry that lets the hanger support the member from the top flange instead of needing a face-mount layout.
The full-height joist flange is one of the practical details that separates this hanger from basic support hardware. Simpson Strong-Tie calls out that it captures the top chord of the joist to help prevent rotation and eliminate the need for web stiffeners in BA minimum nailing installations. On real framing work, that means better control of the member during install and a cleaner path when you are working with engineered wood products that do not forgive sloppy support conditions.
This BA7.12/9.5 hanger is made from 12-gauge steel with a Zinc Galvanized G90 finish. That gives you a connector with the stiffness expected in structural framing hardware while providing standard galvanized corrosion protection for typical covered construction use. If your job calls for different corrosion resistance, the BA family can also be ordered in other finishes such as ZMAX or hot-dip galvanized on special order, but this listed model is Zinc Galvanized G90.
Another reason contractors use this style of connector is layout flexibility. The BA family is available for special-order modifications to accommodate sloped and skewed members, and Simpson Strong-Tie notes options for slopes and skews up to 45 degrees, with certain top-flange slope and open or closed flange modifications available. That does not change the fact that this stock BA7.12/9.5 is the straight model listed in the table, but it does tell you the platform is built around more than one framing condition if the project gets complicated.
Installation details matter with a connector like this. Simpson Strong-Tie specifically states to use all specified fasteners and notes that weld-on applications are also possible, with welding eliminating the top and face nailing requirements when done to their stated criteria. They also note that BA maximum nailing requires web stiffeners, while minimum nailing does not. That is the kind of jobsite detail that affects both labor and inspection, so this is not a connector you want to substitute casually.
Compatibility is straightforward. This hanger is part of Simpson Strong-Tie's BA top-flange hanger series for solid sawn lumber connectors, and the product page lists the application as engineered wood. In plain terms, this specific model is sized around a double 3-1/2 in. x 9-1/2 in. carried member and belongs in structural framing work where the member size, hanger geometry, and fastening schedule all need to line up exactly.
Who should buy it? Framers, builders, and engineers specifying structural connectors for wood construction. If you are hanging a double 3-1/2 in. x 9-1/2 in. engineered wood member and want a top-flange hanger from a well-documented system, this is the right kind of part. If your member size, slope, skew, coating, or load requirement is different, stay in the BA family but move to the exact model that matches the framing condition instead of trying to make this one do a job it was not sized for.
Support Wide Built-Up Members Cleanly
This BA top-flange hanger is built for structural framing where a double member needs positive support without improvising a connector that almost fits. When the hanger width matches the joist package, installation goes smoother and the load path stays clear.
- Sized for double 3-1/2 in. x 9-1/2 in. members
- 12-gauge steel construction with Zinc Galvanized G90 finish
Key Specifications
| Joist Size | Double 3-1/2 in. x 9-1/2 in. |
|---|---|
| Gauge | 12 ga. |
| Width (W) | 7-1/8 in. |
| Height (H) | 9-1/2 in. |
| Seat Depth (B) | 3 in. |
| Top Flange Dimension (TF) | 2-1/2 in. |
| Finish | Zinc Galvanized, G90 |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
With BA hangers, do not assume the same stiffener requirement for every nailing pattern. Simpson Strong-Tie notes that BA minimum nailing does not require web stiffeners, but BA maximum nailing does, so check the schedule before the crew starts loading material into place.
Tool Nut's Take
Simpson Strong-Tie BA7.12/9.5 BA Top-Flange Joist Hanger for serious framing layouts
This is the kind of connector you buy when the framing size is set, the load path matters, and you want the hanger to fit the member instead of the other way around.
- Who it's for: Framers, builders, and engineers working with double 3-1/2 in. x 9-1/2 in. engineered wood members.
- Why it stands out: The one-piece top-flange design is practical, the full-height flange helps control rotation, and the BA family is well documented for standard and modified applications.
- Worth knowing: This is a size-specific structural connector, not a universal hanger. Match the member size and installation requirements exactly, especially if you are dealing with special nailing, weld-on use, slope, or skew.
Common Questions
- What size member is this hanger made for? This model is sized for a double 3-1/2 in. x 9-1/2 in. member.
- What material and finish does it use? The BA7.12/9.5 is made from 12-gauge steel with a Zinc Galvanized G90 finish.
- Can BA hangers be used for sloped or skewed members? The BA series can be special ordered for sloped and or skewed members, but this listed model is the standard straight version.
- Does this hanger require web stiffeners? Simpson Strong-Tie states BA minimum nailing does not require web stiffeners, while BA maximum nailing does require them.
