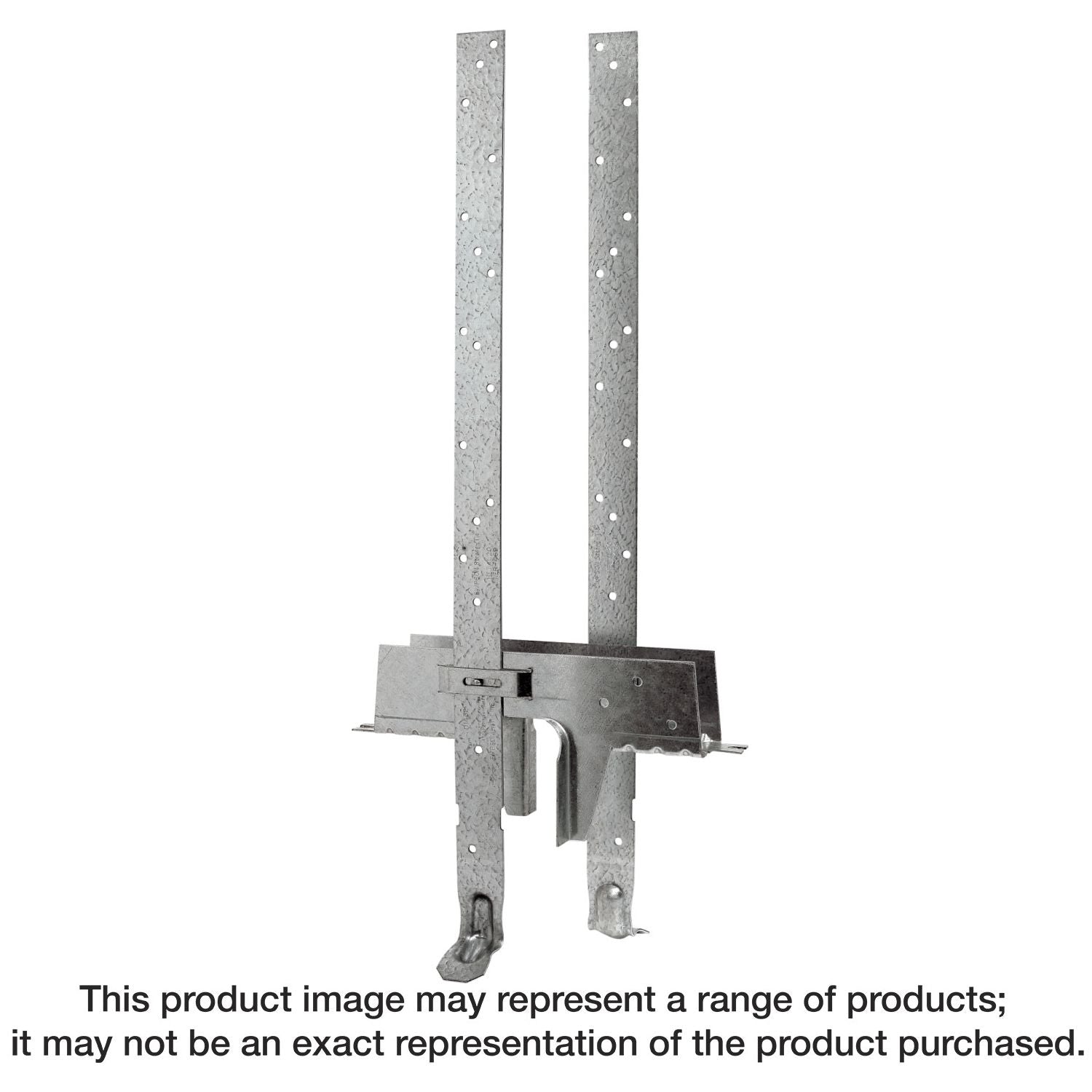

Simpson Strong-Tie DETAL20 DETAL Galvanized High-Capacity Embedded Truss Anchor
Simpson Strong-Tie DETAL20 DETAL Galvanized High-Capacity Embedded Truss Anchor
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Embed 4-1/2 in. into a poured concrete bond beam or grouted block wall
- Staggered nail pattern for enhanced uplift resistance
- Embossed angle for added rigidity
- Steel gauge: 16 ga., barrier 18 ga.
- Galvanized (G90) for extra corrosion resistance

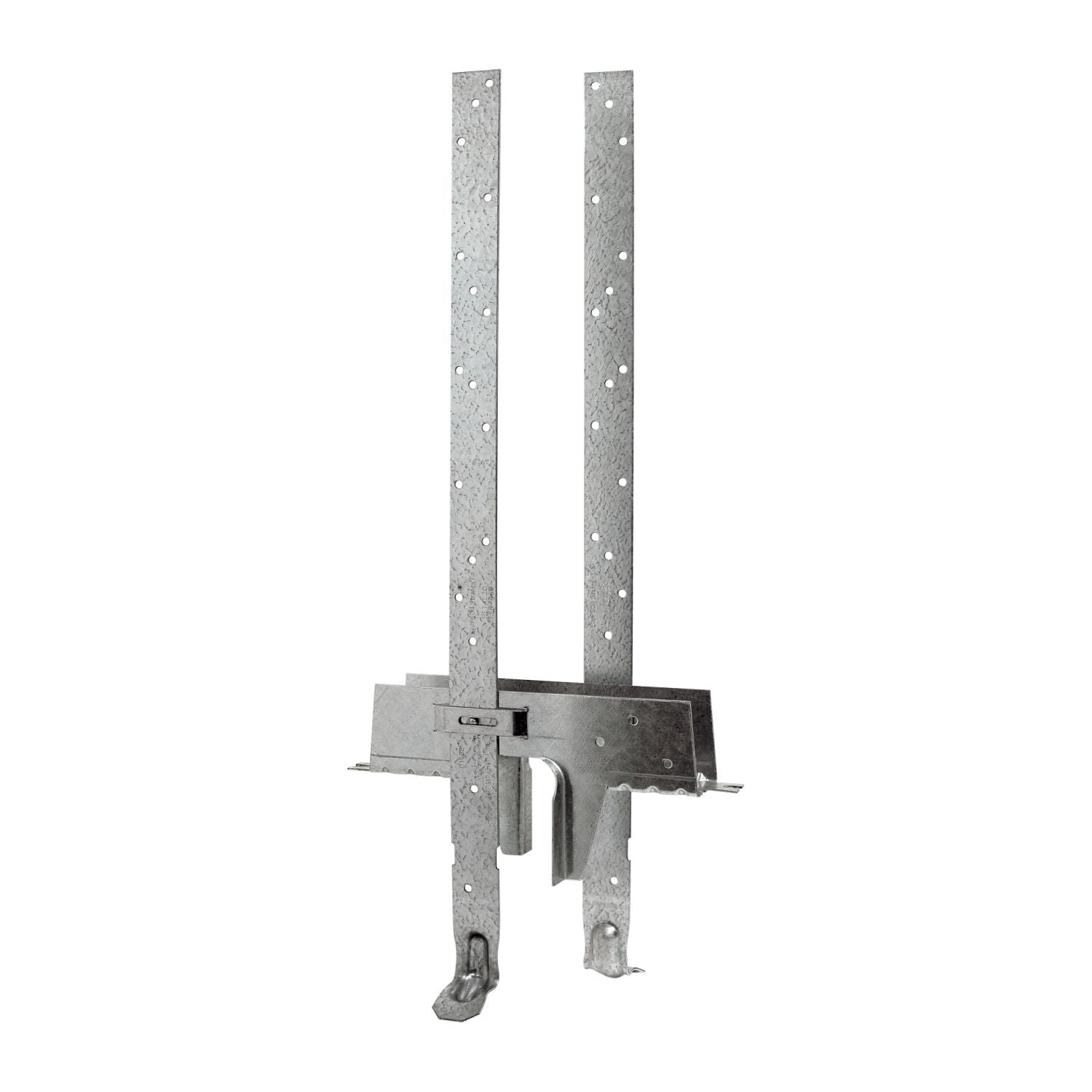

The DETAL20 is a high-capacity embedded truss anchor for attachment of single-ply trusses to concrete and masonry walls. It combines dual embedded anchors with a structural moisture-barrier seat that is partially embedded in the concrete or grout. This seat serves to protect the truss and also provides additional lateral and uplift capacity. The embedded anchors are pre-attached to the moisture barrier through slots that allow for a slight amount of adjustability, providing flexibility during installation to avoid rebar. The moisture-barrier seat includes tabs at each end for optional attachment to the form board in concrete tie-beam applications.
- Embed 4-1/2 in. into a poured concrete bond beam or grouted block wall
- Staggered nail pattern for enhanced uplift resistance
- Embossed angle for added rigidity
- Steel gauge: 16 ga., barrier 18 ga.
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d x 1-1/2 in. nails or 16d common nails
