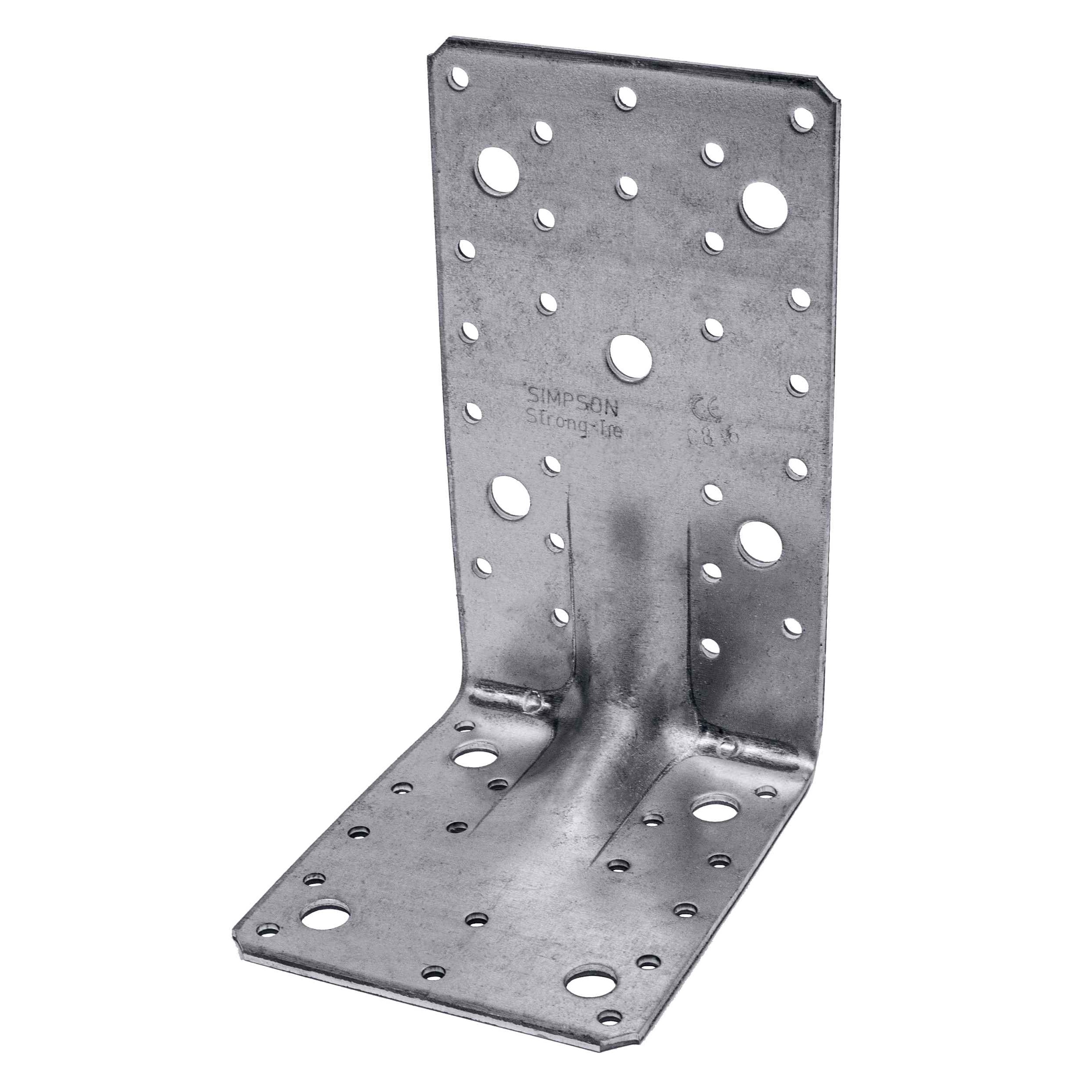

Simpson Strong-Tie E20/3 E 6-3/4-in. x 3-3/4-in. Angle Bracket for Cross-Laminated Timber
Simpson Strong-Tie E20/3 E 6-3/4-in. x 3-3/4-in. Angle Bracket for Cross-Laminated Timber
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Heavy gauge provides high load capacity
- Anchorage to concrete
- Load-rated with up to a 2-inch base-of-wall gap
- Made from 11-gauge steel
- Galvanized for extra corrosion resistance
- Height: 6-3/4 in.
- Depth: 4-1/2 in.
- Width: 3-3/4 in.
Simpson Strong-Tie E angle brackets are used to connect cross-laminated timber (CLT) wall panels to concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application. The E20/3 angle bracket has been load-rated with up to a 2-inch gap between the bottom of the CLT wall and the top of concrete slab. This gap allows the wall to be separated with a pressure-treated sill plate, concrete curb, grout pad, or other specified material.
- Heavy gauge provides high load capacity
- Anchorage to concrete
- Load-rated with up to a 2-inch base-of-wall gap
- Made from 11-gauge steel
- Galvanized for extra corrosion resistance
- Height: 6-3/4 in.
- Depth: 4-1/2 in.
- Width: 3-3/4 in.
Install With: Install with (18) #10 x 2-1/2 in. Strong–Drive SD Connector screws and (2) 3/8 in. anchor bolts [OR] (18) 0.162 in. x 2-1/2 in. nails and (2) 3/8 in. anchor bolts [OR] (3) SDHR27400 0.275 in. x 4 in. Strong-Drive SDHR Combo-Head screws and (2) 3/8 in. anchor bolts
