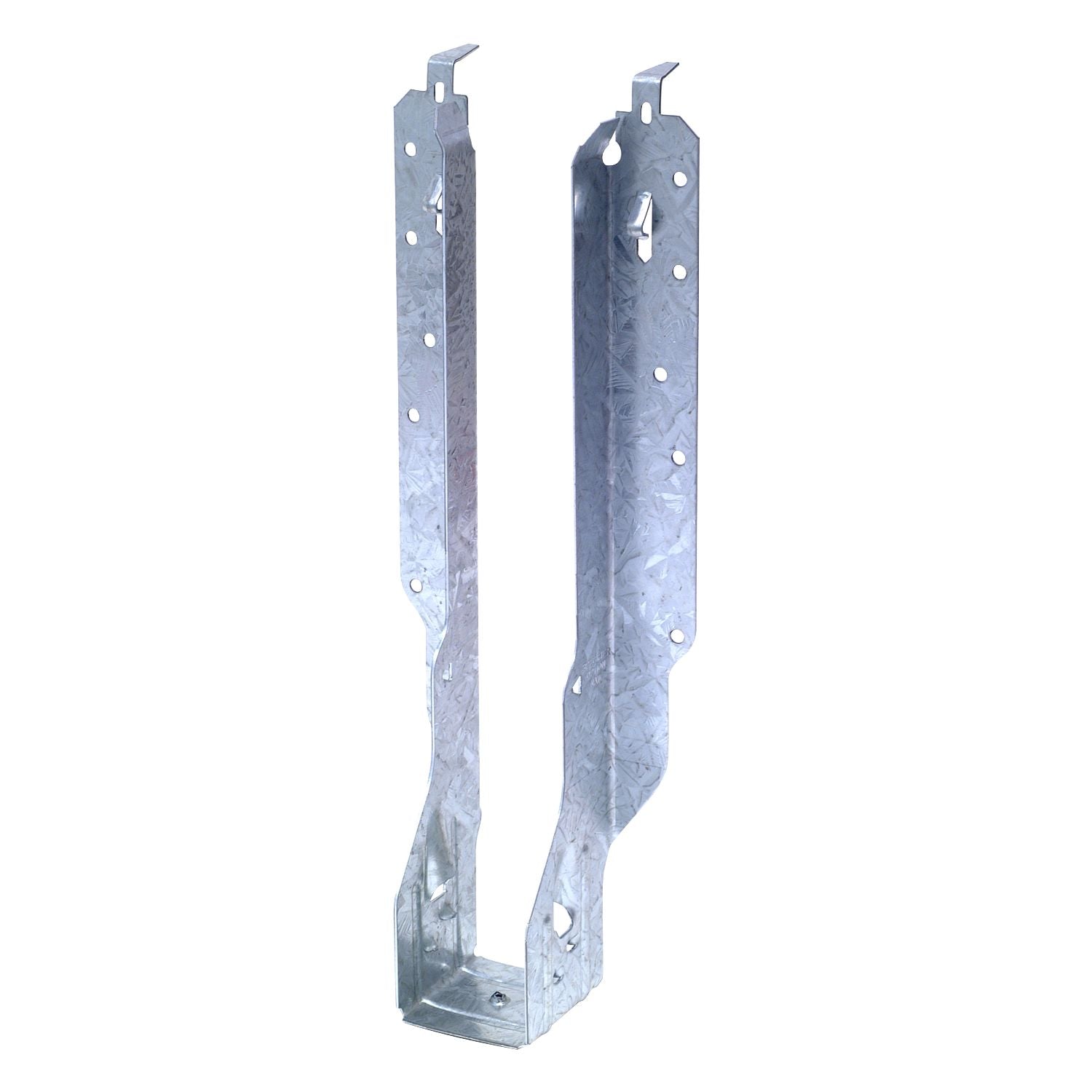

The Simpson Strong-Tie IUS2.56/11.88 IUS Galvanized Face-Mount Joist Hanger is a face-mount engineered wood connector sized for 2-1/2 in. to 2-9/16 in. x 11-7/8 in. joists. This is a joist hanger designed for supporting engineered wood members in floor and roof framing. Model Number: IUS2.56/11.88. If you are framing with I-joists and want a connector that installs cleanly and holds alignment well, this is the style that makes the work go smoother.

What separates the IUS design from a basic hanger is the hybrid layout. Simpson Strong-Tie built it to combine the advantages of face-mount and top-mount hangers, with easy-to-reach face nails, locator tabs, and a Strong-Grip seat. In practical terms, that means the joist can snap into place without joist nailing during standard installation, which saves time when you are setting multiple members and trying to keep your layout moving.

This specific hanger uses 18-gauge steel with a G90 zinc galvanized finish. The width is 2-5/8 in., the height is 11-7/8 in., and the seat dimension B is 2 in. That combination is matched to engineered wood framing where consistent fit matters. The galvanized coating helps with corrosion resistance in the right environment, and the formed steel body is built to deliver a solid connection between the joist and the supporting header.

One of the better jobsite details here is the locator tab setup. The tabs are self-jigging to help with placement, and they may be bent back if you need to adjust hanger placement or leave a smooth top surface. Simpson Strong-Tie also notes that the locator tabs are not structural, which is important because it keeps the installer focused on the actual specified fasteners and proper bearing instead of relying on a convenience feature to do structural work.

Installation is straightforward when you follow the manufacturer guidance. Fasten the hanger to the header, position the I-joist into the hanger, and snap it into place. Simpson Strong-Tie specifies using all required fasteners and verifying the header can take those fasteners. Some IUS models use both round and triangle header nail holes, and filling both is how you achieve maximum download. Toolup lists the required fasteners for this model as (10) 0.148 in. x 3 in. nails.

This hanger is meant for engineered wood applications and is commonly used in residential framing, commercial construction, multi-family work, and retrofit projects where engineered wood joists need a rated face-mount connection. It will normally accommodate skew up to 5 degrees, which gives a little installation flexibility without stepping into a specialty connector. It is not listed for treated lumber in the provided data, so this is the right pick for the specified engineered wood application, not a one-size-fits-all hanger for every environment.

Simpson Strong-Tie IUS2.56/11.88 IUS Galvanized Face-Mount Joist Hanger Keeps Engineered Wood Framing Moving

If you are framing with I-joists and want a hanger that is easier to place and faster to fasten than a basic connector, this is a smart pick.

• Who it's for: Framers, builders, and remodelers working with 11-7/8 in. engineered wood joists in floor or roof systems.
• Why it stands out: The snap-in Strong-Grip seat and locator tabs solve the annoying part of hanger installs by helping the joist sit where it belongs before you finish fastening.
• Worth knowing: This is a single hanger, not a job pack, and you need to follow the specified fastener schedule and application guidance for the rated connection.

• What size joist does this hanger fit? It is sized for engineered wood joists measuring 2-1/2 in. to 2-9/16 in. wide by 11-7/8 in. deep.
• Is this hanger code compliant? Yes. Simpson Strong-Tie states that IUS-series hangers are tested, load rated, and code compliant.
• Can the locator tabs be bent back? Yes. The locator tabs may be bent back to adjust hanger placement or leave a smooth top surface, but they are not structural.
• Will it handle skewed installation? Simpson Strong-Tie notes that these models will normally accommodate skew up to 5 degrees.
