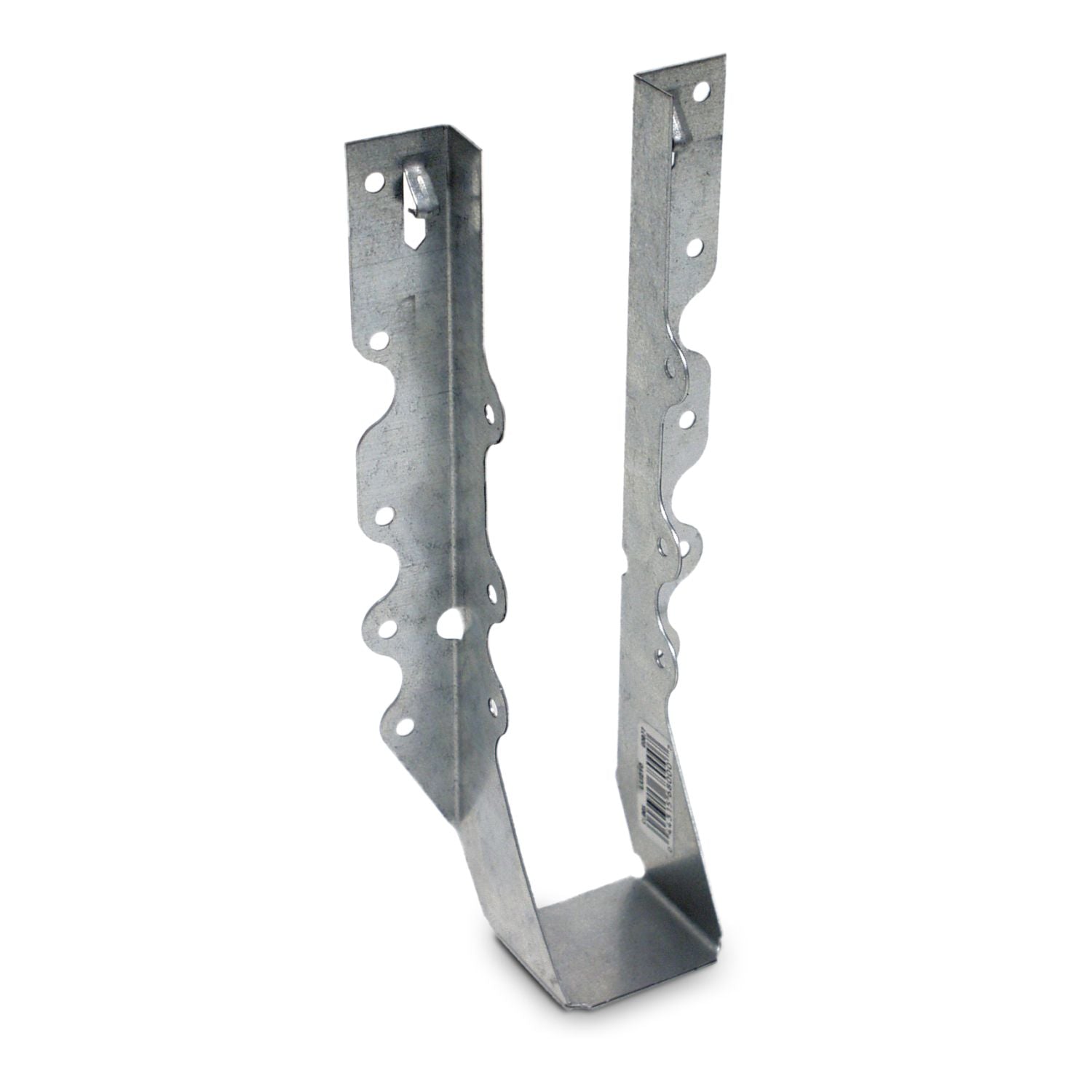

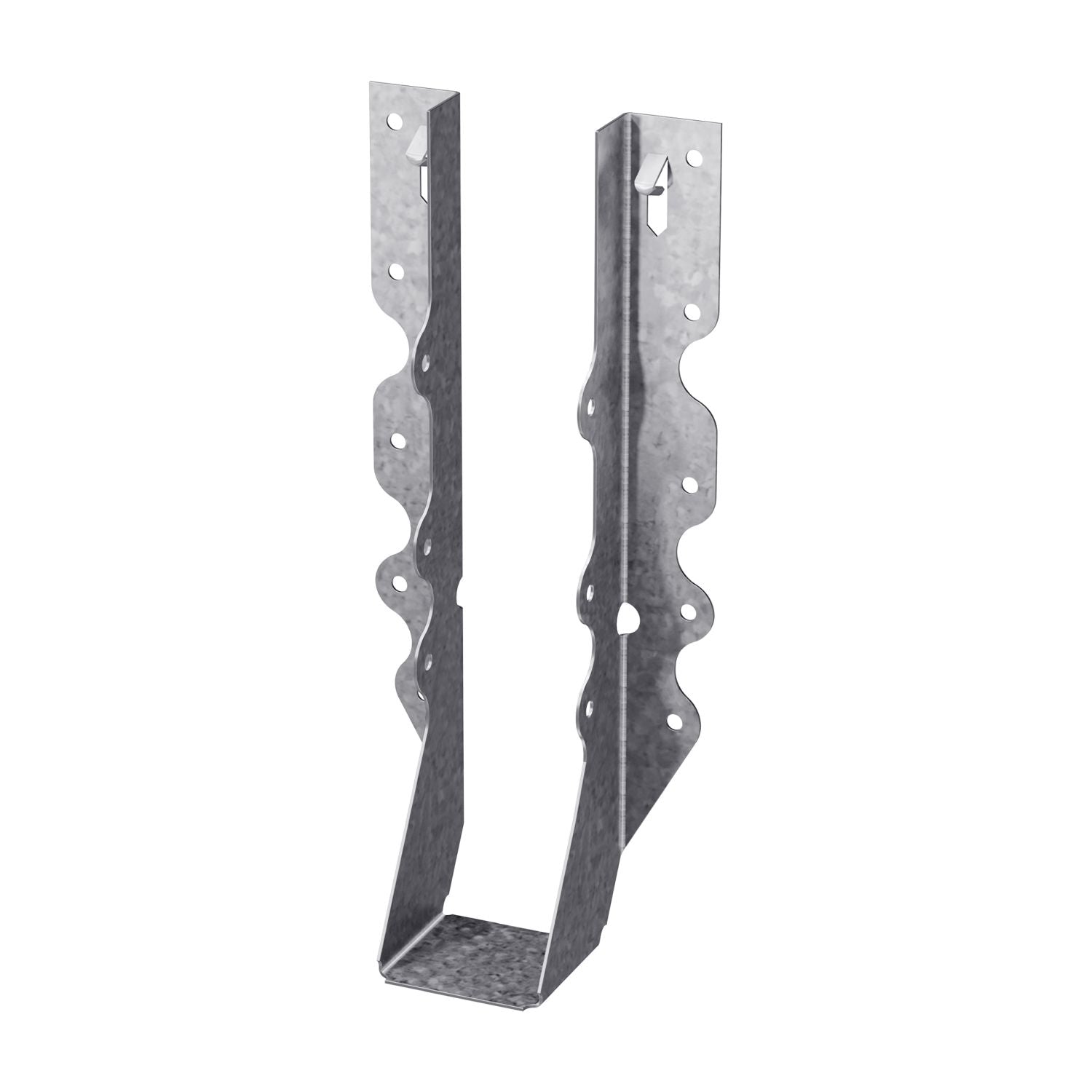

The Simpson Strong-Tie LU210 Light Face-Mount Joist Hanger is a galvanized steel framing connector built for joist-to-header installation in wood-framed construction. This is a face-mount joist hanger designed for securing dimensional lumber joists to a wood header or beam. Model Number: LU210. If you are framing floors, decks, or similar wood structures and need a tested connector for common 2-by lumber sizes, this hanger is made for that job.

What matters here is that the LU210 is not a generic bracket. It is part of Simpson Strong-Tie's LU series, which is tested, load rated, and code compliant. For this specific model, the hanger is sized for 2x10, 2x12, and 2x14 joists, with a 1-9/16 inch width, 7-13/16 inch height, and 1-1/2 inch seat. That gives you a connector that matches standard framing stock while keeping installation straightforward.

The big jobsite advantage is the built-in speed prongs. They temporarily position and secure the connector before full fastening, which saves a step when you are laying out multiple hangers or trying to hold alignment on a ladder. On repetitive framing work, that kind of detail matters because it helps keep placement consistent and cuts down on fumbling during install.

The LU210 is made from 20-gauge steel with a Zinc Galvanized G90 finish. In plain terms, that means it is intended for standard wood construction applications where you need a light face-mount hanger with corrosion protection suited to the specified use environment. It is also approved for engineered wood applications according to the manufacturer data, which gives it broader usefulness than a connector limited to only one framing type.

Fastener selection is a big part of connector performance, and Simpson Strong-Tie calls out tested allowable loads based on the specified fasteners. For the LU210 load table, the connector uses 10 SD9112 face fasteners and 6 SD9112 joist fasteners. The published allowable loads for this model reach up to 1,710 lb floor load for DF/SP and 1,965 lb floor load for SPF/HF, with listed uplift values as well. That is the kind of information a contractor or serious builder wants to see because it ties the connector to actual framing design decisions instead of vague strength claims.

Real-world install notes matter too. The manufacturer states that joists sloped up to 1/4:12 still achieve table loads. They also note that when nailing into a solid sawn carrying member's end grain, the allowable load is adjusted by a factor of 0.67. That is the sort of detail that separates a connector you can actually plan around from one that only looks good on a shelf.

If you are a framer, deck builder, remodeler, or general contractor working on wood framing, the LU210 makes sense when you need a compact joist hanger for common larger joist sizes without moving into a heavier or more specialized hanger than the application requires. It is a practical choice for fastening, framing, and structural wood connections where published loads, predictable fit, and faster installation all matter.

Simpson Strong-Tie LU210 Light Face-Mount Joist Hanger That Keeps Framing Simple

This is the kind of connector you buy when you want a known fit, published loads, and faster install without overcomplicating a basic joist-to-header connection.

• Who it's for: Framers, deck builders, remodelers, and contractors working with common 2x wood joists in structural framing.
• Why it stands out: It gives you tested load data, G90 galvanized protection, and speed prongs that make repetitive hanger installs less annoying.
• Worth knowing: This is only as good as the fastener schedule and installation method behind it, so pay attention to the specified screws and the load adjustments in the manufacturer notes.

• What lumber sizes does the LU210 fit? The LU210 is listed for 2x10, 2x12, and 2x14 joists.
• Is this a face-mount or top-flange hanger? It is a face-mount joist hanger designed for joist-to-header installation.
• What finish does it use? The LU210 uses a Zinc Galvanized G90 finish.
• Can it be used with sloped joists? The manufacturer states that joists sloped up to 1/4:12 achieve table loads.
