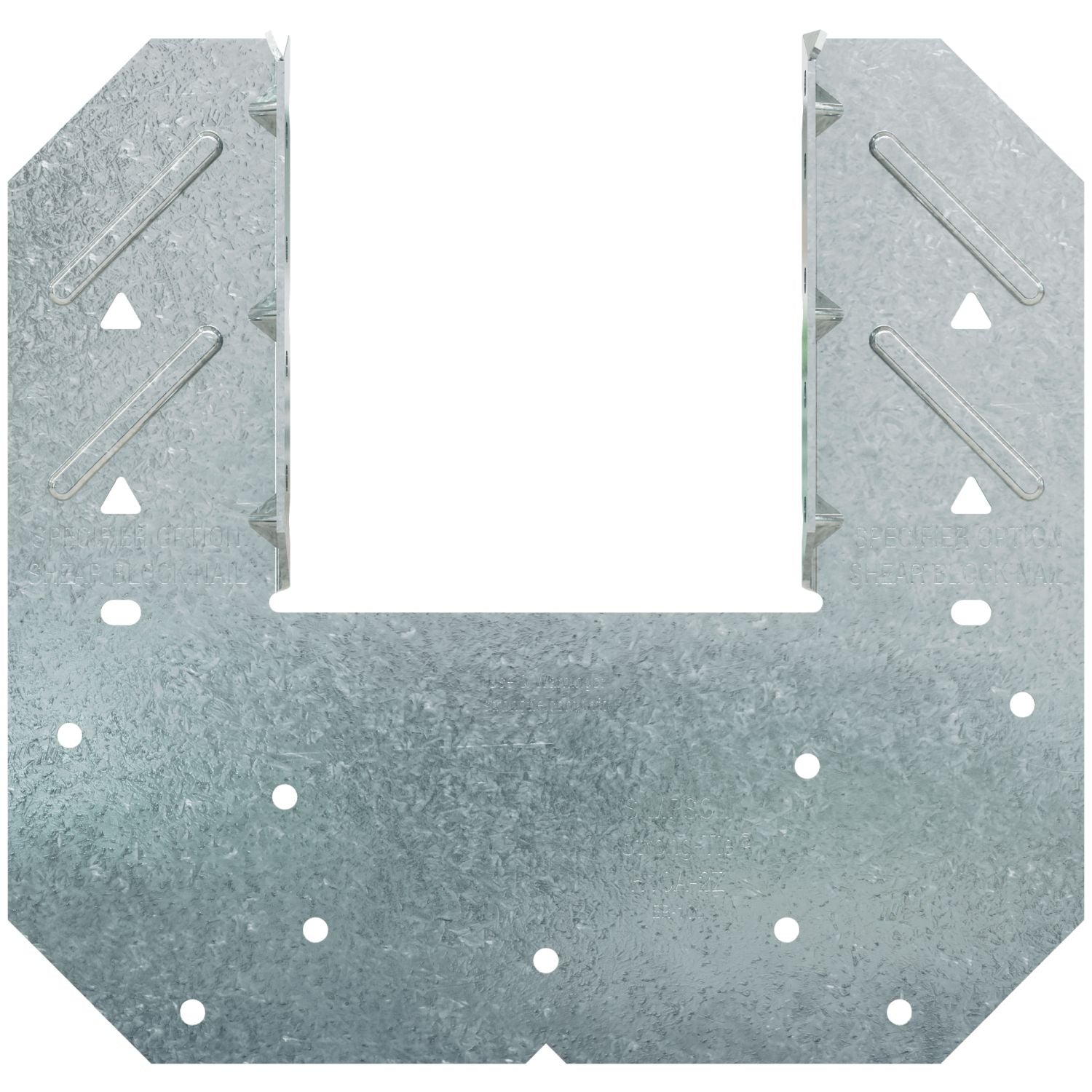

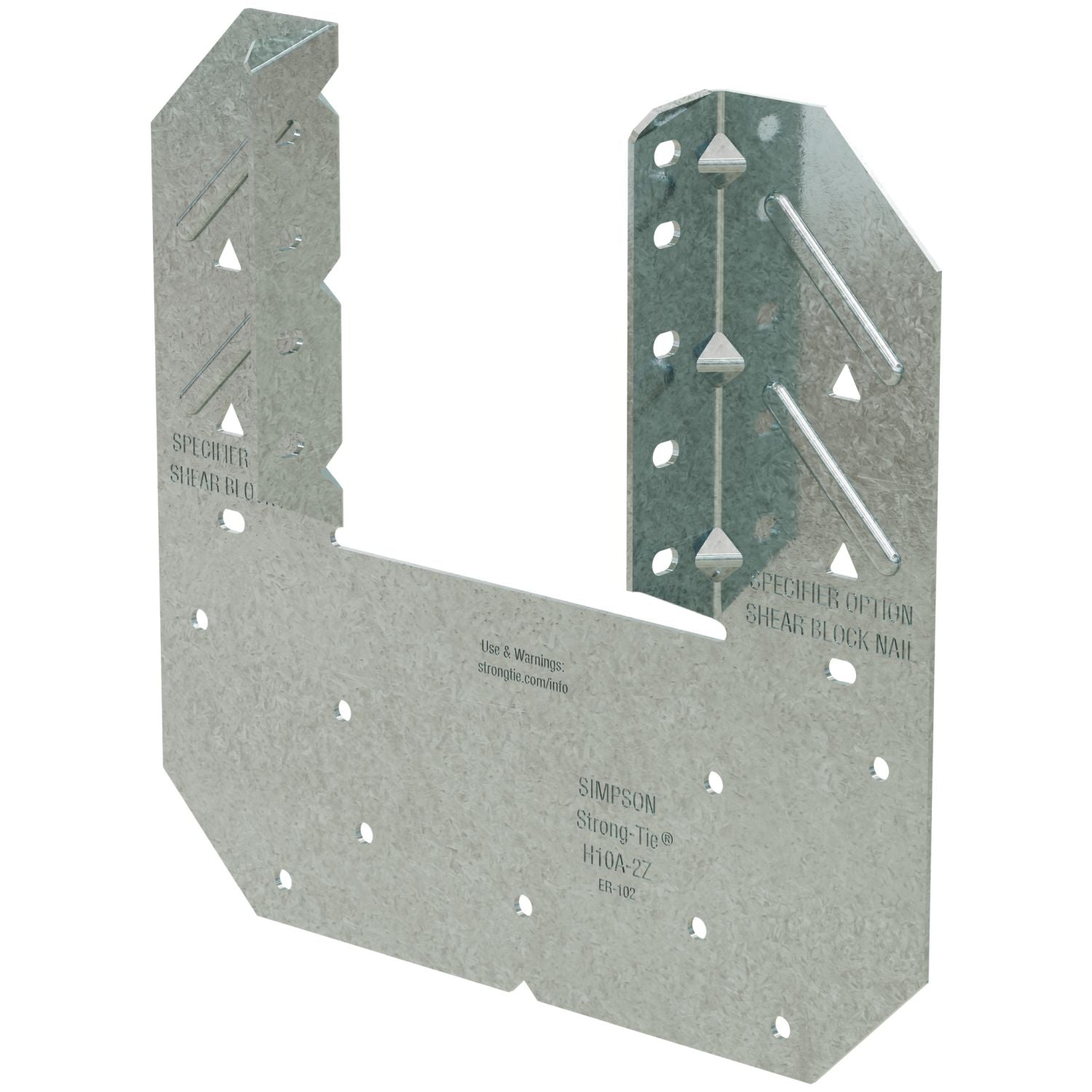

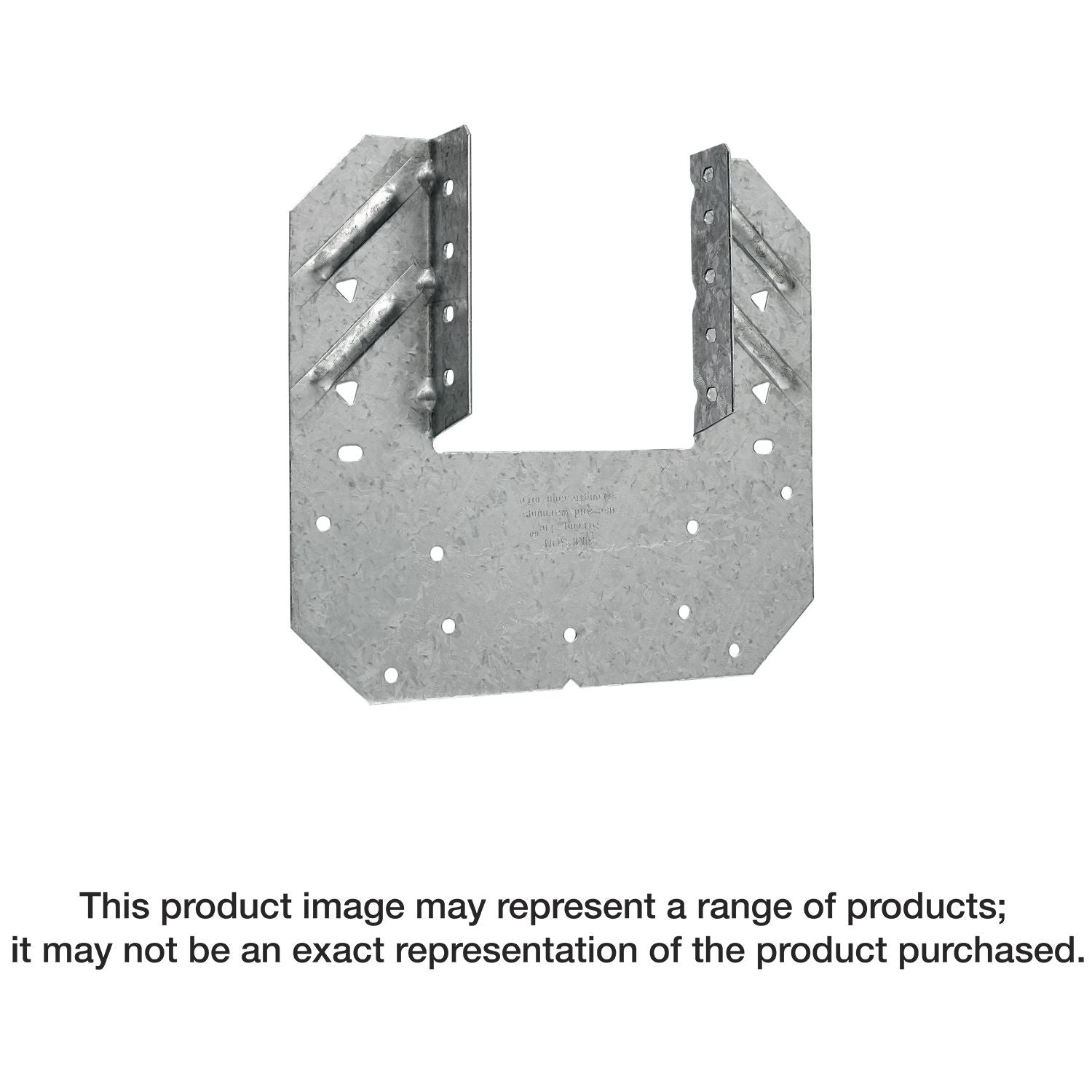

Simpson Strong-Tie H10A-2Z H10A-2 18-Gauge ZMAX Galvanized Hurricane Tie
Simpson Strong-Tie H10A-2Z H10A-2 18-Gauge ZMAX Galvanized Hurricane Tie
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Forms part of a continuous load path to resist wind and seismic forces
- The H10A-2 model holds a double-ply member
- Approved for installation with the Strong-Drive SD Connector screw
- Seat width: 3-1/8 in.
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.
- Forms part of a continuous load path to resist wind and seismic forces
- The H10A-2 model holds a double-ply member
- Approved for installation with the Strong-Drive SD Connector screw
- Seat width: 3-1/8 in.
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with (18) 0.148 in. x 1-1/2 in. nails
