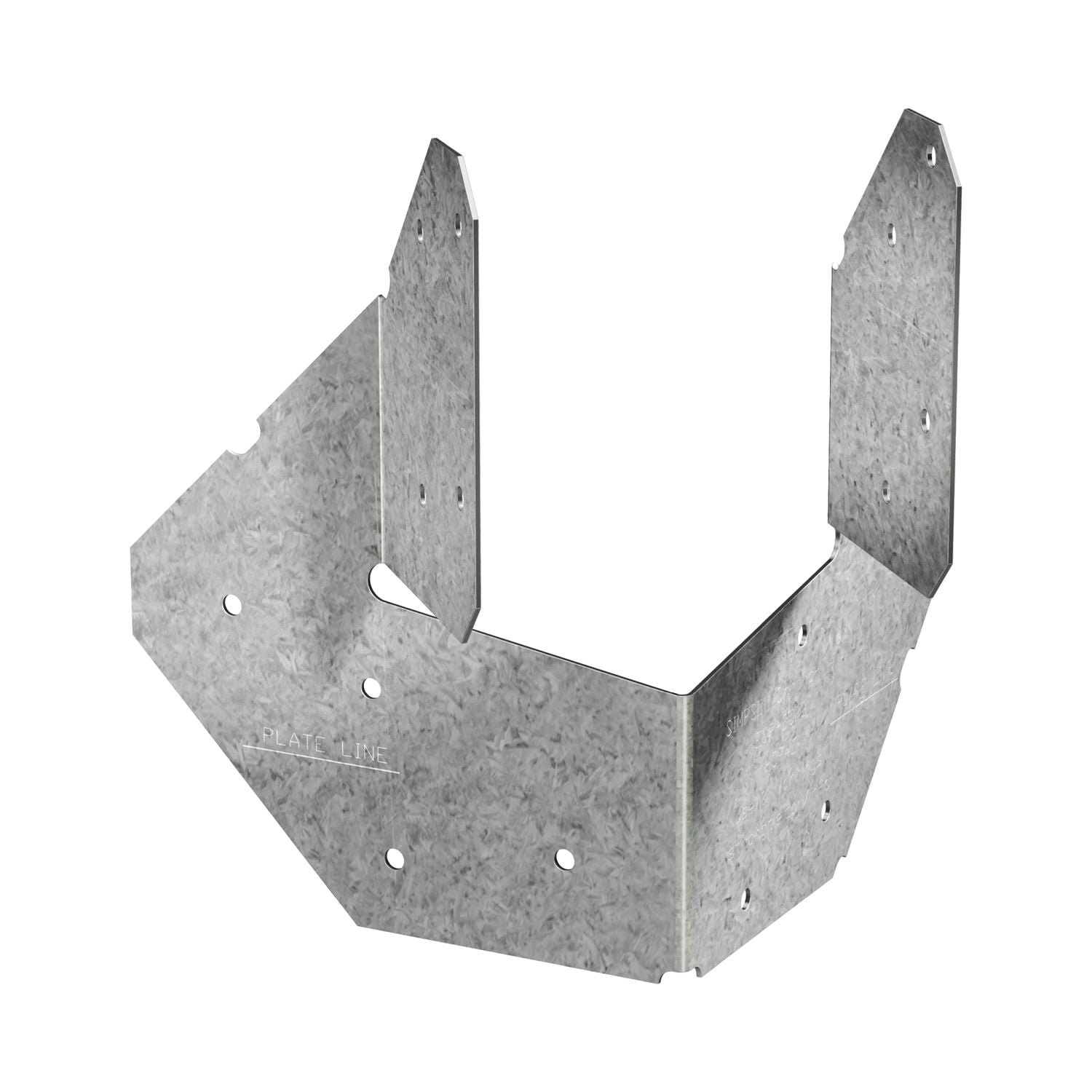

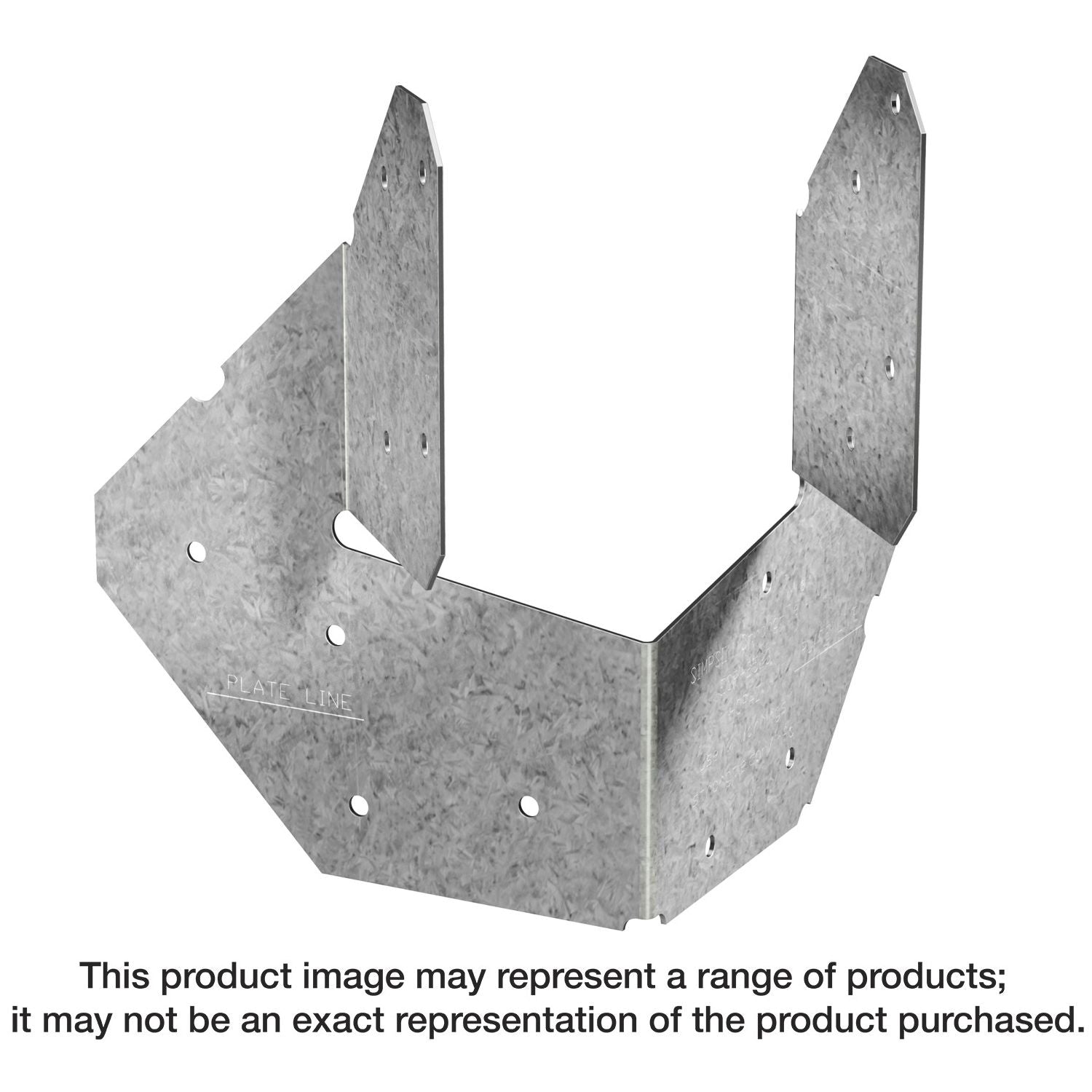

Simpson Strong-Tie HCP4Z HCP 18-Gauge ZMAX Galvanized Hip Corner Plate for 4x
Simpson Strong-Tie HCP4Z HCP 18-Gauge ZMAX Galvanized Hip Corner Plate for 4x
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Attach HCP to double top plates
- Birdsmouth not required for table uplift loads but may be required for download
- Install rafter and complete nailing
- Rafter may be sloped to 45°
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. Hip corner plates are designed for use on the hip of a roof. These corner plates connect a rafter or joist to double top plates at a 45° angle. The HCPs provide resistance to uplift and download forces.
- Attach HCP to double top plates
- Birdsmouth not required for table uplift loads but may be required for download
- Install rafter and complete nailing
- Rafter may be sloped to 45°
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: (8) 0.148 in. x 3 in. nails to the rafters and (8) 0.148 in. x 3 in. nails to the plate
