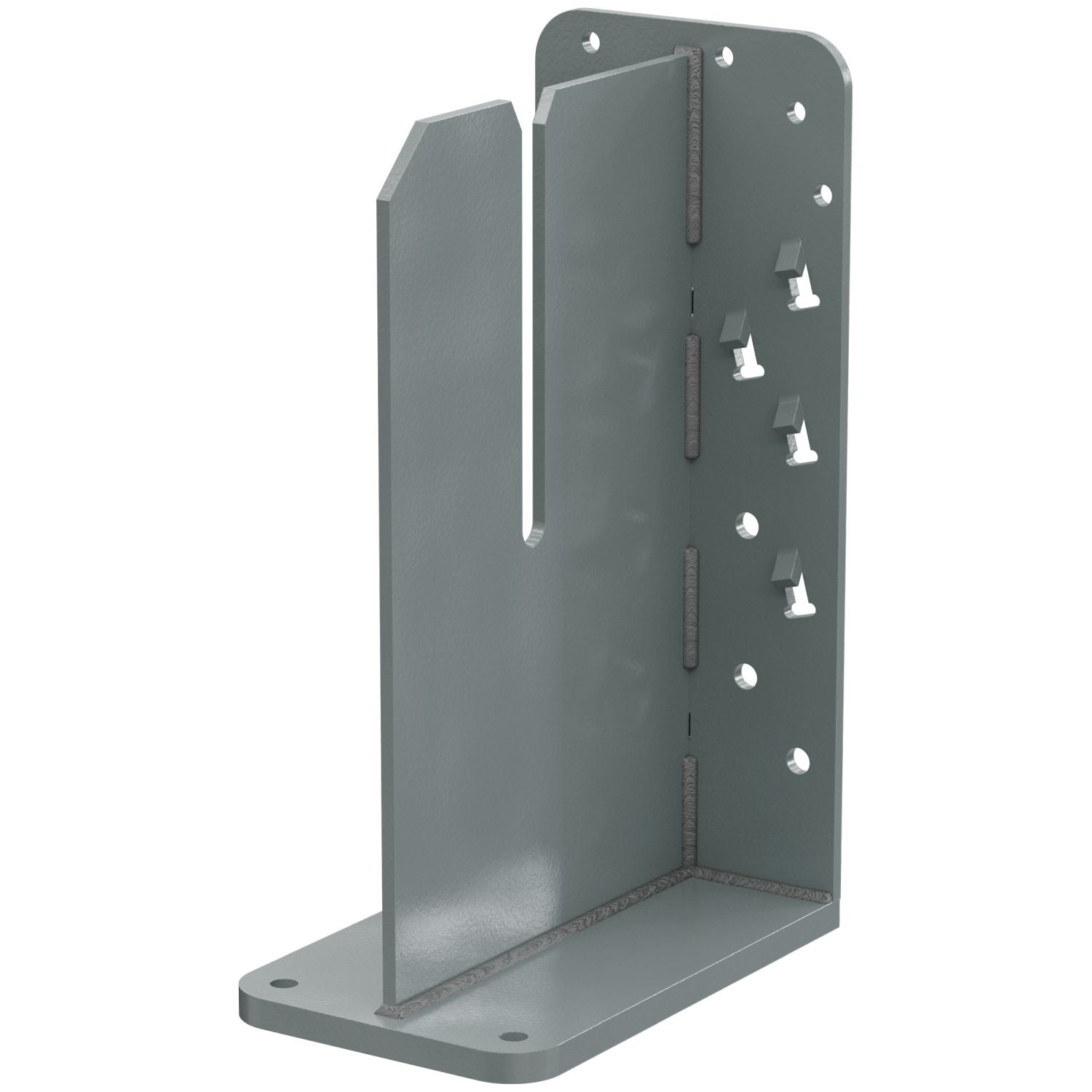

Simpson Strong-Tie HSKP5.75X14.5 HSKP 5.75-in. x 14.5-in. Wood-to-Wood Heavy Seated Knife Plate Hanger
Simpson Strong-Tie HSKP5.75X14.5 HSKP 5.75-in. x 14.5-in. Wood-to-Wood Heavy Seated Knife Plate Hanger
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- High capacity
- Code listed in ICC-ES ESR 2552; 1- and 2-hour fire-resistance ratings per ASTM E119
- Factory installation of connector reduces on-site labor
- Quick field connection of beam to supporting member reduces crane cycle-time
- Inclined screw hole feature reduces the overall screw count compared to horizontal screws
- HSKP offers a concealed wood-to-wood connection
- Recommended for use at beam-to-beam or beam-to-column connections in any Seismic Design Category
- Size: 5.75 in. width x 14.5 in. height
- Simpson Strong-Tie gray-paint finish
Preserve the clean aesthetic of mass timber while delivering engineered performance with the Simpson Strong-Tie HSKP™. Designed for high-load applications, this heavy seated knife plate installs easily using Strong-Drive SDCF Timber-CF structural screws — reducing jobsite labor and improving efficiency. ICC-ES code listed and tested for inter-story drift, the HSKP is engineered to meet demanding structural requirements. Generous fit-up tolerance allows for easier beam placement during erection, making it ideal for precision mass timber projects.
- High capacity
- Code listed in ICC-ES ESR 2552; 1- and 2-hour fire-resistance ratings per ASTM E119
- Factory installation of connector reduces on-site labor
- Quick field connection of beam to supporting member reduces crane cycle-time
- Inclined screw hole feature reduces the overall screw count compared to horizontal screws
- HSKP offers a concealed wood-to-wood connection
- Recommended for use at beam-to-beam or beam-to-column connections in any Seismic Design Category
- Size: 5.75 in. width x 14.5 in. height
- Simpson Strong-Tie gray-paint finish
Install With: Installs with (1) CJTPL 1/2 in. dia. steel dowel, (16) 0.290 in. x 6-1/4 in. Strong-Drive SDCF Timber-CF screws (SDCF27614) and (6) 0.230 in. x 8-5/8 in. SDCF Timber-CF screws (SDCF22858) (fasteners not included)
