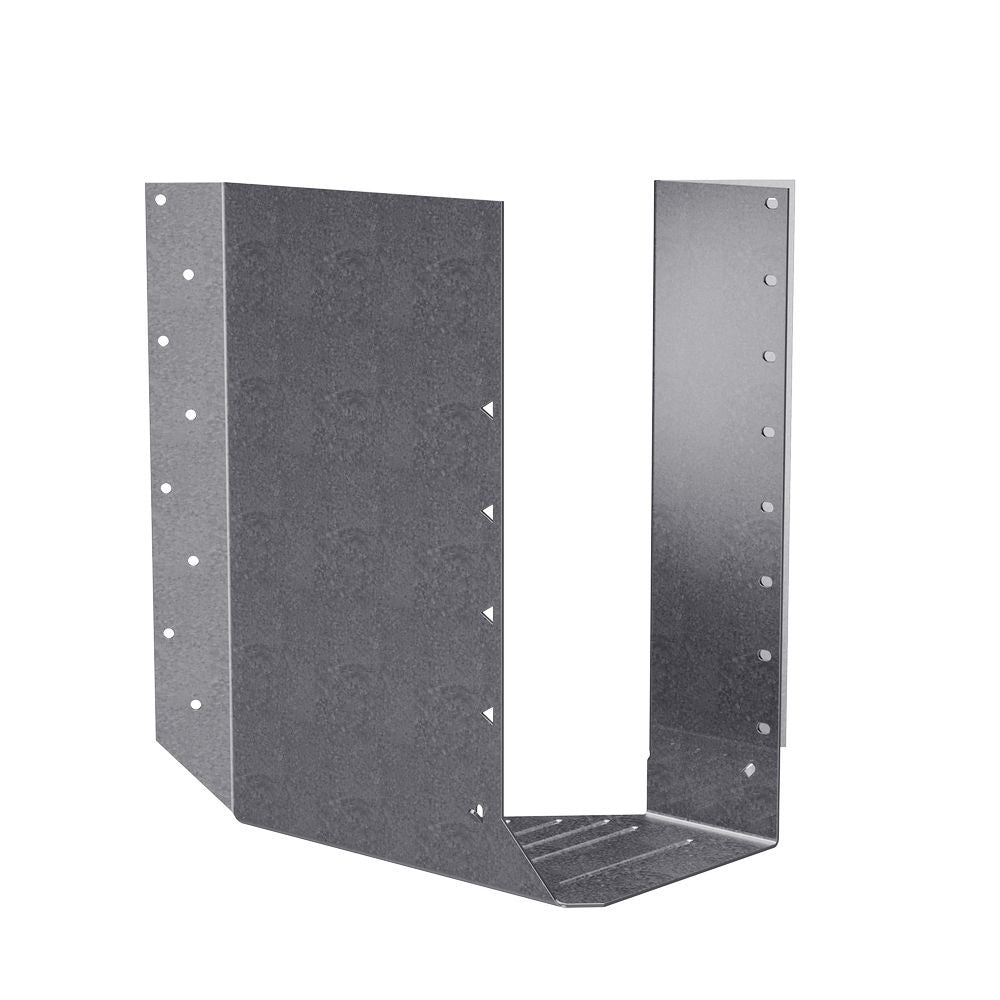

Simpson Strong-Tie HSUR5.12/11 HSUR Galvanized Joist Hanger for 5-in. x 11-7/8-in. Engineered Wood, Skewed Right
Simpson Strong-Tie HSUR5.12/11 HSUR Galvanized Joist Hanger for 5-in. x 11-7/8-in. Engineered Wood, Skewed Right
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- HSUR = skewed right
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- Actual joist size: 5 in. x 11-7/8 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
The HSUR/L are 45°-skewed hangers designed to support large joist members or double I-joists in wood construction. These heavy U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation. The HSUR and HSUL hangers are identical except that they are skewed 45° to the right (HSUR) and the left (HSUL), respectively.
- HSUR = skewed right
- Features obround nail holes on the acute side, allowing nails to be easily installed parallel to the joist
- These hangers cannot be modified but will accommodate a 40°- to 50°-skewed joist
- Features positive-angle nailing for engineered wood sizes to prevent wood splitting and to speed installation
- Actual joist size: 5 in. x 11-7/8 in.
- Made from 14-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: (16) 0.162 in. x 3-1/2 in. nails in the face and (2) 0.148 in. x 1-1/2 in. nails in the joist
