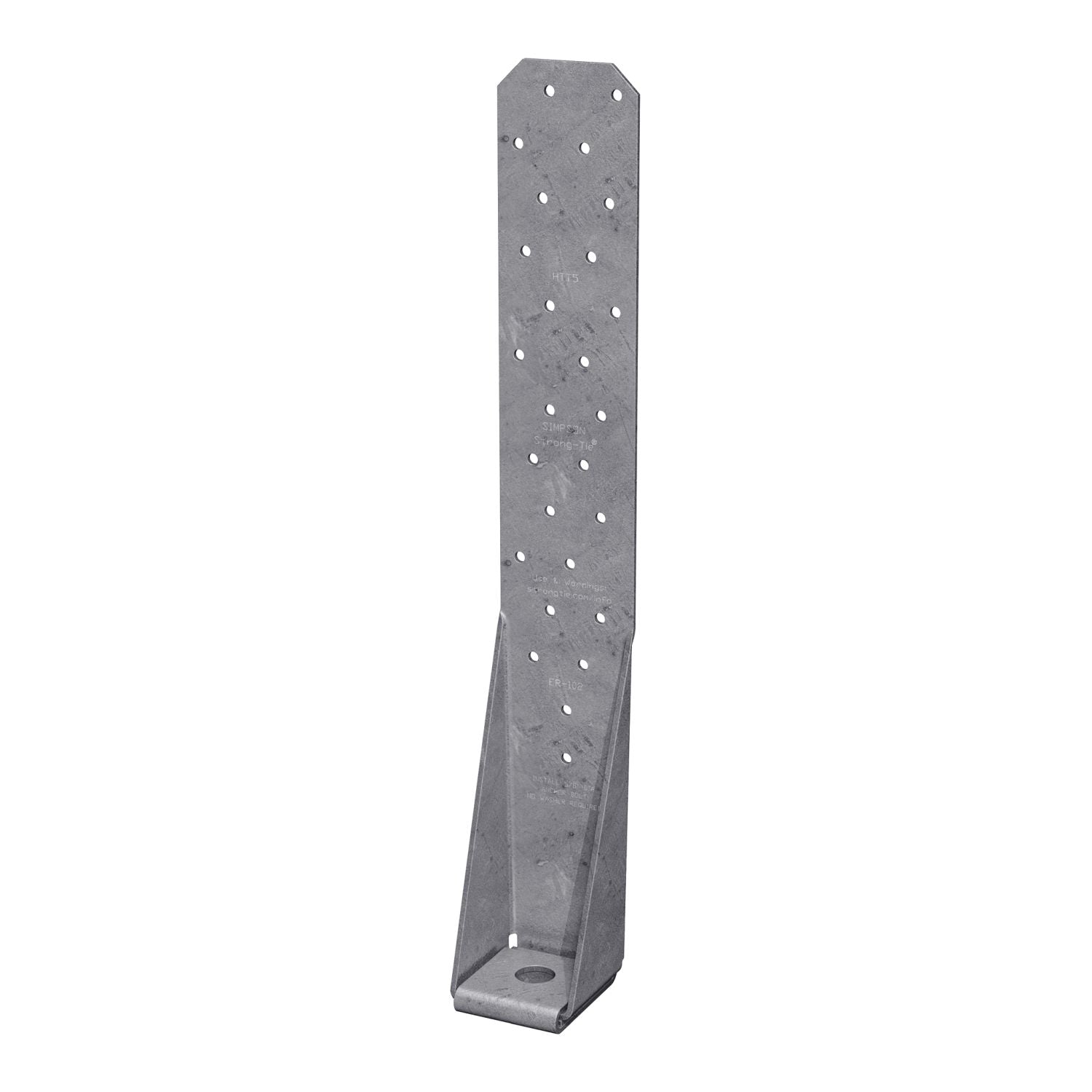

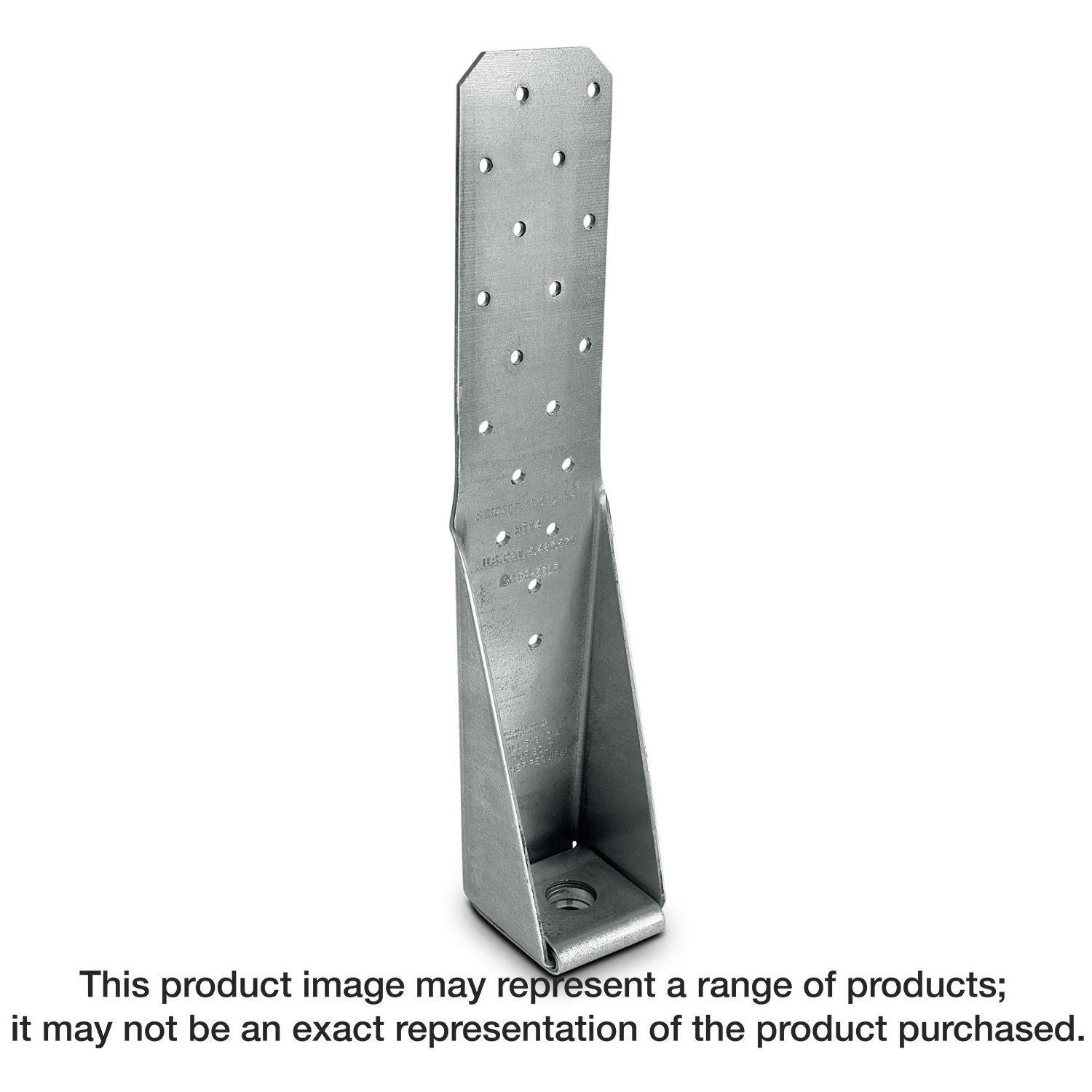

Simpson Strong-Tie HTT5HDG HTT 16-in. Hot-Dip Galvanized Heavy Tension Tie for 5/8-in. Anchor
Simpson Strong-Tie HTT5HDG HTT 16-in. Hot-Dip Galvanized Heavy Tension Tie for 5/8-in. Anchor
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Ideal for retrofit or new construction projects
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- 2-1/2-in. width x 16-in. length
- Anchor rod diameter: 5/8 inch
- Made from 11-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
The Simpson Strong-Tie HTT is designed to resist medium tension loads that are fastened with #10 screws. This single-piece formed heavy tension tie has a four-ply formed seat, is designed without rivets and does not require washers. This tension tie provides high-strength, post-pour, concrete-to-steel connections.
- Ideal for retrofit or new construction projects
- Can be installed with cast-in-place or post-installed anchor bolts
- Four-ply formed steel provides increased tension capacity
- Anchor bolt washers not required
- 2-1/2-in. width x 16-in. length
- Anchor rod diameter: 5/8 inch
- Made from 11-gauge steel
- Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
Install With: (1) 5/8-in. anchor bolt AND (26) 0.148 x 1-1/2-in. nails, 0.148 x 3-in. nails, 0.162 x 2-1/2-in. nails or #10 x 1-1/2-in. Strong-Drive SD Connector screws; corrosion-resistant fasteners must be used
