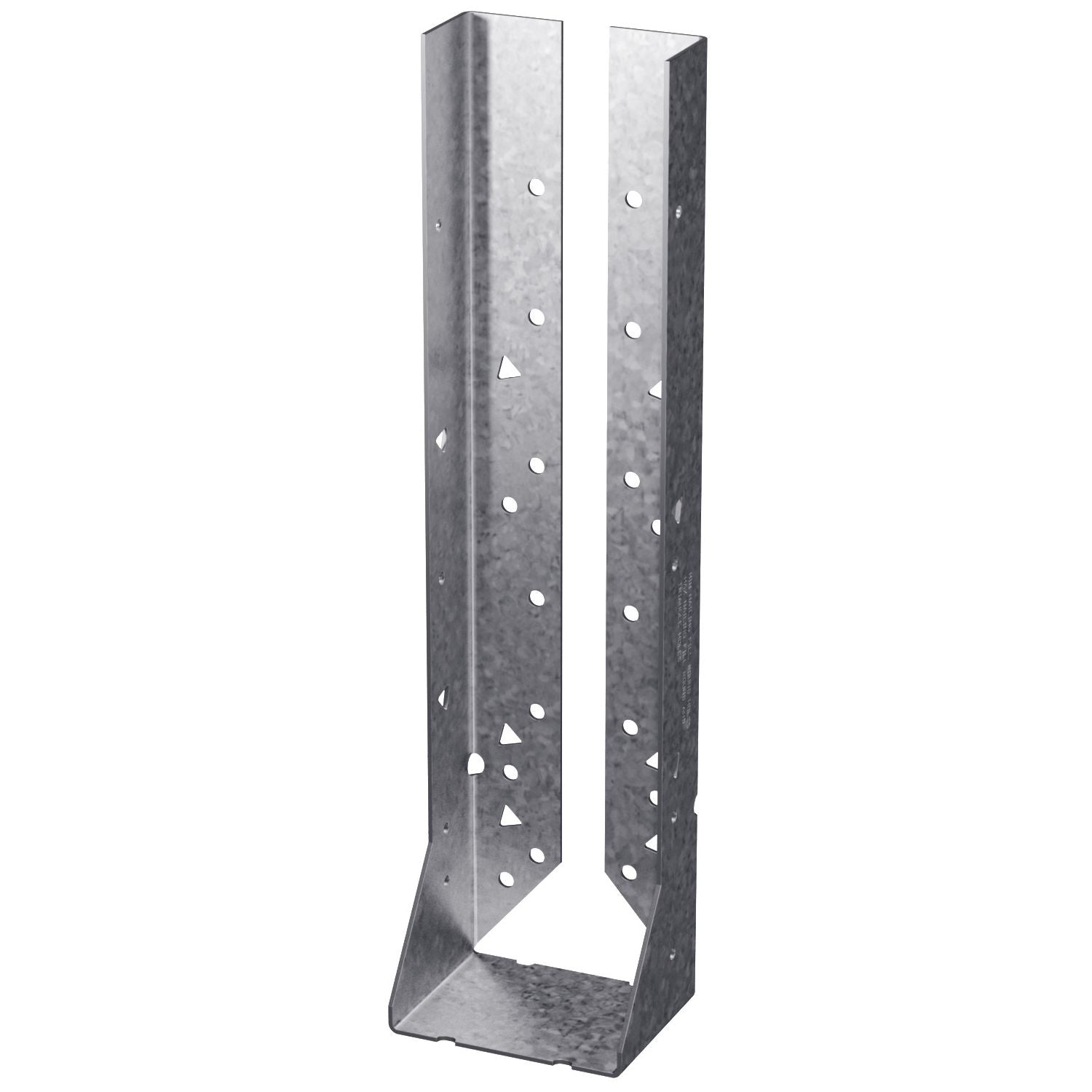

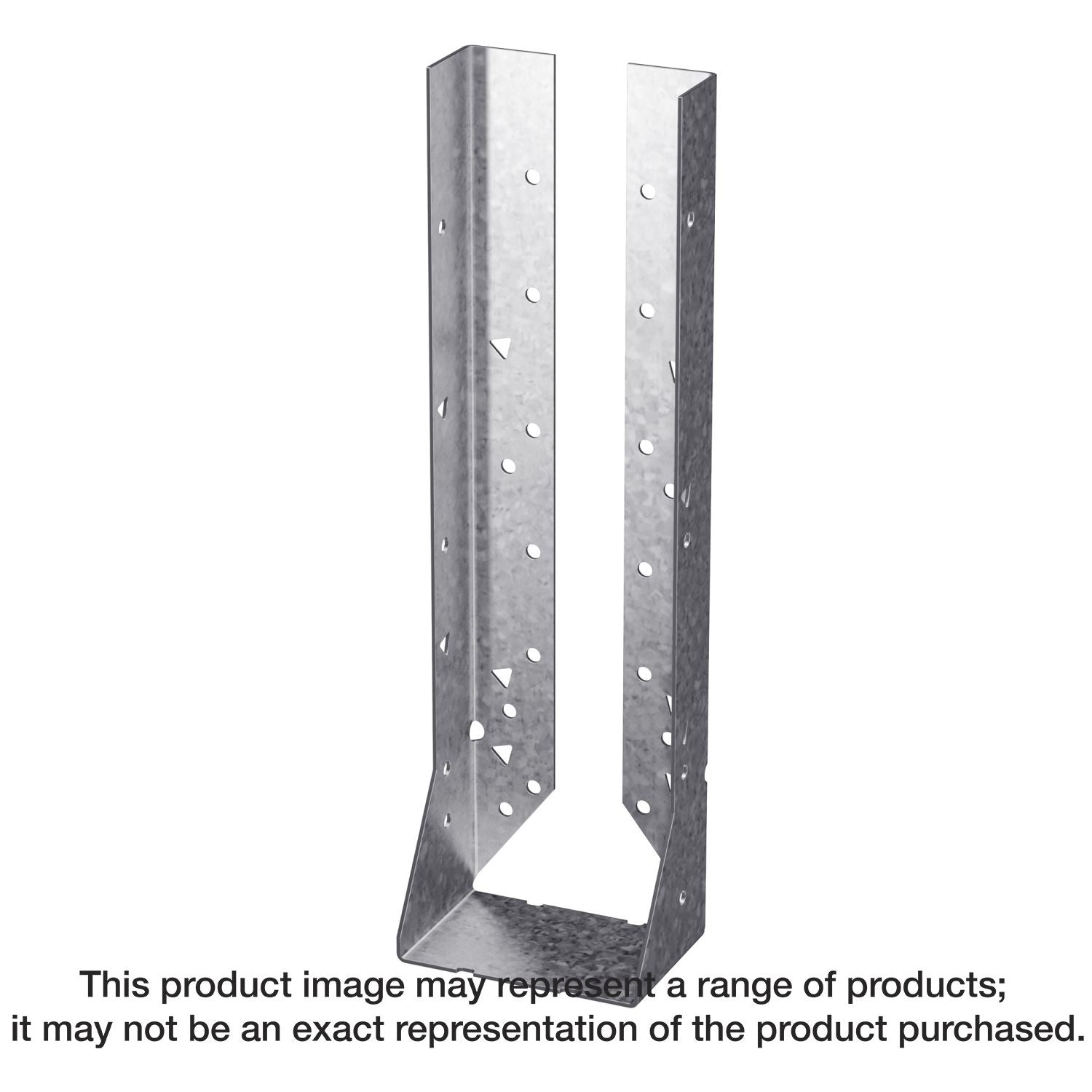

Simpson Strong-Tie HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x14 (HUC214-2)
Simpson Strong-Tie HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x14 (HUC214-2)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie HUC214-2 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x14 is a heavy-duty face-mount hanger made for structural wood connections where extra strength and a cleaner concealed-flange layout matter. This is a joist hanger designed for supporting double 2x14 members in face-mount framing applications. Model number HUC214-2. It is a solid fit for schools and other structures that call for added strength and safety factors, which is exactly what the HUC line was built around.
What separates this hanger from a standard light-duty connector is the way it is built for higher-demand framing work. Simpson Strong-Tie gives the HUC series extra optional triangle holes for additional load, so the installer can use the specified round holes only or fill both the round and triangle holes for maximum published values. That gives you more room to match the connector to the job instead of being locked into one installation pattern.
The concealed header flanges are the other big part of the design. On jobs where clearance, beam layout, or appearance matters, concealed flanges can make the assembly easier to work into the structure than a more exposed hanger shape. This is still a face-mount connector, but it is laid out for a cleaner connection at the support member.
Material matters with connectors, and this one uses 14-gauge steel with a zinc galvanized G90 finish. That combination is what gives the HUC214-2 its heavy-duty feel and makes it suitable for demanding framing applications. The dimensions listed for this exact model are 3-1/8 inches wide, 12-1/8 inches high, and 2-1/2 inches seat depth, which lines it up with a double 2x14 application.
From an installation standpoint, this connector is more versatile than many buyers realize. Simpson Strong-Tie notes that joists sloped up to 1/4:12 achieve table loads, and the hanger can also be attached to a steel support when the application follows the referenced technical bulletin. For engineered wood applications, web stiffeners are required for I-joist use. Those are the kinds of jobsite details that matter because they affect whether the connector is the right choice before the order is placed.
This HUC hanger is also tested, load rated, and code compliant. For commercial work, school projects, engineered framing, and any job that is going to be reviewed closely, that is a practical advantage. You are not just buying a bent piece of steel. You are buying a connector with published design intent and documented performance.
If you are framing heavy floor or roof members and need a concealed-flange hanger with more capacity options than a basic face-mount hanger, this is the right kind of product to look at. It makes the most sense for professional builders, framers, engineers, and serious remodelers working on structural wood connections where connector choice actually affects the outcome.
Made for Structural Framing
This connector belongs on real structural framing work, not light-duty patch jobs. The HUC design was developed for applications that need more strength margin and more confidence at inspection time.
- Heavy-duty HUC series for additional strength and safety factors
- Face-mount design for supporting double 2x14 framing members
- Tested, load rated, and code compliant
Concealed Flanges, Cleaner Connection
The concealed-flange layout is the feature most buyers are after here. It gives you a heavy-duty hanger while keeping the connection tucked in at the support member, which can help with layout and overall fit in more demanding assemblies.
- Concealed header flanges are part of the HUC design
- Exact model dimensions: 3-1/8 in. W x 12-1/8 in. H x 2-1/2 in. seat depth
- Packaging quantity for HUC214-2 is 1
Flexible Installation Options
This is not a one-note connector. The HUC series can be used in more than one support condition when the installation follows Simpson Strong-Tie guidance, which is useful on mixed-material jobs.
- Can be installed using round holes only, or round plus triangle holes for maximum values
- Can be attached to a steel support when the application follows the published technical bulletin
- For I-joist applications, web stiffeners are required
Key Specifications
| Connector Type | Face-mount concealed-flange joist hanger |
|---|---|
| Series | HUC |
| Material Thickness | 14 ga. (68 mil) |
| Finish | Zinc galvanized, G90 |
| Width (in.) | 3 1/8 in. |
| Height (in.) | 12 1/8 in. |
| Seat Depth (in.) | 2 1/2 in. |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
With the HUC214-2, do not treat every hole pattern the same. Simpson Strong-Tie allows installation with round holes only or with both round and triangle holes for maximum values, so make sure your fastener pattern matches the load you are designing for.
Tool Nut's Take
Simpson Strong-Tie HUC214-2 HUC Galvanized Face-Mount Concealed-Flange Joist Hanger for Double 2x14 Gets Picked When Basic Hangers Are Not Enough
This is the kind of connector you buy when the framing plan is doing real work and you want a heavier hanger with more load-path flexibility.
- Who it's for: Framers, builders, and engineers working on structural wood connections for double 2x14 members.
- Why it stands out: You get a heavy-duty HUC design, concealed header flanges, and optional triangle holes for added load potential.
- Worth knowing: Fastener pattern matters here, and I-joist applications need web stiffeners. This is not a grab-any-nails-and-go connector.
Common Questions
- What size member is the HUC214-2 made for? This model is sized for a double 2x14 application.
- Is the HUC214-2 code compliant? Yes. Simpson Strong-Tie states that HUC-series hangers are tested, load rated, and code compliant.
- Can this hanger be used with engineered wood? Yes, the product information lists engineered wood as an application, and web stiffeners are required for I-joist applications.
- Can it attach to steel support members? Yes, Simpson Strong-Tie states it can be attached to a steel support when installed according to the referenced technical bulletin.
