• Accommodates 1 in. of lateral drift in each direction, and 1 in. of upward and downward vertical deflection
• Unique design placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
• Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
• Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for corrosion resistance
• Width: 3-3/8 inches
• Quantity: 25 per package

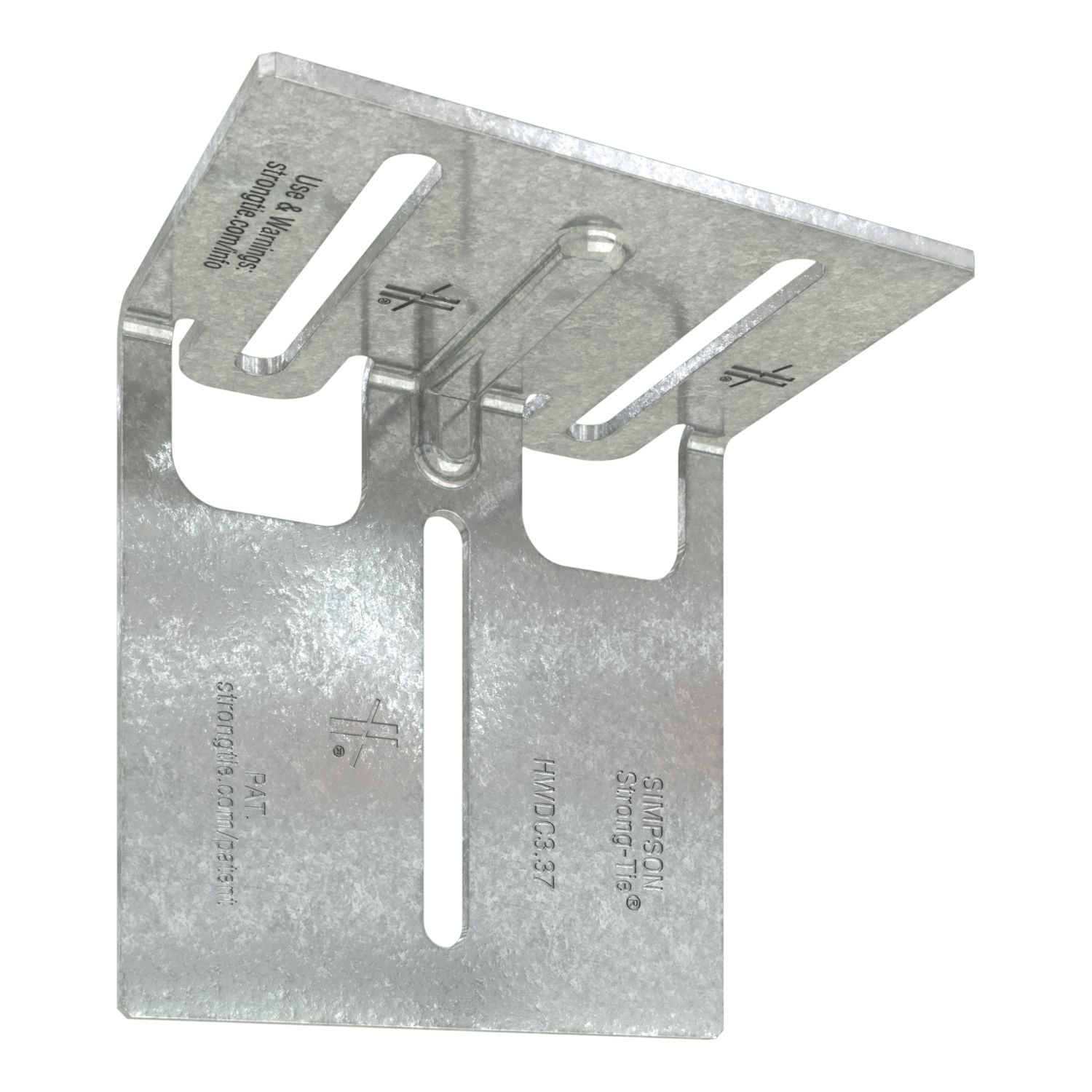

The Simpson Strong-Tie head-of-wall drift-clip connector (HWDC) is used to secure the head of a wall to the bottom of a slab or beam. The unique design allows anchor screws to be installed closer to the bend, providing a stronger and stiffer connection while also allowing horizontal and vertical movement during seismic and high-wind events. HWDC5.25 provides anchorage location options with a third slot providing a solution for clips overhanging beam flanges. HWDC connectors are an optimal solution for adding strength to window or door jambs at head-of-wall connections.

• Accommodates 1 in. of lateral drift in each direction, and 1 in. of upward and downward vertical deflection
• Unique design placement of the anchorage slots allows for closer attachment of anchorage to the clip bend, providing increased load capacity
• Stiffening ribs are placed in between anchorage slots through the bend to provide additional strength and stiffness
• Simpson Strong-Tie No-Equal stamps mark the center of the slots to help ensure proper shouldered screw and anchor placement
• Made from 12-gauge (97 mil) steel
• Galvanized (G90) for corrosion resistance
• Width: 3-3/8 inches
• Quantity: 25 per package

Install With: Install with #14 shoulder screws (included)
