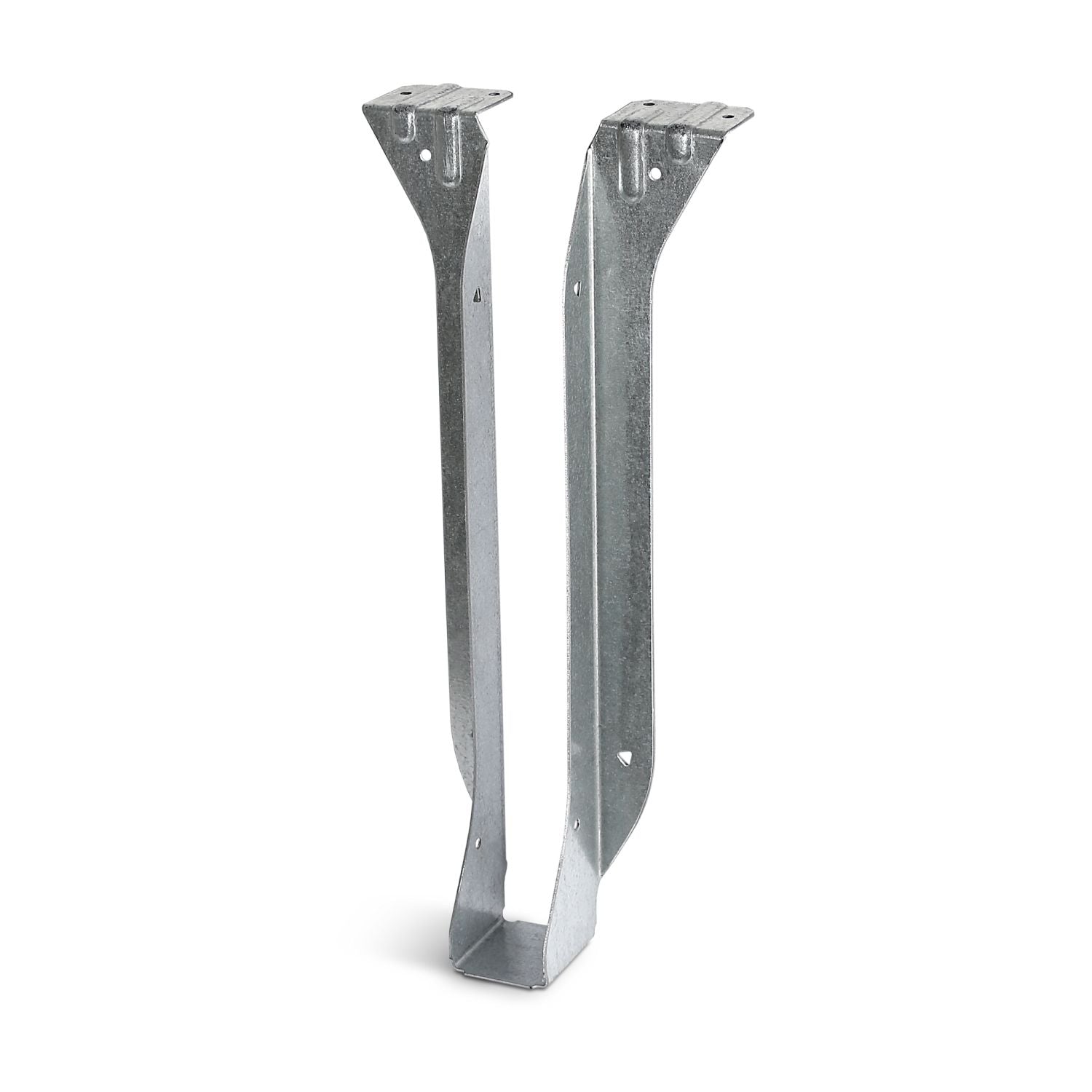

Simpson Strong-Tie JB214A JBA Galvanized Top-Flange Hanger for 2x14
Simpson Strong-Tie JB214A JBA Galvanized Top-Flange Hanger for 2x14
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Unique two-level embossment provides added stiffness to the top flange
- Nail locations that enable effective use with nailers
- Additional load rating for a 2x or 3x nailer
- Engineered with increased uplift loads for earthquake or high-wind loading
- Seat width: 1-9/16 in.
- Nominal joist size: 2x14
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
The JBA is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The JBA also features optional triangular nail holes for maximum nailing to increase allowable loads.
- Unique two-level embossment provides added stiffness to the top flange
- Nail locations that enable effective use with nailers
- Additional load rating for a 2x or 3x nailer
- Engineered with increased uplift loads for earthquake or high-wind loading
- Seat width: 1-9/16 in.
- Nominal joist size: 2x14
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist
