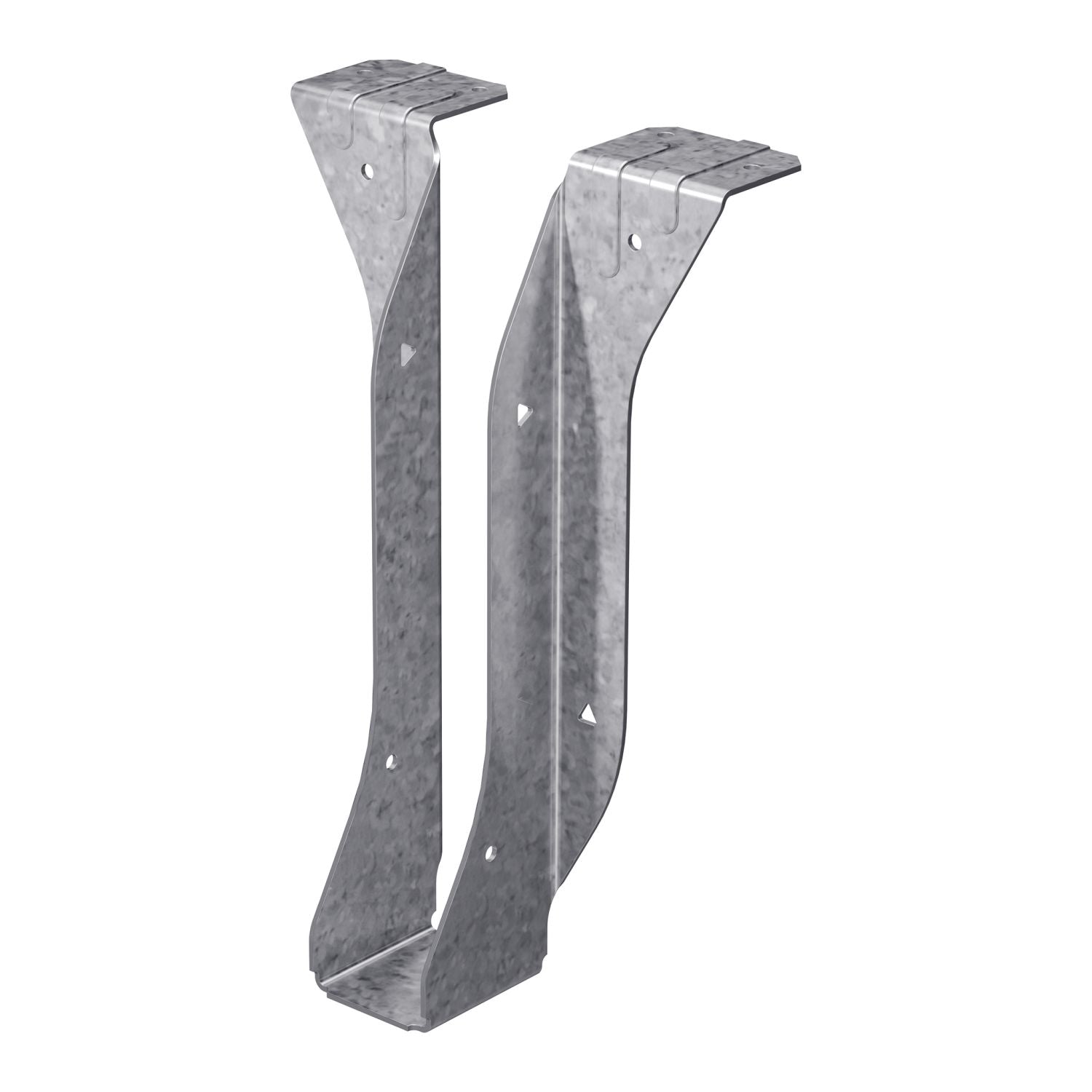

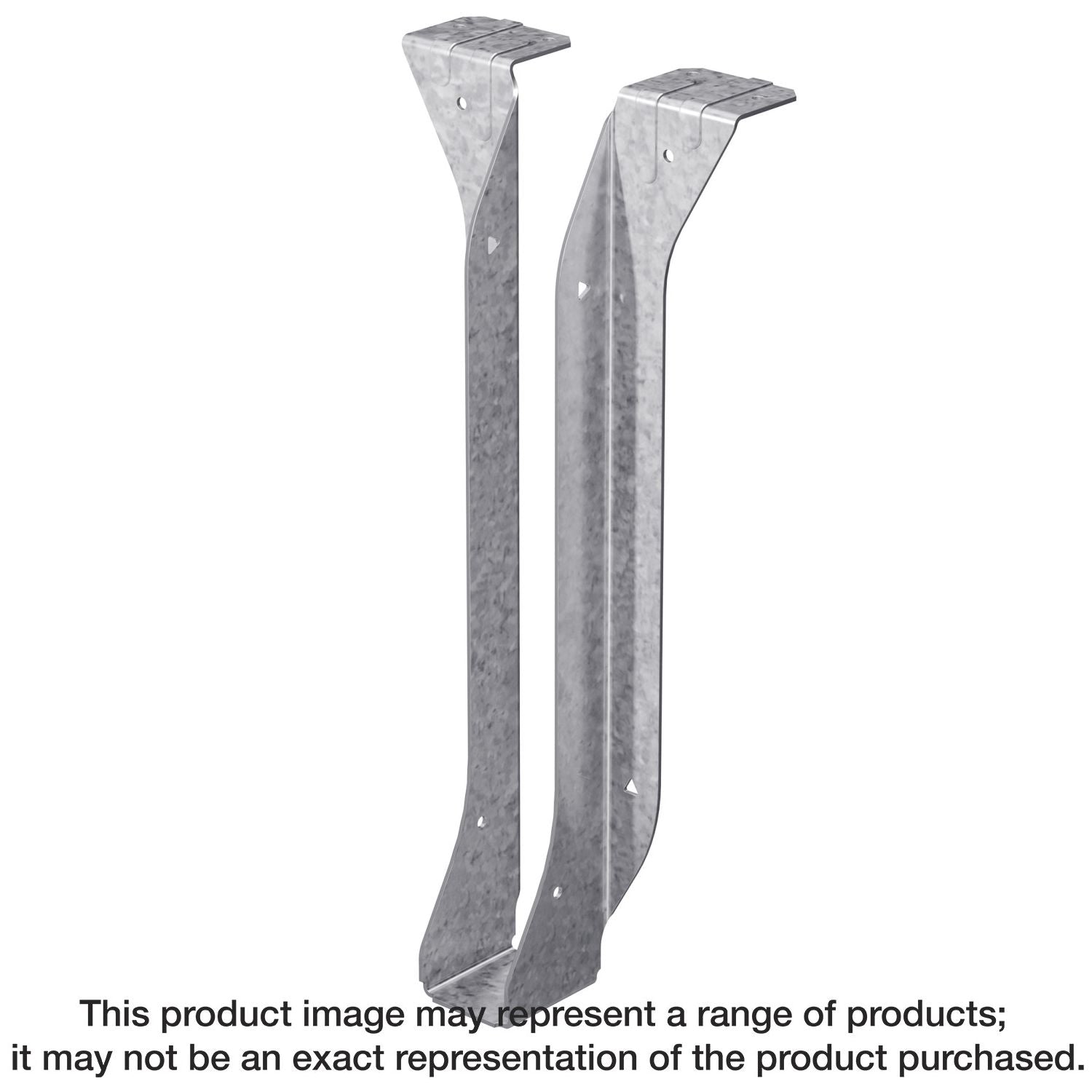

Simpson Strong-Tie LB210AZ LBAZ ZMAX Galvanized Light-Bent Top-Flange Joist Hanger for 2x10
Simpson Strong-Tie LB210AZ LBAZ ZMAX Galvanized Light-Bent Top-Flange Joist Hanger for 2x10
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Designed to help resist download forces
- The unique two-level embossment provides added stiffness to the top flange
- Quick installation
- Seat width: 1-9/16 in.
- Height: 9-3/16 in.
- Top flange depth: 1-7/16 in.
- Nominal joist size: 2x10
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
The LBAZ is a top-flange hanger for solid sawn lumber applications. This cost-effective hanger is designed to support light-to-medium loads while providing uplift. The zinc-coated LBAZ has been load rated for use with a 2x or 3x nailer if required.
- Designed to help resist download forces
- The unique two-level embossment provides added stiffness to the top flange
- Quick installation
- Seat width: 1-9/16 in.
- Height: 9-3/16 in.
- Top flange depth: 1-7/16 in.
- Nominal joist size: 2x10
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Install With: Install with (6) 0.162 in. x 3-1/2 in. nails in the header and (2) 0.148 in. x 1-1/2 in. nails in the joist
