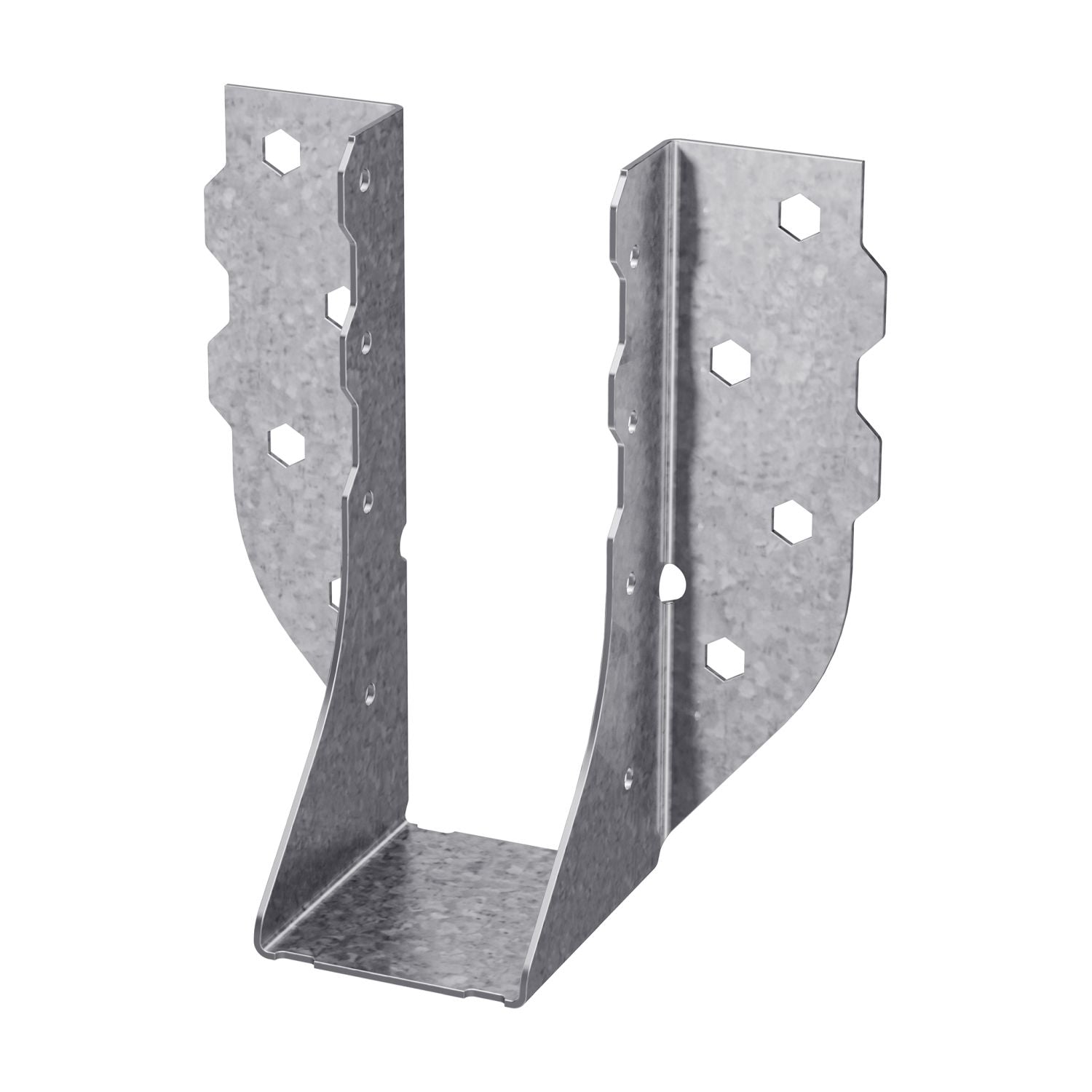

Simpson Strong-Tie LGUM210-2-SDS LGUM High-Capacity Girder Hanger for Masonry for Double 2x10 with Screws/Anchors
Simpson Strong-Tie LGUM210-2-SDS LGUM High-Capacity Girder Hanger for Masonry for Double 2x10 with Screws/Anchors
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
- Titen HD is not recommended for exposed exterior applications
- Provide moisture barrier between beam and wall per jurisdictional requirements
- Seat width: 3-5/16 in.
- Height: 9-3/16 in.
- Nominal joist size: Double 2x10
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. LGUM high-capacity beam or girder hangers are for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie Strong-Drive SDS screws (provided) into the wood member and Titen HD anchors (provided) into the masonry.
- Attach hanger to a concrete or grouted CMU wall using Titen HD anchors
- Titen HD is not recommended for exposed exterior applications
- Provide moisture barrier between beam and wall per jurisdictional requirements
- Seat width: 3-5/16 in.
- Height: 9-3/16 in.
- Nominal joist size: Double 2x10
- Made from 12-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with Strong-Drive SDS Heavy-Duty Connector screws and Titen HD anchors (included)
