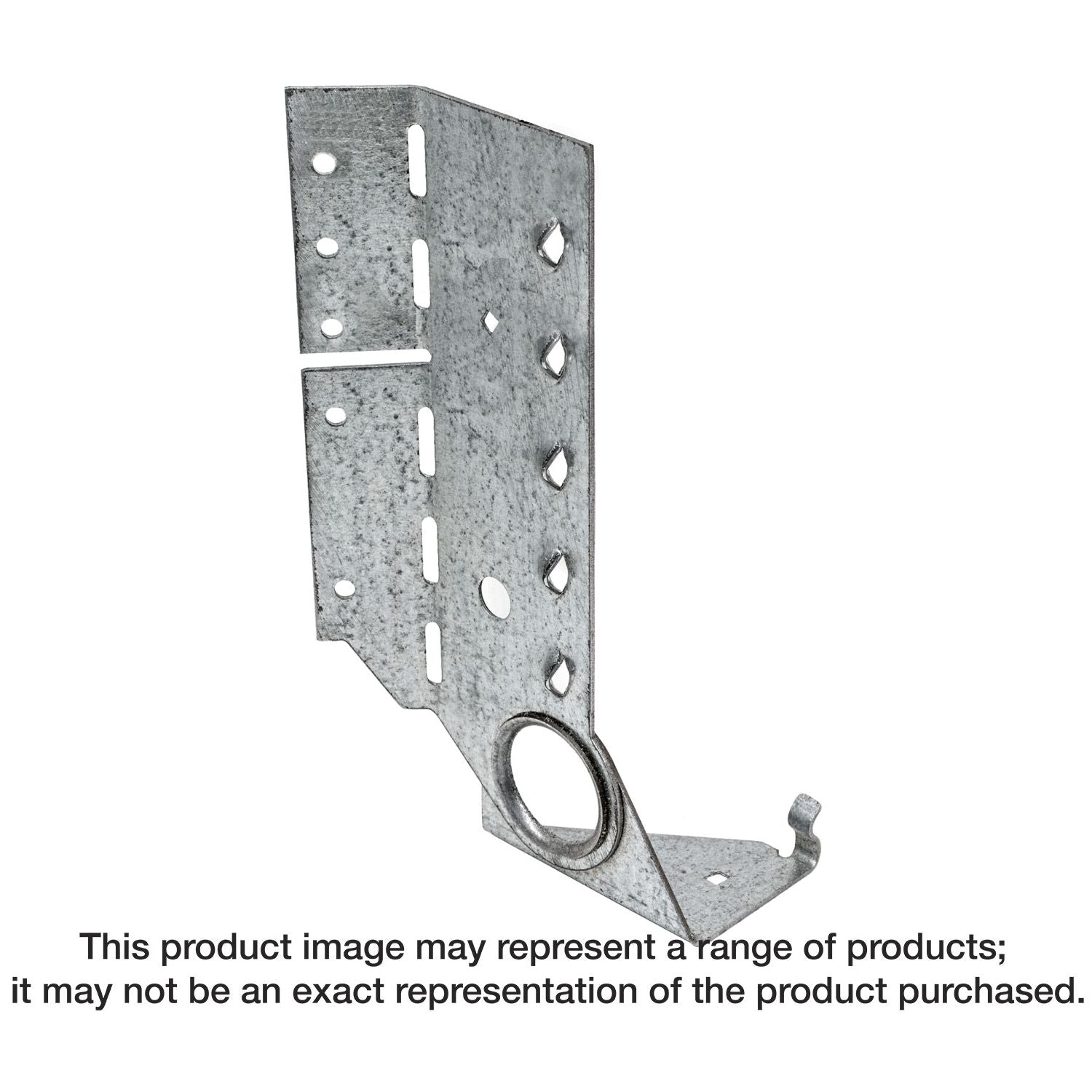

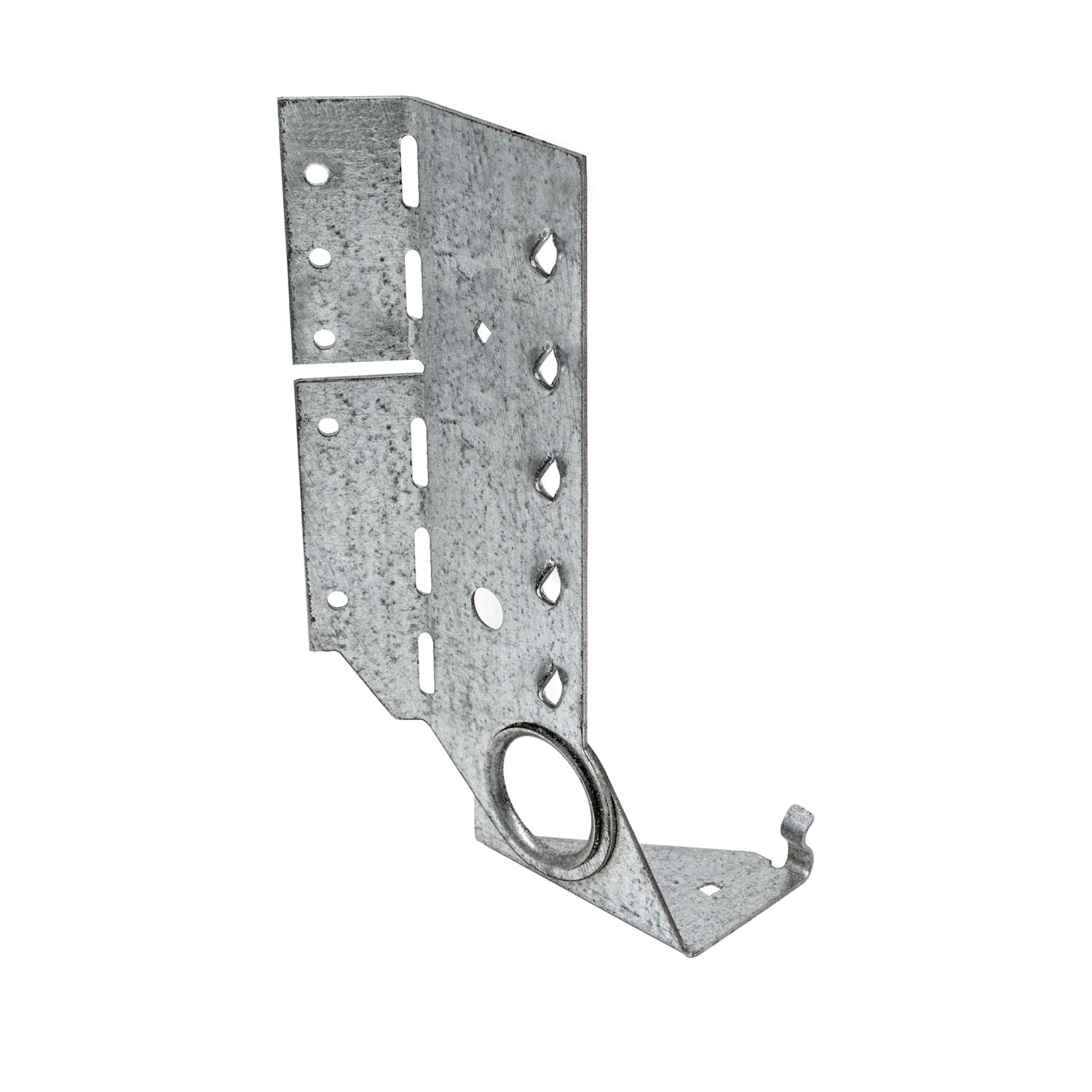

Simpson Strong-Tie LSSJ210LZ LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x10, Left
Simpson Strong-Tie LSSJ210LZ LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x10, Left
Out of Stock - Available to Order - Usually ships in 1-2 days
Product Details
Product Details
- Hanger installs from one side with all fastener holes easily accessible
- Can be installed as a retrofit
- Seat grip makes setting the hanger quick and easy
- Accommodates roof pitches from 0:12 to 12:12
- Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Width: 1-9/16 in.
- Skewed left
The innovative LSSJ is ideal for connecting jack rafters to hip members. Featuring a one-sided connection point for ease of installation and a versatile, hinged seat, the LSSJ is easily field adjustable to all typical rafter slopes ranging from 0:12 to 12:12. The LSSJ’s header flange allows for easy skew adjustment, from 0° to 45°. It ships pre-bent at 45° so is ready to place for most typical applications.
- Hanger installs from one side with all fastener holes easily accessible
- Can be installed as a retrofit
- Seat grip makes setting the hanger quick and easy
- Accommodates roof pitches from 0:12 to 12:12
- Swivel seat adjusts easily and provides more support to joist, allowing for a higher load than fasteners alone
- Made from 18-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Width: 1-9/16 in.
- Skewed left
Install With: Install with (6) 0.148 in. x 3 in. or (6) 0.148 in. x 1-1/2 in. nails in the face and (6) 0.148 in. x 3 in. or (6) 0.148 in. x 1-1/2 in. nails in the joist
