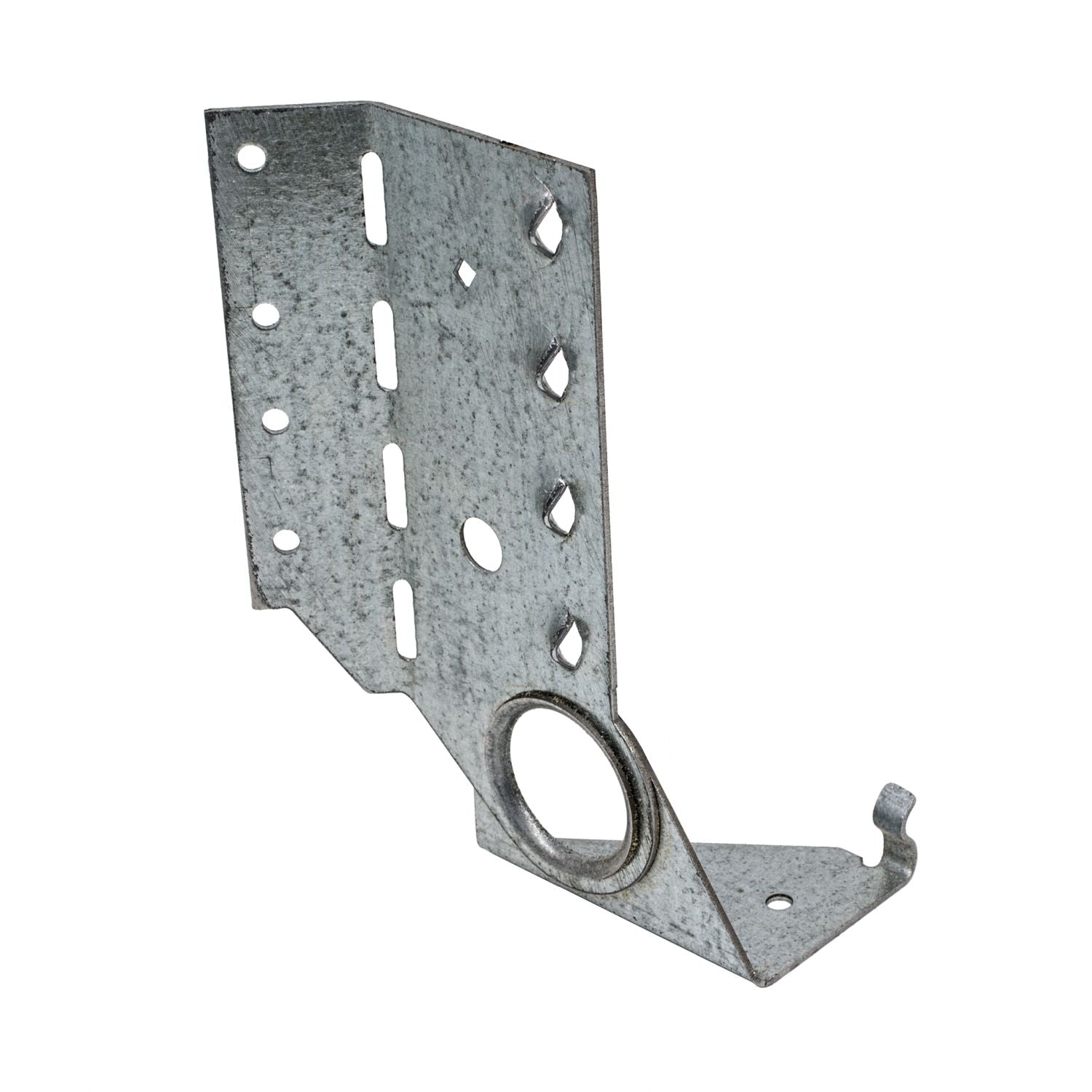

Simpson Strong-Tie LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x6, Left (LSSJ26LZ)
Simpson Strong-Tie LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x6, Left (LSSJ26LZ)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie LSSJ26LZ Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger is a left-skew face-mount hanger for connecting a 2x6 jack rafter to a hip or valley member in roof framing. This is a face-mount jack hanger designed for roof framing connections where slope and skew can vary. Model Number: LSSJ26LZ. If you are framing hips, valleys, or other angled roof intersections, this connector gives you an adjustable way to make that joint without relying on a fixed-angle hanger.
What makes this hanger useful on the job is the combination of slope and skew adjustment in one piece. It accommodates roof pitches from 0:12 to 12:12, and the header flange allows skew adjustment from 0 to 45 degrees. That range covers a lot of real framing conditions, especially when field measurements are not perfect or when existing framing forces you to work around what is already there.
The one-sided installation is a real time-saver. All the fastener holes are accessible from one side, which is exactly what you want when the connection is tucked into a roof corner or when you are doing a retrofit and access is limited. Simpson Strong-Tie also uses a seat grip to help set the hanger quickly, so the connector is easier to position before fastening.
The swivel seat is the part that makes this design more than just a bent bracket. It adjusts to the framing angle and supports the joist or rafter better than fasteners alone. In practical terms, that means the connector is doing more of the work of holding and locating the member, which helps create a cleaner, more repeatable installation when you are dealing with angled lumber.
For this LSSJ26LZ size, the hanger is sized for 2x6 nominal lumber, with a listed width of 1-9/16 inches and a height of 4-3/8 inches from the manufacturer table. It is made from 18-gauge steel and finished with ZMAX coating. That corrosion-resistant finish is intended for exterior and treated-wood applications, which is where this style of connector commonly ends up.
This hanger is also built with field conditions in mind. It can be installed as a retrofit, which matters when repairs or additions have to tie into existing roof framing. The product literature also notes that the joist end needs to be bevel cut for installation, so this is a connector meant for a proper framing fit, not a catch-all shortcut.
Fasteners are not included, so plan for that before the job starts. The product information calls for specified connector nails, including 0.148 inch x 1-1/2 inch nails or 0.148 inch x 3 inch nails depending on the installation requirements. As with all structural connectors, using the specified fasteners is part of getting the hanger to perform as intended.
Who should buy this? Roof framers, carpenters, remodelers, and contractors dealing with jack rafters at hip or valley beams. It is especially useful when you need adjustability, when access is limited to one side, or when you are tying new framing into an existing structure. If you are building standard square connections, this is more hanger than you need. If you are working angled roof framing, it is the right kind of problem-solver.
Built for Angled Roof Framing
This hanger is made for the kind of roof framing connection that rarely lands at a simple fixed angle. The adjustable design helps you fit jack rafters to hip or valley members without switching to a different connector every time the geometry changes.
- Handles roof pitches from 0:12 to 12:12
- Header flange allows skew adjustment from 0 to 45 degrees
Faster Access in Tight Spots
One-sided installation is the feature that saves time when access is limited. Instead of reaching around the connection, you can work from the accessible side and still get to the fastener holes cleanly.
- All fastener holes are accessible from one side
- Suitable for retrofit work where framing already blocks access
Support That Adjusts With the Rafter
The swivel seat is what helps this hanger do its job across changing roof layouts. It adjusts easily and adds support at the seat, which gives the member a better bearing point than fasteners alone.
- Seat grip helps set the hanger quickly during installation
- Swivel seat provides added support to the connected member
Exterior-Ready Steel Construction
This connector is made from 18-gauge steel and finished with ZMAX coating, so it is built for the conditions where structural connectors usually live: exposed framing, exterior work, and treated lumber applications.
- 18-gauge steel construction
- ZMAX coating adds corrosion resistance for exterior and treated-wood use
What's in the Box
- (1) Simpson Strong-Tie LSSJ26LZ left-skew adjustable jack hanger
Fasteners are not included.
Key Specifications
| Tool Type | Face-mount adjustable jack hanger |
|---|---|
| Joist Size | 2x6 nominal lumber |
| Skew | Left |
| Material | Steel |
| Gauge | 18 ga. |
| Width (in.) | 1-9/16 in. |
| Height (in.) | 4-3/8 in. |
| Finish | ZMAX galvanized coating |
| Roof Pitch Range | 0:12 to 12:12 |
| Skew Adjustment | 0° to 45° |
| Weight (lbs) | 0.29 lbs |
| Package Quantity | 1 |
Compatibility
Built For
Pro Tip
Bevel cut the jack rafter end before setting the hanger. This connector is adjustable, but it still depends on the member fitting the seat correctly, and using the specified fasteners is part of getting the load performance the hanger was designed for.
Tool Nut's Take
Simpson Strong-Tie LSSJ26LZ solves the roof angle problem
If you frame jack rafters into hip or valley members, this hanger gives you the adjustability that keeps the connection practical instead of fussy.
- Who it's for: Roof framers, carpenters, and remodelers working with 2x6 jack rafters in sloped or skewed roof framing.
- Why it stands out: One-sided installation, 0:12 to 12:12 pitch adjustment, and up to 45 degrees of skew adjustment make it useful in the real world, not just on a clean plan set.
- Worth knowing: This is a single hanger, left-skew model, and fasteners are not included. It also requires a bevel-cut joist end, so plan the connection properly before you start nailing.
Common Questions
- What lumber size is this hanger made for? This model is sized for 2x6 nominal lumber.
- Can this hanger be used in retrofit work? Yes. The manufacturer states that it can be installed as a retrofit.
- How much roof pitch adjustment does it allow? It accommodates roof pitches from 0:12 to 12:12.
- Is this a left or right skew hanger? The LSSJ26LZ is the left-skew version.
- Are fasteners included? No. Fasteners are not included.
