Simpson Strong-Tie LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x6, Right (LSSJ26RZ)
Simpson Strong-Tie LSSJ ZMAX Face-Mount Adjustable Light Slopeable/Skewable Jack Hanger for 2x6, Right (LSSJ26RZ)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview

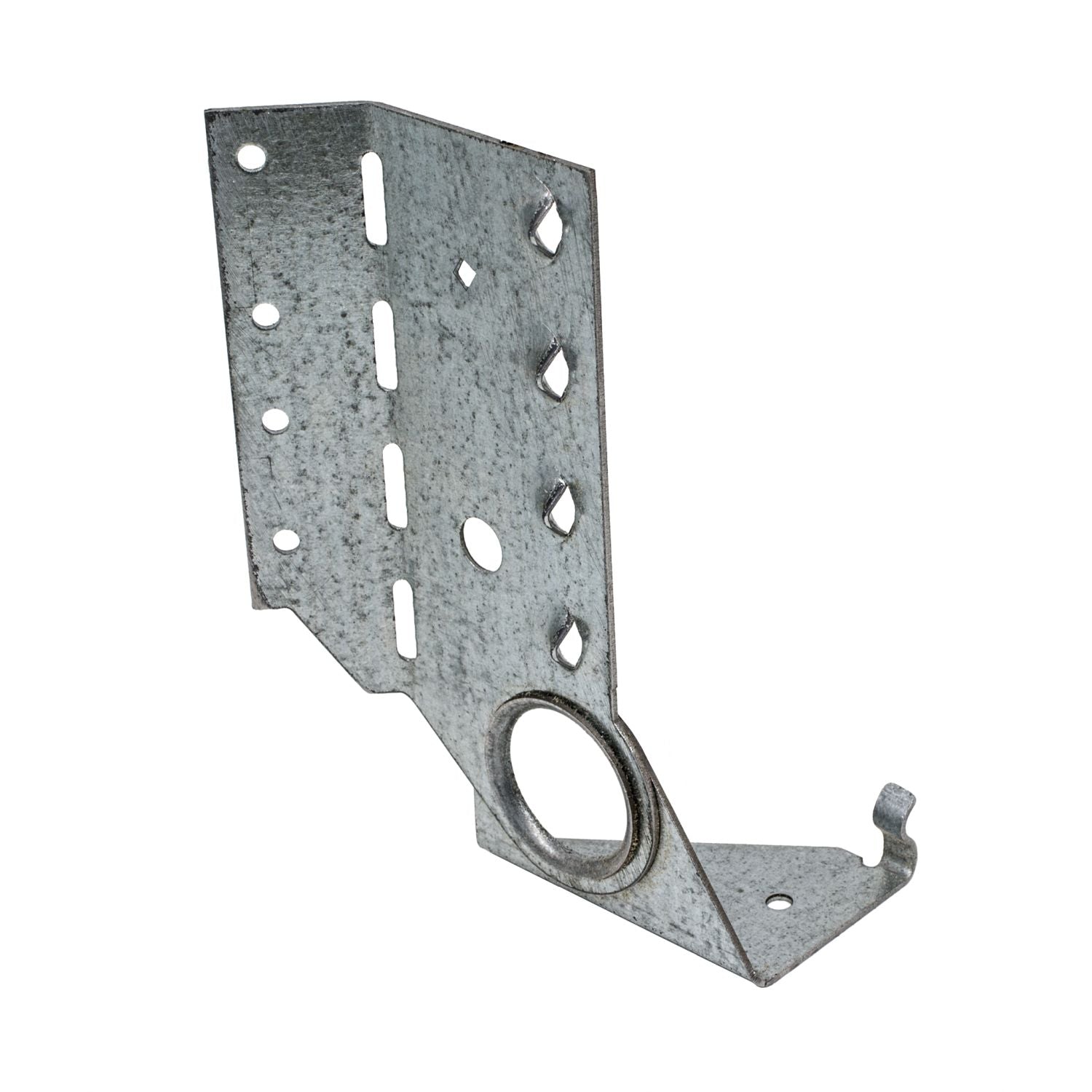

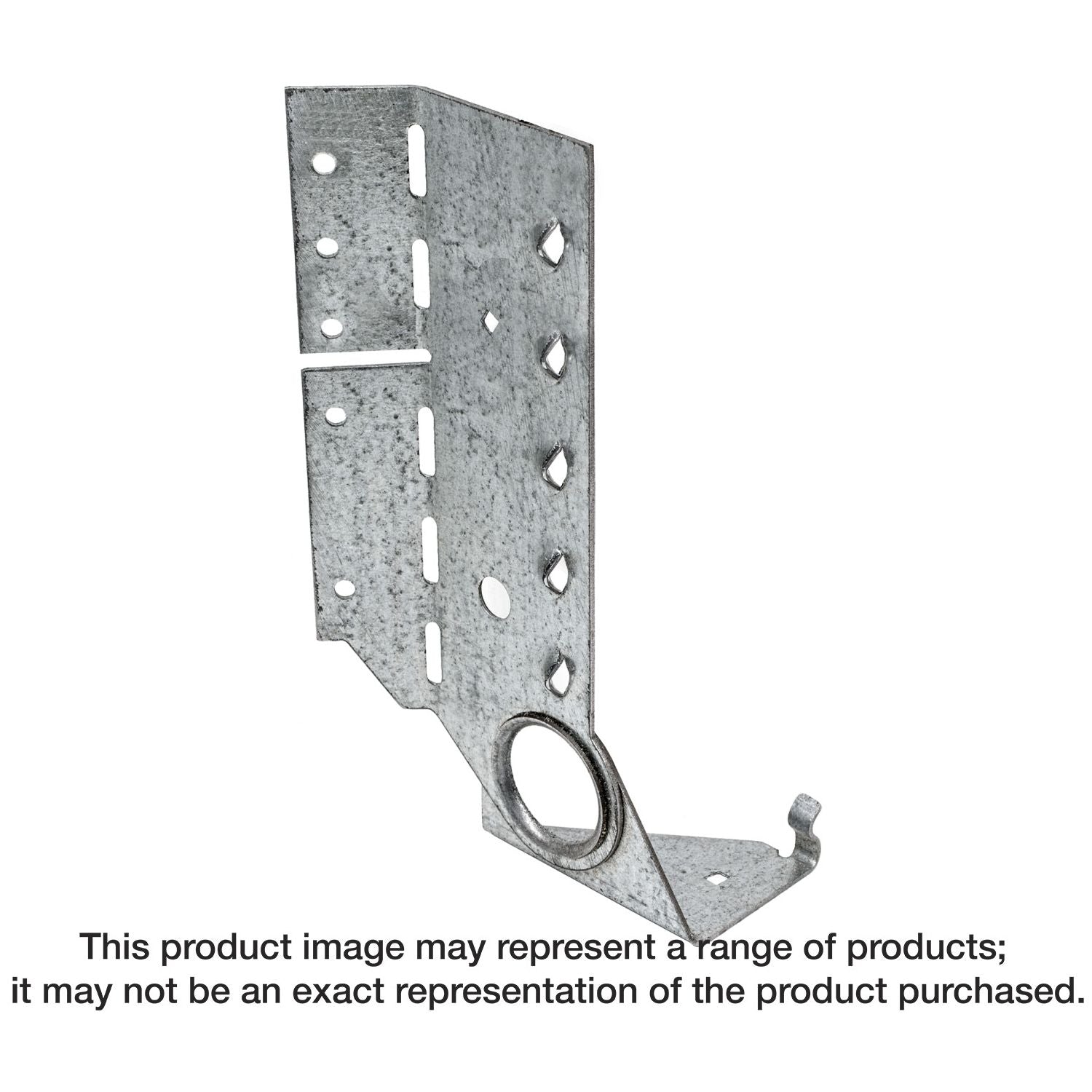

The Simpson Strong-Tie LSSJ26RZ face-mount adjustable jack hanger is a field-adjustable connector for attaching a 2x6 jack rafter to a hip or valley member in roof framing. This is a jack hanger designed for connecting sloped and skewed rafters in wood roof framing. Model Number LSSJ26RZ. If you are framing roofs and need a cleaner, more forgiving way to hit changing angles, this hanger is built for exactly that job.
What makes this connector useful on the job is how much adjustment it gives you without turning installation into a headache. The seat adjusts for roof pitches from 0:12 to 12:12, and the header flange allows skew adjustment from 0 to 45 degrees. That means one hanger can deal with the kind of real-world framing conditions that usually slow things down, especially when jack rafters are landing into hip or valley beams at something other than a simple square connection.
The one-sided install layout is a big part of the appeal here. All fastener holes are accessible from one side, so you are not reaching around the member or trying to work nails into awkward spots. Simpson Strong-Tie also calls out retrofit capability, which matters when you're reinforcing or modifying an existing roof frame instead of starting from scratch. The seat grip helps hold the hanger in place while you set it, which is the kind of small detail that saves time when you're on a ladder or staging.
Structurally, the swivel seat gives the rafter more support than fasteners alone, which is why this style of connector makes more sense than trying to piece together an angled connection with nails only. The hanger is made from 18-gauge steel and uses a face-mount flange. For exterior framing and treated lumber, the ZMAX coating adds extra corrosion resistance, so this is a better fit for exposed or moisture-prone conditions than a basic unfinished connector.
For size, this version is built for 2x6 nominal lumber with a listed hanger width of 1-9/16 in. and height of 4-3/8 in. Product dimensions provided in supplementary data are approximately 3.73 in. deep, 4.38 in. high, and 2.41 in. wide, with a product weight of 0.29 lb. Package quantity is 1. Fasteners are not included, so plan for the specified nails before you start the install.
This hanger is a strong fit for roof framing, repair work, and any carpentry job where a jack rafter lands at a variable pitch or skew. It is especially useful for framers, remodelers, and contractors who want an adjustable wood connector instead of stocking multiple fixed-angle hangers. If your work includes hip roofs, valley framing, or odd-angle rafter connections, this is the kind of connector that earns its keep fast.
Faster Roof Framing at Odd Angles
When a jack rafter comes in at a pitch and skew, fixed connectors can turn a simple install into a lot of layout work. This adjustable jack hanger is built to take that hassle out of roof framing.
- Adjusts for roof pitches from 0:12 to 12:12
- Header flange allows skew adjustment from 0 to 45 degrees
- Ships in a form ready for common angled applications
Easy Access Where Installation Gets Tight
The hole pattern is laid out so the connector installs from one side with the fastening points accessible. That matters when you're working against a beam, in a retrofit, or anywhere your swing and sightline are limited.
- Designed for one-side installation
- Can be installed as a retrofit
- Seat grip helps make initial placement quicker and easier
Support That Goes Beyond Fasteners Alone
The swivel seat is doing real work here. It gives the jack rafter bearing and support at the connection point, which is a better approach than depending on nails alone to manage the load path.
- Swivel seat provides added rafter support
- Built from 18-gauge steel
- ZMAX coating adds corrosion resistance for exterior and treated-wood applications
Simpson Strong-Tie LSSJ26RZ Face-Mount Adjustable Jack Hanger Details That Matter
Simpson Strong-Tie LSSJ26RZ Face-Mount Adjustable Jack Hanger Details That Matter
With connectors like this, the little details decide whether installation goes smoothly or turns into rework. The body shape, seat geometry, and accessible nailing pattern are what make this hanger practical in the field.
- Joist hanger size: 2x6 nominal lumber
- Listed width: 1-9/16 in.
- Listed height: 4-3/8 in.
What's in the Box
- (1) Simpson Strong-Tie LSSJ26RZ face-mount adjustable jack hanger
Fasteners are not included.
Key Specifications
| Tool Type | Face-mount adjustable jack hanger |
|---|---|
| Joist Size | 2x6 nominal |
| Skew | Right |
| Skew Adjustment Range | 0 to 45 degrees |
| Roof Pitch Range | 0:12 to 12:12 |
| Material | Steel |
| Gauge | 18 ga |
| Finish | ZMAX galvanized, G185 |
| Listed Width | 1-9/16 in. |
| Listed Height | 4-3/8 in. |
| Product Weight | 0.29 lb |
| Package Quantity | 1 |
Compatibility
Built For
Pro Tip
Bevel-cut the joist end before final placement so the seat and flange can do their job without forcing the connection. On angled roof work, dry-fit the hanger to the pitch first, then lock in the fastener pattern once the rafter lands clean.
Tool Nut's Take
A smart connector for roof framing that rarely lands at a perfect angle
The Simpson Strong-Tie LSSJ26RZ face-mount adjustable jack hanger solves the exact problem that slows roof framing down: sloped, skewed rafter connections that do not fit a standard hanger.
- Who it's for: Framers, remodelers, and contractors tying 2x6 jack rafters into hip or valley members.
- Why it stands out: One-side access, broad pitch adjustment, and skew capability make it far more practical than trying to force a fixed hanger into an angled connection.
- Worth knowing: This is a single right-skew hanger, not a hardware kit, so bring the specified fasteners and make sure the job calls for the right-hand version.
Common Questions
- What size lumber is this hanger designed for? This model is designed for 2x6 nominal lumber.
- Can this hanger handle sloped roof framing? Yes. It accommodates roof pitches from 0:12 to 12:12.
- How much skew adjustment does it allow? The header flange allows skew adjustment from 0 to 45 degrees.
- Is this suitable for retrofit work? Yes. Product information specifically states that it can be installed as a retrofit.
- Are fasteners included? No. Fasteners are not included.
