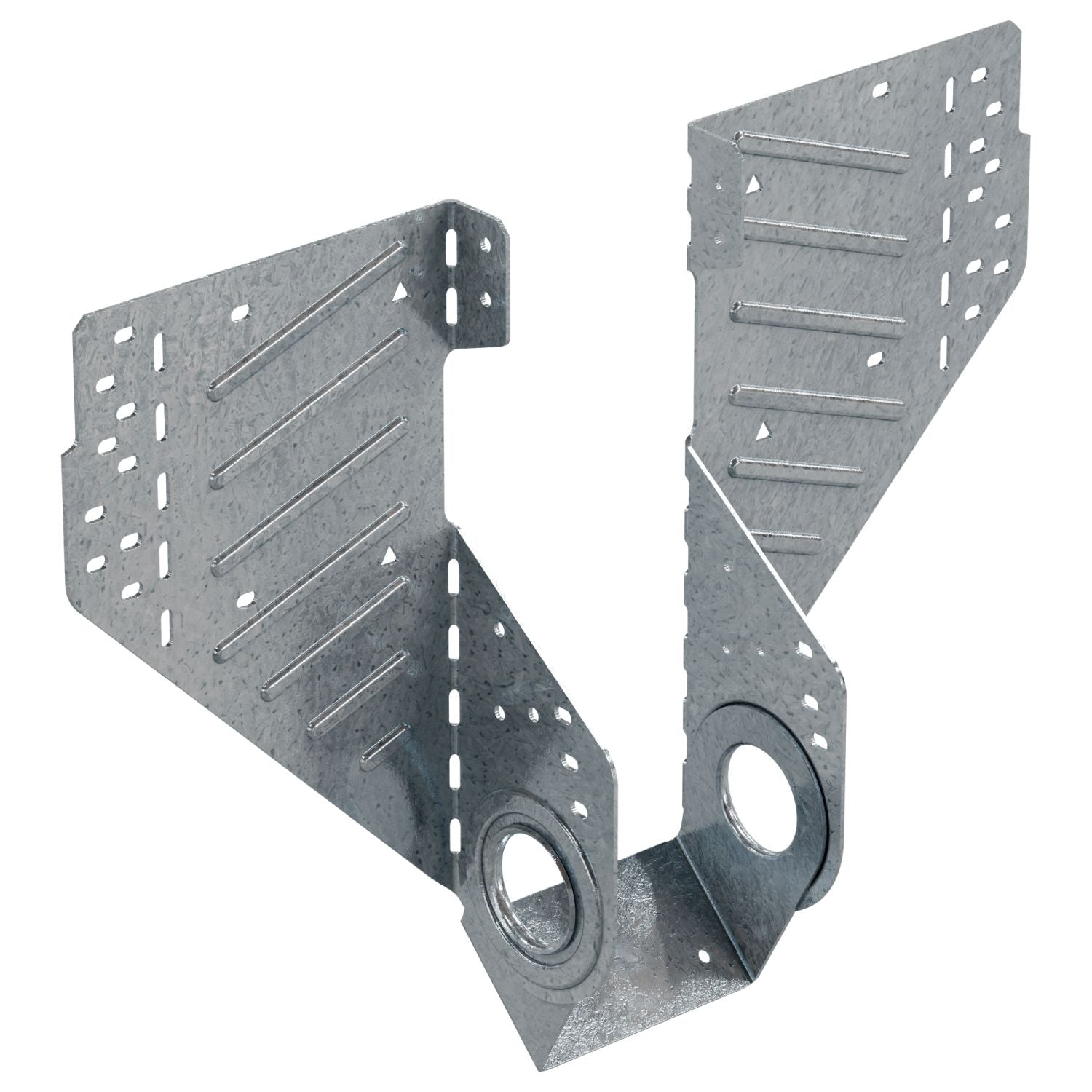

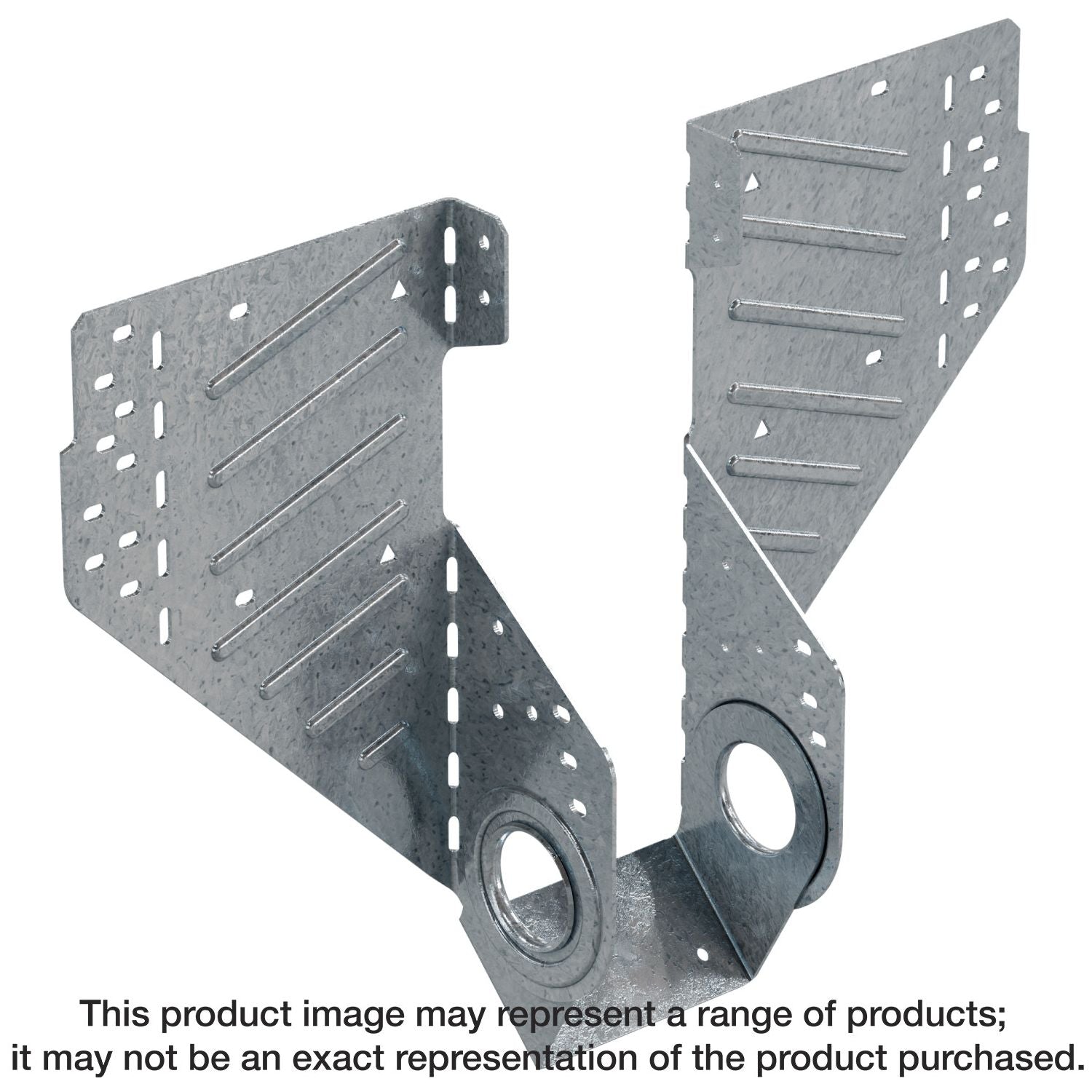

The Simpson Strong-Tie LSSR210-2Z Double 2x10 Field Adjustable Rafter Hanger is a field-adjustable rafter hanger built for connecting sloped or skewed rafters in wood framing. This is a rafter hanger designed for roof framing and other angled structural connections. Model Number LSSR210-2Z. If you are working with conditions that change on site, this hanger gives you adjustment range without forcing a custom workaround.
What makes the LSSR series useful is simple: it can be installed after rafters are already tacked in place, and it adjusts for both skew and slope up to 45 degrees. That matters in the real world because roof framing, pergolas, patio covers, and similar builds do not always land at perfect factory angles. The flange design allows left or right skew adjustment from 0 degrees to 45 degrees, and the hinged swivel seat adjusts from 0 degrees to 45 degrees up or down. Instead of stopping the job to switch hardware, you can tune the hanger to the framing condition you actually have.
This model is sized for a 3 inch joist member and uses a 16 gauge body, which puts it in the heavier end of the LSSR family compared with the smaller 18 gauge versions. The published dimensions for the LSSR210-2Z are 3-1/8 inches wide, 8-15/16 inches high, and 5-1/8 inches for dimension A. Those numbers matter because they tell you this connector is meant for larger double-member framing, not light trim work or undersized rafters.
The LSSR210-2Z is also built for flexibility in layout. The product is described by Simpson Strong-Tie as suitable for engineered wood applications, and the installation notes specifically call out I-joist use with required web stiffeners. That makes this more than a basic face-mount hanger for standard lumber. It is a good fit when your framing package includes engineered wood members and you still need angle adjustment at the connection point.
For jobsite durability, the ZMAX coating is a key part of the story. On exterior work, deck roof covers, pergolas, and framing that may involve treated lumber exposure, corrosion resistance is not a throwaway feature. It directly affects long-term connector life. This model is also API approved at the full level, which adds confidence for structural applications where approved hardware is expected.
The best buyer for this connector is a framer, general contractor, deck builder, pergola builder, or serious DIYer dealing with angled roof or beam connections in wood construction. If your project involves a double 2x10 member and the framing angle may change in the field, the Simpson Strong-Tie LSSR210-2Z Double 2x10 Field Adjustable Rafter Hanger is the kind of connector that keeps the job moving and helps avoid improvised fixes that usually cost more time later.
Handles Slope and Skew Without a Special-Order Headache
This hanger earns its keep when the framing angle is not straightforward. Being able to adjust both the seat and the side geometry on site helps you fit real framing conditions instead of forcing the structure to match a fixed connector.
- Adjusts for skew from 0 degrees to 45 degrees left or right
- Swivel seat adjusts from 0 degrees to 45 degrees up or down
- Can be installed after rafters are already tacked in place
Made for Larger Double-Member Framing
The LSSR210-2Z is not a generic one-size connector. Its 3 inch joist size and 16 gauge construction make it a better match for double 2x10 work where connection strength and fit are more demanding.
- Joist size: 3 in.
- Gauge: 16
- Overall width: 3-1/8 in.; height: 8-15/16 in.
Better Long-Term Performance Outdoors
Outdoor framing connectors live in tougher conditions than interior hardware. The ZMAX finish is there for a reason, especially when the project involves treated wood or exposure to weather-prone environments.
- ZMAX coating for added corrosion resistance
- Suitable for solid sawn and engineered wood applications based on the provided product information
- Use all specified fasteners to achieve published performance
Key Specifications
| Joist Size (in.) | 3 |
|---|---|
| Gauge | 16 |
| Width (in.) | 3-1/8 |
| Height (in.) | 8-15/16 |
| A Dimension (in.) | 5-1/8 |
| Finish | ZMAX coating |
| Application | Engineered Wood |
| Packaging Quantity | 1 |
Compatibility
Built For
Pro Tip
Set the seat and get a couple of holding fasteners in place before fully fastening the connector. On adjustable hangers like this, that makes it a lot easier to keep the bend lines plumb and the side stirrups snug to the member while you finish the pattern.
Tool Nut's Take
Simpson Strong-Tie LSSR210-2Z Double 2x10 Field Adjustable Rafter Hanger solves the angle problem
If your framing changes on site and you still need a clean structural connection, this is the kind of hardware that keeps you moving instead of improvising.
- Who it's for: Framers, deck builders, pergola builders, and contractors working with double 2x roof or beam connections that are sloped or skewed.
- Why it stands out: It adjusts for both skew and slope up to 45 degrees, installs after rafters are in place, and gives you ZMAX corrosion protection for tougher environments.
- Worth knowing: This is sold as a single connector, and you still need to follow the specified fastener schedule. For I-joist work, web stiffeners are required.
Common Questions
- How much angle adjustment does this hanger allow? The flange design allows skew adjustment from 0 degrees to 45 degrees left or right, and the swivel seat adjusts from 0 degrees to 45 degrees up or down.
- Can this hanger be installed after the rafters are already in place? Yes. Simpson Strong-Tie states that the LSSR series can be installed after rafters are already tacked in place.
- What member size is this model designed for? The LSSR210-2Z is sized for a 3 inch joist member.
- Is it suitable for engineered wood applications? Yes. The application is engineered wood, and the installation notes include guidance for I-joist use with required web stiffeners.
