Simpson Strong-Tie LSSR Light Field-Adjustable Rafter Hanger for 2x8 (LSSR28Z)
Simpson Strong-Tie LSSR Light Field-Adjustable Rafter Hanger for 2x8 (LSSR28Z)
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
Key Features
Overview
The Simpson Strong-Tie LSSR28Z LSSR Light Field-Adjustable Rafter Hanger for 2x8 is a framing connector built to support a 2x8 member where slope or skew needs to be handled on the job. This is a rafter hanger designed for roof framing and angled wood-to-wood connections. Model number LSSR28Z. If you are framing rafters and do not want to stock a pile of fixed-angle hangers for different conditions, this style gives you more flexibility in one part.
What makes this hanger matter is the adjustable layout. Instead of forcing a standard hanger into a slope it was not built for, the LSSR series is made for field adjustment. The specs and product imagery indicate slope adjustment up to 45 degrees, which gives framers a cleaner way to deal with changing roof lines, repair work, or one-off framing conditions where exact angles are not known ahead of time.
The sizing is straightforward and jobsite friendly. This version is made for 2x8 framing and the web data identifies a 1-1/2 inch width with 18 gauge construction. That combination tells you what kind of member it is built around and the general duty class of the connector. For the buyer, that means you can match the hanger to standard dimensional lumber without guessing at fit.
Finish matters with framing hardware, especially when the connector may be exposed to moisture during construction or in service. This model uses ZMAX finish, which is one of the main reasons to choose it over a plain unfinished connector when corrosion resistance matters. On real jobs, better coating protection helps the hardware hold up longer in demanding environments.

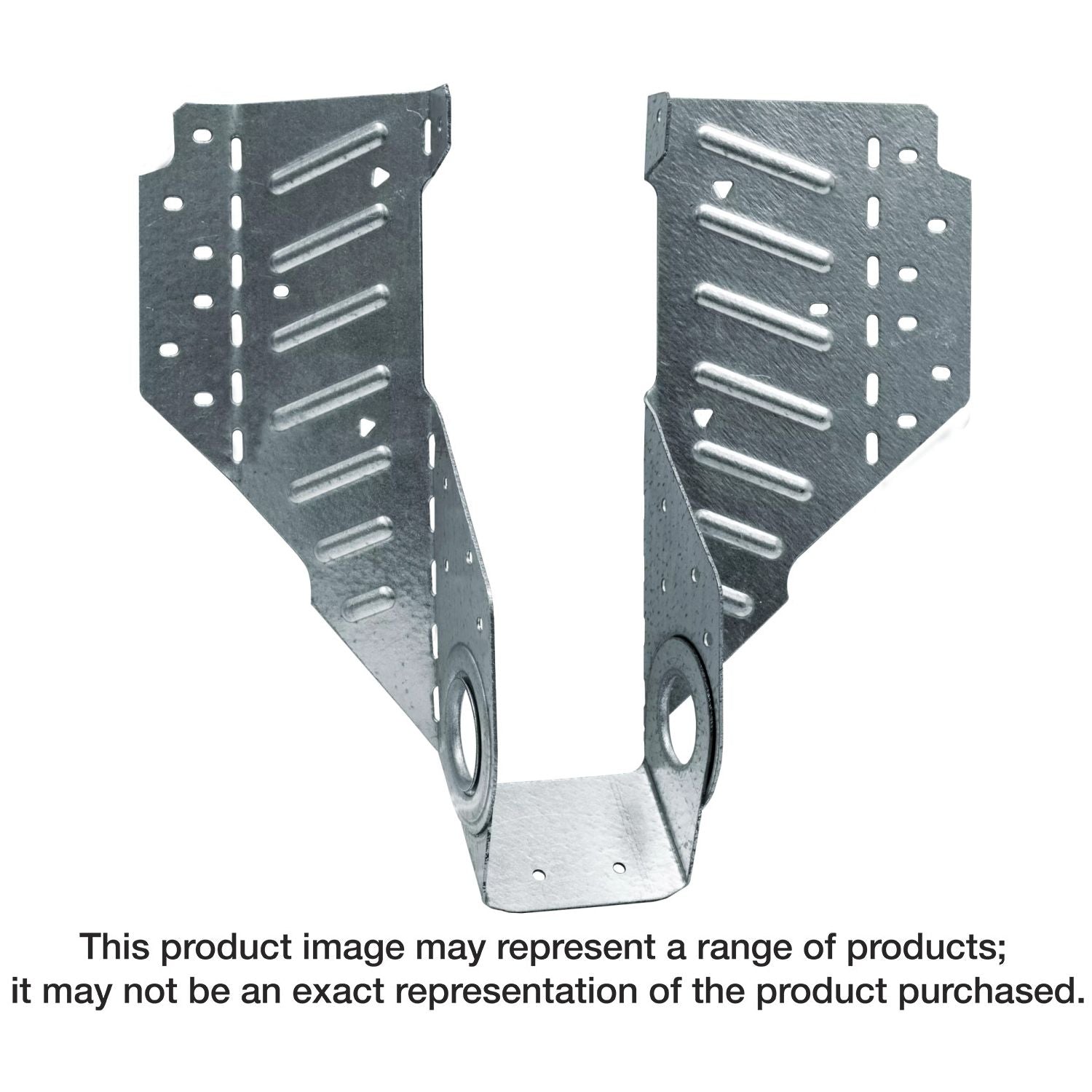

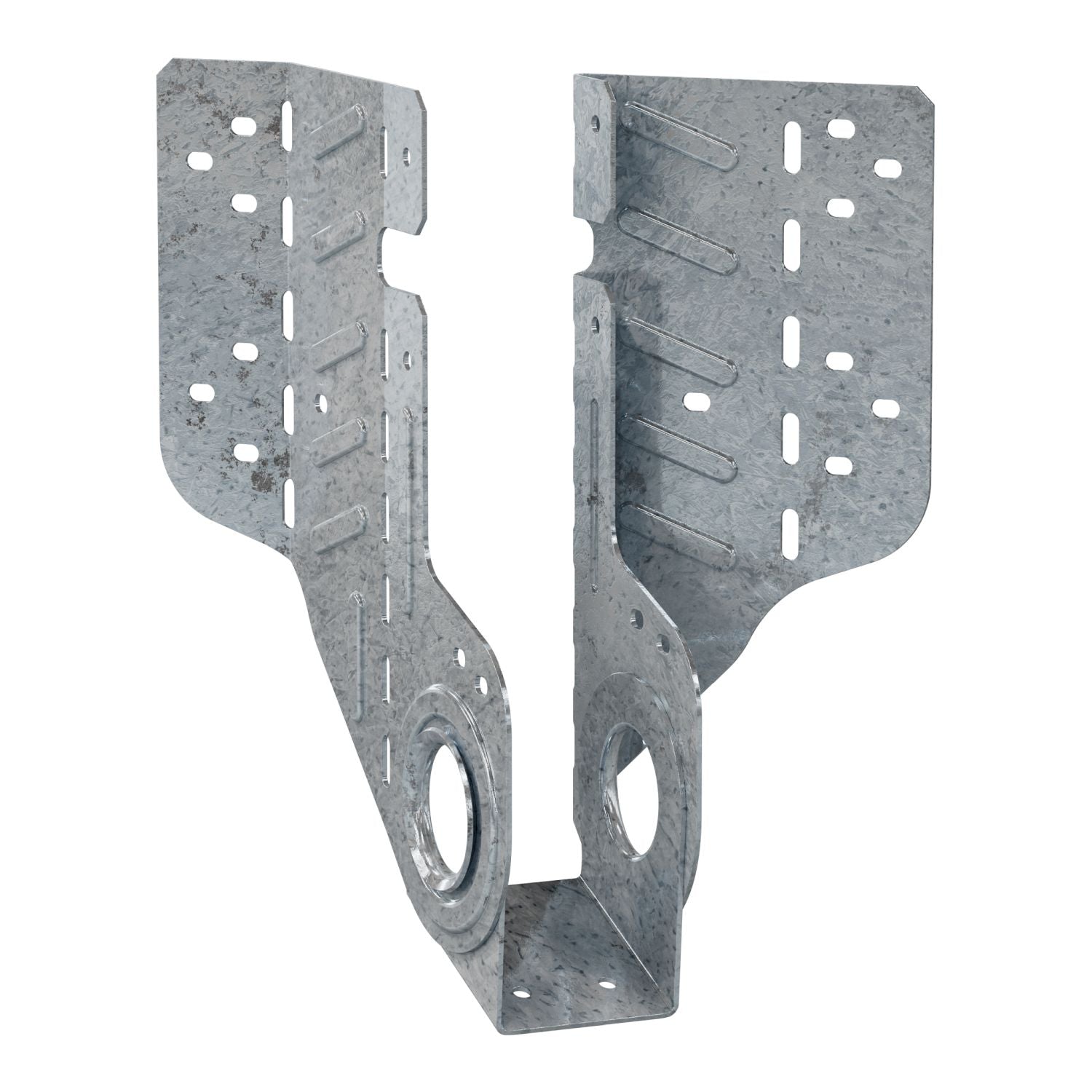

The overall shape also speaks to practical installation. The formed seat supports the carried member while the side flanges provide multiple fastener locations for a secure connection. Because it is designed as a field-adjustable rafter hanger, it is a good fit for installers who need to adapt to actual site conditions rather than work from idealized plans.
This Simpson Strong-Tie framing connector makes the most sense for roof framers, remodelers, general contractors, and serious DIY builders dealing with sloped roof framing, porch roofs, repairs, or additions. If you need a fixed connector for repetitive production work, a standard hanger may be faster. If you need flexibility for changing slope conditions on a 2x8 connection, the LSSR28Z is the smarter buy.
Handles Sloped Roof Framing
This is the kind of connector you use when a standard fixed hanger is too limiting. The adjustable geometry gives you room to deal with real framing conditions instead of ideal ones.
- Designed for 2x8 wood framing members
- Adjustable for slope up to 45 degrees
Built for Clean, Reliable Fit
The formed seat and side flanges give the carried member a defined place to land, which helps when you are trying to keep framing straight and supported during installation.
- 1-1/2 inch width suits standard 2-by material
- Multiple fastener holes support secure wood-to-wood connection
Better Choice for Demanding Exposure
For framing hardware, finish is not just cosmetic. The ZMAX coating gives this hanger extra corrosion resistance, which is a smart move when the connection may see weather or jobsite moisture.
- ZMAX finish for added corrosion protection
- 18 gauge construction identified in source web data
Key Specifications
| Connector Type | Field-Adjustable Rafter Hanger |
|---|---|
| Lumber Size | 2x8 |
| Seat Width | 1-1/2 in |
| Material Thickness | 18 ga |
| Maximum Slope Adjustment | 45° |
| Finish | ZMAX |
Built For
Common Questions
- What size member is this hanger built for? The LSSR28Z is identified for use with 2x8 framing members.
- Is this a fixed-angle hanger? No. It is a field-adjustable rafter hanger intended to handle sloped or skewed framing conditions.
- How much slope adjustment does it allow? The product diagram indicates slope adjustment up to 45 degrees.
- What finish does it use? This model uses a ZMAX finish for added corrosion resistance.
Tool Nut's Take
Simpson Strong-Tie LSSR28Z LSSR Light Field-Adjustable Rafter Hanger for 2x8 is the smart pick when the roof plan meets real life
This is a practical framing connector for builders who need one hanger that can deal with slope changes instead of stopping work to chase a fixed-angle part.
- Who it's for: Framers, remodelers, and builders working with 2x8 roof framing where angle conditions can change on site.
- Why it stands out: The adjustable design and 45 degree slope capability make it more versatile than a basic fixed hanger, and the ZMAX finish is the right call when corrosion resistance matters.
- Worth knowing: This is still a connector for a specific member size, so make sure your framing layout calls for a 2x8 and not a wider or deeper carried member.
