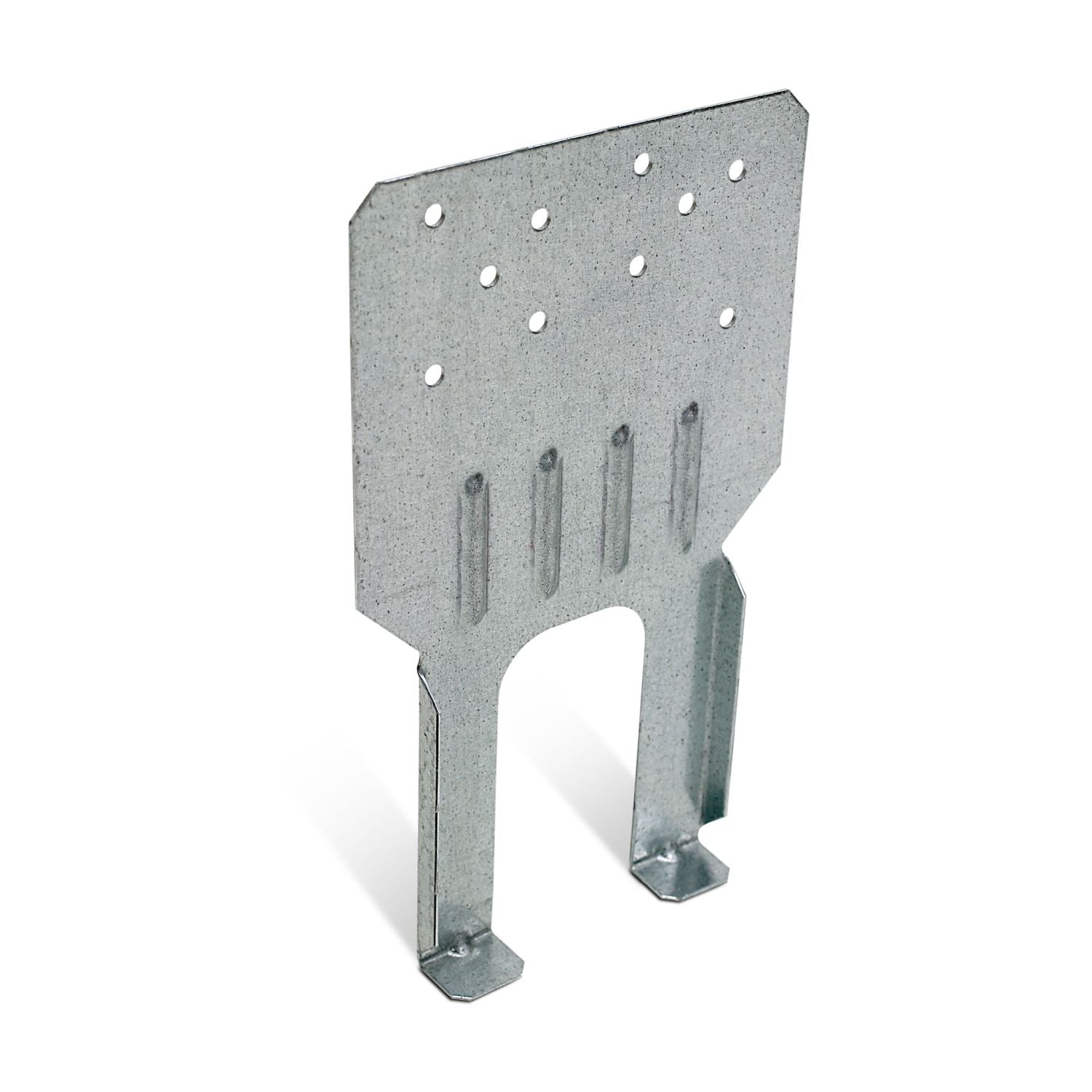

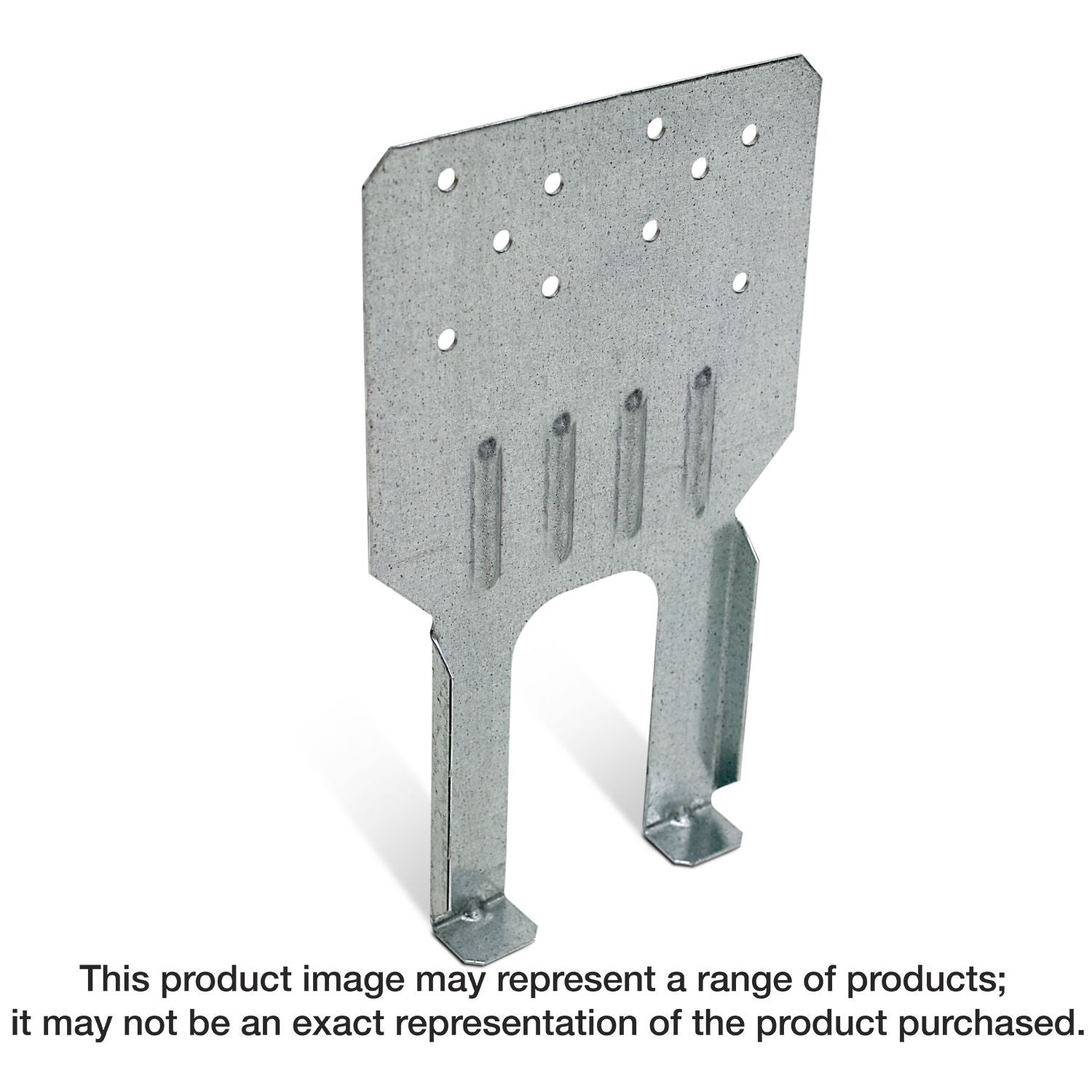

Simpson Strong-Tie LTA2 LTA Lateral Truss Anchor for 2x4
Simpson Strong-Tie LTA2 LTA Lateral Truss Anchor for 2x4
Out of Stock - Available to Order - Usually ships in 3-5 days
Product Details
Product Details
- Simplified design of the embedded portion allows for easy positioning close to rebar
- Ideal for anchoring trusses running perpendicular or parallel to the wall
- Embedment line stamped on part simplifies installation and helps avoid installation errors
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
The LTA2 is an embedded truss anchor for grout-filled CMU and concrete walls that develops high loads with shallow embedment. Designed for 2x4 minimum truss chords, the LTA2 resists uplift and lateral loads parallel and perpendicular to the wall with a minimum heel height requirement. Great in areas where a strap over the heel is not required. The side tab acts as a locator in the masonry block and the four embedded hooks provide for a positive bond in the concrete grout.
- Simplified design of the embedded portion allows for easy positioning close to rebar
- Ideal for anchoring trusses running perpendicular or parallel to the wall
- Embedment line stamped on part simplifies installation and helps avoid installation errors
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Install With: Install with 10d x 1-1/2 in. nails
